Description

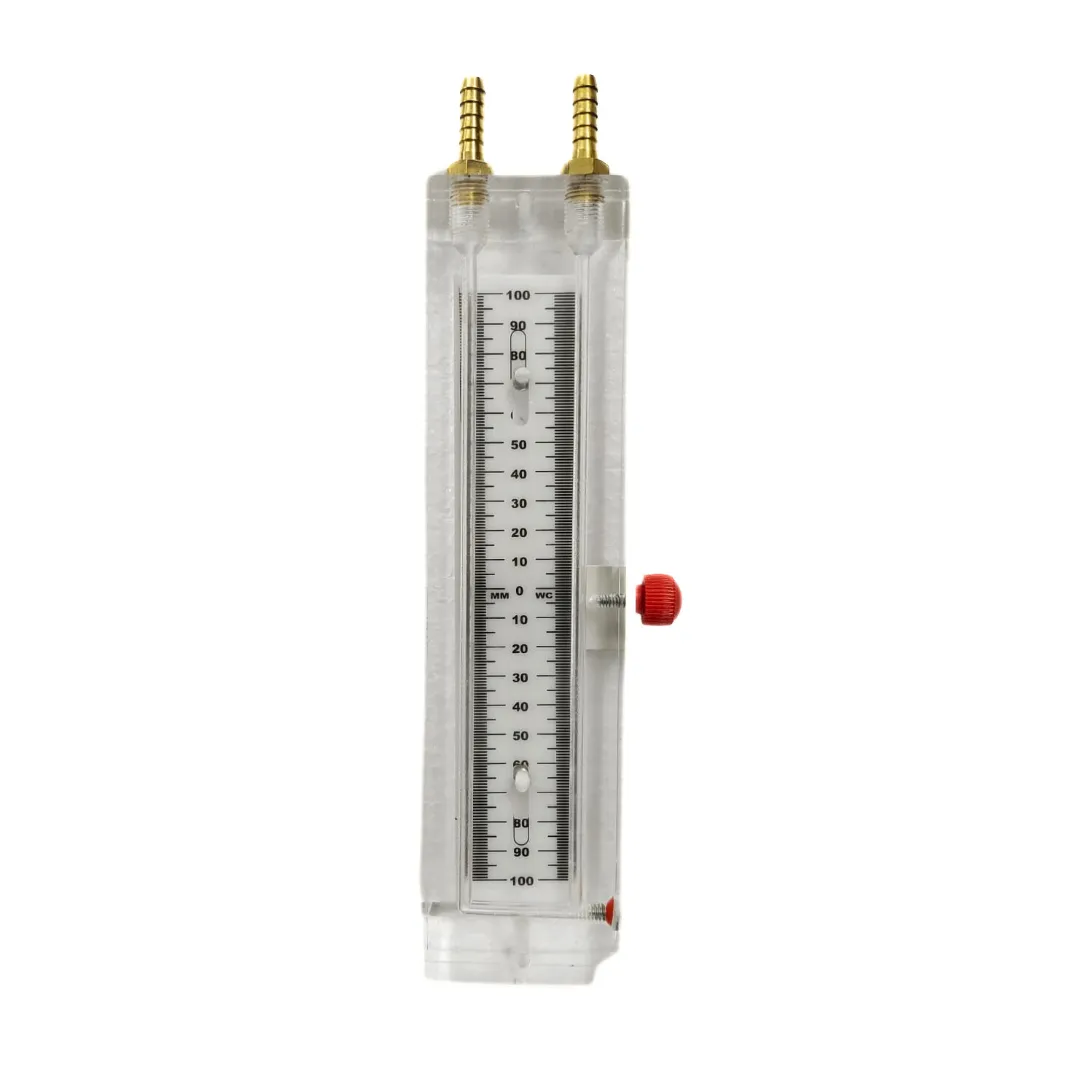

Acrylic U-Tube Manometer: Precision Monitoring
The “Ji” Japsin Instrumentation Acrylic U-Tube Manometer is a precision instrument designed for accurate measurement of pressure differentials in various industrial applications. This specific model features a range of 100-0-100 mmWC (millimeters of water column), making it suitable for a wide range of pressure measurement tasks. The manometer is designed to be wall-mounted, providing convenient and easily accessible pressure readings in industrial settings. With a 1/4″ SS (stainless steel) nozzle, this instrument is crafted for durability and reliability.
Design and Construction:
Crafted with meticulous attention to detail, the “Ji” Japsin Instrumentation Acrylic U-Tube Manometer boasts a robust construction that ensures longevity and accuracy. The main body of the manometer is constructed from high-quality acrylic material, known for its transparency and resistance to corrosion. This not only provides a clear view of the fluid levels but also ensures that the instrument remains unaffected by the corrosive nature of certain industrial environments.
The U-shaped tube is a defining feature of this manometer, providing a simple yet effective method for measuring pressure differentials. The 1/4″ SS nozzle further enhances the durability of the instrument, making it suitable for use in diverse industrial conditions.
Measurement Range:
The manometer features a measurement range of 100-0-100 mmWC, making it ideal for applications where precise pressure measurements are crucial. This broad range allows the instrument to handle varying pressure levels, providing flexibility for different industrial processes.
Wall-Mounted Convenience:
Designed for practicality, the wall-mounted configuration of this manometer ensures that it can be easily installed at a convenient location within an industrial setup. This feature not only saves valuable floor space but also allows for quick and easy access to pressure readings when needed.
Versatility in Applications:
The “Ji” Japsin Instrumentation Acrylic U-Tube Manometer finds applications across diverse industries due to its versatility. It can be utilized in HVAC systems, pharmaceutical manufacturing, chemical processing plants, and other environments where precise pressure measurements are essential. The broad measurement range makes it adaptable to various tasks, ensuring its utility in a wide array of industrial scenarios.
Easy to Read:
The clear acrylic construction of the U-shaped tube ensures that pressure differentials are easily visible. The transparency of the material allows operators to quickly and accurately read the fluid levels, facilitating efficient monitoring and control of pressure in real time.
Maintenance and Calibration:
To maintain the accuracy and reliability of the manometer, regular calibration is recommended. The instrument is designed with user-friendly features to facilitate easy calibration processes. Routine maintenance is minimal, thanks to the durable construction and quality materials used in its manufacturing.
Safety Features:
Safety is a top priority in industrial environments, and this manometer is equipped with safety features to ensure secure operation. The 1/4″ SS nozzle adds an extra layer of safety, providing resistance to corrosion and wear, thereby minimizing the risk of leaks or malfunctions.
Compliance and Certification:
The “Ji” Japsin Instrumentation Acrylic U Tube Manometer complies with industry standards and regulations. It may come with relevant certifications to assure users of its quality, accuracy, and safety. These certifications, along with adherence to standards, make this manometer a reliable and trusted tool in industrial applications.
Conclusion:
In conclusion, the “Ji” Japsin Instrumentation Acrylic U-Tube Manometer with a 100-0-100 mmWC range, wall-mounted design, and 1/4″ SS nozzle is a precision instrument that meets the demanding requirements of various industrial processes. Its durable construction, versatile measurement range, and user-friendly features make it a valuable asset in applications where accurate pressure differentials are crucial. Whether in HVAC systems, chemical plants, or pharmaceutical manufacturing, this manometer provides a clear and reliable solution for monitoring and controlling pressure with efficiency and safety.
Japsin Instrumentation – Since 1974
