Bi-Metal Dial Thermometer Temperature Gauge, 4″ Dial Size, Range 0 to 600 Deg C, 9″ long Stem X 10 mm OD, Horizontal Mounting, 1/2″ BSP (M) Connection, SS Case & SS Wetted Parts

Description

Bi-Metal Dial Thermometer Temperature Gauge: Precision Temperature Monitoring for Industrial Applications

Accurate temperature monitoring is essential in a multitude of industrial processes to ensure safety, efficiency, and product quality. Among the various instruments available for this purpose, the Bi-Metal Dial Thermometer Temperature Gauge stands out for its reliability, durability, and precision. This versatile gauge is designed for rigorous industrial environments, offering a robust solution for accurate temperature measurement. Featuring a large 4-inch dial, a broad temperature range, and high-quality materials, this thermometer is ideal for a wide range of applications.

Overview of the Bi-Metal Dial Thermometer Temperature Gauge

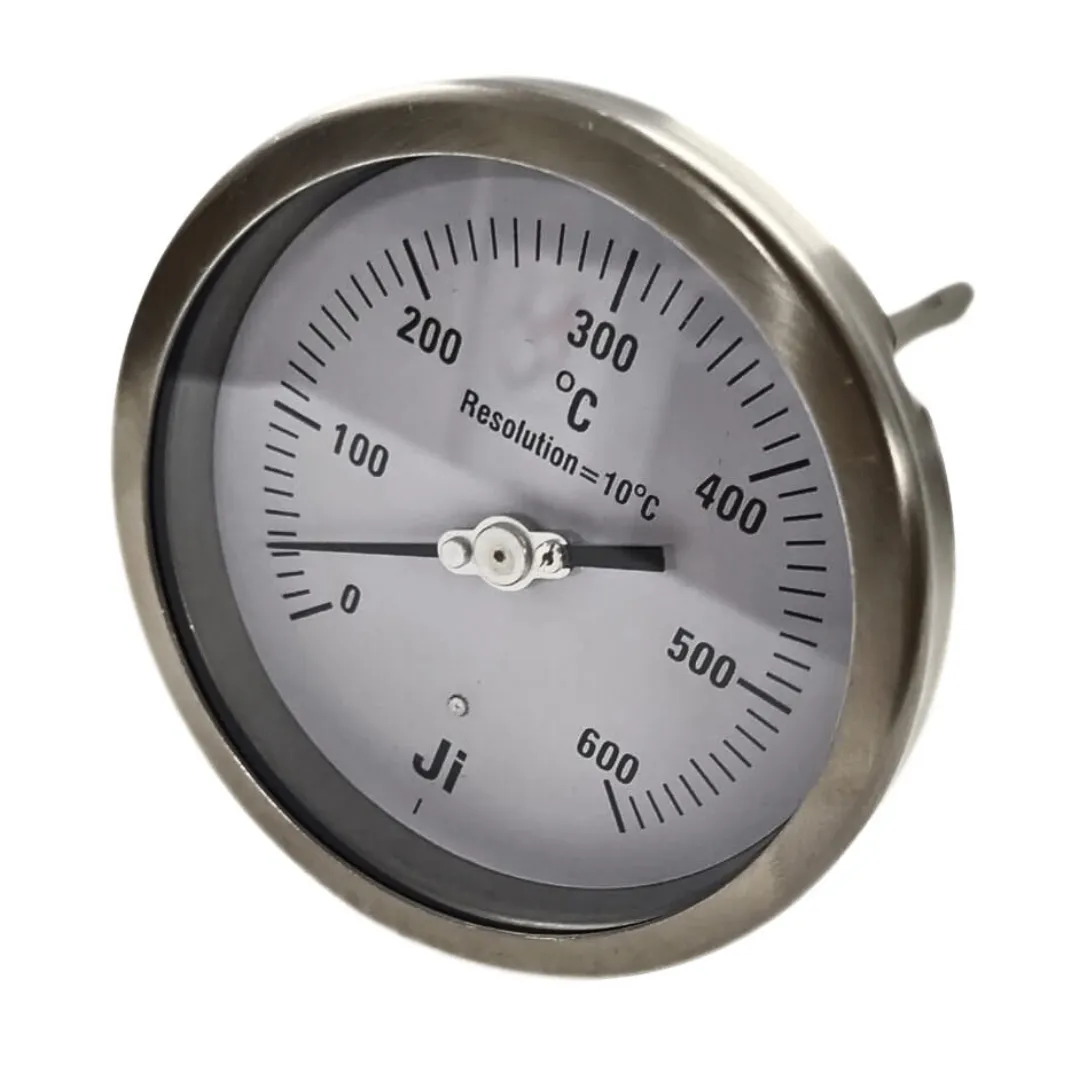

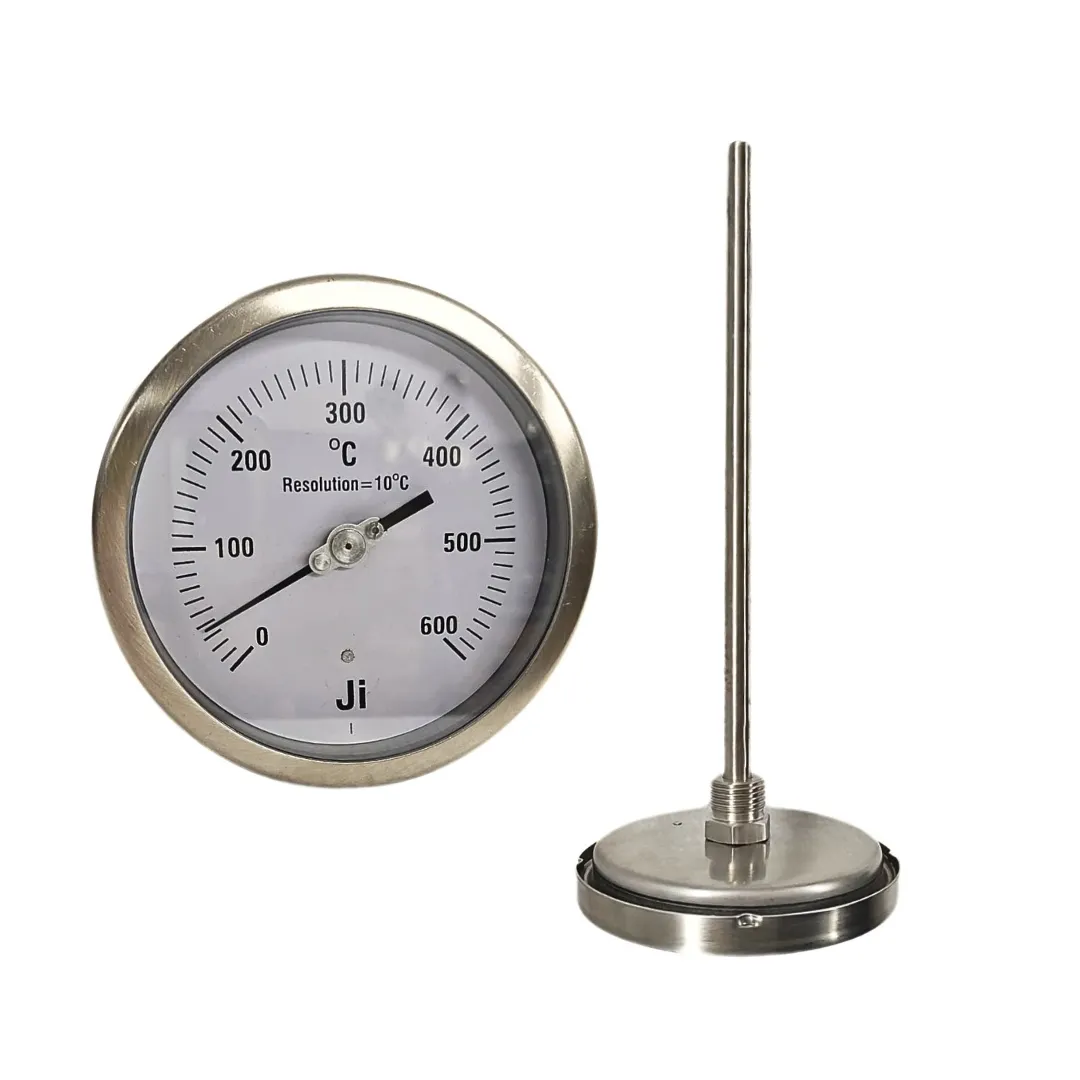

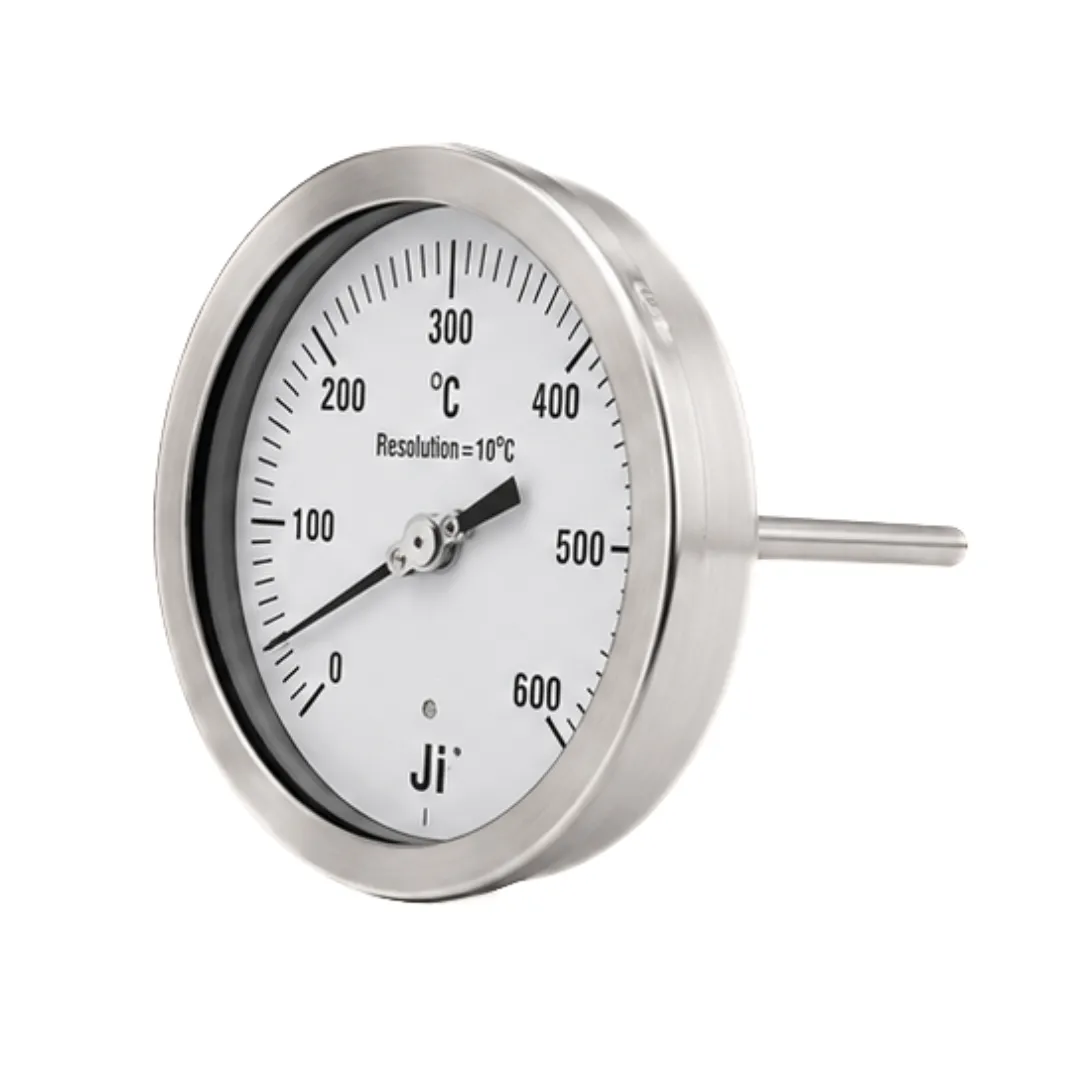

The Bi-Metal Dial Thermometer Temperature Gauge is engineered for high performance and longevity. It features a substantial 4-inch (100 mm) dial that ensures easy readability even from a distance. The gauge covers a wide temperature range from 0 to 600 degrees Celsius, making it suitable for various industrial processes. The thermometer’s construction includes a stainless steel case and wetted parts, providing excellent resistance to corrosion and harsh environmental conditions. With a 9-inch long stem and 10 mm outer diameter, it is designed for horizontal mounting and comes equipped with a 1/2″ BSP (M) connection for easy installation.

Key Specifications

1. Dial Size and Construction

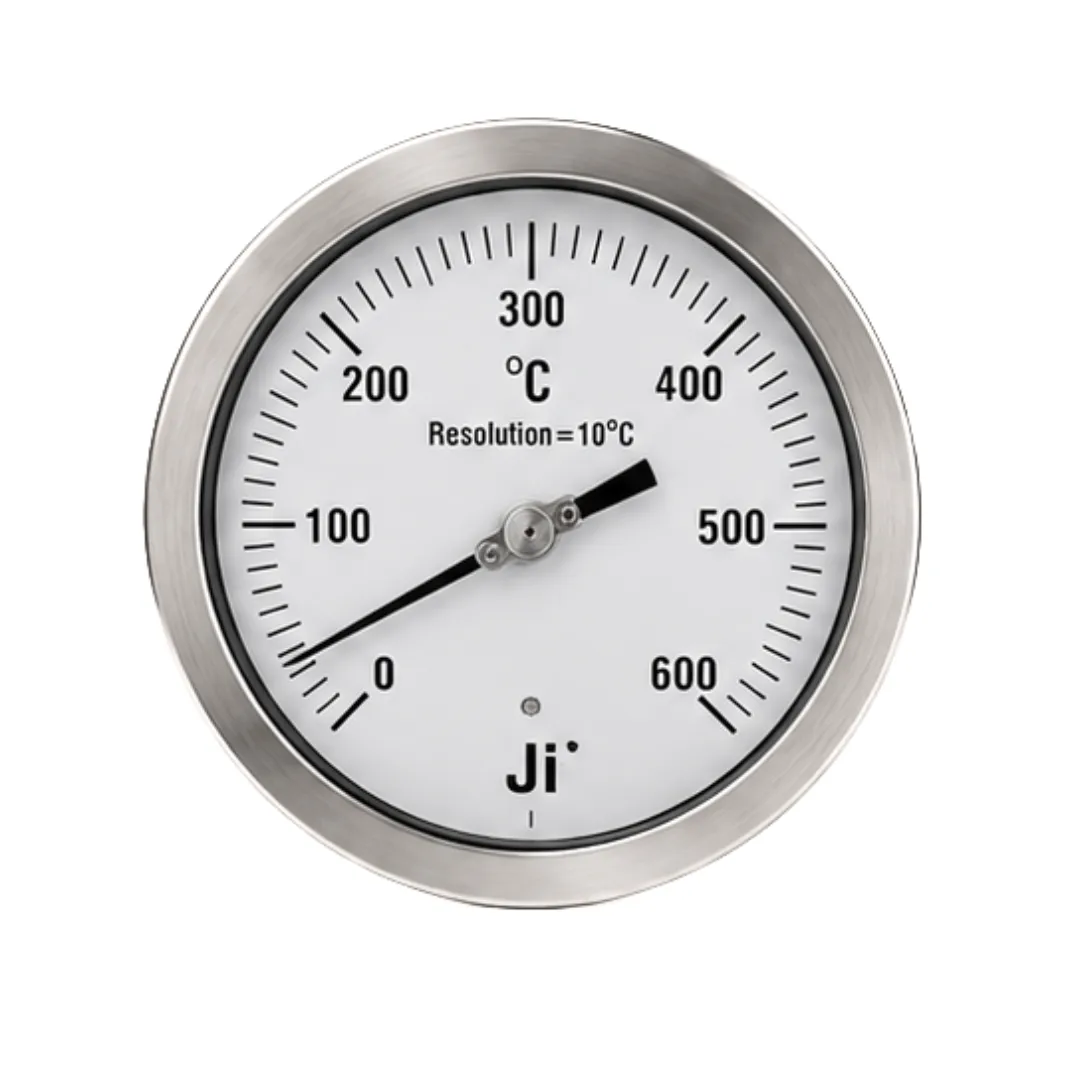

   • The thermometer features a large 4-inch (100 mm) dial, which provides a clear and easily readable display. This is particularly important in industrial settings where quick and accurate readings are crucial.
   • The case is constructed from stainless steel, which offers superior durability and corrosion resistance. This ensures the thermometer remains functional and reliable even in harsh industrial environments.
2. Temperature Range
   • The Bi-Metal Dial Thermometer covers a broad temperature range from 0 to 600 degrees Celsius. This extensive range makes it suitable for a variety of applications, from low-temperature processes to high-temperature industrial operations.
3. Stem Dimensions

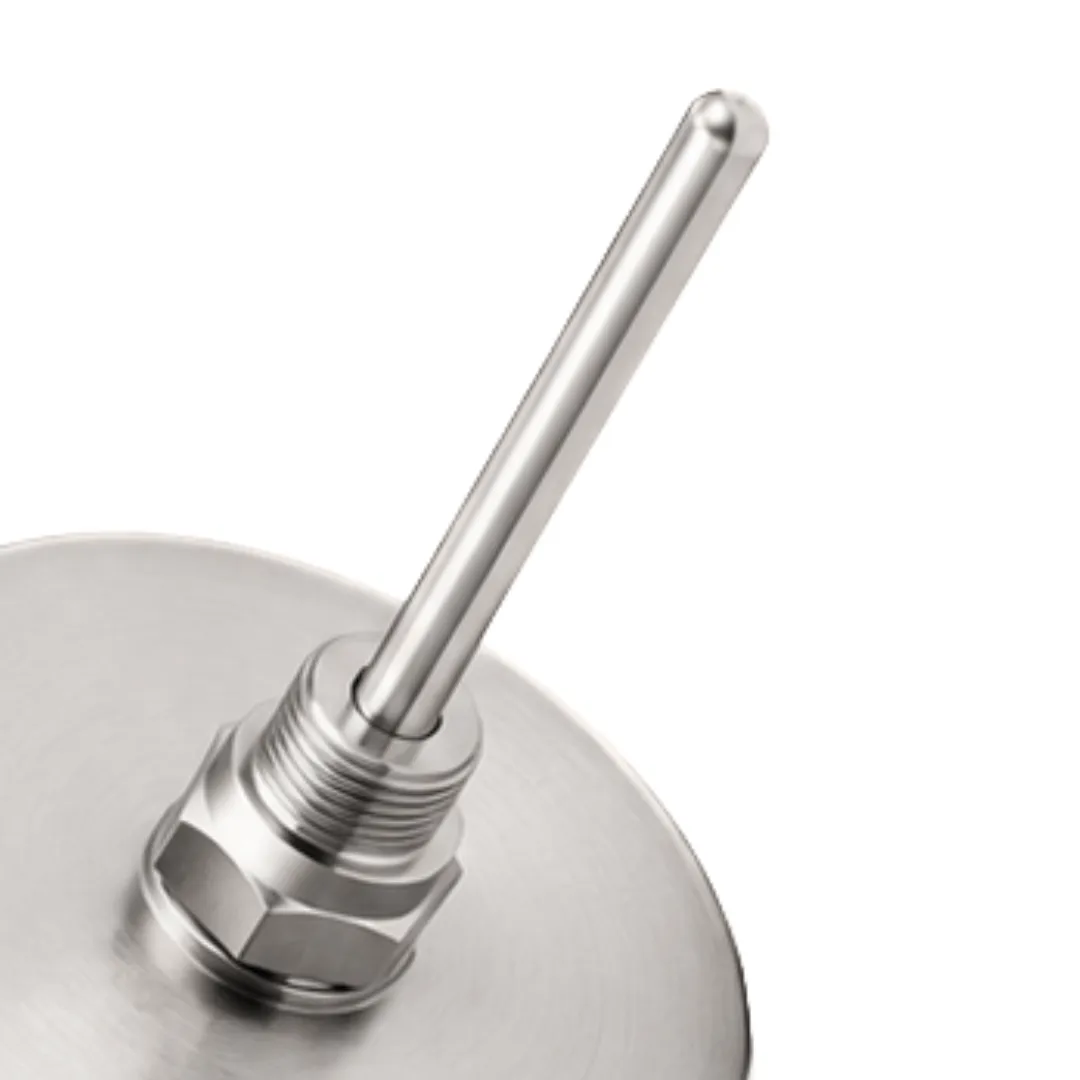

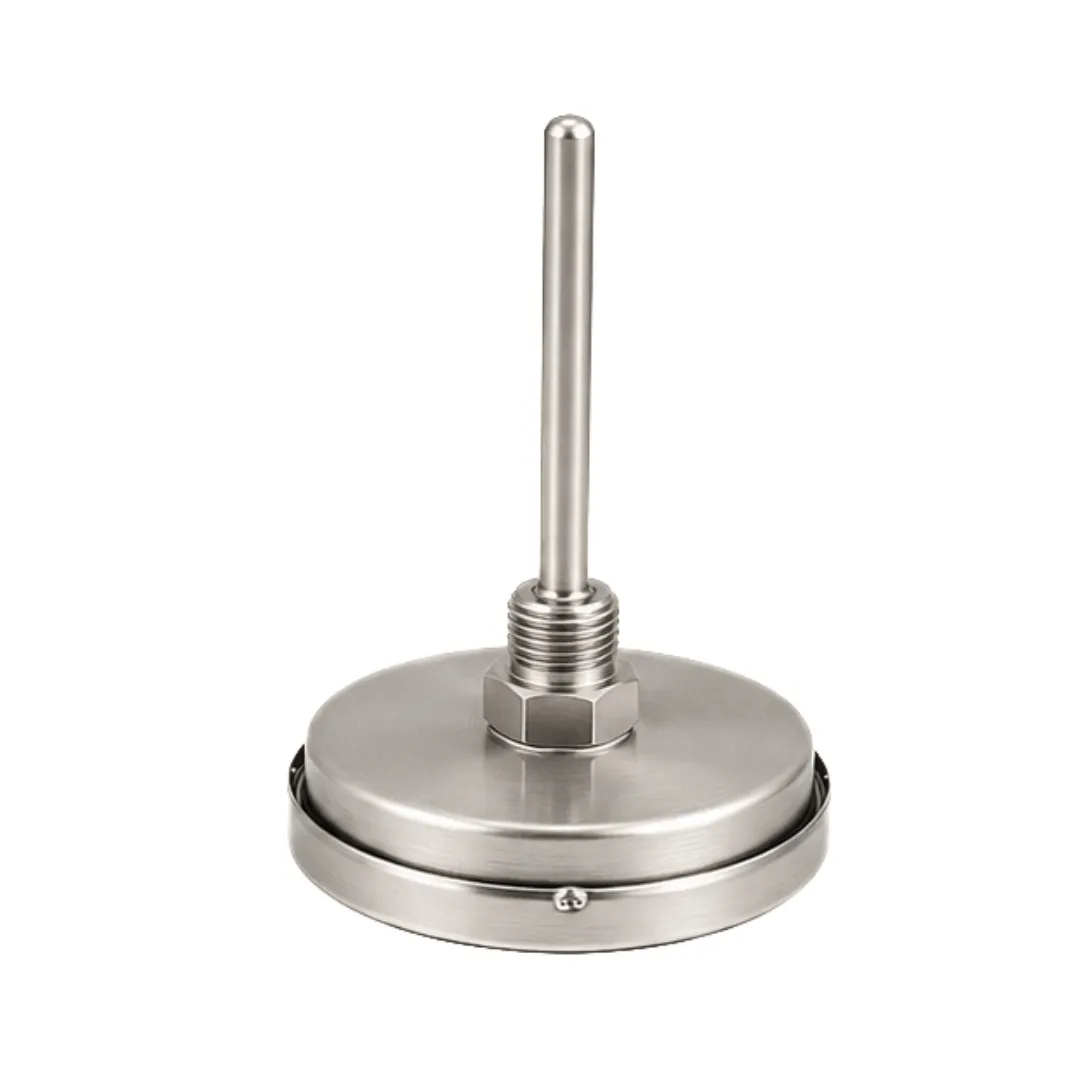

   • The thermometer features a 9-inch long stem with a 10 mm outer diameter. This length and diameter are optimal for ensuring accurate temperature readings and for reaching into the depths of tanks, pipes, or other containers.
4. Mounting and Connection
   • Designed for horizontal mounting, the thermometer can be easily integrated into various systems. The horizontal mounting design is often preferred in many industrial applications due to its stability and ease of use.

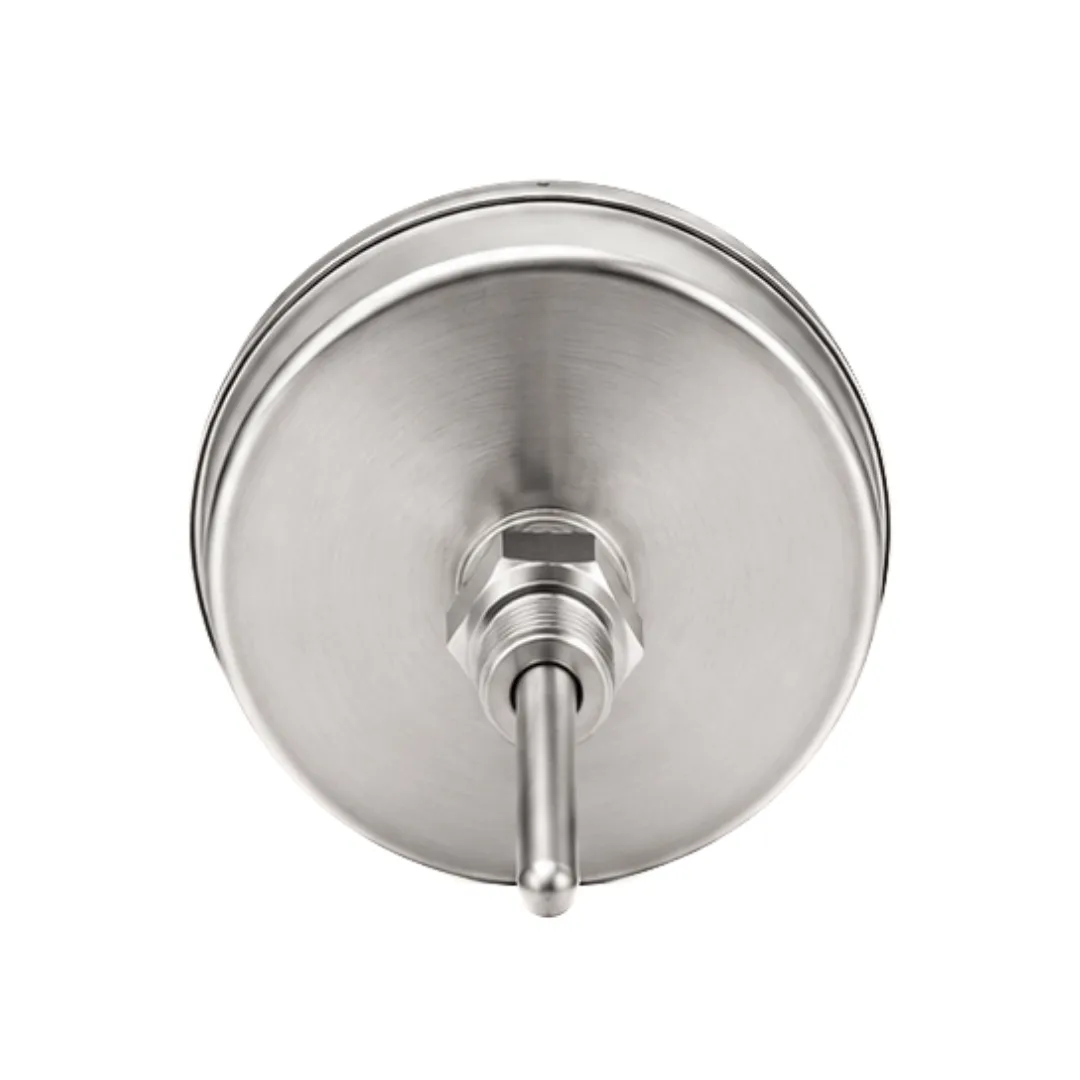

   • The thermometer comes with a 1/2″ BSP (British Standard Pipe) male connection, a common fitting in industrial systems, ensuring compatibility and facilitating straightforward installation.
5. Materials
   • The case and wetted parts of the thermometer are made from stainless steel. This choice of material provides excellent resistance to corrosion, mechanical damage, and environmental stress, enhancing the longevity and reliability of the thermometer.
6. Bi-Metallic Element
   • The core sensing element of the thermometer is a bi-metallic strip. Bi-metallic strips are known for their reliability and accuracy in temperature measurement. They operate on the principle of differential expansion of two bonded metals, which causes the strip to bend or coil in response to temperature changes. This movement is then translated into a temperature reading on the dial.

Applications

The Bi-Metal Dial Thermometer Temperature Gauge is versatile and can be utilized across a wide range of industries and applications. Some of the key areas where this gauge excels include:

1. Chemical and Petrochemical Industries
   • In chemical processing, precise temperature control is essential for reactions and product quality. The wide temperature range and high accuracy of this thermometer make it ideal for monitoring and controlling temperatures in various chemical processes.
2. Food and Beverage Industry
   • Maintaining the correct temperature is critical in food processing to ensure safety and quality. The stainless steel construction of the thermometer is particularly beneficial in these environments, as it is easy to clean and resistant to corrosion.
3. Oil and Gas Sector
   • Temperature monitoring is vital in the oil and gas industry for the safe and efficient operation of equipment. The robust design and wide temperature range of this thermometer make it suitable for use in these demanding environments.
4. Manufacturing and Process Industries
   • In manufacturing and other process industries, accurate temperature measurement is crucial for maintaining product quality and process efficiency. This thermometer provides the necessary precision and durability for these applications.
5. HVAC Systems
   • Heating, ventilation, and air conditioning (HVAC) systems require precise temperature monitoring to operate efficiently. The Bi-Metal Dial Thermometer is an excellent choice for these applications due to its accuracy and durability.

Benefits of the Bi-Metal Dial Thermometer Temperature Gauge

1. Durability and Longevity
   • The use of high-quality stainless steel for the case and wetted parts ensures that the thermometer can withstand harsh environments and maintain its performance over a long period.
2. Wide Temperature Range
   • With a temperature range of 0 to 600 degrees Celsius, the thermometer is suitable for a variety of applications, from low to high-temperature processes.
3. High Accuracy
   • The bi-metallic element provides reliable and accurate temperature readings, essential for critical applications where precision is paramount.
4. Ease of Installation
   • The horizontal mounting design and standard 1/2″ BSP (M) connection simplify the installation process, allowing for quick and easy integration into existing systems.
5. Clear Readability
   • The 4-inch dial ensures that temperature readings are easily visible, reducing the chances of errors and improving operational efficiency.
6. Corrosion Resistance
   • The stainless steel construction provides excellent resistance to corrosion, making the thermometer suitable for use in environments with high humidity, chemicals, or other corrosive agents.

Conclusion

The Bi-Metal Dial Thermometer Temperature Gauge is a reliable and high-performance instrument designed to meet the stringent demands of various industrial applications. Its robust construction, wide temperature range, and precise bi-metallic element make it an indispensable tool for professionals in fields such as chemical processing, food and beverage, oil and gas, manufacturing, and HVAC systems. By providing accurate and reliable temperature measurements, this thermometer helps ensure the safety, efficiency, and optimal performance of industrial processes. Its durability, ease of installation, and clear readability further enhance its appeal as a go-to solution for temperature monitoring in demanding environments.
