Bi-Metal Dial Thermometer Temperature Gauge, Range 0 to 150 Deg C, Dial Size 4″ (100 mm), Direct Mounting Back Entry, 9″ Long Stem of 10 mm OD, 1/2″ BSP (M) Thread.

Description

Bi-Metal Dial Thermometer Temperature Gauge: Precision Temperature Monitoring for Industrial Applications

In various industrial settings, accurate temperature measurement is crucial for maintaining safety, efficiency, and product quality. The Bi-Metal Dial Thermometer Temperature Gauge is a trusted instrument that provides precise temperature readings. Engineered for reliability and durability, this thermometer is equipped with a large 4-inch dial, a broad temperature range, and high-quality materials. This makes it an ideal solution for a multitude of industrial applications.

Overview of the Bi-Metal Dial Thermometer Temperature Gauge

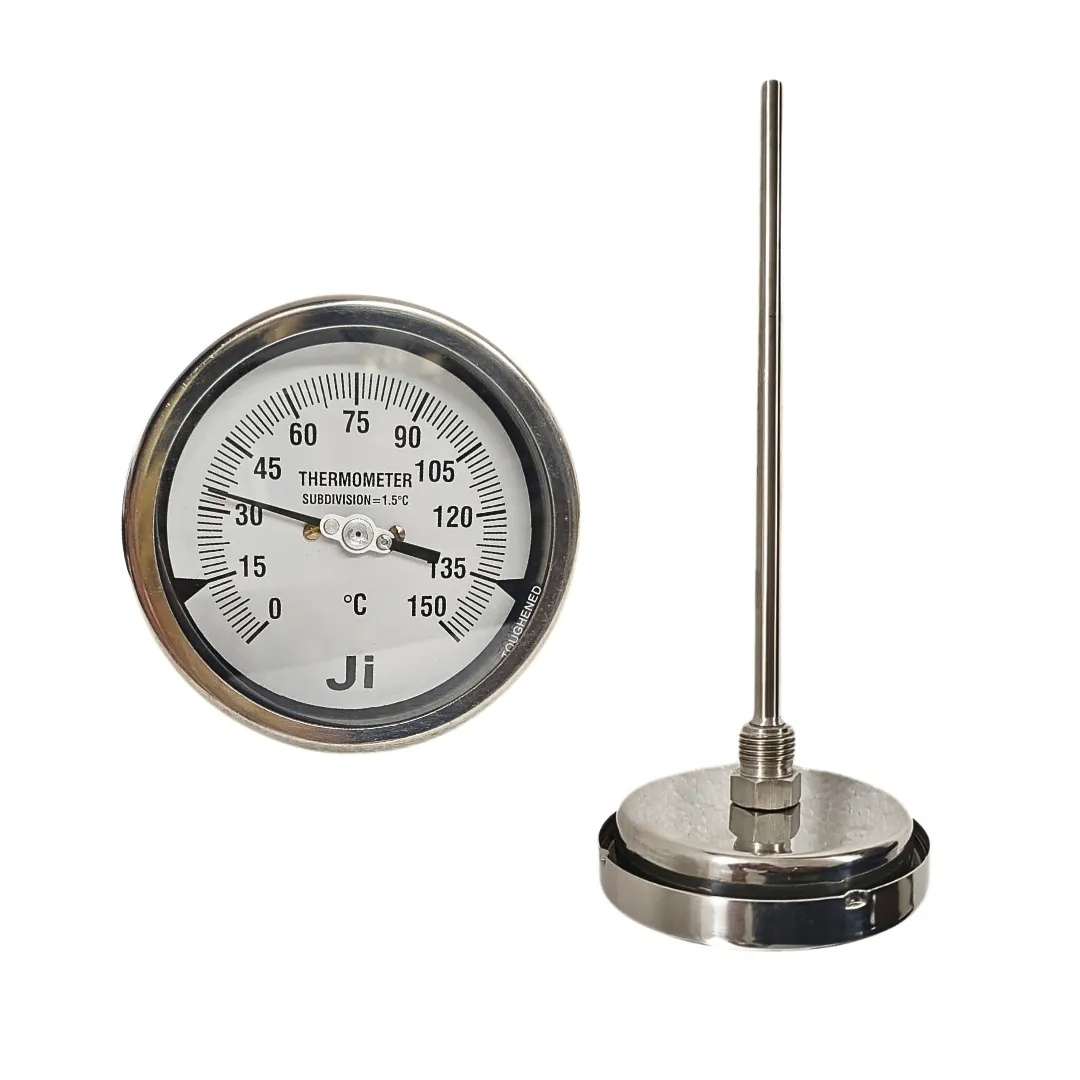

The Bi-Metal Dial Thermometer Temperature Gauge is designed for superior performance and long-lasting durability. It features a substantial 4-inch (100 mm) dial, which ensures easy readability from a distance. The thermometer covers a temperature range from 0 to 150 degrees Celsius, making it suitable for a variety of industrial processes. Constructed with a stainless steel case and wetted parts, it offers excellent resistance to corrosion and harsh environmental conditions. The thermometer also includes a 9-inch long stem with a 10 mm outer diameter, designed for direct mounting with a back entry connection and a 1/2″ BSP (M) thread for easy installation.

Key Specifications

1. Dial Size and Construction

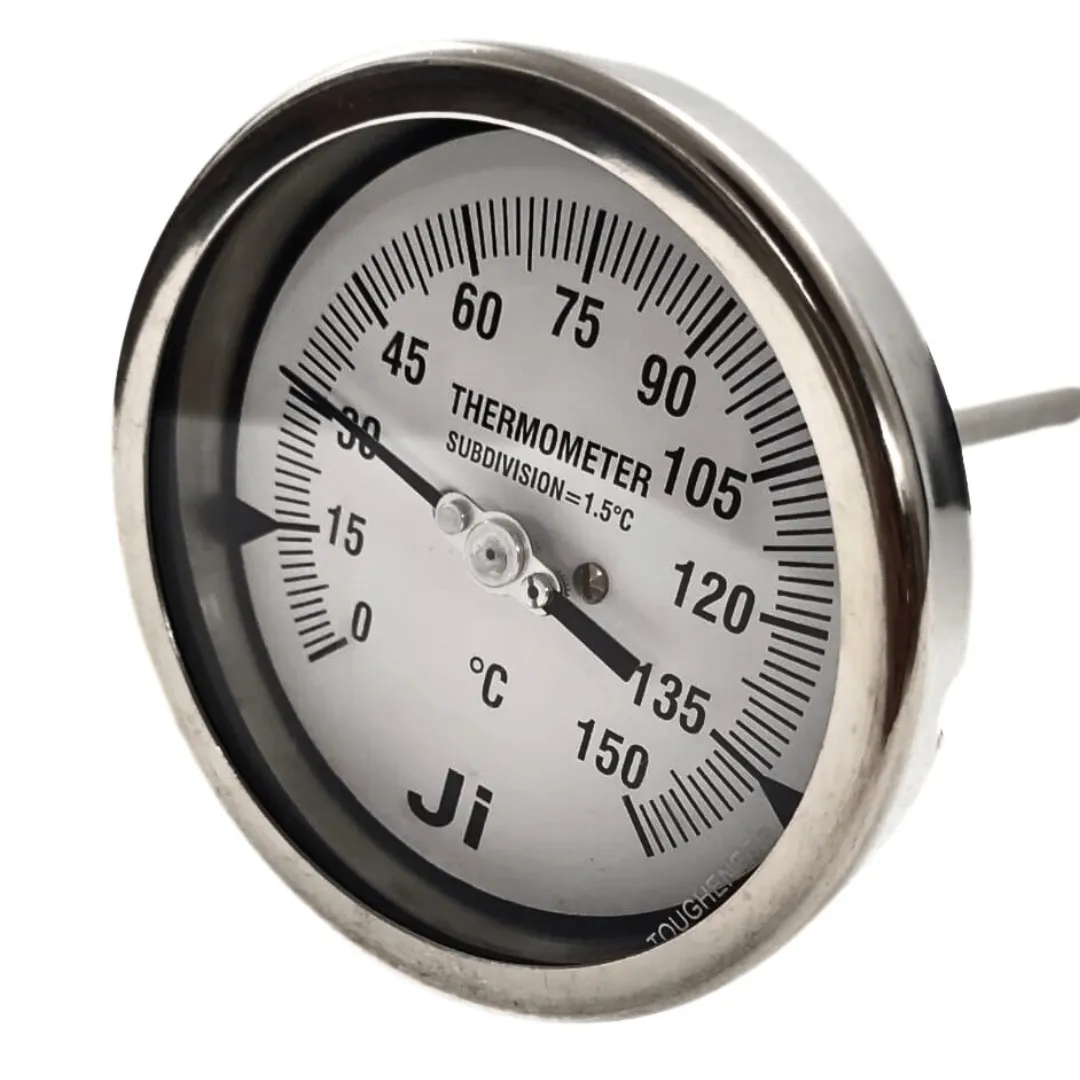

   • The thermometer features a large 4-inch (100 mm) dial, providing a clear and easily readable display. This size is particularly advantageous in industrial settings where quick and accurate readings are essential.
   • The case is constructed from stainless steel, which offers superior durability and corrosion resistance, ensuring the thermometer remains functional and reliable even in harsh industrial environments.
2. Temperature Range
   • The Bi-Metal Dial Thermometer covers a temperature range from 0 to 150 degrees Celsius. This range makes it suitable for a variety of applications, from monitoring low-temperature processes to ensuring safety in higher temperature industrial operations.
3. Stem Dimensions
   • The thermometer features a 9-inch long stem with a 10 mm outer diameter. This length and diameter are optimal for ensuring accurate temperature readings and for reaching into the depths of tanks, pipes, or other containers.
4. Mounting and Connection
   • The thermometer is designed for direct mounting with a back entry connection, facilitating straightforward installation and integration into various systems. This mounting design is beneficial in many industrial setups, providing stability and ease of use.
   • It comes with a 1/2″ BSP (British Standard Pipe) male thread, a standard fitting in many industrial systems, ensuring compatibility and ease of installation.
5. Materials
   • The case and wetted parts of the thermometer are made from stainless steel, which provides excellent resistance to corrosion, mechanical damage, and environmental stress. This enhances the longevity and reliability of the thermometer.
6. Bi-Metallic Element
   • The core sensing element of the thermometer is a bi-metallic strip. Bi-metallic strips are known for their reliability and accuracy in temperature measurement. They operate on the principle of differential expansion of two bonded metals, which causes the strip to bend or coil in response to temperature changes. This movement is then translated into a temperature reading on the dial.

Applications

The Bi-Metal Dial Thermometer Temperature Gauge is versatile and can be utilized across a wide range of industries and applications. Some of the key areas where this gauge excels include:

1. Chemical and Petrochemical Industries
   • In chemical processing, precise temperature control is essential for reactions and product quality. The temperature range and high accuracy of this thermometer make it ideal for monitoring and controlling temperatures in various chemical processes.
2. Food and Beverage Industry
   • Maintaining the correct temperature is critical in food processing to ensure safety and quality. The stainless steel construction of the thermometer is particularly beneficial in these environments, as it is easy to clean and resistant to corrosion.
3. Oil and Gas Sector
   • Temperature monitoring is vital in the oil and gas industry for the safe and efficient operation of equipment. The robust design and suitable temperature range of this thermometer make it appropriate for use in these demanding environments.
4. Manufacturing and Process Industries
   • In manufacturing and other process industries, accurate temperature measurement is crucial for maintaining product quality and process efficiency. This thermometer provides the necessary precision and durability for these applications.
5. HVAC Systems
   • Heating, ventilation, and air conditioning (HVAC) systems require precise temperature monitoring to operate efficiently. The Bi-Metal Dial Thermometer is an excellent choice for these applications due to its accuracy and durability.

Benefits of the Bi-Metal Dial Thermometer Temperature Gauge

1. Durability and Longevity
   • The use of high-quality stainless steel for the case and wetted parts ensures that the thermometer can withstand harsh environments and maintain its performance over a long period.
2. Wide Temperature Range
   • With a temperature range of 0 to 150 degrees Celsius, the thermometer is suitable for a variety of applications, from low to moderately high-temperature processes.
3. High Accuracy
   • The bi-metallic element provides reliable and accurate temperature readings, essential for critical applications where precision is paramount.
4. Ease of Installation
   • The direct mounting back entry design and standard 1/2″ BSP (M) connection simplify the installation process, allowing for quick and easy integration into existing systems.
5. Clear Readability
   • The 4-inch dial ensures that temperature readings are easily visible, reducing the chances of errors and improving operational efficiency.
6. Corrosion Resistance
   • The stainless steel construction provides excellent resistance to corrosion, making the thermometer suitable for use in environments with high humidity, chemicals, or other corrosive agents.

Conclusion

The Bi-Metal Dial Thermometer Temperature Gauge is a reliable and high-performance instrument designed to meet the stringent demands of various industrial applications. Its robust construction, suitable temperature range, and precise bi-metallic element make it an indispensable tool for professionals in fields such as chemical processing, food and beverage, oil and gas, manufacturing, and HVAC systems. By providing accurate and reliable temperature measurements, this thermometer helps ensure the safety, efficiency, and optimal performance of industrial processes. Its durability, ease of installation, and clear readability further enhance its appeal as a go-to solution for temperature monitoring in demanding environments.
