JI-IBPG Capsule Pressure Gauge by “Ji” Japsin Instrumentation – Precision Measurement for Low-Pressure Systems

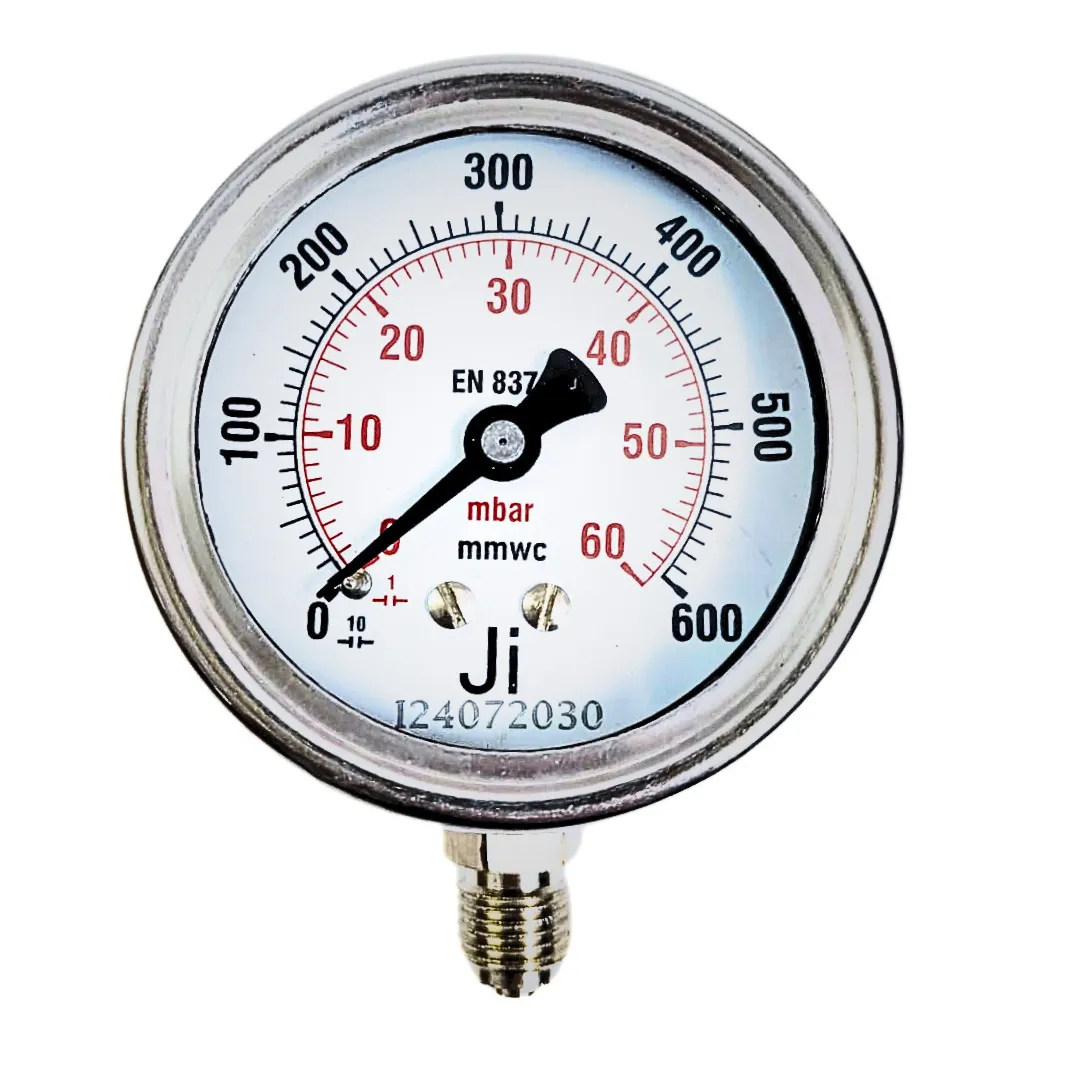

The JI-IBPG Capsule Pressure Gauge, manufactured by “Ji” Japsin Instrumentation, is designed for applications requiring accurate and reliable measurement of low-pressure systems. This high-precision instrument features a 2 1/2″ (63 mm) dial, a Stainless Steel 304 case with a bayonet-type closure, and SS 316L internals. With a pressure range of 0 to 600 mmWc (millimeters of water column) and a dual scale of 0 to 60 mBar, it is ideal for industries such as HVAC, chemical processing, pharmaceuticals, and environmental monitoring. The gauge ensures 2% FSD (Full Scale Deflection) accuracy, making it a trusted tool for professionals working in critical environments.
This gauge is specifically designed to measure low-pressure gases and liquids where accuracy is paramount, thanks to the capsule pressure mechanism that offers enhanced sensitivity. Its stainless steel construction ensures durability, resistance to corrosion, and reliable performance in demanding environments. Whether you are measuring in a laboratory or an industrial plant, the JI-IBPG Capsule Pressure Gauge provides precise readings while maintaining a compact and easy-to-read design.
Key Features
- Capsule Pressure Mechanism: Specially designed to measure very low pressures with high accuracy and sensitivity, making it ideal for applications involving gases or air.
- High-Quality Construction: The gauge is made with a Stainless Steel 304 case and SS 316L internals, ensuring resistance to corrosion, high durability, and long-lasting performance even in harsh environments.
- Dual Scale Measurement: Provides measurements in both mmWc (millimeters of water column) and mBar, offering flexibility and convenience for users working with different units of pressure.
- Compact Design: The 2 1/2″ (63 mm) dial provides easy readability, even in space-constrained settings. Its compact size allows for installation in various industrial and commercial setups.

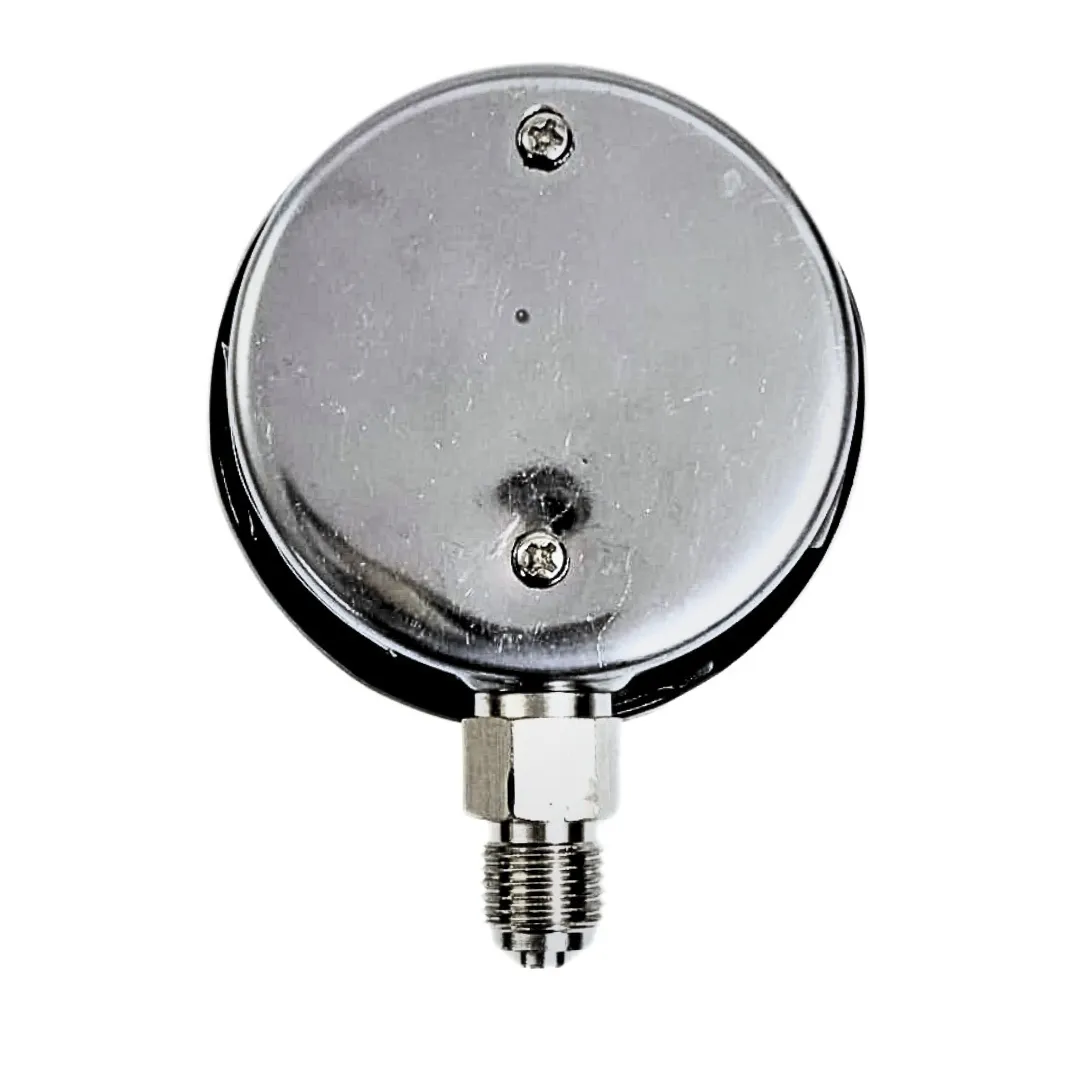

- Direct Mounting: Equipped with a bottom entry, 1/4″ BSP (M) connection, the gauge can be directly mounted, simplifying installation and reducing the need for additional adapters.
- Accurate Readings: With an accuracy rating of 2% FSD, the JI-IBPG ensures precise pressure measurements, giving you confidence in your readings and making it a reliable choice for critical applications.
Capsule Pressure Gauge
Applications
The JI-IBPG Capsule Pressure Gauge is used in a variety of industries and applications where low-pressure measurements are essential, including:
- Heating, Ventilation, and Air Conditioning (HVAC): Used to monitor airflow and pressure in ventilation systems to maintain optimal performance and energy efficiency.
- Environmental Monitoring: Critical for tracking air pressure in pollution control systems or monitoring atmospheric conditions in clean rooms and laboratories.
- Pharmaceutical and Chemical Processing: Ideal for environments that require precise pressure measurements for gas or vapor control during manufacturing processes.
- Medical Equipment: Can be used in devices that monitor low-pressure gas flows, ensuring the safety and accuracy of equipment used in patient care.
- Power Plants: Helps in monitoring gas pressures in boilers, turbines, and other systems where low-pressure measurements are needed to ensure smooth operation.
- Water Treatment: Useful in systems where pressure levels must be carefully controlled to manage filtration or distribution processes.
Capsule Pressure Gauge
Materials and Build Quality
The JI-IBPG Capsule Pressure Gauge is built to withstand the rigors of industrial environments while maintaining accuracy. The Stainless Steel 304 case offers superior resistance to environmental conditions, ensuring long-lasting performance in corrosive and humid environments. Inside, the SS 316L wetted parts guarantee high durability and compatibility with a wide range of media, including gases and non-corrosive liquids.
The bayonet-type closure system of the gauge ensures a secure and leakproof seal, providing both ease of maintenance and protection against mechanical damage. This level of craftsmanship is essential in applications where reliable pressure readings are critical for maintaining system performance and safety.
Advantages of the JI-IBPG Capsule Pressure Gauge
- Reliability: Trusted by professionals across industries for consistent and accurate performance.
- Precision: The capsule pressure mechanism is specifically designed to handle low-pressure readings with exceptional sensitivity and accuracy.
- Durability: With its robust stainless steel construction, the gauge is designed to handle harsh conditions, including high moisture, corrosive environments, and mechanical stress.
- Ease of Use: The compact design and direct mounting bottom entry allow for straightforward installation and integration into existing systems. The easy-to-read dual scale simplifies pressure monitoring.
- Cost-Effective: Despite its high-quality construction and precision, the JI-IBPG is an economical solution, providing excellent value for money, especially in large-scale industrial settings.
Capsule Pressure Gauge
Conclusion
For industries that demand accuracy and reliability in low-pressure measurement, the JI-IBPG Capsule Pressure Gauge by “Ji” Japsin Instrumentation is a trusted choice. Its durable stainless steel construction, precision engineering, and user-friendly design make it a versatile and efficient solution for a wide range of industrial applications. Whether monitoring pressure in HVAC systems or chemical processing plants, this gauge provides the reliability and performance needed to ensure safety and efficiency in critical processes.
Japsin Instrumentation – Since 1974
