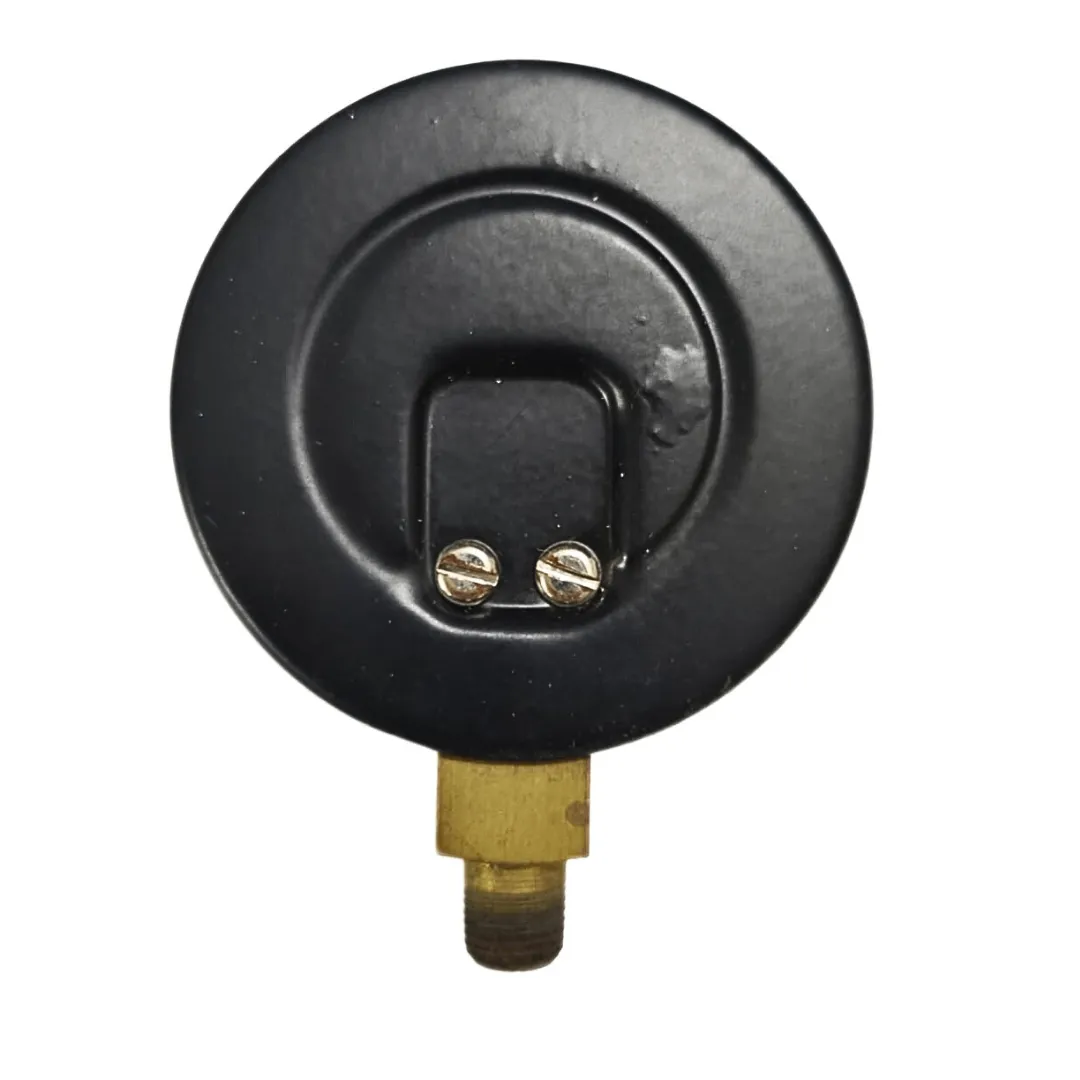

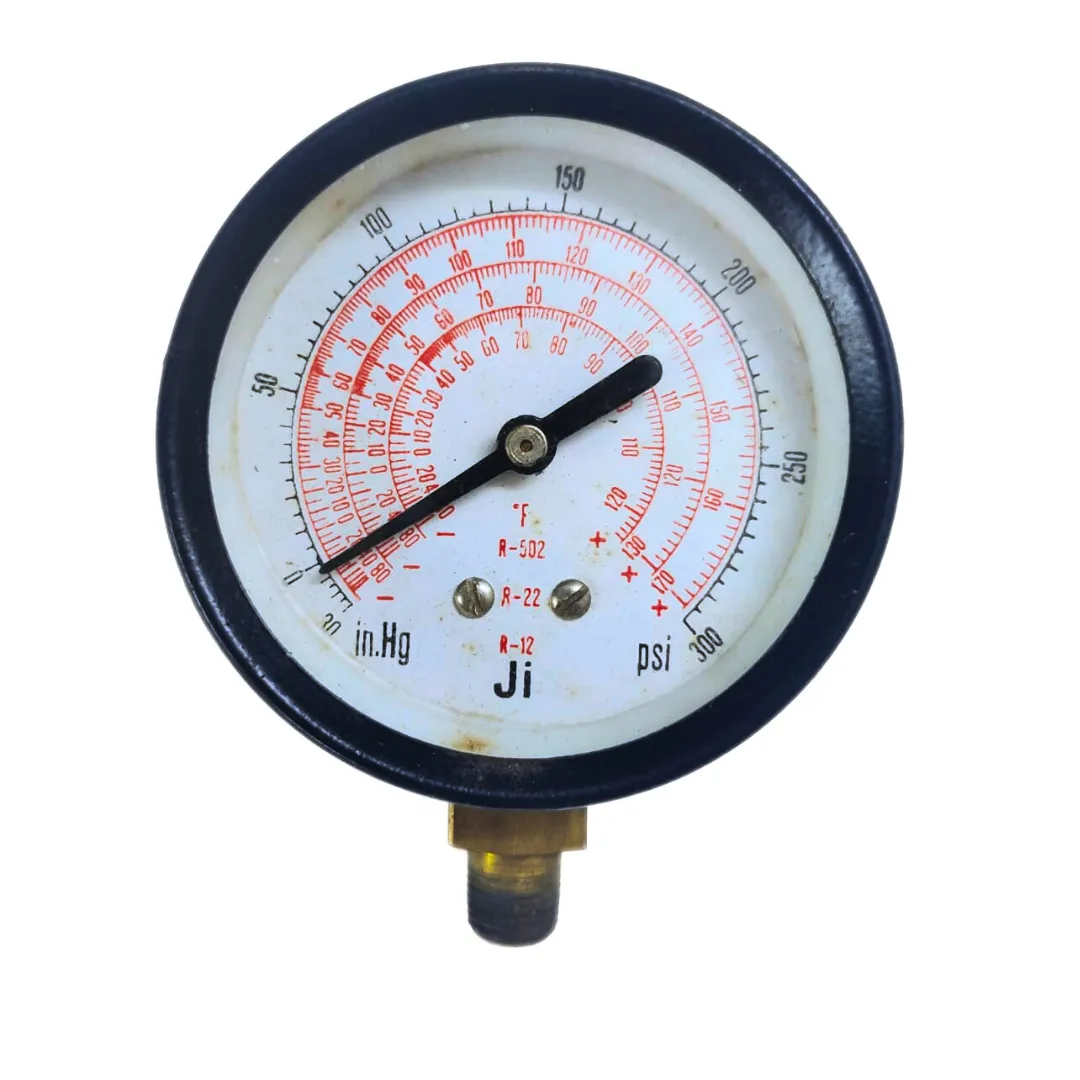

Commercial Freon Gauge, Dial Size 2 1/2″ (63 mm), Range -30 inHg to 300 PSI, Direct Mounting Bottom Entry, 1/8″ BSP (M) Connection, MS Case & Brass Internals, Accuracy 2% FSD

Description

In-Depth Overview of the “Ji” Japsin Instrumentation Commercial Freon Gauge

In the HVAC industry and other refrigeration-related fields, accurate pressure measurement is vital for maintaining the efficiency and safety of cooling systems. The “Ji” Japsin Instrumentation Commercial Freon Gauge is specifically designed to meet these needs, offering precise monitoring of Freon and other refrigerant pressures. This detailed guide provides an in-depth look at the features, specifications, and benefits of the “Ji” Japsin Instrumentation Commercial Freon Gauge, making it a valuable addition to your HVAC toolkit.

Overview

The “Ji” Japsin Instrumentation Commercial Freon Gauge features a 2 1/2″ (63 mm) dial, providing clear visibility for precise monitoring. It is engineered to measure pressure within a range of -30 inHg to 300 PSI, making it suitable for various refrigeration and air conditioning applications. With its direct mounting bottom entry and 1/8″ BSP (M) connection, this gauge is easy to install and integrate into different systems. The gauge’s robust design, featuring a mild steel (MS) case and brass internals, ensures durability and reliability, even in demanding environments.

Key Features

1. Wide Pressure Range: The gauge covers a comprehensive pressure range from -30 inHg to 300 PSI, making it versatile for different refrigerant systems.
2. Compact Design: With a 2 1/2″ (63 mm) dial, the gauge is compact yet offers clear and precise readings, ideal for tight spaces in HVAC systems.
3. High Accuracy: The gauge provides an accuracy of 2% Full Scale Deflection (FSD), ensuring dependable pressure readings critical for system performance.
4. Durable Construction: The MS case offers a sturdy exterior, while the brass internals provide corrosion resistance and long-lasting performance in harsh environments.
5. Easy Installation: The direct mounting bottom entry with a 1/8″ BSP (M) connection facilitates straightforward installation, reducing setup time and complexity.

Commercial Freon Gauge: Applications

The “Ji” Japsin Instrumentation Commercial Freon Gauge is particularly well-suited for various HVAC and refrigeration applications, including:

1. Refrigeration Systems: Ensures accurate pressure monitoring in systems using Freon or other refrigerants, which is crucial for maintaining cooling efficiency and preventing leaks.
2. Air Conditioning Units: Monitors the pressure of refrigerants in both residential and commercial air conditioning units, ensuring optimal performance and energy efficiency.
3. Automotive Air Conditioning: Used in automotive HVAC systems to monitor refrigerant pressure, ensuring the vehicle’s air conditioning system operates within safe and efficient parameters.
4. Chillers and Freezers: Ensures precise pressure readings in industrial chillers and freezers, helping maintain the correct operating conditions to preserve perishable goods.
5. HVAC Maintenance and Repair: An essential tool for HVAC technicians, this gauge assists in diagnosing and repairing issues related to refrigerant pressure in various systems.

Commercial Freon Gauge

Benefits

1. Enhanced System Performance: Accurate pressure readings help maintain the efficiency of refrigeration and air conditioning systems, leading to energy savings and prolonged equipment life.
2. Safety: Proper monitoring of refrigerant pressure ensures systems operate within safe limits, reducing the risk of equipment failure and hazardous leaks.
3. Versatility: The wide pressure range and compact design make this gauge adaptable to a broad spectrum of HVAC and refrigeration applications.
4. Durability: The robust construction of the gauge ensures it can withstand the demanding conditions of industrial environments, providing long-term reliability.
5. Ease of Use: The gauge’s clear dial and straightforward installation process make it user-friendly, requiring minimal training or specialized tools.

Commercial Freon Gauge

Installation and Maintenance

To ensure optimal performance and longevity of the “Ji” Japsin Instrumentation Commercial Freon Gauge, proper installation and regular maintenance are essential. Below are guidelines to help you maximize the utility of this gauge:

1. Installation:
   • Verify that the gauge’s pressure range is appropriate for your system’s refrigerant and operating conditions.
   • Secure the 1/8″ BSP (M) connection properly to prevent leaks, ensuring a tight and reliable fit.
   • Position the gauge in an accessible location where it can be easily monitored and maintained.
2. Maintenance:
   • Regularly inspect the gauge for signs of wear, damage, or corrosion, especially if it is exposed to harsh environmental conditions.
   • Clean the dial and casing periodically to ensure clear visibility and accurate readings.
   • Perform calibration checks according to the manufacturer’s recommendations to maintain the accuracy of pressure readings.

Commercial Freon Gauge

Conclusion

The “Ji” Japsin Instrumentation Commercial Freon Gauge is an essential tool for professionals in the HVAC and refrigeration industries. With its wide pressure range, high accuracy, and durable construction, it is designed to meet the demands of various applications, from residential air conditioning units to industrial refrigeration systems. Whether you are an HVAC technician, a facility manager, or a system installer, this gauge provides the precision and reliability needed to ensure safe and efficient operations. Trust “Ji” Japsin Instrumentation for quality and performance in your pressure measurement needs.

Japsin Instrumentation – Since 1974
