JI-CPG Commercial Pressure Gauge: Precision Monitoring in Compact Design
Pressure gauges are essential tools in numerous industries, ensuring equipment operates within safe pressure ranges and maintaining optimal performance. The JI-CPG Commercial Pressure Gauge by Ji Japsin Instrumentation is designed to meet the diverse needs of commercial and industrial sectors. With a dial size of 1 1/2 inches (50 mm), this gauge is compact yet robust, offering precise pressure monitoring in a wide range of applications.
Built with a mild steel powder-coated case and brass internals, the JI-CPG provides reliability and longevity even in harsh operating environments. It measures pressures up to 14 Kg/cm² with a dual scale that includes 200 PSI, ensuring versatility in international applications. The panel mounting with a back entry connection and 1/4″ BSP (M) fitting allows easy installation in control panels or machinery. With an accuracy of 2% Full Scale Deflection (FSD), this gauge is a trusted choice for precision pressure measurements.
Key Features of the JI-CPG Commercial Pressure Gauge
- Compact Dial Size (1 1/2 inches / 50 mm): The small, compact dial makes the JI-CPG an excellent choice for applications where space is limited. Despite its small size, the gauge provides clear and accurate readings, making it a reliable tool for pressure monitoring.

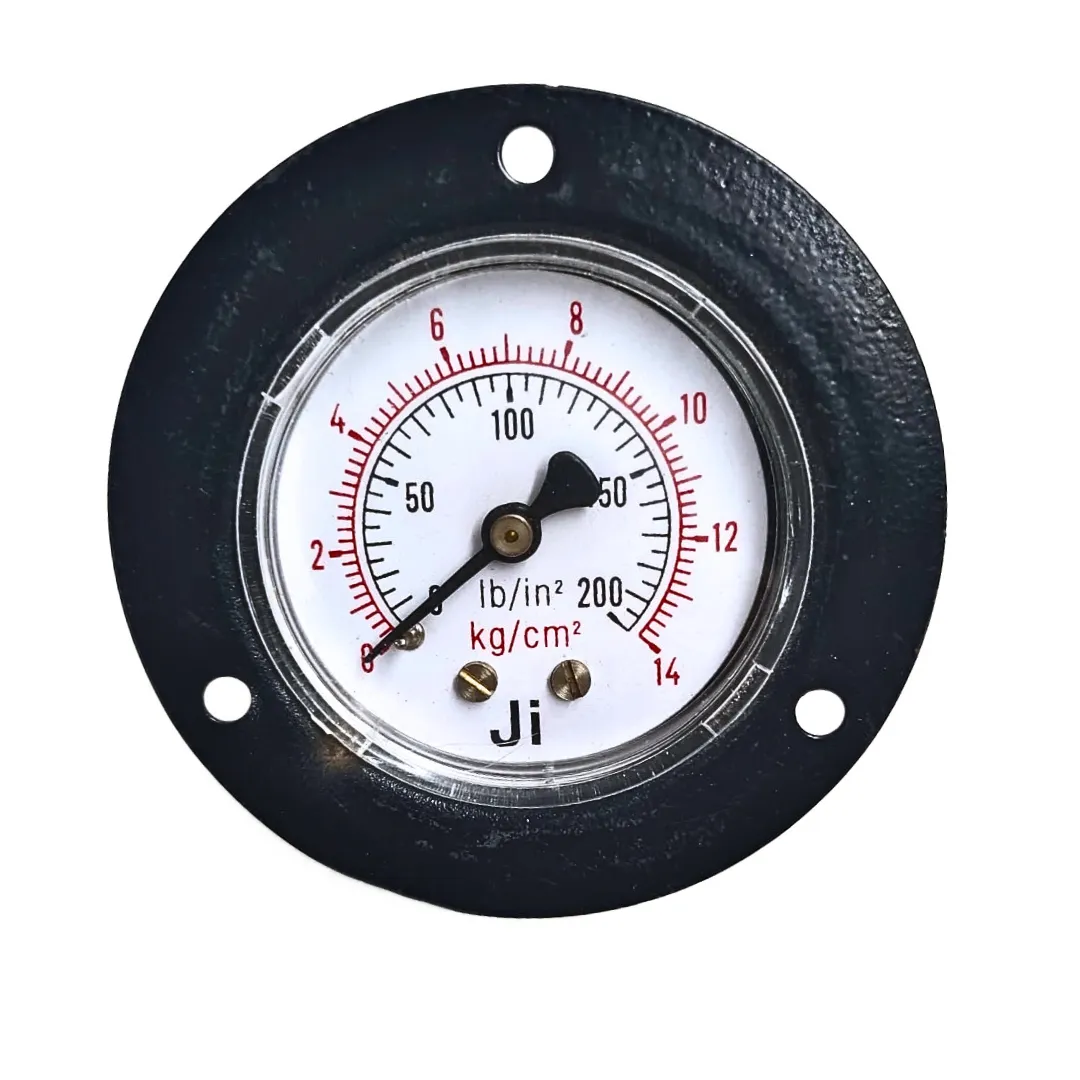

- Dual-Scale Measurement (Kg/cm² and PSI): This gauge features a dual scale, displaying pressure in Kg/cm² and PSI. With a maximum range of 14 Kg/cm² and 200 PSI, it is suitable for use in a variety of commercial and industrial applications, offering flexibility for operators working with different measurement units.
- Mild Steel Powder-Coated Case: The outer casing is constructed from mild steel and finished with a powder coating to ensure protection from corrosion and environmental damage. This makes the gauge durable and suitable for installation in challenging environments where exposure to moisture, chemicals, or extreme temperatures is common.
- Reliable Brass Internals: The internal components are made from brass, a material known for its durability and resistance to corrosion. This ensures that the gauge provides accurate pressure readings over time, even when exposed to water, oils, or other corrosive substances.

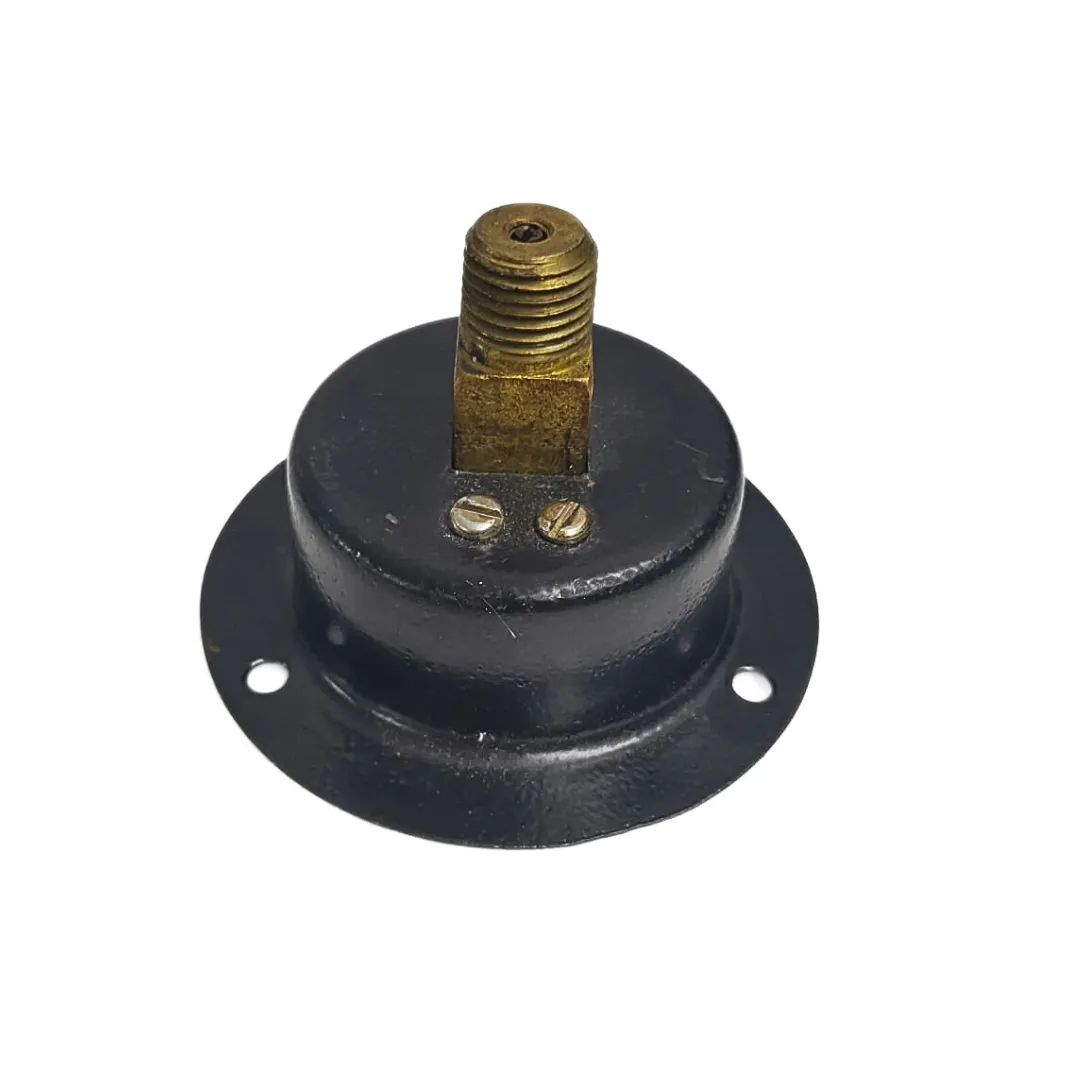

- Panel Mounting with Back Entry Connection: Designed for easy installation in control panels or machinery, the panel mounting back entry connection allows the gauge to be securely mounted in various applications. The 1/4″ BSP (M) threaded connection is standard, making it compatible with a wide range of systems.
- Accuracy of 2% FSD: The gauge offers an accuracy of 2% Full Scale Deflection (FSD), ensuring precise pressure measurements. This high level of accuracy is essential for applications where small deviations in pressure could lead to performance issues or safety risks.
Commercial Pressure Gauge: Applications
The JI-CPG Commercial Pressure Gauge is ideal for a variety of applications in both commercial and industrial settings where compact, accurate, and durable pressure gauges are required. Below are some key areas where this gauge excels:
- HVAC Systems: Heating, ventilation, and air conditioning systems rely on precise pressure monitoring to function efficiently. The JI-CPG is compact enough to fit into tight spaces and provides the accuracy needed to ensure that HVAC systems operate within their required pressure ranges.
- Pneumatic and Hydraulic Systems: Accurate pressure readings are critical in pneumatic and hydraulic systems to avoid equipment failure or performance inefficiencies. The JI-CPG offers the reliability and precision needed for maintaining system performance.
- Compressed Air Systems: In compressed air systems, pressure control is essential for the safe and efficient delivery of air. The gauge’s compact size and high accuracy make it a valuable tool for monitoring air pressure, ensuring system integrity and safety.
- Control Panels and Machinery: For control panels and industrial machinery, the JI-CPG is designed for panel mounting with a back entry connection, making it easy to integrate into various systems. It provides accurate pressure readings, allowing operators to monitor and control system performance effectively.
- Water Treatment Plants: Water treatment systems require accurate pressure monitoring to ensure that pumps, filters, and other equipment operate within their required ranges. The JI-CPG offers a reliable solution for monitoring water pressure in these systems.
Durability and Construction
The JI-CPG Commercial Pressure Gauge is engineered for long-lasting performance in industrial environments. Its mild steel powder-coated case offers excellent protection against environmental factors such as dust, moisture, and chemicals. The powder-coated finish further enhances the gauge’s resistance to corrosion, ensuring it maintains its structural integrity over time.
The brass internals add another layer of durability to the gauge, providing reliable performance even in harsh conditions. Brass is known for its resistance to corrosion, especially when exposed to water, oils, and certain chemicals. This ensures that the gauge provides consistent and accurate readings, making it a valuable tool for long-term use in demanding environments.
The gauge also meets IP54 standards, meaning it is protected against dust and splashes of water. This level of protection makes the JI-CPG suitable for outdoor and indoor installations in industrial settings where exposure to environmental factors may occur.
Performance and Accuracy
With an accuracy of 2% FSD, the JI-CPG Commercial Pressure Gauge ensures precise pressure readings, which are essential for maintaining system safety and performance. The dual scale (Kg/cm² and PSI) allows operators to easily switch between measurement units, providing flexibility for international applications.
The compact 1 1/2-inch dial is easy to read, ensuring that pressure measurements can be interpreted quickly and accurately. This is particularly useful in environments where time-sensitive decisions need to be made based on pressure readings.
The gauge’s 1/4″ BSP (M) connection size is standard, making it compatible with a wide range of equipment and systems. Its back entry design also simplifies installation, especially in control panels and machinery where space is limited.
Advantages of the JI-CPG Commercial Pressure Gauge
- Compact Design for Space-Saving Installations: The small 1 1/2-inch dial makes the JI-CPG perfect for installations where space is at a premium. Despite its compact size, the gauge provides clear and accurate pressure readings.
- Durable Construction for Harsh Environments: The combination of a mild steel powder-coated case and brass internals ensures the gauge is built to withstand the challenges of industrial environments, offering long-lasting performance and reliability.
- Dual-Scale Measurement: The gauge’s dual scale (Kg/cm² and PSI) makes it versatile and suitable for international applications, providing flexibility in measurement units for operators.
- Easy Panel Mounting: The panel mounting back entry design simplifies installation in control panels or machinery. This feature is particularly useful in industrial applications where pressure monitoring needs to be integrated into complex systems.
- High Accuracy: With an accuracy of 2% FSD, the JI-CPG ensures precise pressure measurements, making it a dependable tool for maintaining safe and efficient system performance.
Commercial Pressure Gauge: Conclusion
The JI-CPG Commercial Pressure Gauge from “Ji” Japsin Instrumentation offers a compact, durable, and accurate solution for pressure measurement in commercial and industrial applications. Its small size, dual-scale capability, and reliable construction make it an excellent choice for a wide range of pressure monitoring needs.
Whether you’re working in HVAC systems, hydraulic equipment, or control panels, the JI-CPG Commercial Pressure Gauge delivers the precision and durability required to keep your systems running safely and efficiently. With its easy installation and high accuracy, this gauge is an indispensable tool for any pressure monitoring application.
Japsin Instrumentation – Since 1974
