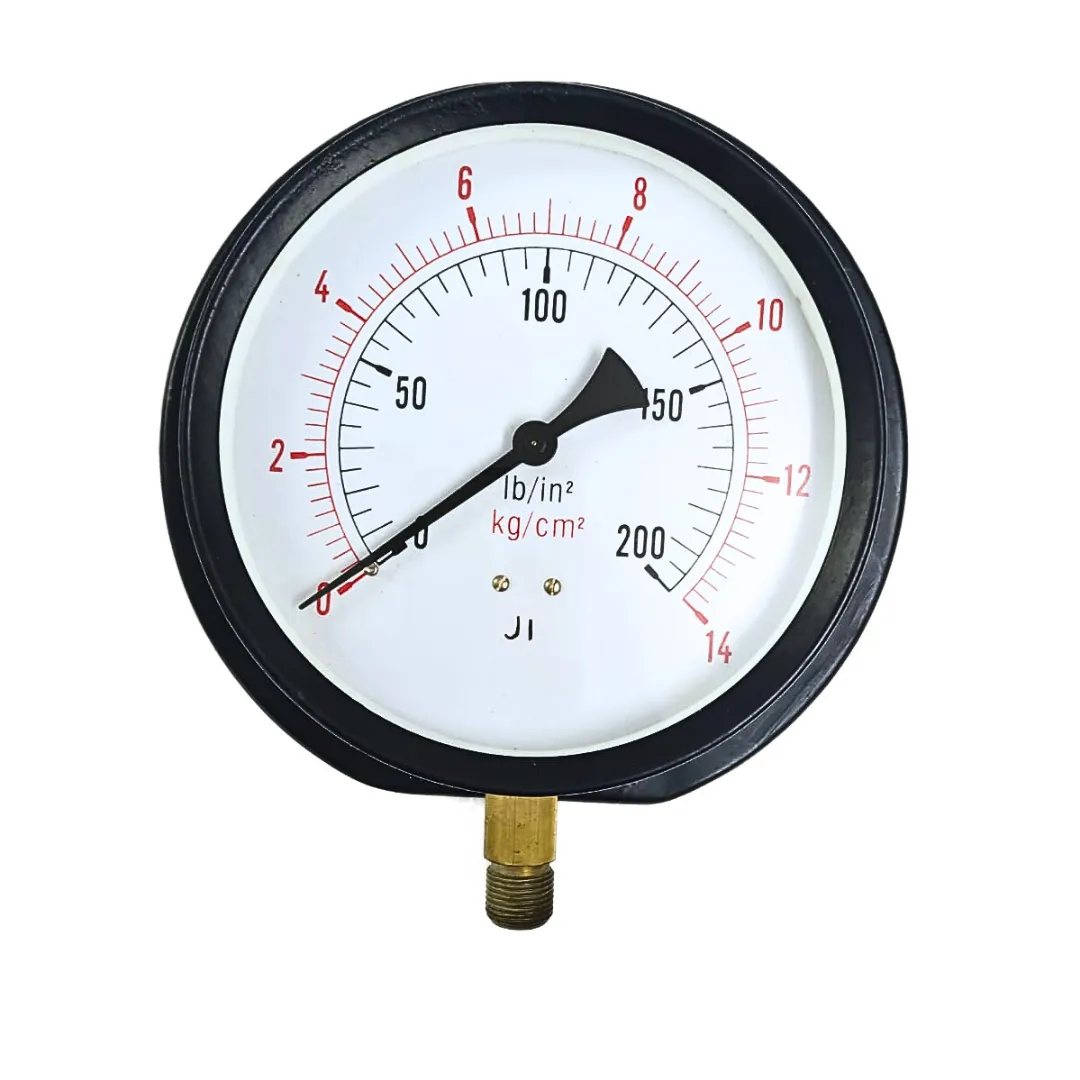

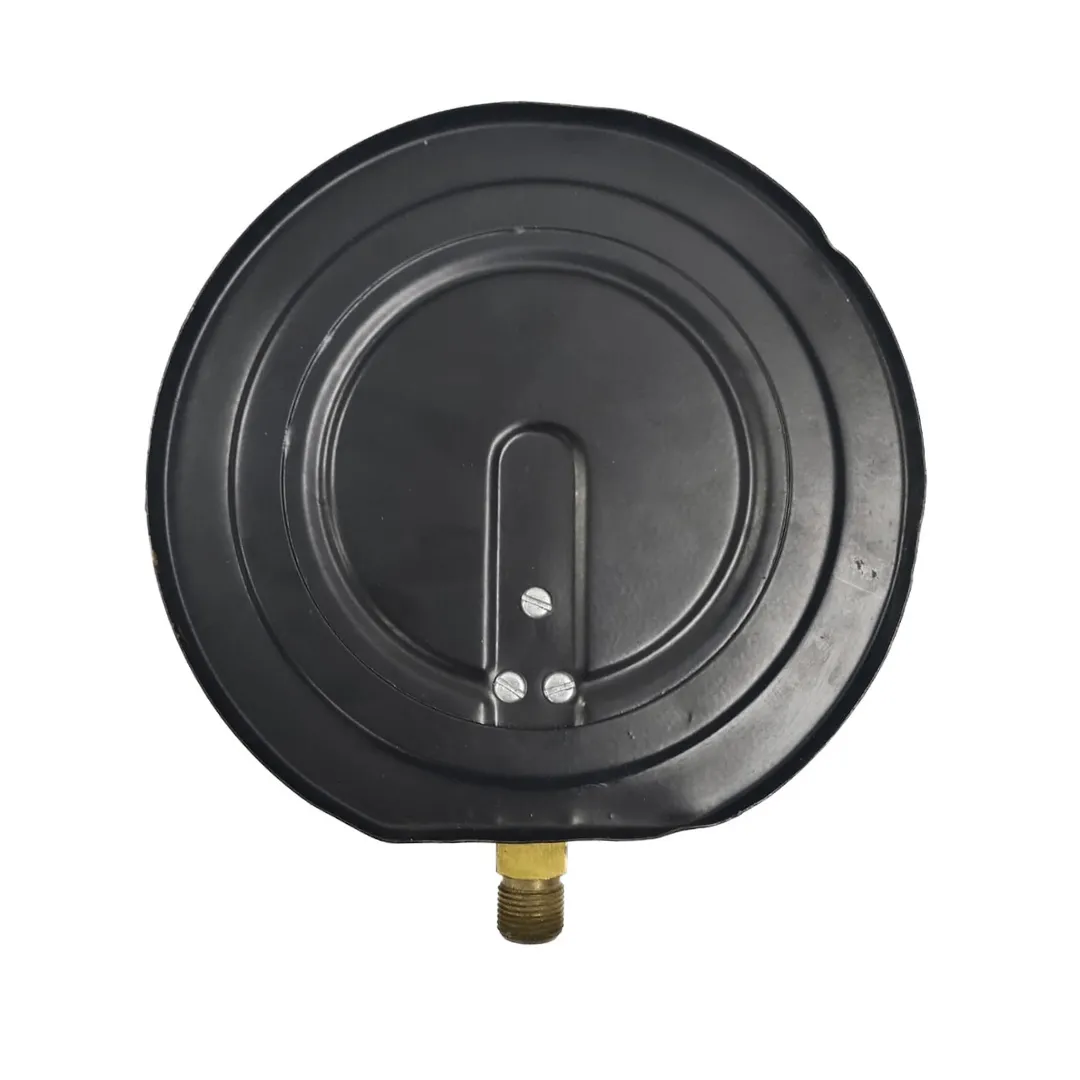

Commercial Pressure Gauge, 6″ Dial, Range 0 to 14 Kg/Cm2 With Dual Scale of 200 PSI, Surface Mounting Bottom Entry, 3/8″ BSP Connection, Mild Steel Case & Brass Internals

Description

JI-CPG Commercial Pressure Gauge: High Precision Monitoring for Industrial Applications

When it comes to precise pressure monitoring, especially in industries where accurate measurement is critical, the JI-CPG Commercial Pressure Gauge from “Ji” Japsin Instrumentation delivers dependable performance. This high-quality instrument is designed for both commercial and industrial applications where monitoring pressures up to 14 Kg/cm² (or 200 PSI) is crucial for maintaining the integrity of systems and ensuring safe operations.

The gauge, featuring a 6-inch (150 mm) dial, combines robust construction with exceptional accuracy. Housed in a mild steel powder-coated case with brass internals, the JI-CPG is engineered to withstand harsh environments while providing clear, precise readings. This model is suitable for panel mounting with a back entry connection and is fitted with a standard 1/4″ BSP (M) connection, making it versatile and easy to integrate into various systems. Its accuracy of 2% Full Scale Deflection (FSD) ensures reliable readings, making it the perfect solution for monitoring pressure levels across a range of applications, including HVAC systems, pneumatic systems, hydraulic machinery, and more.

Key Features of the JI-CPG Commercial Pressure Gauge

1. Large Dial Size (6 inches / 150 mm): The JI-CPG offers a substantial dial size, allowing for easy reading of pressure levels from a distance. The 6-inch dial ensures clear visibility, which is essential for environments where quick and accurate readings are needed.
2. Dual-Scale Measurement (Kg/cm² and PSI): This pressure gauge displays pressure readings in both Kg/cm² and PSI. With a range of 0 to 14 Kg/cm² and 0 to 200 PSI, it is ideal for applications that require flexibility in measurement units, accommodating both metric and imperial systems.
3. Durable Mild Steel Powder-Coated Case: The outer casing is constructed from mild steel and finished with a powder coating that offers resistance against corrosion and environmental wear. This ensures the gauge’s long-term durability even in demanding industrial environments where exposure to harsh conditions is frequent.
4. Brass Internals for Reliable Performance: The internal components are made from brass, a material chosen for its excellent durability and resistance to corrosion. Brass is commonly used in pressure gauges for its ability to withstand prolonged exposure to moisture, gases, and other potentially corrosive substances without compromising performance.
5. Panel Mounting Back Entry: The JI-CPG is designed for panel mounting, allowing it to be integrated directly into control panels or other machinery. The back entry connection ensures that the gauge can be mounted flush with a panel surface, providing a neat and accessible installation.
6. 1/4″ BSP (M) Connection: The 1/4″ BSP (M) threaded connection makes this gauge compatible with a wide range of systems. This standard connection size is commonly used across industries, making the gauge easy to install in various setups.
7. Accuracy of 2% Full Scale Deflection (FSD): With an accuracy rating of 2% FSD, the JI-CPG ensures reliable pressure measurements. This level of accuracy is critical for maintaining optimal performance and safety in sensitive industrial applications where even slight deviations in pressure can lead to performance issues or equipment damage.

Applications of the JI-CPG Pressure Gauge

1. HVAC Systems: Accurate pressure measurement is essential for the safe and efficient operation of heating, ventilation, and air conditioning systems. The JI-CPG gauge’s large, easy-to-read dial and high accuracy ensure that HVAC systems maintain optimal pressure, reducing the risk of failure or inefficiency.
2. Pneumatic Systems: Pneumatic equipment relies heavily on consistent pressure levels to function correctly. The JI-CPG provides reliable and precise pressure readings, ensuring pneumatic systems operate within their specified ranges, helping prevent equipment damage and downtime.
3. Hydraulic Systems: Hydraulic systems used in industrial machinery require precise pressure monitoring to avoid equipment damage and ensure smooth operations. The JI-CPG, with its large dial and dual-scale measurement, is ideal for monitoring hydraulic pressure levels and ensuring system safety.
4. Industrial Compressors: Compressors in various industries, including manufacturing and automotive, rely on accurate pressure gauges to maintain safe pressure levels. The JI-CPG gauge is built to handle these environments, ensuring accurate and reliable pressure monitoring.
5. Water Treatment Facilities: Water treatment systems depend on accurate pressure control to operate effectively. The JI-CPG gauge provides the precision required to monitor pressure levels in pumps, filters, and pipelines, ensuring consistent and safe water processing.
6. Manufacturing Equipment: In manufacturing processes where pressure plays a critical role, such as molding, metal forming, or assembly lines, the JI-CPG gauge helps ensure that pressure levels remain within safe operating ranges, reducing the risk of equipment damage and ensuring product quality.

Durability and Design

The JI-CPG Commercial Pressure Gauge is designed with durability in mind. The mild steel powder-coated case provides excellent resistance to environmental factors, including dust, moisture, and corrosion, making it suitable for installation in both indoor and outdoor environments. The IP54 rating ensures that the gauge is protected against dust ingress and splashes of water, further extending its lifespan in harsh conditions.

The brass internals provide additional resistance to corrosion and wear, ensuring long-term reliability. Brass is known for its ability to withstand exposure to water, oil, and various gases, making it the ideal material for the internal components of the gauge. This combination of a durable outer casing and resilient internal components guarantees consistent performance, even in challenging environments.

The gauge’s panel mounting back entry design ensures easy installation into control panels, making it a versatile solution for a wide range of applications. Its 1/4″ BSP (M) connection size is a standard fitting in industrial systems, ensuring compatibility with a variety of equipment.

JI-CPG Commercial Pressure Gauge

Performance and Accuracy

With an accuracy of 2% Full Scale Deflection (FSD), the JI-CPG provides precise pressure readings, ensuring that systems operate safely and efficiently. The gauge’s dual-scale display makes it easy to read pressure levels in either Kg/cm² or PSI, providing flexibility for operators working in different measurement systems.

The 6-inch dial size ensures that readings are easily visible, even from a distance, which is crucial in environments where quick and accurate pressure monitoring is essential. This large dial, combined with the gauge’s high accuracy, makes it a reliable tool for industrial and commercial applications where precision is key.

Advantages of the JI-CPG Commercial Pressure Gauge

1. Large, Easy-to-Read Dial: The 6-inch dial provides clear visibility, allowing operators to quickly and accurately monitor pressure levels, even from a distance.
2. Dual-Scale for Versatility: The gauge’s dual-scale display (Kg/cm² and PSI) provides flexibility, making it suitable for use in both metric and imperial measurement systems.
3. Durable Construction: The combination of a mild steel powder-coated case and brass internals ensures that the gauge is built to last, even in harsh industrial environments.
4. Panel Mounting for Easy Installation: The back entry panel mounting design allows for easy integration into control panels, making the gauge suitable for a variety of applications.
5. High Accuracy: With an accuracy of 2% FSD, the JI-CPG ensures that pressure levels are measured accurately, reducing the risk of equipment damage or performance issues.

JI-CPG Commercial Pressure Gauge: Conclusion

The JI-CPG Commercial Pressure Gauge by “Ji” Japsin Instrumentation is a reliable and durable solution for pressure measurement in a wide range of industrial and commercial applications. Its large, easy-to-read dial, dual-scale measurement, and robust construction make it an ideal choice for monitoring pressure in HVAC, pneumatic, and hydraulic systems. With its accuracy and durability, the JI-CPG ensures that your systems operate safely and efficiently, reducing the risk of costly downtime and equipment damage.
