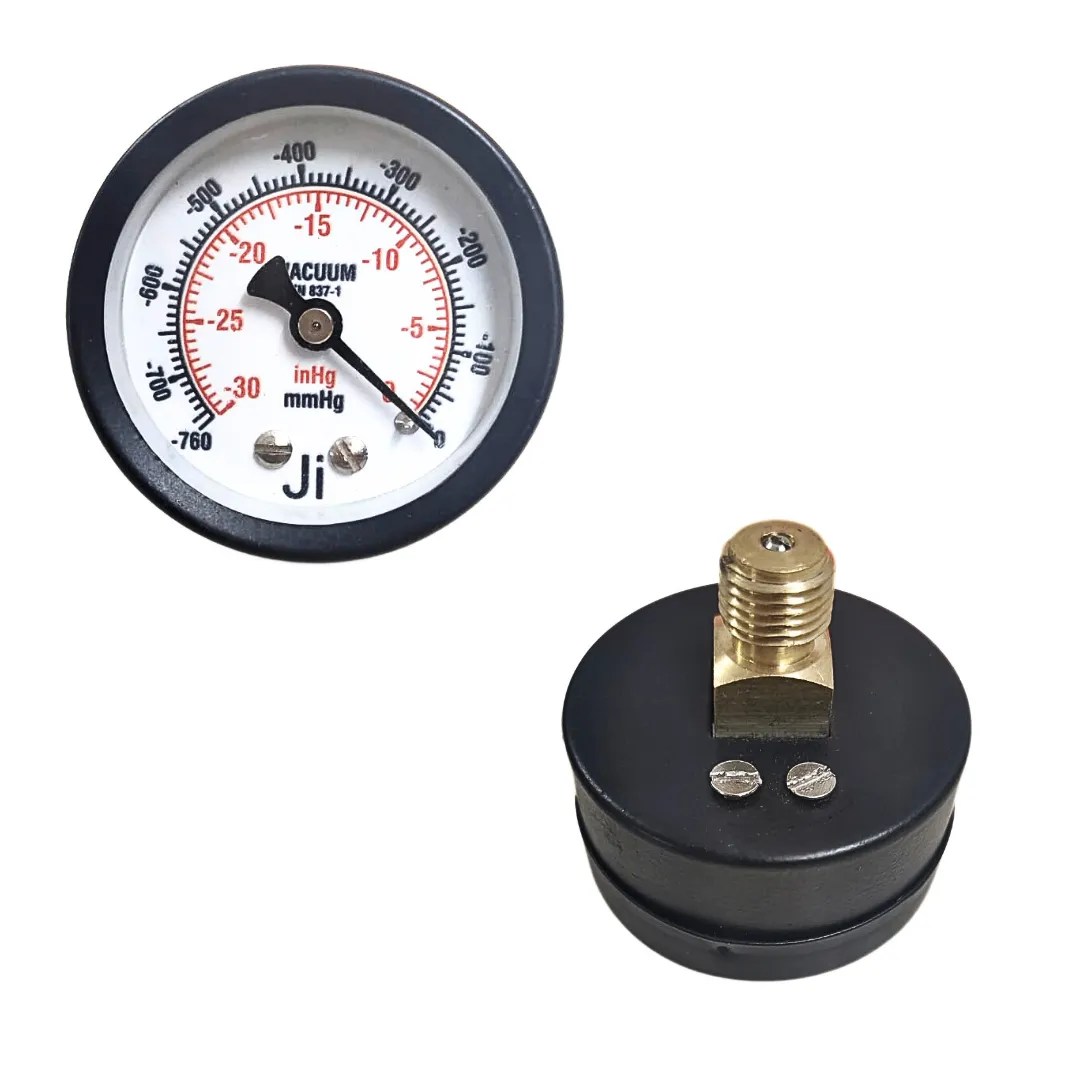

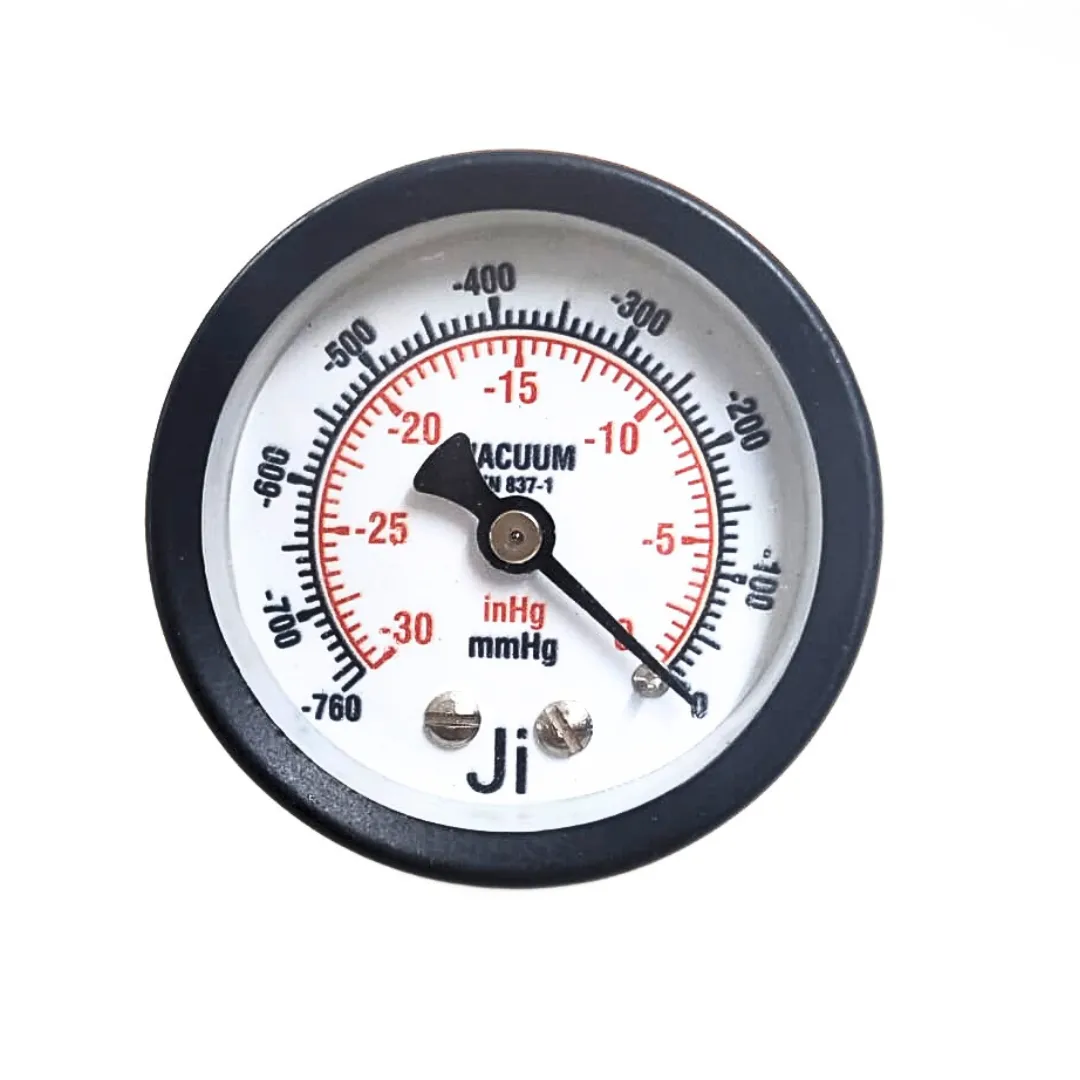

Commercial Vacuum Gauge, Dial Size 2″ (50 mm), Range -760 mmHg to 0 with Dual Scale of -30 inHg to 0, Direct Mounting Back Entry, 1/4″ BSP (M) Connection, MS Case & Brass Internals, Accuracy 2% FSD

(3 customer reviews)

Original price was: ₹1,980.00.Current price is: ₹630.00.

9 in stock (can be backordered)

Compare

Your Gateway to Precision Control. Explore Our Online Store for Cutting-edge Instrumentation Solutions. Reliable Quality, Unparalleled Performance.

“Ji” Japsin Instrumentation Commercial Vacuum Gauge, 2″ Dial, offers a range from -760 mmHg to 0 (-30 inHg). It features a direct mounting back entry with a 1/4″ BSP connection, MS case, and brass internals, delivering high accuracy and reliable performance for various industrial applications.

Japsin Instrumentation – Since 1974

Description

Commercial Vacuum Gauge, 2″ Dial, Range -760 mmHg to 0 (-30 inHg), 1/4″ BSP Back Entry, MS Case & Brass Internals

Detailed Description:

In industrial applications where precise pressure measurement is critical, vacuum gauges play an essential role in monitoring and maintaining safe pressure levels. The “Ji” Japsin Instrumentation Commercial Vacuum Gauge is specifically engineered to meet the needs of industries that require reliable vacuum measurement. With its compact 2″ (50 mm) dial size and robust design, this vacuum gauge ensures precision and durability, even in demanding environments.

Key Features and Benefits:

  1. Compact and Accurate Measurement:
    • The 2″ dial size is compact yet provides clear, easy-to-read measurements, making it suitable for installations where space is limited.
    • The gauge measures a vacuum range from -760 mmHg to 0, with a dual scale that includes -30 inHg to 0. This dual scale provides flexibility in various applications, catering to users who prefer metric or imperial units.
  2. Sturdy Construction with Premium Materials:
    • The gauge is constructed with a robust mild steel (MS) case, offering a durable and cost-effective solution for commercial use.
    • The wetted parts and internals are made from high-quality brass, ensuring resistance against corrosion and compatibility with a wide range of non-corrosive gases.
    • The crimped case design enhances the gauge’s structural integrity, preventing leakage and damage in rugged conditions.
  3. User-Friendly Design and Installation:
    • Featuring a direct mounting back entry, this vacuum gauge is designed for easy integration into various systems. The back entry design is ideal for panel mounting, providing a neat and streamlined appearance.
    • It comes with a standard 1/4″ BSP (M) connection, allowing compatibility with common fittings and easy installation.
  4. Precision and Reliability:
    • The gauge offers an accuracy of 2% of full-scale deflection (FSD), ensuring precise readings for critical processes. This high accuracy level is crucial in applications where maintaining specific pressure levels is necessary to ensure safety and efficiency.
    • The gauge’s performance remains stable and reliable across a wide range of operating conditions, making it an ideal choice for both commercial and industrial applications.
  5. Versatile Applications:
    • The “Ji” Japsin Instrumentation Commercial Vacuum Gauge is versatile and can be used across various industries, including HVAC systems, manufacturing, automotive, food processing, and laboratory setups.
    • It is well-suited for monitoring vacuum levels in systems such as vacuum pumps, refrigeration units, pneumatic controls, and other vacuum-based applications.

Ideal for Industrial and Commercial Settings:

The combination of a compact design, robust construction, and high accuracy makes this vacuum gauge an ideal tool for a wide array of applications. Whether you are working with refrigeration systems, vacuum pumps, or pneumatic controls, the “Ji” Japsin Instrumentation Commercial Vacuum Gauge delivers the precision and reliability needed to maintain optimal performance.

How It Works:

The vacuum gauge operates by measuring the negative pressure or vacuum within a system relative to atmospheric pressure. When connected to the system, the internal components (including a bourdon tube) react to changes in pressure. The bourdon tube, made of brass, bends slightly under the effect of the vacuum, and this movement is transferred to the dial pointer through a mechanical linkage. The result is a precise reading on the gauge, displayed on both mmHg and inHg scales for ease of use.

Durability and Maintenance:

The use of mild steel for the casing and brass for the wetted parts ensures that the gauge is resistant to wear and tear, even in harsh industrial environments. The crimped case design adds to its durability by providing a tight seal, reducing the risk of dust or moisture ingress. Regular calibration and maintenance of the gauge can further enhance its lifespan and ensure continued accuracy.

Applications:

The “Ji” Japsin Instrumentation Commercial Vacuum Gauge is versatile and can be used in:

  • HVAC Systems: To monitor and maintain the vacuum levels in air conditioning and heating systems.
  • Refrigeration Units: For precise measurement of vacuum in refrigeration lines and systems.
  • Vacuum Pumps: To ensure proper functioning and monitor vacuum levels in industrial vacuum pumps.
  • Pneumatic Controls: Suitable for measuring and regulating vacuum in pneumatic systems and components.
  • Laboratory Equipment: Ideal for use in lab setups requiring precise vacuum measurement for various experiments and processes.

Why Choose “Ji” Japsin Instrumentation Vacuum Gauge?

With a focus on quality and precision, “Ji” Japsin Instrumentation provides reliable instrumentation solutions tailored to meet the needs of industrial and commercial users. This vacuum gauge is designed with the user in mind, offering features that enhance performance and durability in challenging conditions. The compact design, robust construction, and ease of installation make it an excellent choice for anyone seeking an efficient and accurate vacuum measurement tool.

Choose “Ji” Japsin Instrumentation for your vacuum measurement needs and experience superior performance and reliability in every application.

Japsin Instrumentation – Since 1974

Additional information

Brand

"Ji" Japsin Instrumentation

Model:

Commercial Vacuum Gauge

Dial Size:

2" (50 mm)

Pressure Range:

-760 mmHg to 0 (Vacuum)

Dual Scale:

-30 inHg to 0

Mounting Type:

Direct Mounting, Back Entry

Connection Size:

1/4" BSP (M)

Case Material:

Mild Steel (MS)

Wetted Parts Material:

Brass

Accuracy:

±2% of Full Scale Deflection (FSD)

Application:

Vacuum measurement in HVAC systems, refrigeration units, vacuum pumps, pneumatic systems, laboratory equipment, and general industrial use

Compliance:

Meets standard industrial quality and safety requirements
