JI-EPG Economical Compound Gauge: Precision Pressure Measurement for Industrial Applications
The JI-EPG Economical Compound Gauge Glycerin Filled by “Ji” Japsin Instrumentation is designed to deliver accurate and reliable pressure readings in a variety of industrial applications. This versatile gauge measures both vacuum and pressure, making it an essential tool for systems that require precise monitoring of pressure levels across a wide range.
With a dial size of 2 1/2″ (63 mm) and a durable stainless steel 304 case, this gauge is built to withstand the harsh conditions of industrial environments. The glycerin filling helps dampen vibrations and provides clear readings even in challenging conditions, ensuring that your systems operate smoothly and efficiently.
Key Features
- Stainless Steel 304 Case (Crimping Type): The gauge features a robust stainless steel 304 case, providing superior protection against corrosion, physical impact, and harsh environmental conditions. The crimping type design ensures a secure and leak-proof construction.
- Glycerin Filled: The glycerin filling dampens vibrations, allowing for more stable needle movement and clearer readings. This is particularly beneficial in environments where machinery or other equipment causes significant vibrations.
- Stainless Steel Internals: The internal components are crafted from high-grade stainless steel, offering excellent durability and resistance to corrosion, ensuring long-lasting performance in demanding applications.
- Dial Size 2 1/2″ (63 mm): The compact yet readable 2 1/2″ dial provides clear visibility of the pressure readings, making it easy to monitor the system’s performance at a glance.
- Range -1 to 10.6 Kg/cm²: This compound gauge covers a wide pressure range, from full vacuum (-1 Kg/cm²) to high pressure (10.6 Kg/cm²), making it suitable for a variety of industrial applications.

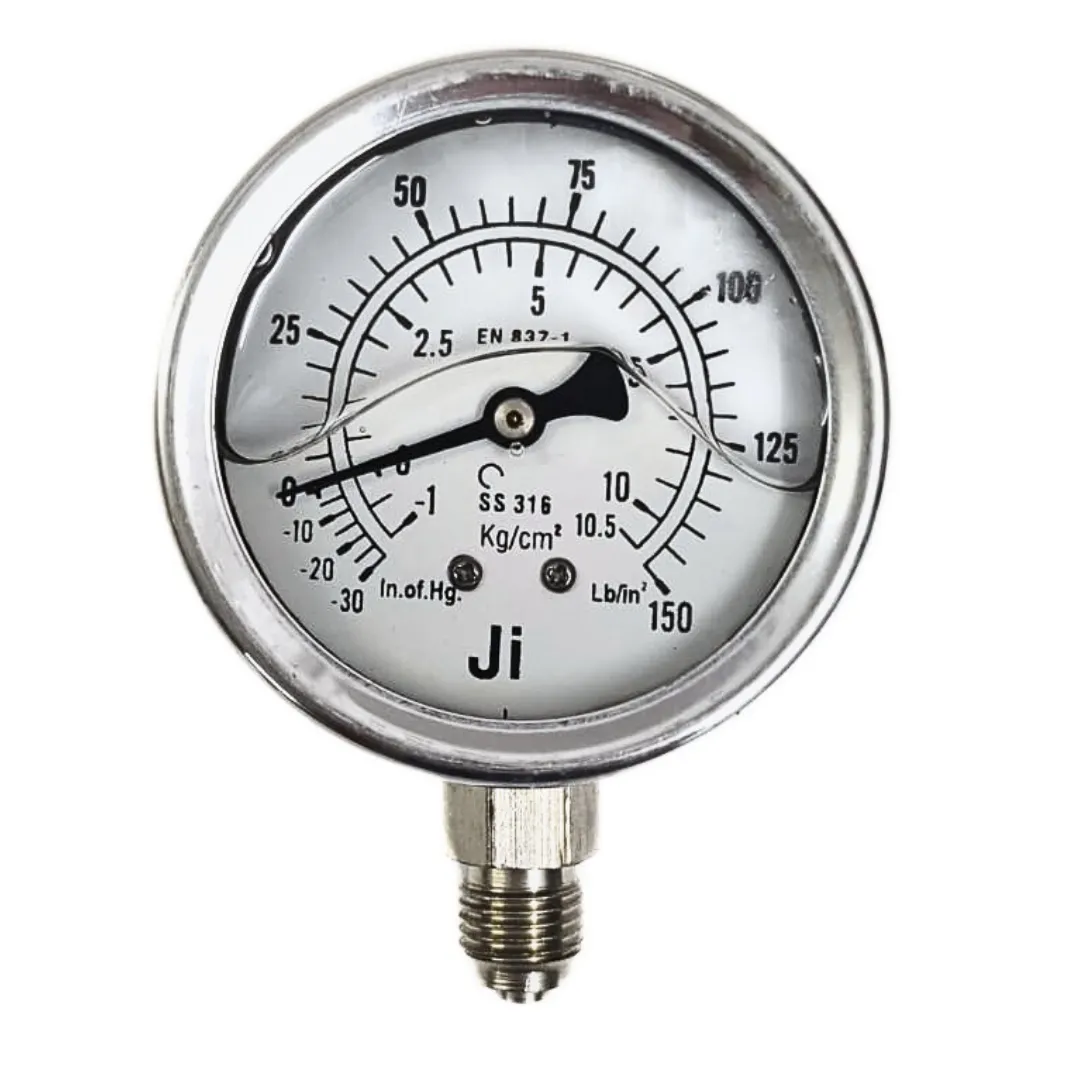

- Dual Scale Display: The dual scale on the dial displays measurements in both Kg/cm² and PSI, with ranges of -1 to 10.6 Kg/cm² and -30 inHg to 150 PSI, providing flexibility and convenience for users who need to work with different units of measurement.
- Direct Mounting (Bottom Entry): The direct mounting design with a bottom entry connection allows for straightforward installation in systems where space and configuration are key considerations.
- 1/4″ BSP (M) Connection: The gauge is equipped with a standard 1/4″ BSP (M) connection, ensuring compatibility with a wide range of systems and making it easy to integrate into existing setups.
- Accuracy 1.6% FSD: The gauge offers high accuracy with a tolerance of 1.6% of full-scale deflection (FSD), ensuring precise readings that are critical for maintaining optimal system performance.
Economical Compound Gauge
Applications
The JI-EPG Economical Compound Gauge is designed to meet the needs of various industrial applications where accurate pressure and vacuum monitoring is essential. Its ability to measure both vacuum and pressure makes it particularly useful in systems that undergo significant pressure changes.
Typical Applications Include:
- Pneumatic Systems: This gauge is ideal for monitoring the pressure in pneumatic systems, ensuring that air pressure remains within the desired range for optimal system performance.
- Hydraulic Systems: In hydraulic systems, the gauge helps maintain pressure levels, preventing potential damage to machinery and ensuring safe operation.
- Refrigeration Systems: The ability to measure both vacuum and pressure makes this gauge suitable for refrigeration systems where maintaining proper pressure levels is critical for efficient operation.
- Vacuum Systems: The gauge is well-suited for vacuum systems where accurate vacuum measurement is required to ensure that processes are carried out correctly and safely.
Why Choose JI-EPG Economical Compound Gauge?
- Versatility in Measurement: The ability to measure both vacuum and pressure with a dual scale display makes this gauge versatile and practical for a wide range of industrial applications.
- Durable Construction: The stainless steel 304 case and internals ensure that the gauge can withstand harsh conditions and continue to provide accurate readings over time.
- Vibration Damping: The glycerin filling helps to stabilize needle movement, making it easier to obtain accurate readings even in environments with significant vibrations.
- Ease of Installation: The direct mounting bottom entry design and 1/4″ BSP (M) connection make installation straightforward and hassle-free, reducing downtime and ensuring a quick setup.
- High Accuracy: With an accuracy of 1.6% FSD, the gauge provides precise readings, helping to maintain system efficiency and safety.
Maintenance and Care
To maintain the accuracy and longevity of the JI-EPG Economical Compound Gauge, regular maintenance is recommended. Proper care will ensure that the gauge continues to provide reliable performance over its lifespan.
- Calibration: Periodic calibration is essential to maintain the accuracy of the gauge. This is particularly important in systems where pressure levels fluctuate frequently.
- Cleaning: Keep the gauge clean and free from debris. Wipe the surface with a soft cloth and avoid exposure to harsh chemicals that could damage the case or internals.
- Inspection: Regularly inspect the gauge for signs of wear, damage, or leaks. Check the connection points and ensure that the crimping is intact to maintain the integrity of the gauge.
Economical Compound Gauge
Conclusion
The JI-EPG Economical Compound Gauge Glycerin Filled by “Ji” Japsin Instrumentation is a reliable and accurate tool for professionals working in various industrial applications. Its durable construction, versatility in measurement, and ease of installation make it an essential addition to any system that requires precise pressure and vacuum monitoring. Whether you are working in pneumatics, hydraulics, refrigeration, or vacuum systems, this gauge delivers the performance you need to keep your operations running smoothly.
