Economical Compound Gauge Glycerin Filled, 4″ (100 mm) Dial, Range -1 to 7 Kg/Cm2 with Dual Scale of -760 mmHg to 100 PSI, Surface Mounting Bottom Entry, 3/8″ BSP (M) Connection, SS Case & SS Wetted Parts (Case Bayonet Type)

Description

JI-EPG Economical Compound Gauge Glycerin Filled: A Comprehensive Description

The JI-EPG Economical Compound Gauge is a high-quality measurement instrument manufactured by “Ji” Japsin Instrumentation. This gauge is designed to meet the needs of various industrial applications, providing reliable and accurate readings of pressure and vacuum. With its robust construction, precision engineering, and user-friendly design, the JI-EPG Compound Gauge stands out as a versatile tool for professionals in diverse fields. This description will delve into the features, construction, applications, and benefits of this exceptional instrument.

Key Features

Glycerin Filling

The JI-EPG Compound Gauge is glycerin-filled, which significantly enhances its performance and longevity. Glycerin filling helps to dampen the effects of vibration and pulsation, ensuring steady and accurate readings even in challenging environments. This feature is particularly beneficial in applications where the gauge is exposed to fluctuating pressures or mechanical vibrations.

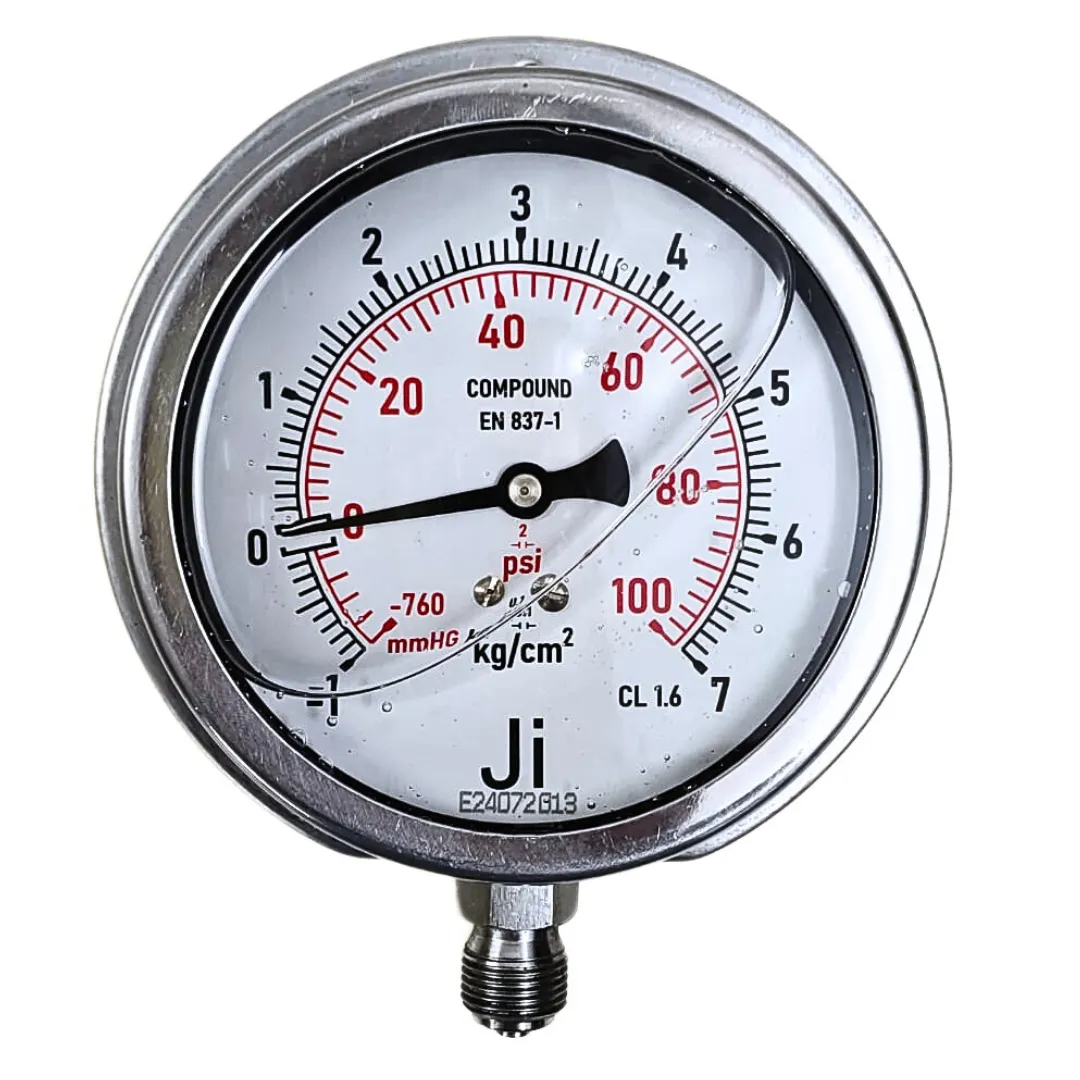

Dual Scale Display

One of the standout features of this gauge is its dual scale display. The gauge provides readings in both -760 mmHg to 100 PSI and -1 to 7 Kg/Cm². This dual scale makes the JI-EPG Compound Gauge versatile and easy to use in a variety of settings, accommodating users who prefer either metric or imperial units of measurement. The clear and precise markings on the dial ensure that readings can be taken quickly and accurately.

Stainless Steel Construction

Durability and reliability are paramount in industrial instrumentation, and the JI-EPG Compound Gauge excels in this regard with its stainless steel construction. The case is made from SS 304, a high-grade stainless steel known for its resistance to corrosion and mechanical damage. The internals are also constructed from stainless steel, ensuring the gauge can withstand harsh environments and prolonged use without compromising performance.

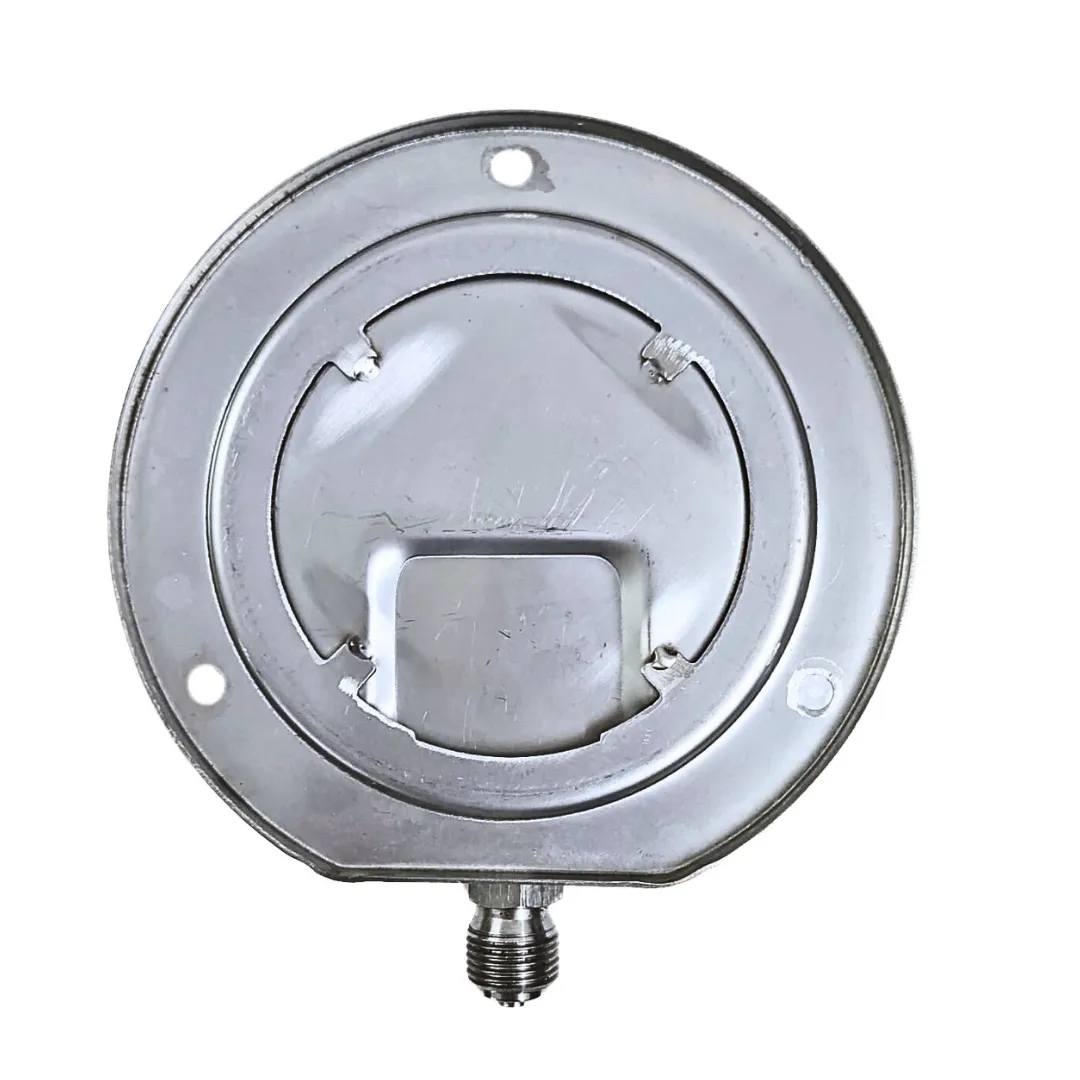

Bayonet Type Case

The bayonet type case design is another feature that enhances the durability and serviceability of the JI-EPG Compound Gauge. This design allows for easy access to the internal components, facilitating maintenance and calibration. The secure bayonet locking mechanism ensures that the case remains tightly sealed, protecting the internal components from dust, moisture, and other contaminants.

Direct Mounting Bottom Entry

For ease of installation and use, the JI-EPG Compound Gauge features a direct mounting bottom entry connection. This design allows the gauge to be easily mounted in a vertical position, ensuring optimal readability and stability. The 3/8″ BSP (M) connection is a standard size, compatible with a wide range of equipment and systems, making the installation process straightforward and hassle-free.

High Accuracy

Accuracy is critical in pressure measurement, and the JI-EPG Compound Gauge delivers with an accuracy of 1.6% of full-scale deflection (FSD). This level of precision ensures that the gauge provides reliable readings, which are essential for maintaining safety and efficiency in various applications. The high accuracy makes this gauge suitable for both critical and routine measurements.

Applications

The JI-EPG Economical Compound Gauge is designed for a wide range of applications across different industries. Its robust construction and precise measurements make it suitable for use in:

Industrial Processing

In industries such as chemical, pharmaceutical, and food processing, accurate pressure measurement is crucial for maintaining product quality and safety. The JI-EPG Compound Gauge can be used to monitor and control pressure in processing lines, ensuring that conditions remain within specified parameters.

HVAC Systems

Heating, ventilation, and air conditioning (HVAC) systems require precise control of pressure to function efficiently. The JI-EPG Compound Gauge can be used to measure and monitor pressure in various components of HVAC systems, including compressors, condensers, and evaporators.

Hydraulic and Pneumatic Systems

Hydraulic and pneumatic systems rely on accurate pressure measurement for optimal performance. The JI-EPG Compound Gauge is ideal for monitoring pressure in these systems, helping to prevent malfunctions and ensure smooth operation.

Water and Wastewater Management

In water and wastewater management, maintaining proper pressure levels is essential for the efficient operation of pumps, filters, and other equipment. The JI-EPG Compound Gauge provides reliable readings that help operators maintain the desired pressure levels, contributing to the overall efficiency and effectiveness of these systems.

Laboratory and Research

In laboratory and research settings, precise pressure measurement is often required for experiments and testing. The JI-EPG Compound Gauge offers the accuracy and reliability needed for these applications, making it a valuable tool for researchers and technicians.

Benefits

The JI-EPG Economical Compound Gauge offers several benefits that make it a preferred choice for professionals:

Reliability

With its stainless steel construction and glycerin filling, the JI-EPG Compound Gauge is built to last. It can withstand harsh environments and demanding applications, providing consistent and reliable performance over time.

Versatility

The dual scale display and compatibility with standard 3/8″ BSP connections make this gauge versatile and suitable for a wide range of applications. Whether you need to measure pressure in industrial processes, HVAC systems, or hydraulic systems, the JI-EPG Compound Gauge has you covered.

Ease of Use

The direct mounting bottom entry and clear dial markings make the JI-EPG Compound Gauge easy to install and read. This user-friendly design ensures that operators can quickly and accurately take readings, minimizing the risk of errors and improving overall efficiency.

Cost-Effective

Despite its high-quality construction and advanced features, the JI-EPG Compound Gauge is an economical choice. It offers excellent value for money, providing the performance and reliability of more expensive gauges at a competitive price.

Conclusion

The JI-EPG Economical Compound Gauge from “Ji” Japsin Instrumentation is a high-quality, reliable, and versatile instrument designed to meet the needs of various industries. Its glycerin-filled, stainless steel construction ensures durability and accuracy, while the dual scale display and direct mounting bottom entry make it easy to use.

Whether you are working in industrial processing, HVAC systems, hydraulic and pneumatic systems, water and wastewater management, or laboratory research, the JI-EPG Compound Gauge is an excellent choice for accurate and reliable pressure measurement. Its combination of performance, versatility, and cost-effectiveness makes it a valuable addition to any professional’s toolkit.

Japsin Instrumentation – Since 1974
