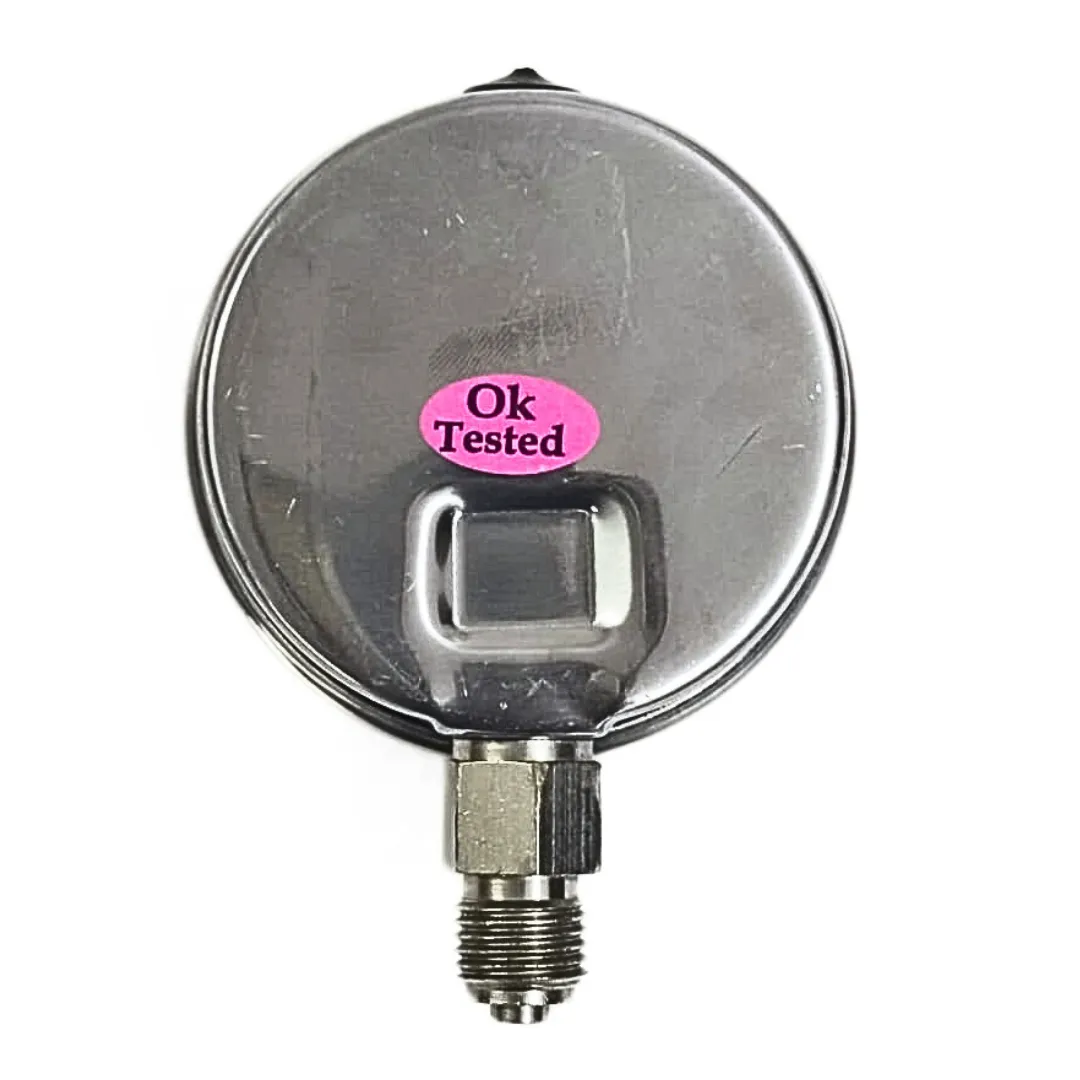

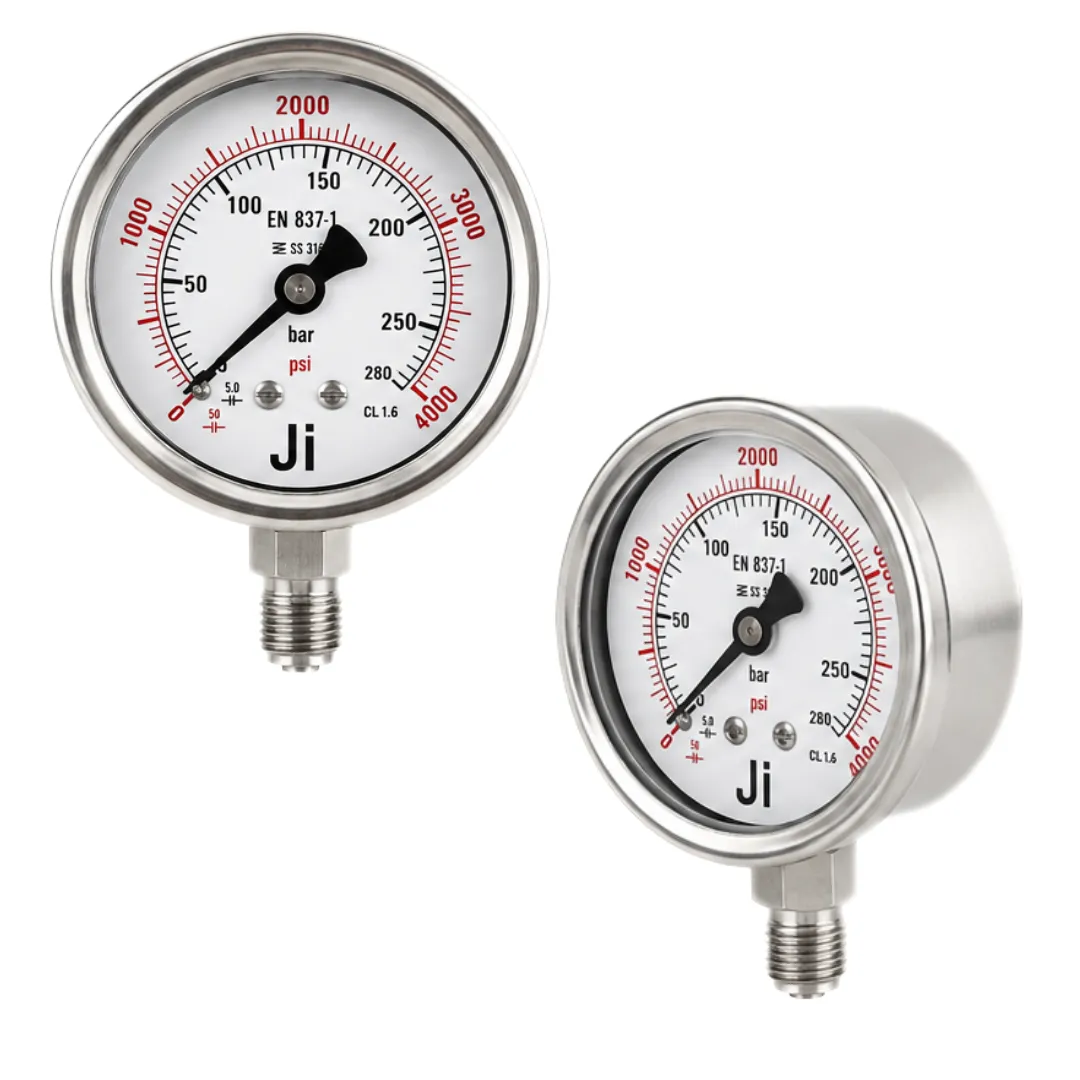

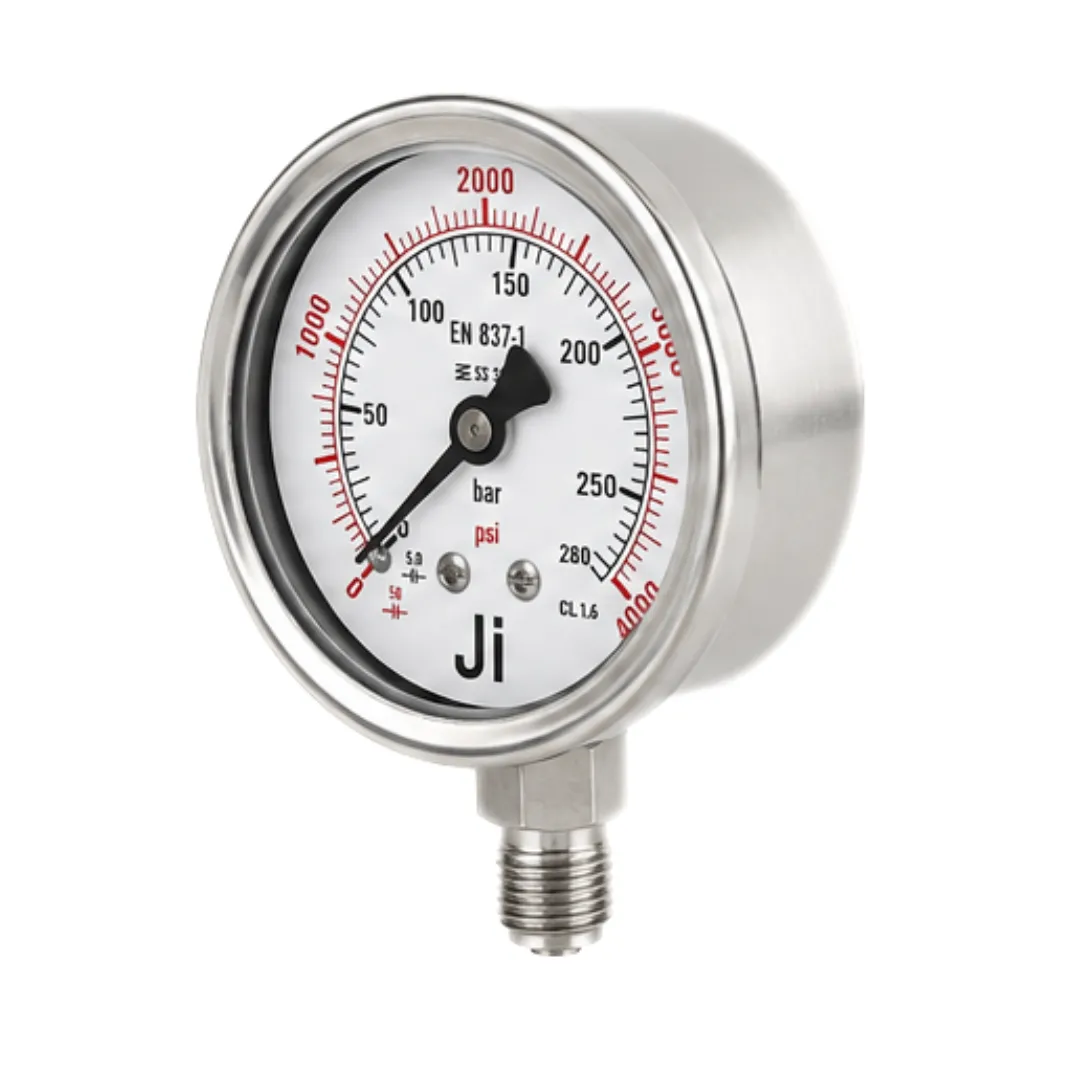

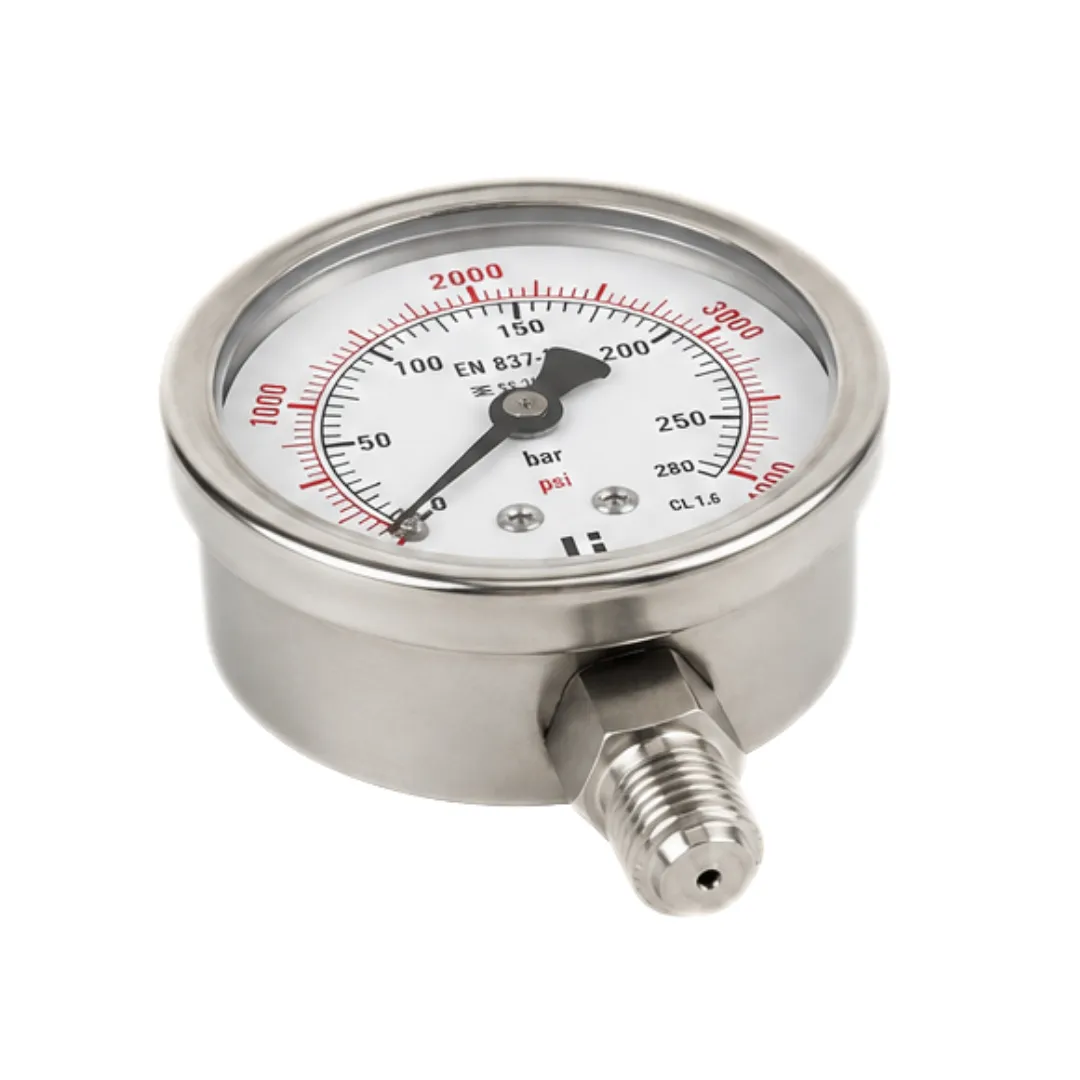

Economical Pressure Gauge Glycerin Filled, 2 1/2″ (63 mm) Dial, Range 0 to 280 Bar With Dual Scale of 4000 PSI, Direct Mounting Bottom Entry, 1/4″ BSP (M) Connection, SS Case & SS Wetted Parts (Case Crimping Type)

Description

JI-EPG Economical Pressure Gauge: High-Pressure Precision for Industrial Applications

In industries where precision pressure measurement is vital, the JI-EPG Economical Pressure Gauge by “Ji” Japsin Instrumentation stands out as a reliable and durable instrument. Designed to handle high-pressure environments, this gauge is ideal for a wide range of applications, from hydraulic systems to heavy machinery. Its glycerin-filled design, coupled with stainless steel construction, ensures accuracy and longevity, making it a trusted choice for professionals.

Product Overview

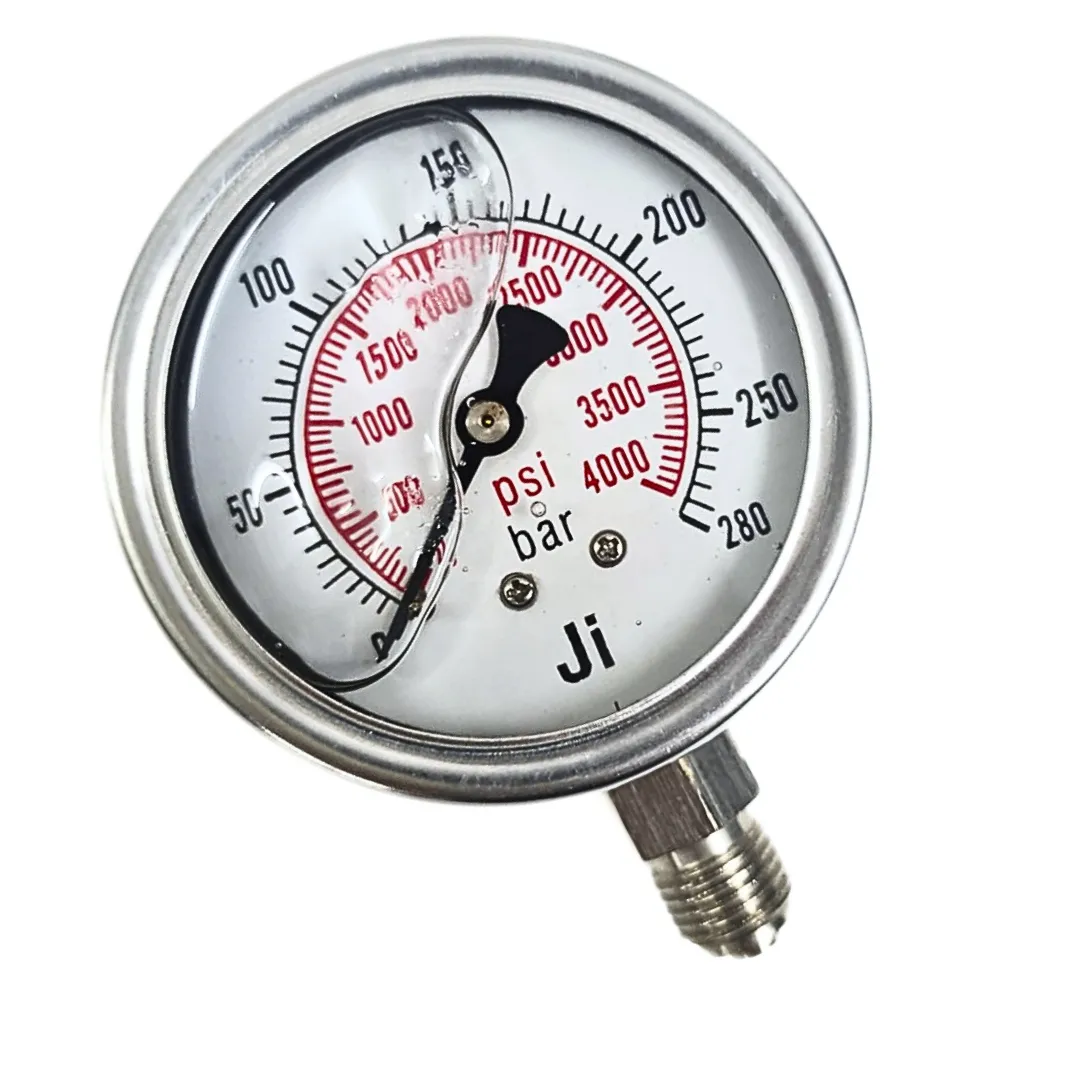

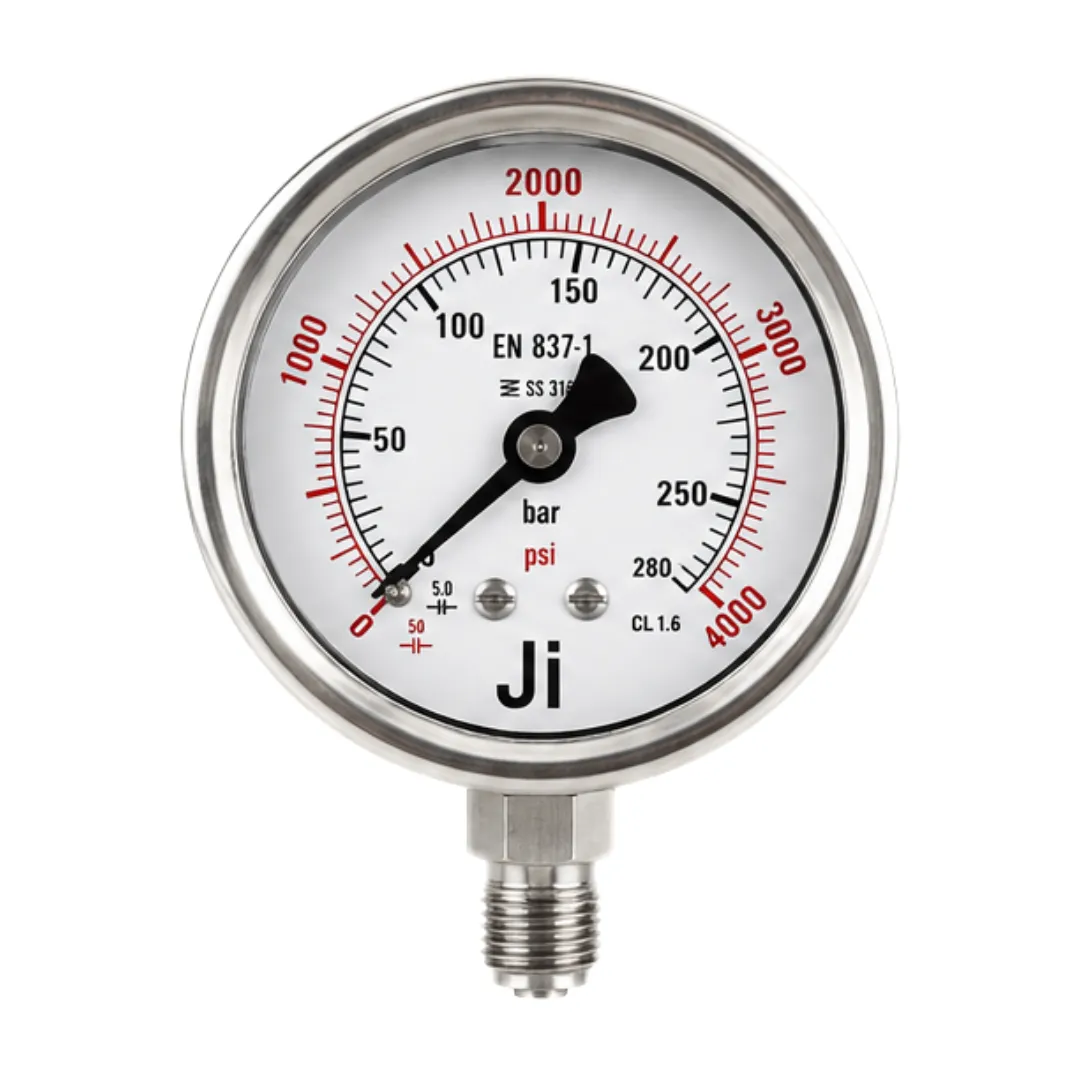

The JI-EPG Economical Pressure Gauge is engineered with a 2 1/2″ (63 mm) dial, offering clear and easy-to-read measurements even in challenging conditions. The gauge operates within a range of 0 to 280 Bar, with a dual scale of 0 to 4000 PSI, providing versatility for high-pressure applications. Its design includes a direct mounting bottom entry and a 1/4″ BSP (M) connection, ensuring easy installation and a secure fit.

Constructed with a stainless steel 304 case and internals, the gauge is built to withstand harsh industrial environments. The crimping type construction enhances the durability of the case, ensuring that the gauge remains sealed and protected from external elements. The glycerin filling provides additional benefits by dampening vibrations, ensuring stable readings, and prolonging the life of the internal components.

With an accuracy of 1.6% Full Scale Deflection (FSD), the JI-EPG Economical Pressure Gauge delivers precise readings, essential for maintaining safety and efficiency in industrial processes. Whether monitoring hydraulic pressure, testing equipment, or controlling machinery, this gauge offers the performance and reliability needed to keep operations running smoothly.

Key Features

1. High-Pressure Range: The gauge measures pressures from 0 to 280 Bar, with a dual scale of 0 to 4000 PSI, making it suitable for high-pressure applications.
2. Stainless Steel Construction: The stainless steel 304 case and internals provide excellent corrosion resistance and durability, ensuring long-lasting performance in demanding environments.
3. Glycerin-Filled Design: The glycerin filling dampens vibrations, resulting in stable readings and extended gauge life, especially in high-vibration settings.
4. Compact and Clear Dial: The 2 1/2″ dial size is designed for easy readability, even in confined spaces, making it ideal for use in various industrial settings.

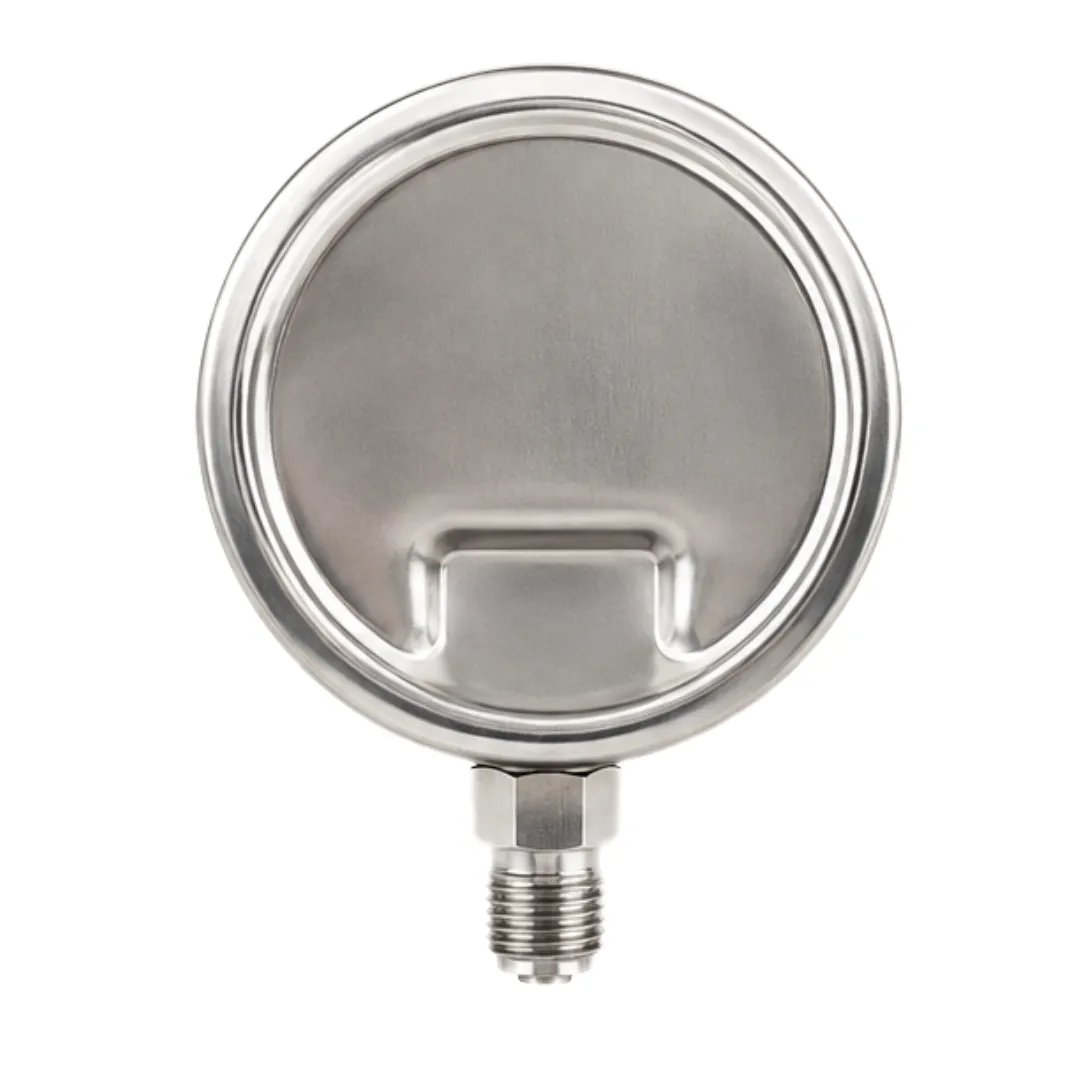

5. Direct Mounting with Bottom Entry: The 1/4″ BSP (M) connection and bottom entry design facilitate straightforward installation and integration into existing systems.
6. High Accuracy: With an accuracy of 1.6% FSD, the gauge ensures precise pressure measurements, which are critical for maintaining process control and safety.

Applications

The JI-EPG Economical Pressure Gauge is ideal for a variety of industrial applications where accurate high-pressure measurement is crucial:

1. Hydraulic Systems: Essential for monitoring pressure in hydraulic systems, ensuring the proper functioning and safety of machinery.
2. Heavy Machinery: Used in construction and industrial equipment to measure and control high-pressure levels, preventing equipment failure.
3. Testing Equipment: Suitable for use in test benches and other high-pressure testing applications, where precise measurement is key.
4. Oil and Gas Industry: Ideal for monitoring high pressures in pipelines, storage tanks, and other critical components in the oil and gas sector.
5. Power Generation: Used in power plants to measure high-pressure steam and other fluids, ensuring efficient and safe operation.
6. Industrial Manufacturing: Suitable for various manufacturing processes that require accurate pressure control, such as injection molding, metal forming, and more.

Benefits

1. Reliable High-Pressure Measurement: The JI-EPG gauge’s ability to measure pressures up to 280 Bar with a dual scale of 4000 PSI makes it a reliable tool for high-pressure applications, ensuring safety and efficiency.
2. Durable Construction: The stainless steel 304 case and internals, along with the crimping type construction, provide exceptional durability and resistance to harsh environmental conditions.
3. Stable and Accurate Readings: The glycerin filling not only protects the internal components but also ensures stable and accurate readings, even in high-vibration environments.
4. Easy Installation: The direct mounting bottom entry with a 1/4″ BSP (M) connection allows for quick and easy installation, minimizing downtime and maintenance efforts.
5. Versatile Application: The gauge’s high-pressure range and robust design make it suitable for a wide range of industrial applications, from hydraulic systems to power generation.
6. Cost-Effective Solution: The JI-EPG Economical Pressure Gauge offers a balance of high performance and affordability, providing a cost-effective solution for industries that require precise pressure measurement.

Installation and Maintenance

To ensure optimal performance and longevity of the JI-EPG Economical Pressure Gauge, proper installation and maintenance practices should be followed:

1. Installation:
   • Choose a location that is easily accessible for monitoring and maintenance.
   • Securely connect the 1/4″ BSP (M) fitting to the appropriate port, ensuring a leak-free installation.
   • Mount the gauge in a position where the dial is easily visible and accessible.
2. Maintenance:
   • Regularly inspect the gauge for any signs of wear, damage, or leakage.
   • Clean the dial and casing periodically to maintain clear visibility of the readings.
   • Conduct calibration checks as recommended by the manufacturer to ensure continued accuracy.
   • Replace the glycerin filling if necessary to maintain vibration dampening and accuracy.

Economical Pressure Gauge: Conclusion

The JI-EPG Economical Pressure Gauge by “Ji” Japsin Instrumentation is a reliable and versatile instrument designed for high-pressure applications across various industries. Its stainless steel construction, glycerin-filled design, and high accuracy make it an excellent choice for professionals who require precise and dependable pressure measurement. Whether used in hydraulic systems, heavy machinery, or industrial manufacturing, this gauge provides the performance and durability needed to maintain safe and efficient operations.
