Economical Pressure Gauge Glycerin Filled, 2 1/2″ (63 mm) Dial, Range 0 to 10.6 Bar With Dual Scale of 0 to 150 PSI, Direct Mounting Bottom Entry, 1/4″ BSP (M) Connection, SS Case & SS Wetted Parts (Case Crimping Type)

Description

Comprehensive Overview of the Economical Pressure Gauge Glycerin Filled

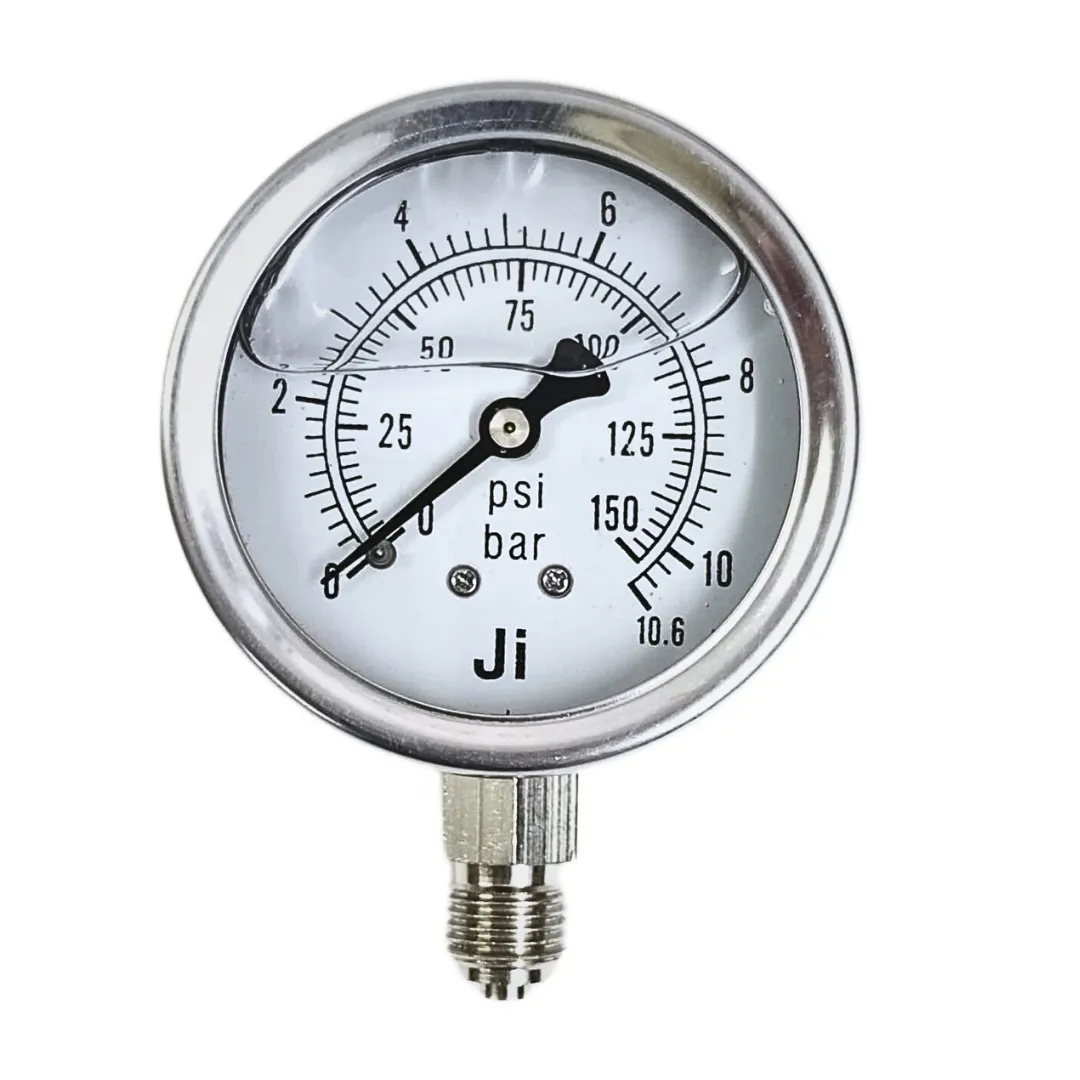

The Economical Pressure Gauge Glycerin Filled by “Ji” Japsin Instrumentation is a high-quality, precision-engineered instrument designed to measure pressure in various industrial applications. Equipped with a compact 2 1/2″ (63 mm) dial, this gauge is designed for professionals who require an affordable yet durable tool to monitor pressure ranges accurately. The gauge covers a pressure range from 0 to 10.6 Bar, with a dual scale reading of 0 to 150 PSI, making it versatile and suited for a wide array of industrial processes.

This pressure gauge is designed with stainless steel (SS) case and wetted parts, ensuring durability and long-lasting performance in challenging environments. The glycerin filling protects the internal components from vibration and pulsation, providing more accurate readings and enhancing the lifespan of the gauge. It is suitable for applications in sectors like HVAC, hydraulics, refrigeration, and pneumatic systems where precise pressure monitoring is essential.

Detailed Description

Design and Construction

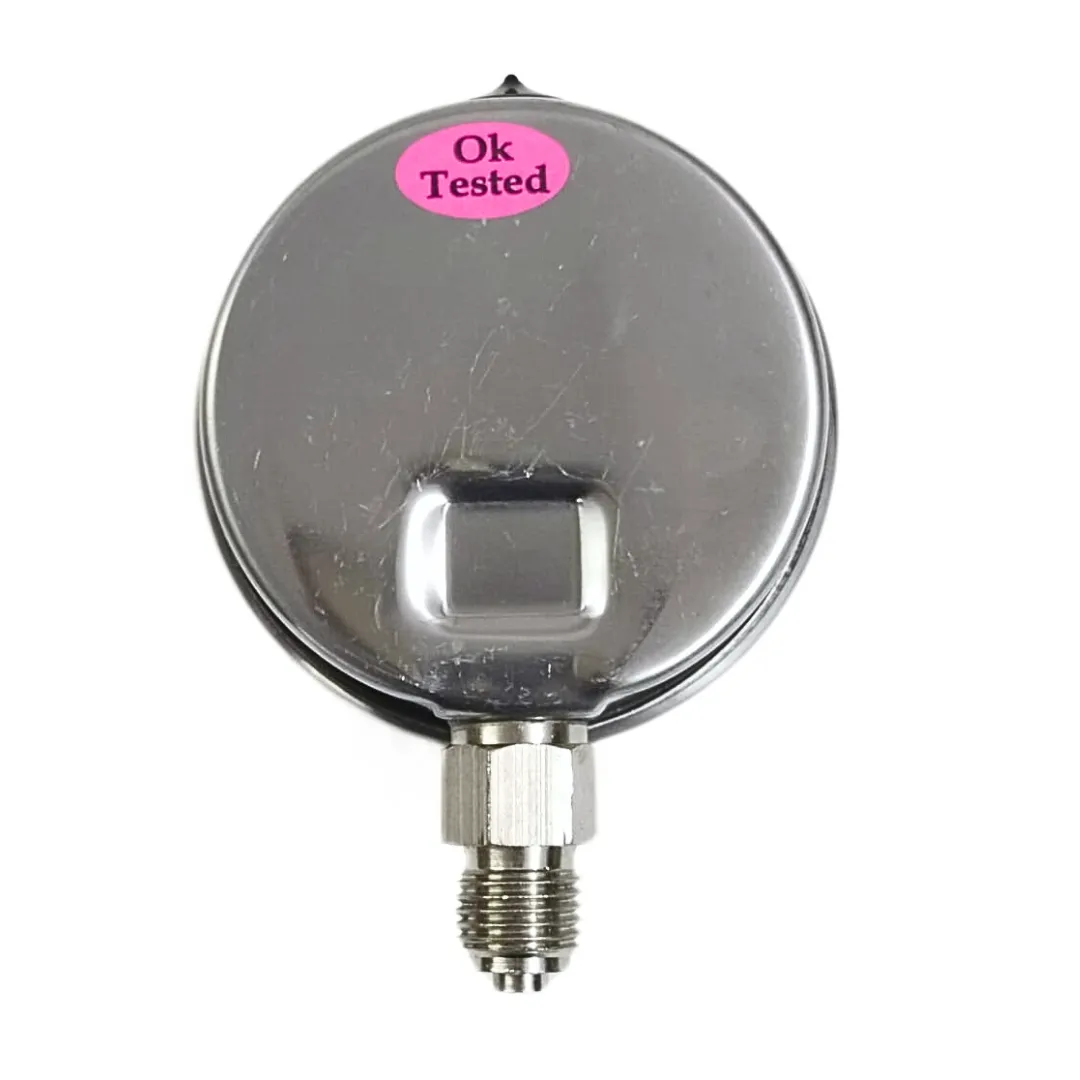

The Economical Pressure Gauge Glycerin Filled from “Ji” Japsin Instrumentation is built to meet the demands of industrial environments while offering an affordable solution. It features a stainless steel 304 case and wetted parts, which makes the gauge resistant to corrosion and ideal for use in harsh and corrosive environments. The crimping type design of the case ensures a tight seal, preventing leakage and ensuring the gauge’s longevity.

The 2 1/2″ (63 mm) dial size is compact and easy to read, even in tight spaces. The glycerin filling further enhances the gauge’s durability by damping the needle’s movement in high-vibration environments. This ensures that readings are steady and easy to interpret, reducing the risk of misreading under fluctuating pressure conditions.

Performance and Accuracy

One of the standout features of this pressure gauge is its dual-scale measurement, which ranges from 0 to 10.6 Bar and 0 to 150 PSI. This allows users to monitor pressure in both metric and imperial units, increasing the versatility of the instrument for various industrial settings. The accuracy of 1.6% FSD (Full Scale Deflection) ensures reliable pressure readings, reducing the risk of under- or over-pressurizing a system.

The stainless steel wetted parts ensure compatibility with a wide range of fluids and gases, making the gauge suitable for systems where the medium might be corrosive or require stringent cleanliness standards, such as in the food, pharmaceutical, or chemical processing industries.

Vibration and Pulsation Resistance

One of the major advantages of this pressure gauge is the glycerin filling. Glycerin is a thick, viscous liquid that dampens the vibrations and pulsations often present in industrial machinery and systems. This feature is essential in environments where the pressure fluctuates rapidly, or where equipment vibrations could cause inaccuracies in readings. The glycerin acts as a cushion, ensuring that the needle remains stable and provides an accurate, easy-to-read display even under adverse conditions.

This resistance to vibrations also helps to extend the life of the internal components, reducing wear and tear on the sensitive mechanisms within the gauge.

Ease of Installation

The direct mounting, bottom entry design makes installation quick and simple. The 1/4″ BSP (M) connection is a standard size used across a wide range of industrial systems, ensuring compatibility with most existing setups. This standardization reduces the need for additional adapters or fittings, simplifying installation and minimizing downtime.

Additionally, the gauge’s compact size allows it to be installed in tight spaces without compromising performance or readability. The bottom entry design is particularly well-suited for installations where the gauge needs to be mounted on pipes, tanks, or machinery that require upward-facing dials for easy monitoring.

Applications

The Economical Pressure Gauge Glycerin Filled is ideal for a wide variety of applications across different industries. Its robust construction, high accuracy, and ability to measure pressure in both vacuum and positive pressure settings make it a versatile tool for:

• HVAC Systems: The gauge is perfect for monitoring air, gas, and refrigerant pressure in heating, ventilation, and air conditioning systems. Its durable design and high accuracy ensure that HVAC technicians can maintain the desired pressure levels, ensuring optimal system performance and energy efficiency.
• Hydraulics and Pneumatics: This gauge is equally at home in hydraulic and pneumatic systems, where precise pressure readings are essential to ensure that equipment operates within the required pressure parameters. The dual-scale measurement provides flexibility for systems that require readings in both Bar and PSI.
• Refrigeration Systems: Its stainless steel construction and glycerin-filled design make it particularly suitable for refrigeration systems where both accuracy and durability are critical. The ability to handle both high-pressure and low-pressure readings makes it ideal for these types of systems.
• Industrial Process Control: In industrial environments where pressure measurement is crucial to the success of processes, the Economical Pressure Gauge provides accurate and reliable measurements. This is particularly important in industries like food processing, pharmaceuticals, and chemical manufacturing, where maintaining the correct pressure is essential for safety and quality control.

Durability and Long-term Reliability

The stainless steel case and wetted parts give this pressure gauge a long service life in even the most demanding environments. The resistance to corrosion, combined with the protective glycerin filling, ensures that the gauge can withstand exposure to harsh chemicals, extreme temperatures, and moisture. This makes it suitable for both indoor and outdoor use.

The glycerin filling also serves to protect the internal mechanisms from wear, extending the gauge’s life and reducing the frequency of maintenance or replacement. In environments where downtime can be costly, having a reliable pressure gauge like this can save both time and money.

Safety and Compliance

The Economical Pressure Gauge Glycerin Filled meets the strict requirements of the ASME B40.1 Standard, ensuring that it is safe to use in a wide variety of industrial settings. This compliance guarantees that the gauge performs consistently and safely, even in high-pressure or potentially hazardous environments.

By providing accurate and reliable pressure readings, this gauge helps operators maintain the safe operation of their equipment, reducing the risk of over-pressurization and system failures.

Conclusion

The Economical Pressure Gauge Glycerin Filled, 2 1/2″ (63 mm) Dial by “Ji” Japsin Instrumentation offers an exceptional balance between cost, durability, and performance. Its robust construction, high accuracy, and dual-scale measurement make it a versatile tool for industries such as HVAC, hydraulics, pneumatics, and refrigeration. With a focus on reliability and ease of use, this pressure gauge is an excellent choice for professionals who require an affordable, durable, and precise instrument for monitoring pressure.
