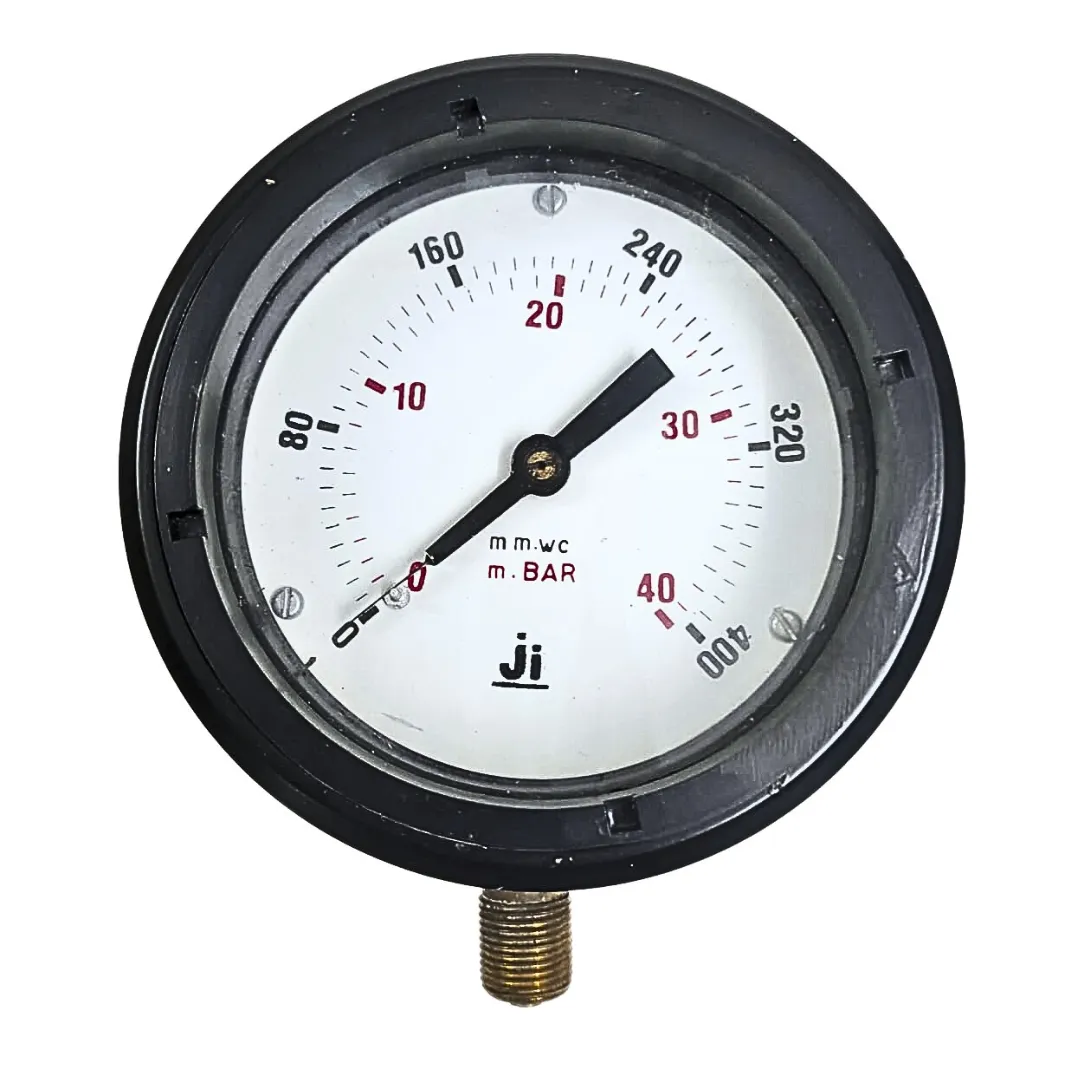

Economical Pressure Gauge, 4″ (100 mm) Dial, Range 0 to 400 mmWc With Dual Scale of 40 mBar, Direct Mounting Bottom Entry, 3/8″ BSP (M) Connection, Black Aluminium Case Screw Type & SS Internals

Description

JI-EPG Economical Pressure Gauge: Precision for Low-Pressure Applications

The JI-EPG Economical Pressure Gauge from “Ji” Japsin Instrumentation is a highly reliable and accurate tool designed to measure low-pressure levels in a variety of industrial applications. Featuring a 4″ (100 mm) dial, this gauge is built with a black aluminum case, stainless steel internals, and a direct mounting bottom entry. It is engineered to provide precise pressure readings within a range of 0 to 400 mmWc, with a dual scale of 40 mBar, making it an ideal choice for monitoring low-pressure systems. With an accuracy of 1.6% Full Scale Deflection (FSD), this pressure gauge offers the precision needed for maintaining operational efficiency and safety in sensitive environments.

Product Overview

The JI-EPG Economical Pressure Gauge is specifically designed for applications that require accurate low-pressure measurement. The gauge is equipped with a large 4″ dial that enhances readability, allowing operators to monitor pressure levels with ease. The black aluminum case provides a durable and lightweight housing that protects the gauge from environmental factors, while the stainless steel internals ensure long-term reliability and resistance to corrosion.

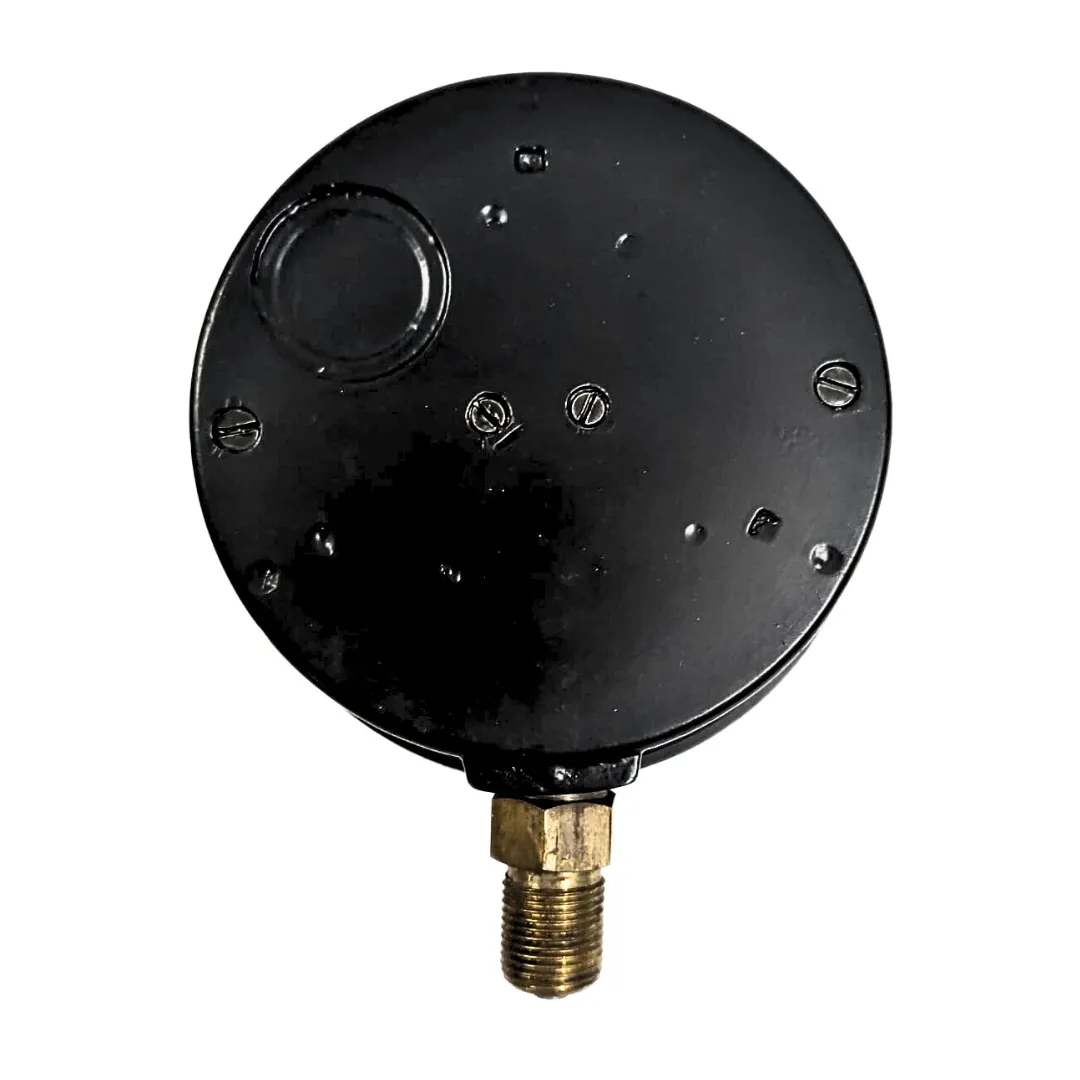

The gauge’s direct mounting bottom entry, featuring a 3/8″ BSP (M) connection, simplifies installation and provides a secure fit. This makes it easy to integrate the gauge into existing systems with minimal effort. The dual scale readings in mmWc and mBar offer versatility, enabling the gauge to be used in different measurement systems across various industries.

With its precision and reliable performance, the JI-EPG Economical Pressure Gauge is an excellent tool for monitoring low-pressure levels in applications where accuracy is critical. This gauge is particularly well-suited for industries such as HVAC, water treatment, and laboratory settings, where maintaining specific pressure levels is essential for operational success.

Key Features

1. Large 4″ Dial: The gauge’s large dial size ensures that pressure readings are easy to see, even from a distance, improving monitoring accuracy and reducing the risk of errors.
2. Black Aluminum Case: The black aluminum case offers a durable and lightweight housing, protecting the gauge from environmental factors while making it easy to handle and install.
3. Stainless Steel Internals: The stainless steel internal components provide superior resistance to corrosion and mechanical wear, ensuring consistent performance and long-term reliability.
4. Dual Scale Readings: The gauge is calibrated to display pressure readings in both mmWc and mBar, making it versatile and suitable for use in industries that operate under different measurement systems.
5. Direct Mounting: The direct mounting bottom entry design and 3/8″ BSP (M) connection make installation straightforward and secure, allowing for quick integration into existing systems.
6. Precision Measurement: With an accuracy of 1.6% FSD, this gauge provides precise pressure readings, which are essential for maintaining safe and efficient operations in low-pressure systems.

Economical Pressure Gauge: Applications

The JI-EPG Economical Pressure Gauge is suitable for a variety of low-pressure applications, including:

1. HVAC Systems: Ideal for monitoring air and fluid pressures in heating, ventilation, and air conditioning systems, ensuring optimal performance and energy efficiency.
2. Water Treatment Facilities: Used to monitor pressure in filtration systems, pumps, and other equipment, ensuring proper functioning and water quality.
3. Laboratories: Essential for maintaining precise pressure levels in experimental setups and testing environments where accuracy is critical.
4. Process Control: Applicable in process control systems where maintaining specific pressure levels is necessary for consistent product quality and safety.
5. Gas Distribution: Suitable for monitoring gas pressure in distribution networks, ensuring safe and efficient operation.
6. General Industrial Use: Versatile enough for use in any industrial setting that requires reliable and accurate low-pressure measurement.

Economical Pressure Gauge: Benefits

1. Enhanced Readability: The large 4″ dial with clear dual scale markings ensures that pressure readings are easily visible, reducing the likelihood of errors and enhancing operational safety.
2. Durable and Lightweight Construction: The black aluminum case provides a robust yet lightweight housing, making the gauge easy to install and resistant to environmental factors.
3. Versatile Measurement: The dual scale readings in mmWc and mBar make the gauge suitable for a wide range of low-pressure applications, reducing the need for multiple gauges.
4. Precision and Accuracy: With an accuracy of 1.6% FSD, this gauge delivers precise pressure readings, which are essential for maintaining safe and efficient operations in low-pressure systems.
5. Cost-Effective Solution: Despite its high-quality construction and performance, the JI-EPG Economical Pressure Gauge offers an economical solution for industries seeking reliable pressure measurement tools without overspending.

Economical Pressure Gauge: Installation and Maintenance

To ensure optimal performance and longevity of the JI-EPG Economical Pressure Gauge, follow these installation and maintenance guidelines:

1. Installation:
   • Select a location that allows for easy access and visibility of the gauge.
   • Secure the gauge using the 3/8″ BSP (M) connection, ensuring a tight and leak-free fit.
   • Mount the gauge on a stable surface to avoid exposure to excessive vibrations or harsh environmental conditions.
   • Avoid installing the gauge in areas with extreme temperatures or corrosive substances that could damage the aluminum casing.
2. Maintenance:
   • Regularly inspect the gauge for signs of wear, damage, or leaks.
   • Clean the dial and case periodically to maintain clear visibility of the pressure readings.
   • Perform calibration checks as recommended by the manufacturer to ensure continued accuracy.
   • Replace any damaged components immediately to prevent inaccurate readings or system failures.
   • Ensure the gauge is not exposed to pressures beyond its maximum range, as this could cause damage to the internal components.

Economical Pressure Gauge: Conclusion

The JI-EPG Economical Pressure Gauge by “Ji” Japsin Instrumentation is an essential tool for accurate low-pressure measurement in industrial applications. Its durable black aluminum case, large 4″ dial, and stainless steel internals make it a reliable and cost-effective choice for industries requiring precise pressure monitoring. With dual scale readings in mmWc and mBar, this gauge offers versatility, allowing it to be used across different measurement systems.

Whether you are monitoring pressure in HVAC systems, water treatment facilities, or laboratory environments, the JI-EPG Economical Pressure Gauge provides the accuracy and durability needed to maintain safe and efficient operations. Easy to install and maintain, this gauge is a practical solution for industries looking to enhance their pressure monitoring capabilities without compromising on quality or performance.

Japsin Instrumentation – Since 1974
