Economical Pressure Gauge, 4″ (100 mm) Dial, Range 0 to 210 Kg/Cm2 With Dual Scale of 3000 PSI, Direct Mounting Bottom Entry, 3/8″ BSP (M) Connection, SS Case & SS Wetted Parts (Case Bayonet Type)

Description

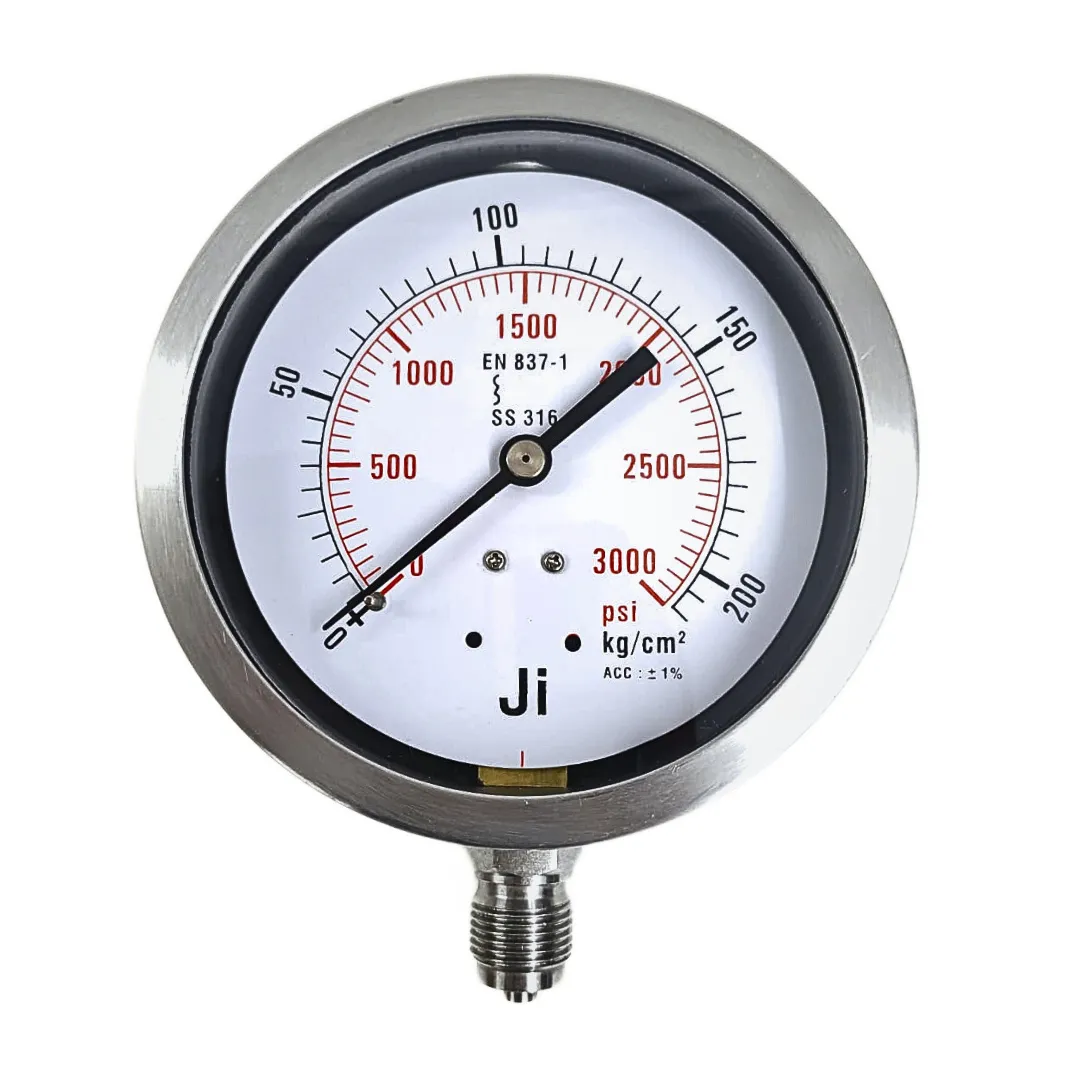

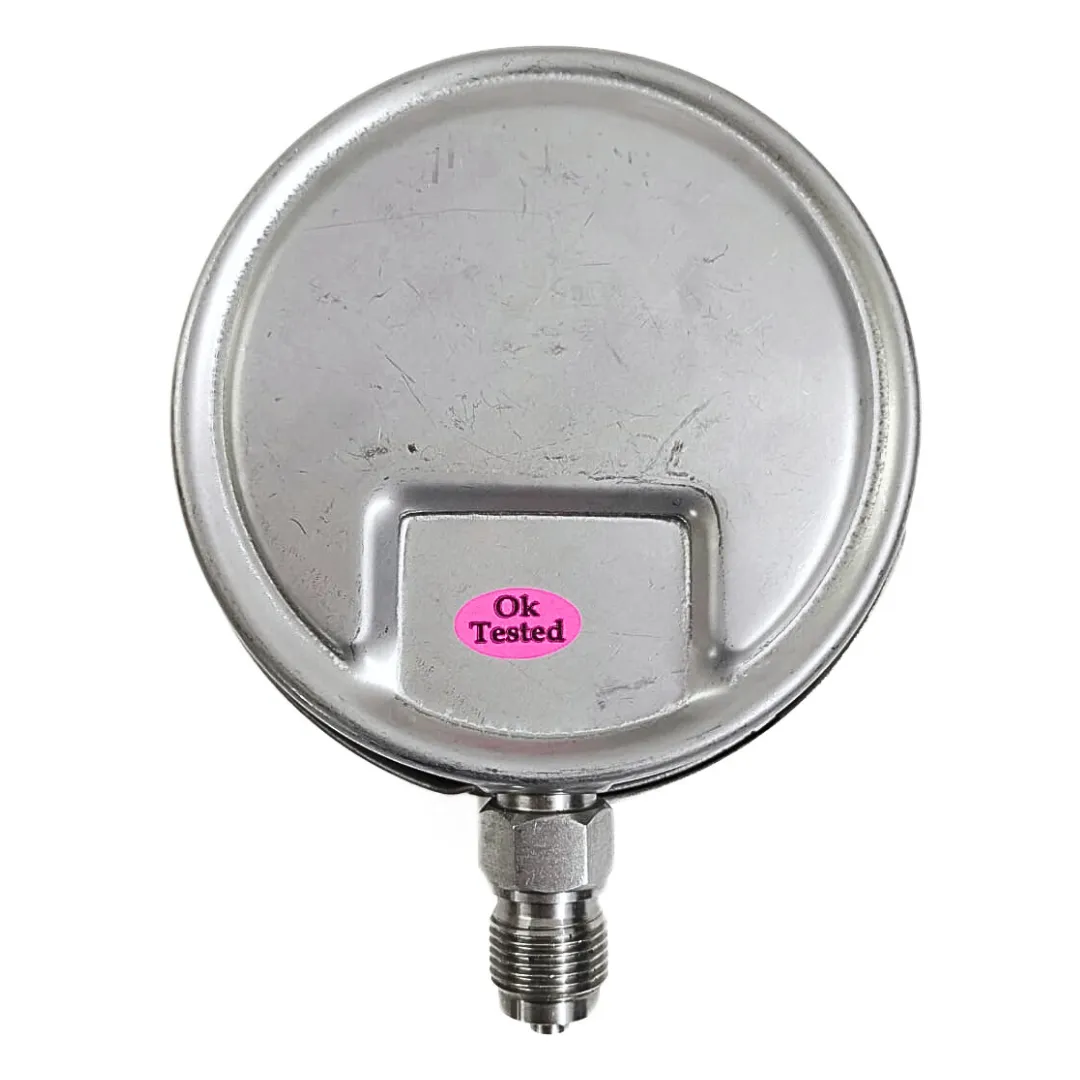

Economical Pressure Gauge, 4″ (100 mm) Dial, 0 to 210 Kg/Cm² with Dual Scale of 3000 PSI

In today’s fast-paced industrial environments, pressure measurement is crucial to maintaining safety, reliability, and efficiency across various systems. The Economical Pressure Gauge, with a 4″ (100 mm) dial, provides an ideal solution for industries requiring precise and dependable pressure monitoring. Featuring a pressure range of 0 to 210 Kg/Cm² and a dual scale of 3000 PSI, this pressure gauge is engineered to meet the needs of diverse applications, such as hydraulics, pneumatics, HVAC systems, and more.

This high-performance pressure gauge, developed by “Ji” Japsin Instrumentation, stands out for its durability, accuracy, and reliability. Designed with a stainless steel case and stainless steel wetted parts, it is highly resistant to corrosive substances, making it an excellent option for industrial environments. The glycerin-filled gauge also offers superior vibration damping, ensuring smooth needle movement for accurate pressure readings even in high-vibration settings.

Detailed Description

Robust Design and Construction

The Economical Pressure Gauge is designed to offer robust performance, even in the most demanding environments. The gauge features a stainless steel 304 case, which provides excellent protection against corrosion, rust, and environmental contaminants. The bayonet-type case design ensures easy maintenance while adding an extra layer of protection to the internal components. Whether exposed to harsh weather conditions, chemicals, or mechanical wear, the stainless steel case offers unmatched durability, making this gauge highly reliable over its long operational lifespan.

Additionally, the stainless steel wetted parts make the gauge suitable for use with a wide range of pressure media, including aggressive or corrosive substances. This feature is particularly advantageous for applications in the chemical processing industry, where exposure to chemicals and harsh substances is common. With its rugged design, this pressure gauge is well-suited for various industrial sectors, ensuring maximum performance in tough conditions.

Precision Pressure Monitoring

The 0 to 210 Kg/Cm² range of this gauge, paired with a dual scale reading of 3000 PSI, provides accurate pressure measurement across a wide span of industrial applications. The dual-scale feature allows users to easily switch between metric and imperial units, offering versatility in different regions and industries.

Thanks to its 1.6% accuracy (FSD), the gauge ensures precise readings at all times. This level of accuracy is essential for applications that require exact pressure measurements, such as hydraulic systems, pneumatic circuits, or HVAC systems. Whether the gauge is being used in a factory, construction site, or chemical plant, it consistently delivers reliable pressure data that helps maintain system safety and efficiency.

Glycerin-Filled for Vibration Dampening

One of the standout features of this pressure gauge is its design, which serves to dampen the effects of vibration and pressure pulsations. In industrial environments, where machinery can generate significant vibration or fluctuating pressures, the glycerin filling stabilizes the needle, preventing rapid movements and ensuring that readings are easy to interpret.

This glycerin filling also helps protect the internal mechanical components of the gauge, reducing wear and tear caused by vibration over time. As a result, the lifespan of the gauge is extended, and maintenance requirements are minimized. The reduced impact of vibration means that this gauge is ideal for applications involving high-pressure equipment, heavy machinery, and systems with frequently fluctuating pressure levels.

Direct Mounting with Bottom Entry

The direct mounting bottom entry configuration makes installation of this pressure gauge simple and efficient. The 3/8″ BSP (M) connection is a standard fitting size commonly used in a wide variety of systems, ensuring easy integration into existing setups. Whether you’re working in a hydraulic plant, a chemical processing facility, or an HVAC system, this standardization helps minimize installation complexity, downtime, and costs.

The direct mounting capability ensures that the gauge can be securely installed on tanks, vessels, or piping systems, allowing for convenient visibility of pressure readings. The bottom entry design also optimizes space usage, as it reduces the gauge’s footprint, allowing for installation in tighter spaces.

Wide Range of Applications

This Economical Pressure Gauge is an excellent choice for a broad range of industrial applications. Its high-pressure range, dual-scale reading, and robust construction make it a versatile tool for engineers and operators across several industries, including:

• Hydraulics: In hydraulic systems, precise pressure monitoring is essential to ensure safe and efficient operation. This pressure gauge’s high range and stainless steel construction make it ideal for use in monitoring hydraulic fluid pressure.
• Pneumatics: Accurate pressure measurement is crucial in pneumatic systems to ensure that equipment is functioning correctly. The glycerin-filled design ensures smooth readings, even in systems with rapid pressure changes.
• HVAC and Refrigeration: In heating, ventilation, air conditioning, and refrigeration systems, pressure management is key to maintaining optimal performance and system efficiency. The dual scale feature provides versatility, as it allows technicians to work with both metric and imperial measurements.
• Chemical Processing: The stainless steel case and wetted parts make this gauge suitable for use in environments where corrosive chemicals are present. It ensures accurate pressure readings while resisting the damaging effects of chemical exposure.
• Power Generation: Pressure management in steam systems, boilers, and turbines requires high precision. The gauge’s glycerin filling minimizes errors caused by vibration, making it a reliable tool for monitoring critical pressure points in power plants.

Safety and Compliance

Designed with safety in mind, the Economical Pressure Gauge by “Ji” Japsin Instrumentation complies with ASME B40.1 standards for pressure gauges. These standards ensure that the gauge delivers consistent and reliable performance, meeting the necessary safety requirements for industrial use. Compliance with such a widely recognized standard guarantees that this pressure gauge is suitable for various applications and industries, providing peace of mind for operators and engineers alike.

Advantages of Stainless Steel Components

The choice of stainless steel for both the case and wetted parts enhances this gauge’s ability to perform in harsh environments. Stainless steel is known for its superior corrosion resistance, allowing the gauge to be used in settings where it may come into contact with water, chemicals, or other corrosive substances. The stainless steel wetted parts ensure compatibility with a broad range of pressure media, including fluids that may corrode other materials over time.

This construction makes the gauge not only durable but also versatile, enabling it to be used in numerous industries. Whether exposed to aggressive chemicals, high temperatures, or challenging environmental conditions, the stainless steel components ensure long-lasting performance and reliability.

Economical Pressure Gauge: Conclusion

The Economical Pressure Gauge,  4″ (100 mm) Dial by “Ji” Japsin Instrumentation is a high-quality, reliable tool designed for accurate pressure monitoring across a wide range of industrial applications. Its 0 to 210 Kg/Cm² range and dual scale of 3000 PSI ensure versatility and precision, while the glycerin-filled design minimizes the effects of vibration and pulsations, ensuring accurate and stable readings.

With a stainless steel case and wetted parts, this gauge is built to withstand harsh conditions, making it ideal for use in industries such as hydraulics, pneumatics, HVAC, refrigeration, and chemical processing. Its direct mounting bottom entry design and 3/8″ BSP (M) connection make installation easy, reducing downtime and improving efficiency. Built to comply with ASME B40.1 standards, this pressure gauge offers both safety and performance, making it a trusted solution for your pressure measurement needs.

Japsin Instrumentation – Since 1974
