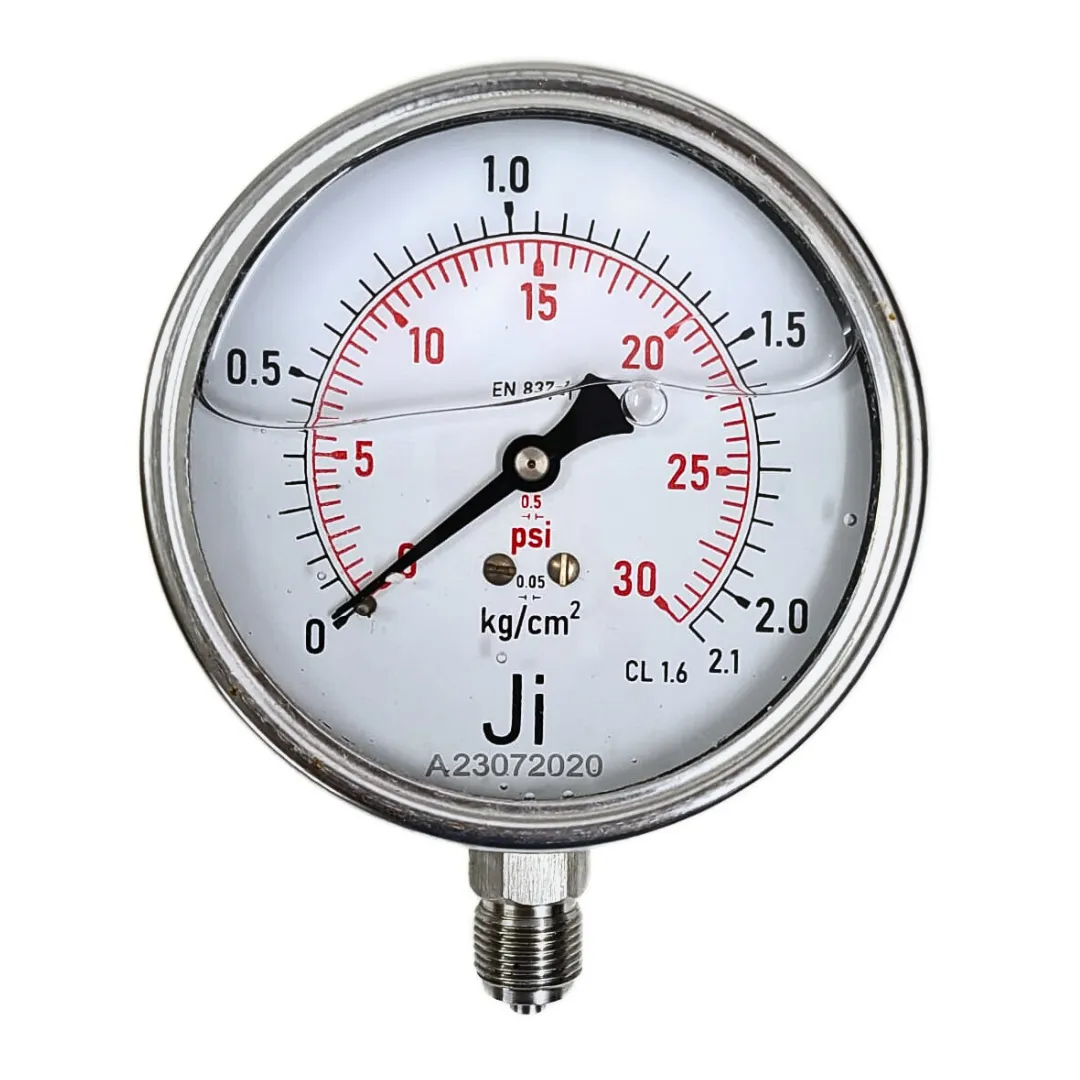

Economical Pressure Gauge Glycerin Filled, 4″ (100 mm) Dial, Range 0 to 2.1 Kg/Cm2 With Dual Scale of 30 PSI, Direct Mounting Bottom Entry, 3/8″ BSP (M) Connection, SS Case & SS Wetted Parts

Description

“Ji” Economical Pressure Gauge Glycerin Filled: Precision and Reliability in Pressure Measurement

In industrial environments where accuracy, durability, and reliability are crucial, the “Ji” Japsin Instrumentation Economical Pressure Gauge Glycerin Filled is an indispensable tool. Designed to meet the demands of various applications, this gauge is engineered with a 4″ (100 mm) dial, providing clear and precise pressure readings in the range of 0 to 2.1 Kg/Cm², with a dual scale that also includes 30 PSI. The stainless steel (SS) case and wetted parts ensure the gauge’s robustness, while the glycerin filling helps dampen vibrations and pulsations, resulting in more stable and accurate readings.

Whether used in hydraulic systems, pneumatic applications, or process control, this pressure gauge delivers reliable performance under challenging conditions. Its direct mounting bottom entry and 3/8″ BSP (M) connection facilitate easy installation and integration into existing systems. With an accuracy of 1.6% Full Scale Deflection (FSD), the “Ji” Japsin Instrumentation Economical Pressure Gauge is a cost-effective solution that does not compromise on quality.

Product Overview

The “Ji” Japsin Instrumentation Economical Pressure Gauge Glycerin Filled is designed for professionals who require accurate and stable pressure readings in demanding industrial environments. The 4″ dial size enhances readability, allowing operators to easily monitor pressure levels even in low-light conditions or from a distance. The dual scale feature, displaying both Kg/Cm² and PSI, adds versatility, enabling the gauge to be used across various regions and industries with different measurement standards.

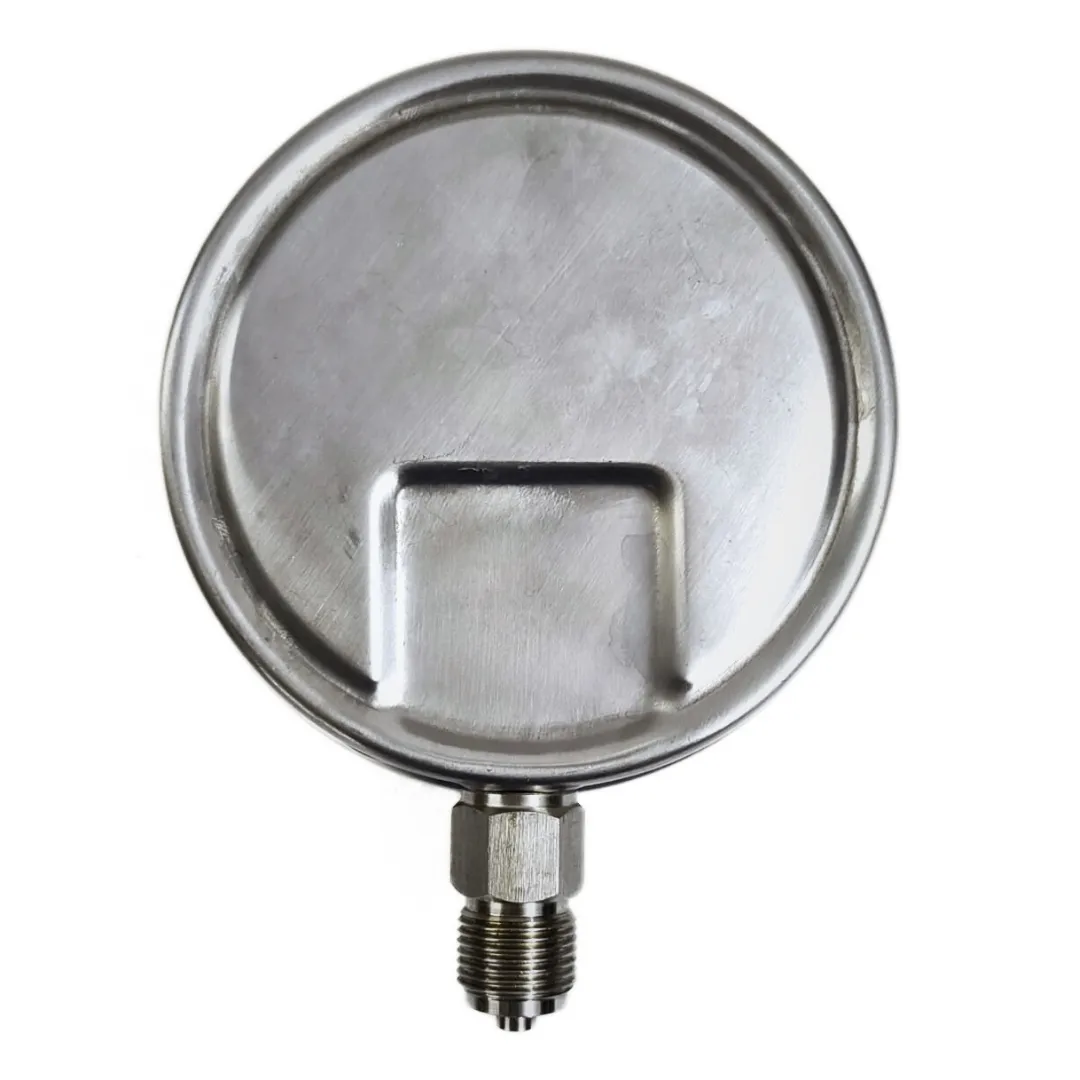

The gauge’s construction is focused on durability and long-term performance. The stainless steel case offers excellent protection against corrosion, making it ideal for use in harsh environments where exposure to chemicals, moisture, or other corrosive elements is a concern. Additionally, the wetted parts, also made of stainless steel, ensure that the gauge maintains its integrity and functionality over time.

The glycerin filling within the gauge is a critical feature that enhances its performance by dampening the effects of mechanical vibrations and pulsations. This results in more stable needle movement, reducing the likelihood of errors in pressure readings. The glycerin also helps to protect the internal components from wear and tear, extending the gauge’s lifespan and maintaining its accuracy.

Key Features

1. Glycerin Filled for Stability: The glycerin filling dampens the effects of vibrations and pulsations, providing more stable and accurate pressure readings.
2. Large 4″ Dial: The large dial size enhances readability, making it easy for operators to monitor pressure levels at a glance.
3. Stainless Steel Construction: Both the case and wetted parts are made from stainless steel, offering excellent resistance to corrosion and ensuring long-term durability.
4. Dual Scale Readings: The gauge features a dual scale with a range of 0 to 2.1 Kg/Cm² and 0 to 30 PSI, making it versatile for use in different measurement systems.
5. Direct Mounting: The direct mounting bottom entry design with a 3/8″ BSP (M) connection facilitates straightforward installation and secure integration into existing systems.
6. High Accuracy: With an accuracy of 1.6% FSD, the gauge delivers precise pressure readings, essential for maintaining safe and efficient operations.
7. Versatile Application: Suitable for use in various industrial applications, including hydraulic systems, pneumatic equipment, and process control.

Applications

The “Ji” Japsin Instrumentation Economical Pressure Gauge Glycerin Filled is versatile and suitable for a wide range of industrial applications, including:

1. Hydraulic Systems: Ideal for monitoring pressure in hydraulic systems where accurate readings are crucial to maintaining system performance and preventing damage.
2. Pneumatic Equipment: Used to monitor air pressure in pneumatic systems, ensuring they operate within safe and efficient pressure ranges.
3. Process Control: Applicable in process control environments where maintaining specific pressure levels is necessary for consistent product quality and operational safety.
4. Fluid Control Systems: Perfect for use in fluid control systems where precise pressure measurement is required to maintain optimal flow and prevent leaks or bursts.
5. Manufacturing: Suitable for use in various manufacturing processes where accurate pressure monitoring is essential to ensure product quality and safety.
6. Energy Sector: Used in the energy sector for monitoring pressure in systems such as pipelines, boilers, and compressors, where reliable pressure measurement is critical.

Economical Pressure Gauge

Benefits

1. Enhanced Stability and Accuracy: The glycerin filling minimizes the impact of vibrations and pulsations, resulting in more stable and accurate pressure readings, essential for critical industrial applications.
2. Durability in Harsh Environments: The stainless steel case and wetted parts provide robust protection against environmental factors, ensuring the gauge remains reliable even in harsh conditions.
3. Versatile Measurement: The dual scale readings in Kg/Cm² and PSI make the gauge suitable for a wide range of applications and regions, reducing the need for multiple gauges.
4. Ease of Installation: The direct mounting bottom entry and 3/8″ BSP (M) connection simplify installation, allowing for quick and secure integration into existing systems.
5. Cost-Effective Solution: Despite its high-quality construction and performance, the “Ji” Japsin Instrumentation Economical Pressure Gauge offers an economical solution for industries seeking reliable pressure measurement tools without overspending.

Economical Pressure Gauge: Installation and Maintenance

To ensure optimal performance and longevity of the “Ji” Japsin Instrumentation Economical Pressure Gauge Glycerin Filled, follow these installation and maintenance guidelines:

1. Installation:
   • Choose a location that allows easy access and visibility of the gauge.
   • Secure the gauge using the 3/8″ BSP (M) connection, ensuring a tight and leak-free fit.
   • Mount the gauge on a stable surface to avoid exposure to excessive vibrations or harsh environmental conditions.
   • Avoid installing the gauge in areas with extreme temperatures or corrosive substances that could damage the stainless steel casing.
2. Maintenance:
   • Regularly inspect the gauge for signs of wear, damage, or leaks.
   • Clean the dial and case periodically to maintain clear visibility of the pressure readings.
   • Perform calibration checks as recommended by the manufacturer to ensure continued accuracy.
   • Replace any damaged components immediately to prevent inaccurate readings or system failures.
   • Ensure the gauge is not exposed to pressures beyond its maximum range, as this could cause damage to the internal components.

Economical Pressure Gauge: Conclusion

The “Ji” Japsin Instrumentation Economical Pressure Gauge Glycerin Filled is a reliable and durable instrument designed for precision pressure measurement in various industrial applications. Its stainless steel construction, combined with glycerin filling and a large 4″ dial, ensures stability, accuracy, and ease of use, even in demanding environments.

Whether used in hydraulic systems, pneumatic equipment, or process control, this pressure gauge delivers consistent performance and long-term reliability. The dual scale feature, displaying both Kg/Cm² and PSI, adds versatility, making it suitable for use in different regions and industries with varying measurement standards.

With a focus on quality, durability, and cost-effectiveness, the “Ji” Japsin Instrumentation Economical Pressure Gauge is an excellent choice for industries looking to enhance their pressure monitoring capabilities. Backed by “Ji” Japsin Instrumentation’s commitment to excellence, this gauge is a valuable addition to any industrial setting, offering reliable performance and long-term value.
