Comprehensive Guide to the JI-EPG Economical Pressure Gauge by “Ji” Japsin Instrumentation

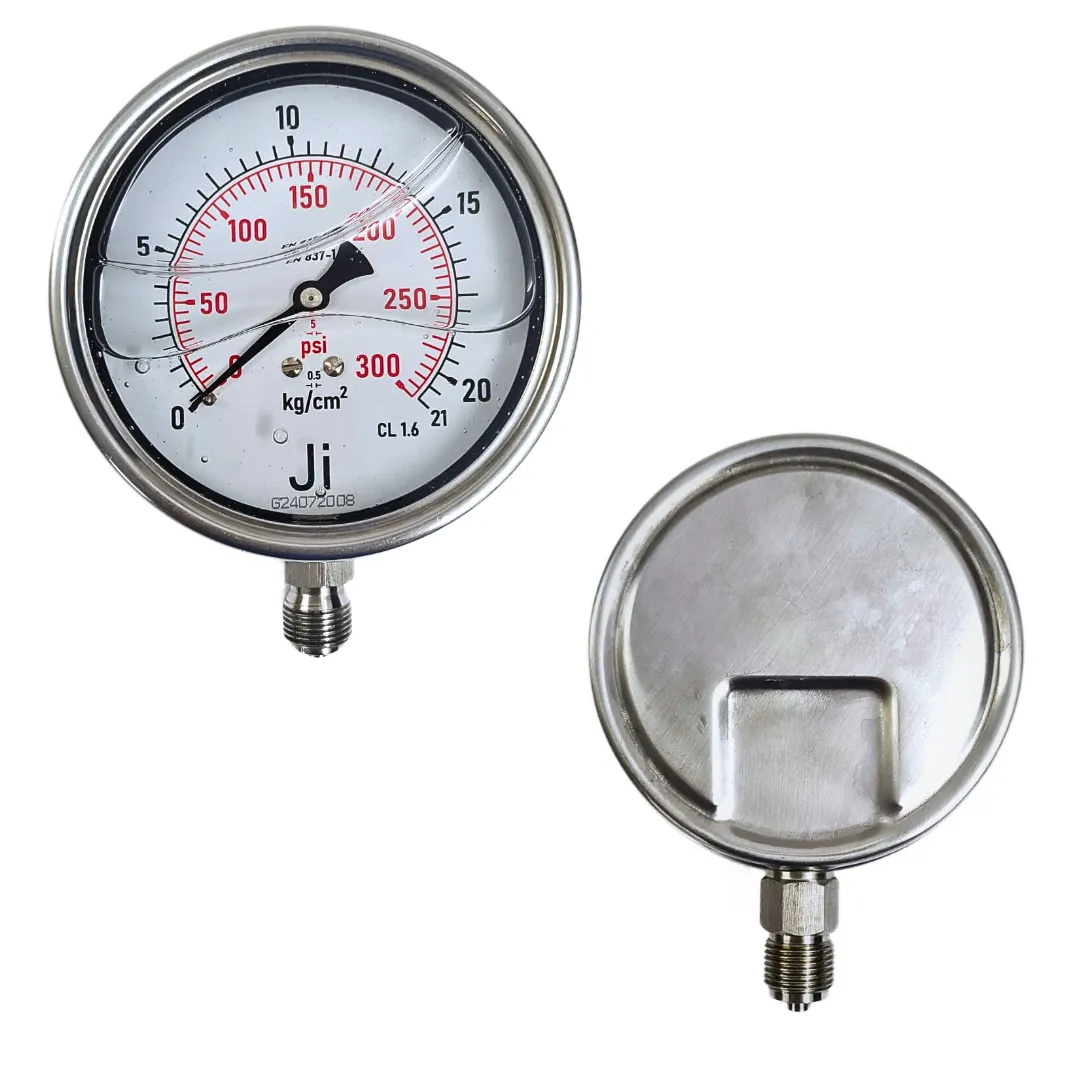

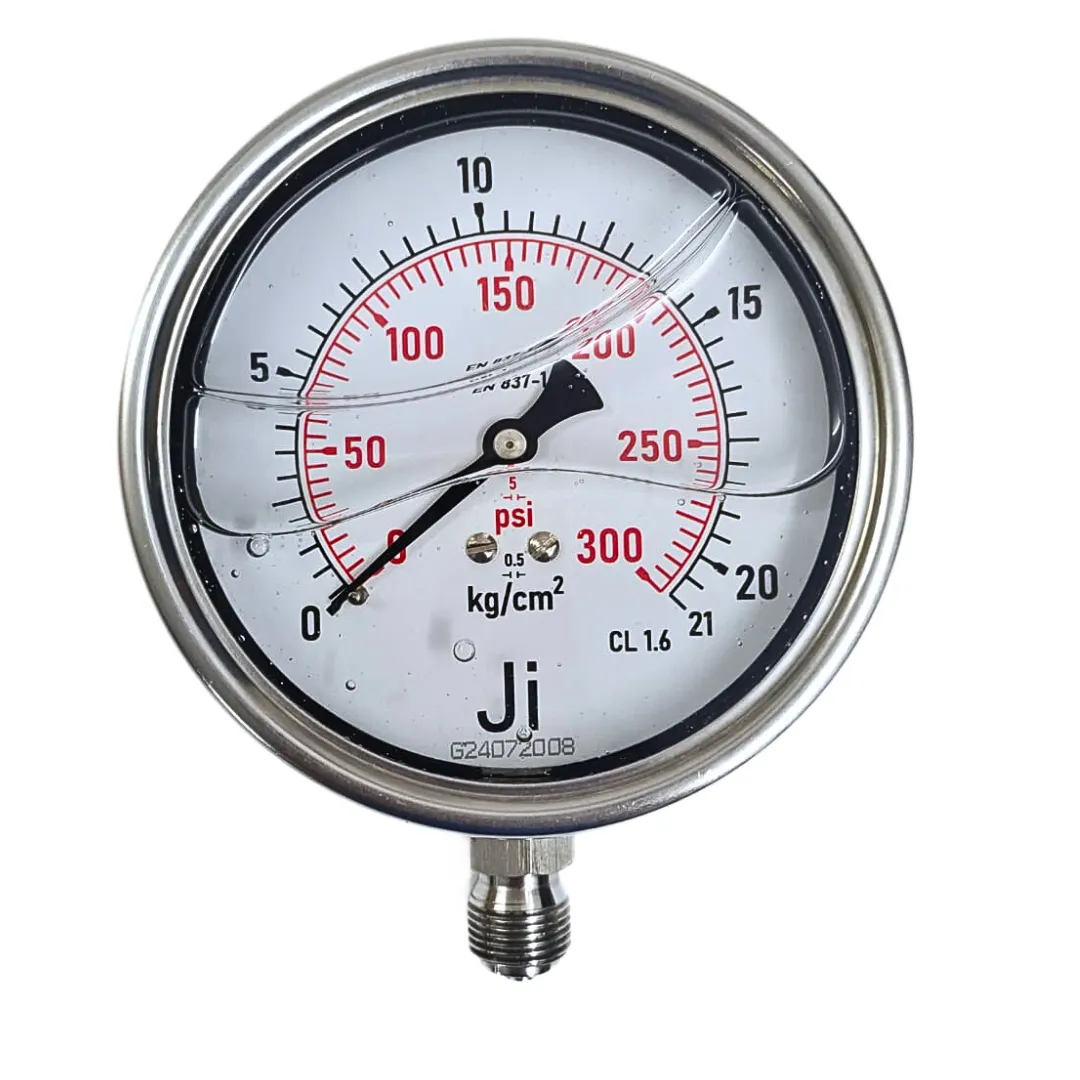

The JI-EPG Economical Pressure Gauge by “Ji” Japsin Instrumentation is a reliable and cost-effective solution for a wide range of industrial applications. This pressure gauge is designed with precision, ensuring accurate readings and long-term durability. It features a 4-inch dial, a stainless steel 304 case with a bayonet type design, and stainless steel internals. The gauge covers a pressure range of 0 to 21 Kg/Cm² with a dual scale that also reads up to 300 PSI. The direct mounting bottom entry with a 3/8″ BSP (M) connection makes it versatile and easy to install in various systems.
Design and Build Quality
The JI-EPG Economical Pressure Gauge is meticulously crafted with a stainless steel 304 case that ensures durability and corrosion resistance. The bayonet type construction of the case offers enhanced protection against environmental factors, making it suitable for harsh industrial conditions. The 4-inch dial provides clear visibility, even from a distance, ensuring easy and accurate pressure readings.
The internals are made of stainless steel, which not only adds to the durability but also ensures that the gauge can withstand high pressures and provide accurate readings over a prolonged period. The gauge’s construction adheres to the highest industrial standards, making it a reliable choice for both commercial and industrial applications.
Performance and Accuracy
Accuracy is a critical factor in pressure gauges, and the JI-EPG Economical Pressure Gauge excels in this aspect. With an accuracy rating of 1.6% FSD, this gauge provides precise readings, ensuring that your system operates within the safe pressure limits. The dual scale feature, displaying both Kg/Cm² and PSI, adds to its versatility, allowing it to be used in a variety of applications where different units of measurement are required.
The pressure range of 0 to 21 Kg/Cm² (300 PSI) makes this gauge suitable for a broad range of applications, from monitoring hydraulic systems to checking pressure levels in HVAC systems. Whether you are dealing with low or high-pressure environments, this gauge delivers consistent performance.
Installation and Compatibility
The JI-EPG Economical Pressure Gauge is designed for easy installation. The direct mounting bottom entry with a 3/8″ BSP (M) connection ensures that the gauge can be quickly and securely fitted into most systems. The universal compatibility of the BSP (British Standard Pipe) thread allows it to be integrated into a wide range of industrial setups.
The gauge’s compact design ensures that it does not take up much space, making it ideal for installations in tight spaces or systems where multiple gauges are required.
Application Versatility
This pressure gauge is versatile and can be used across various industries. It is particularly useful in industrial and commercial settings, where monitoring and maintaining the correct pressure levels are crucial. Applications include but are not limited to:
- Hydraulic Systems: Ensuring that hydraulic circuits operate within the desired pressure range.
- Pneumatic Systems: Monitoring air pressure in pneumatic tools and systems.
- HVAC Systems: Maintaining optimal pressure levels in heating, ventilation, and air conditioning systems.
- Water Treatment Plants: Monitoring pressure in water filtration and treatment processes.
- Chemical Processing: Ensuring safe pressure levels in chemical reactors and pipelines.
Durability and Maintenance
The robust construction of the JI-EPG Economical Pressure Gauge means it requires minimal maintenance. The stainless steel 304 case and internals are resistant to corrosion, which is particularly beneficial in environments where the gauge may be exposed to moisture or chemicals.
The bayonet type case design also allows for easy access to the internals, should any maintenance be required. Additionally, the IP65 weatherproof rating ensures that the gauge is protected against dust and water, further reducing the need for frequent maintenance.
Safety and Compliance
Safety is paramount in any industrial application, and the JI-EPG Economical Pressure Gauge is designed with this in mind. The gauge complies with the ASME B40.1 standard, ensuring that it meets the stringent requirements for pressure gauges in industrial applications. This compliance guarantees that the gauge is safe to use and provides reliable readings under various conditions.
Environmental Considerations
The gauge is designed to operate efficiently in a temperature range of -20°C to +60°C, making it suitable for a wide range of environmental conditions. Whether in a hot industrial environment or a cold storage facility, this pressure gauge delivers accurate and reliable performance.
Conclusion
The JI-EPG Economical Pressure Gauge by “Ji” Japsin Instrumentation is an excellent choice for those looking for a reliable, accurate, and durable pressure gauge. Its robust design, combined with its high accuracy and ease of installation, makes it a versatile tool for a wide range of industrial applications. Whether you are dealing with hydraulic systems, HVAC, or chemical processing, this gauge is built to meet your needs and exceed your expectations.
