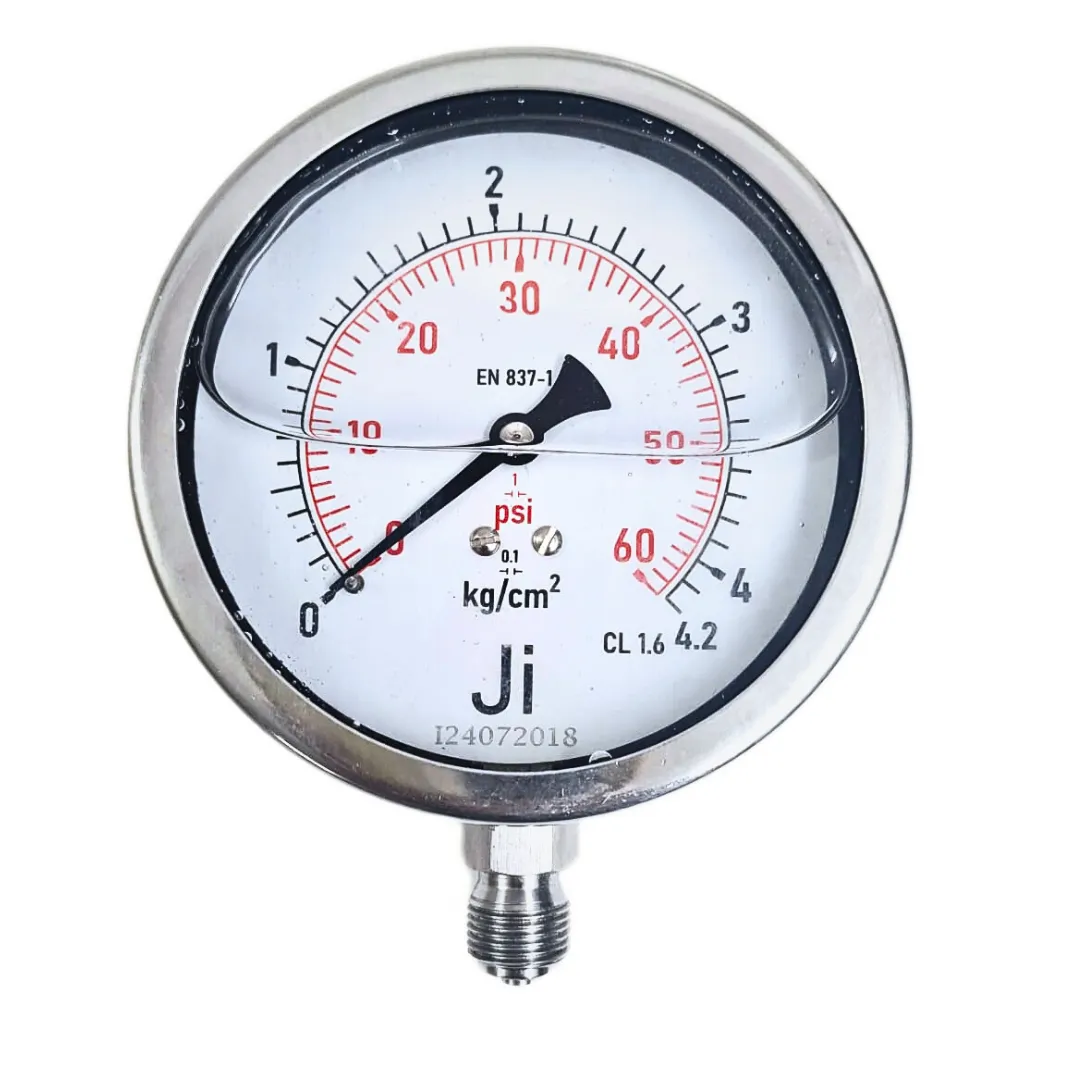

Economical Pressure Gauge Glycerin Filled, 4″ (100 mm) Dial, Range 0 to 4.2 Kg/Cm2 with Dual Scale of 60 PSI, Direct Mounting Bottom Entry, 3/8″ BSP (M) Connection, SS Case & SS Wetted Parts (Case Bayonet Type)

Description

JI-EPG Economical Pressure Gauge Glycerin Filled: Precision in Pressure Measurement

The JI-EPG Economical Pressure Gauge Glycerin Filled from “Ji” Japsin Instrumentation is designed to meet the demands of industrial applications requiring accurate and reliable pressure measurement. With a 4″ (100 mm) dial, this gauge features a Stainless Steel 304 case with a bayonet type, stainless steel internals, and is filled with glycerin to dampen the effects of pulsation and vibration.

The gauge is engineered to provide precise readings in the range of 0 to 4.2 Kg/Cm2, with a dual scale of 60 PSI. Its direct mounting bottom entry, with a 3/8″ BSP (M) connection, ensures easy installation and secure fit. This pressure gauge is ideal for industries where accuracy and durability are paramount, offering an accuracy of 1.6% Full Scale Deflection (FSD).

Product Overview

The JI-EPG Economical Pressure Gauge is a versatile instrument designed for use in various industrial sectors, including manufacturing, energy, and fluid control systems. The glycerin filling within the gauge serves as a damping medium that minimizes the impact of mechanical vibrations and pulsations, thereby providing more stable and accurate readings. The large 4″ dial enhances readability, allowing operators to monitor pressure levels with ease, even from a distance.

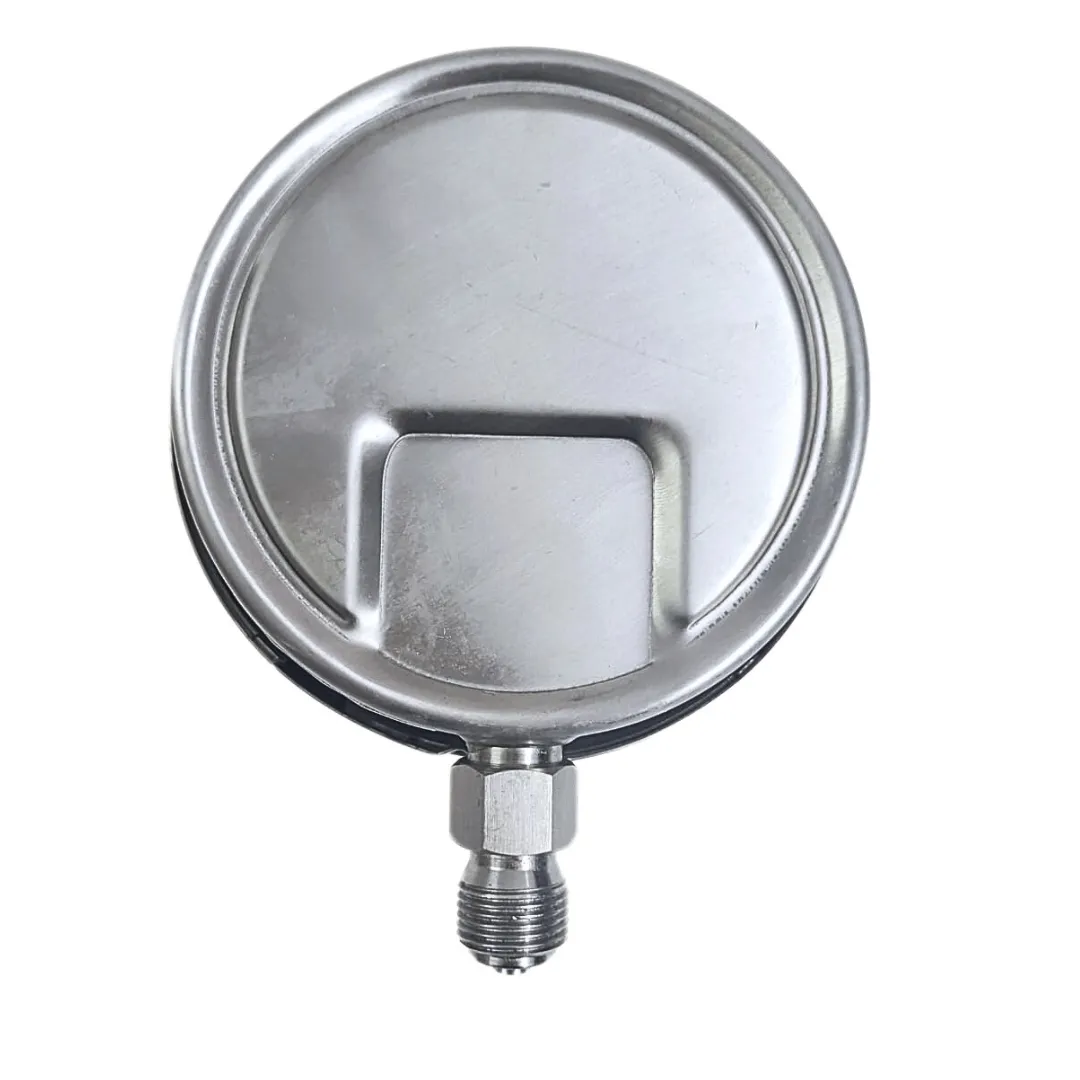

The Stainless Steel 304 case with a bayonet type design offers superior resistance to corrosion and mechanical wear, making it suitable for use in harsh industrial environments. The stainless steel internals further contribute to the gauge’s durability, ensuring long-term performance and reliability. The direct mounting bottom entry with a 3/8″ BSP (M) connection facilitates straightforward installation, making it easy to integrate the gauge into existing systems.

This pressure gauge is particularly well-suited for applications where precise pressure measurement is crucial, such as in hydraulic systems, compressors, and process control environments. Its dual scale readings in Kg/Cm2 and PSI provide flexibility, enabling the gauge to be used in different measurement systems across various industries.

Key Features

1. Glycerin Filled for Stability: The glycerin filling dampens the effects of vibrations and pulsations, resulting in more stable and accurate pressure readings.
2. Large 4″ Dial: The large dial size enhances readability, allowing operators to easily monitor pressure levels and reducing the risk of errors.
3. Stainless Steel 304 Case: The stainless steel case with a bayonet type design provides excellent protection against corrosion and mechanical damage, ensuring durability in harsh industrial environments.
4. Stainless Steel Internals: The internal components made of stainless steel offer superior resistance to corrosion and wear, contributing to the gauge’s long-term reliability.
5. Dual Scale Readings: The gauge features a dual scale with a range of 0 to 4.2 Kg/Cm2 and 0 to 60 PSI, making it versatile and suitable for use in various industries and regions.
6. Direct Mounting: The direct mounting bottom entry design and 3/8″ BSP (M) connection ensure easy installation and a secure fit, allowing for quick integration into existing systems.
7. High Accuracy: With an accuracy of 1.6% FSD, the gauge delivers precise pressure readings, essential for maintaining safe and efficient operations.

Economical Pressure Gauge: Applications

The JI-EPG Economical Pressure Gauge Glycerin Filled is suitable for a variety of industrial applications, including:

1. Hydraulic Systems: Ideal for monitoring pressure in hydraulic systems where stable and accurate readings are crucial for maintaining system performance and preventing damage.
2. Compressors: Used to monitor air pressure in compressors, ensuring they operate within safe and efficient pressure ranges.
3. Process Control: Applicable in process control systems where maintaining specific pressure levels is necessary for consistent product quality and operational safety.
4. Pneumatic Systems: Suitable for monitoring pressure in pneumatic systems, where accurate pressure control is essential for proper system functioning.
5. Industrial Machinery: Versatile enough for use in a wide range of industrial machinery, ensuring reliable pressure monitoring and preventing system failures.
6. Fluid Control Systems: Perfect for use in fluid control systems, where precise pressure measurement is required to maintain optimal flow and prevent leaks or bursts.

Economical Pressure Gauge: Benefits

1. Enhanced Stability and Accuracy: The glycerin filling minimizes the impact of vibrations and pulsations, resulting in more stable and accurate pressure readings, essential for critical industrial applications.
2. Durability in Harsh Environments: The stainless steel 304 case with a bayonet type design provides robust protection against environmental factors, ensuring the gauge remains reliable even in harsh conditions.
3. Versatile Measurement: The dual scale readings in Kg/Cm2 and PSI make the gauge suitable for a wide range of applications and regions, reducing the need for multiple gauges.
4. Ease of Installation: The direct mounting bottom entry and 3/8″ BSP (M) connection simplify installation, allowing for quick and secure integration into existing systems.
5. Cost-Effective Solution: Despite its high-quality construction and performance, the JI-EPG Economical Pressure Gauge offers an economical solution for industries seeking reliable pressure measurement tools without overspending.

Economical Pressure Gauge: Installation and Maintenance

To ensure optimal performance and longevity of the JI-EPG Economical Pressure Gauge Glycerin Filled, follow these installation and maintenance guidelines:

1. Installation:
   • Choose a location that allows easy access and visibility of the gauge.
   • Secure the gauge using the 3/8″ BSP (M) connection, ensuring a tight and leak-free fit.
   • Mount the gauge on a stable surface to avoid exposure to excessive vibrations or harsh environmental conditions.
   • Avoid installing the gauge in areas with extreme temperatures or corrosive substances that could damage the stainless steel casing.
2. Maintenance:
   • Regularly inspect the gauge for signs of wear, damage, or leaks.
   • Clean the dial and case periodically to maintain clear visibility of the pressure readings.
   • Perform calibration checks as recommended by the manufacturer to ensure continued accuracy.
   • Replace any damaged components immediately to prevent inaccurate readings or system failures.
   • Ensure the gauge is not exposed to pressures beyond its maximum range, as this could cause damage to the internal components.

Economical Pressure Gauge: Conclusion

The JI-EPG Economical Pressure Gauge Glycerin Filled by “Ji” Japsin Instrumentation is a high-performance instrument designed to meet the needs of industries requiring precise and reliable pressure measurement. Its durable stainless steel 304 case, glycerin-filled design, and large 4″ dial make it a dependable choice for a wide range of industrial applications.

Whether monitoring pressure in hydraulic systems, compressors, or fluid control systems, the JI-EPG Economical Pressure Gauge delivers the accuracy and stability needed to maintain safe and efficient operations. With its dual scale readings in Kg/Cm2 and PSI, this gauge offers versatility and ease of use across different measurement systems.

Backed by “Ji” Japsin Instrumentation’s commitment to quality, this pressure gauge is a valuable addition to any industrial setting, offering reliable performance and long-term durability. For industries looking to enhance their pressure monitoring capabilities, the JI-EPG Economical Pressure Gauge provides a cost-effective solution without compromising on quality or accuracy.
