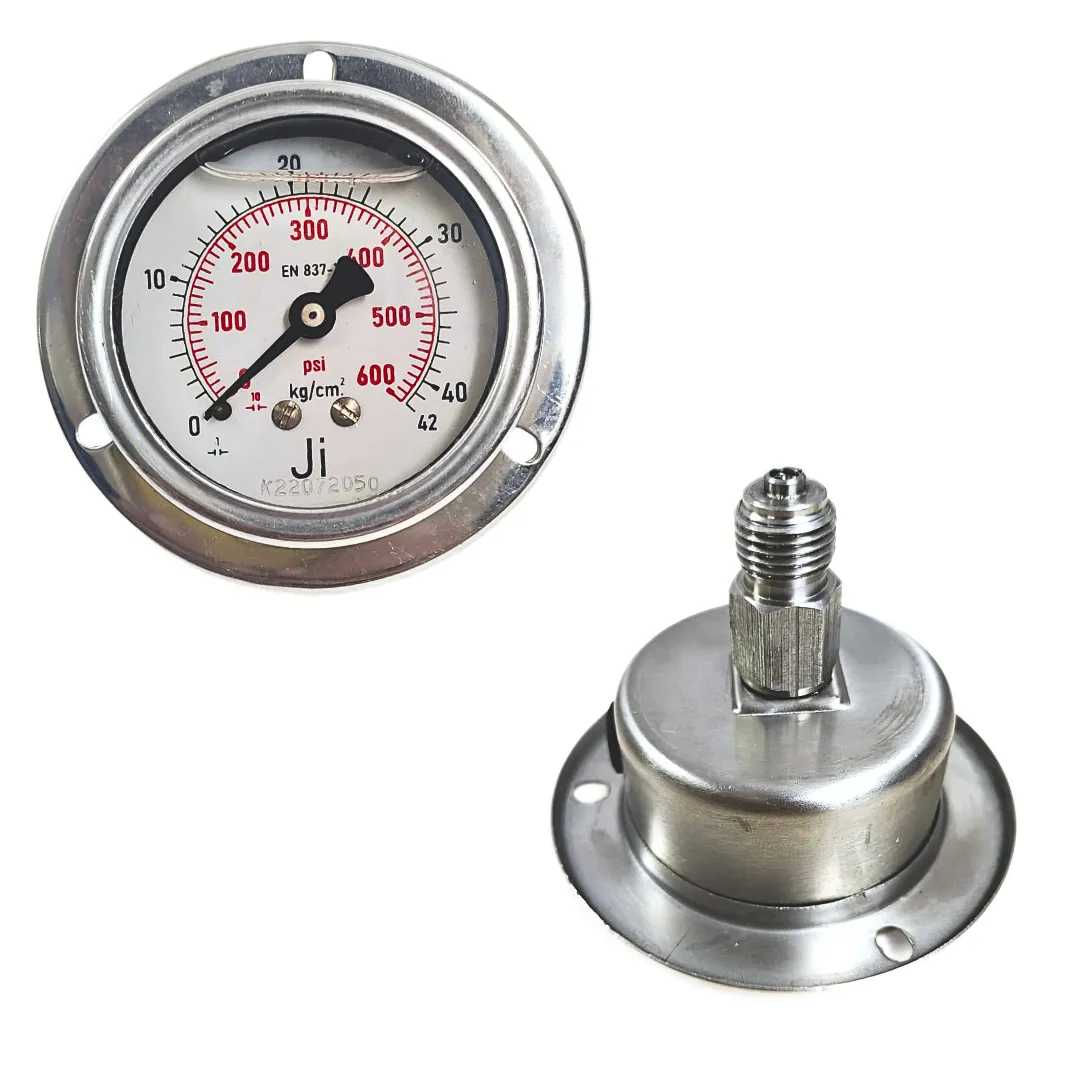

Economical Pressure Gauge Glycerin Filled, 2 1/2″ (63 mm) Dial, Range 0 to 42 Kg/Cm2 with Dual Scale of 600 PSI, Panel Mounting Back Entry, 1/4″ BSP (M) Connection, SS Case & SS Wetted Parts (Case Crimping Type)

Description

The JI-EPG Economical Pressure Gauge (Glycerin Filled)

In industries where precision and reliability in pressure measurement are paramount, the JI-EPG Economical Pressure Gauge by “Ji” Japsin Instrumentation stands out as a high-quality, cost-effective solution. Engineered with a focus on durability and accuracy, this pressure gauge is ideal for applications requiring consistent performance in demanding environments. This guide provides an in-depth overview of the JI-EPG Economical Pressure Gauge, covering its features, technical specifications, and practical applications, making it an essential tool for industrial professionals.

Product Overview

The JI-EPG Economical Pressure Gauge is specifically designed to measure pressure with high accuracy, making it suitable for various industrial applications. The gauge is glycerin-filled, which not only dampens vibrations but also ensures a smooth needle movement, leading to more stable and accurate readings.

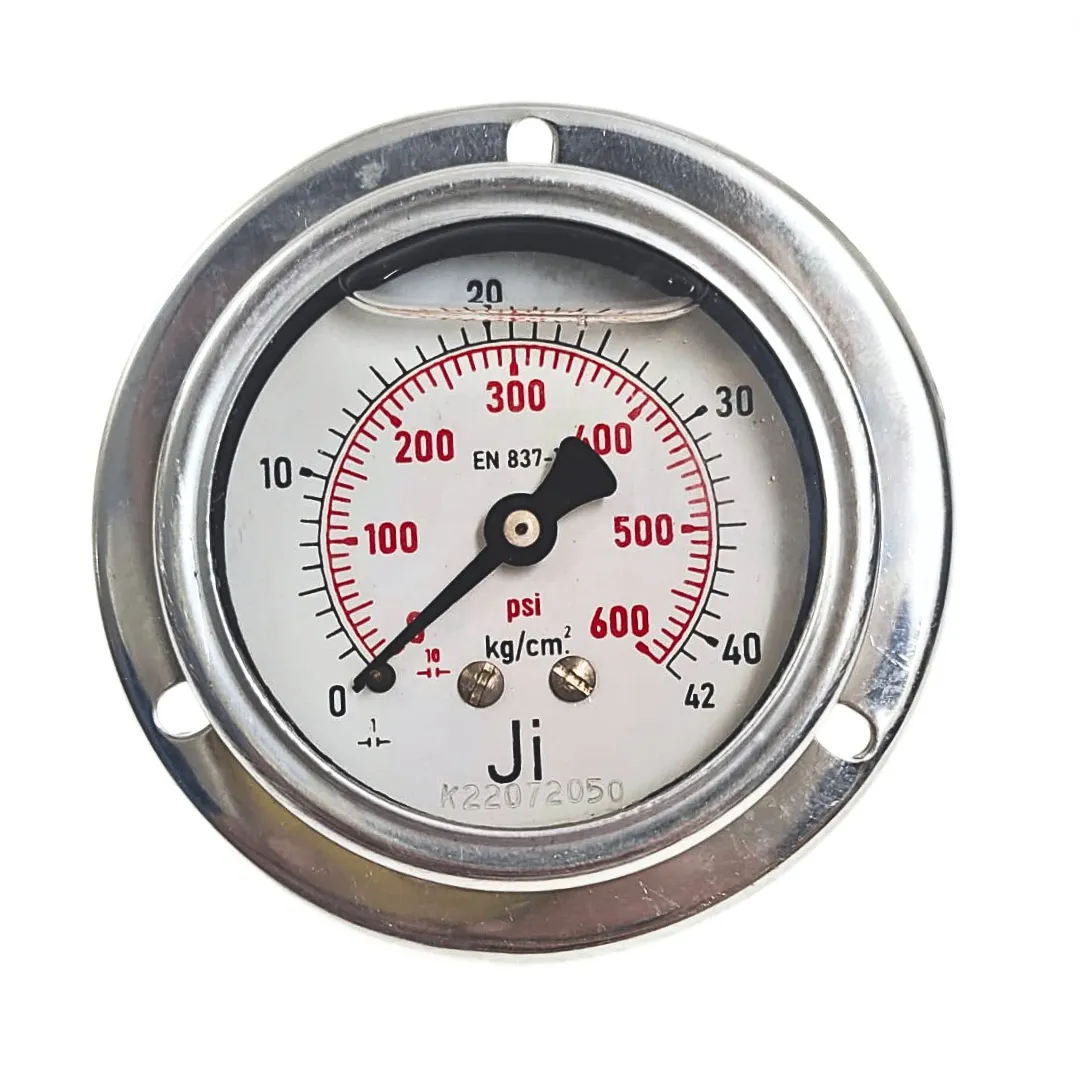

With a dial size of 2 1/2″ (63 mm), the gauge offers clear visibility, ensuring that readings can be easily monitored. The pressure range of 0 to 42 Kg/Cm², coupled with a dual scale of 600 PSI, allows the gauge to be versatile in its application. The stainless steel 304 case and SS internals provide robustness and resistance to corrosion, ensuring the gauge’s longevity in harsh industrial conditions.

Designed for panel mounting with a back entry, the gauge features a 1/4″ BSP (M) connection, allowing for secure and easy installation. The gauge’s accuracy of 1.6% Full Scale Deflection (FSD) ensures that it delivers precise measurements critical for maintaining process control and safety.

Key Features

1. High Precision Measurement: The gauge offers an accurate pressure measurement range of 0 to 42 Kg/Cm² with a dual scale of 600 PSI, ensuring reliability in critical applications.
2. Glycerin-Filled Design: Glycerin filling helps in damping the effects of vibrations, providing steady readings even in high-vibration environments.
3. Durable Construction: The gauge is constructed with a stainless steel 304 case and SS internals, offering excellent durability and corrosion resistance.
4. Clear and Compact Dial: The 2 1/2″ (63 mm) dial size is designed for easy readability, making it ideal for applications where space is limited but clear visibility is essential.
5. Panel Mounting with Back Entry: The back entry design and panel mounting capability make this gauge versatile for various industrial setups, ensuring a secure and accessible installation.
6. High Accuracy: With an accuracy of 1.6% FSD, this gauge provides the precision needed for effective pressure monitoring in industrial processes.
7. Dual Scale Display: The dual scale, displaying both Kg/Cm² and PSI, makes the gauge suitable for international applications and diverse user preferences.

Applications

The JI-EPG Economical Pressure Gauge is versatile and suitable for a wide range of industrial applications:

1. Hydraulic Systems: Ideal for monitoring pressure in hydraulic circuits, ensuring optimal performance and safety.
2. Pneumatic Systems: Used in air compressors and other pneumatic systems to maintain correct pressure levels, preventing equipment damage and ensuring efficient operation.
3. Process Industries: Widely used in chemical, pharmaceutical, and food processing industries to monitor pressure in reactors, storage tanks, and pipelines.
4. Mechanical Engineering: Essential for testing and monitoring pressure in various mechanical systems, ensuring that machinery operates within safe limits.
5. Energy Sector: Used in power plants and renewable energy systems to monitor pressure in steam, gas, and liquid circuits, contributing to efficient energy production.
6. Manufacturing: Employed in manufacturing processes to ensure that equipment operates under optimal pressure conditions, improving product quality and reducing downtime.

Benefits

1. Enhanced Measurement Accuracy: The gauge’s accuracy of 1.6% FSD ensures precise pressure readings, which are crucial for maintaining process stability and safety.
2. Reliable Performance in Harsh Conditions: The stainless steel construction and glycerin-filled design make the gauge resilient to harsh environmental conditions, providing long-term reliability.
3. Ease of Installation and Integration: The panel mounting with back entry simplifies the installation process, allowing for easy integration into various systems.
4. Cost-Effective Solution: Offering high performance at an economical price, this gauge is a cost-effective solution for industries requiring reliable pressure measurement without compromising on quality.
5. Versatility in Applications: The dual scale display and wide pressure range make this gauge adaptable to various international standards and applications, making it suitable for a global market.
6. User-Friendly Design: The clear dial markings and compact design enhance usability, making it easy for operators to monitor pressure levels effectively.

Economical Pressure Gauge: Installation and Maintenance

To ensure the optimal performance and longevity of the JI-EPG Economical Pressure Gauge, it is important to follow proper installation and maintenance practices:

1. Installation:
   • Ensure that the gauge is installed in a location where it can be easily accessed for monitoring and maintenance.
   • Securely connect the 1/4″ BSP (M) fitting to the appropriate port, ensuring a leak-free installation.
   • Mount the gauge on a stable panel using the back entry, ensuring that it is properly aligned and visible.
2. Maintenance:
   • Regularly inspect the gauge for any signs of wear, damage, or glycerin leakage.
   • Clean the dial and casing periodically to maintain clear visibility of the readings.
   • Conduct calibration checks as recommended by the manufacturer to ensure continued accuracy.

Economical Pressure Gauge: Conclusion

The JI-EPG Economical Pressure Gauge (Glycerin Filled) from “Ji” Japsin Instrumentation is a high-quality, reliable instrument designed to meet the demands of various industrial applications. Its stainless steel construction, coupled with the stabilizing effects of the glycerin filling, makes it an ideal choice for environments where precise pressure measurement is critical. Whether you are working in hydraulic systems, process industries, or manufacturing, this gauge offers the accuracy, durability, and ease of use needed to maintain optimal pressure conditions and ensure the efficiency and safety of your processes.
