Economical Pressure Gauge, 4″ (100 mm) Dial, Range 0 to 10.6 Kg/Cm2 with Dual Scale of 150 PSI, Direct Mounting Bottom Entry, 3/8″ BSP (M) Connection, SS Case & SS Wetted Parts (Case Bayonet Type)

Description

Economical Pressure Gauge Glycerin Filled: Precision and Durability for Industrial Applications

The JI-EPG Economical Pressure Gauge, Glycerin Filled, from “Ji” Japsin Instrumentation is engineered for professionals who demand accuracy, durability, and reliability in pressure measurement. Designed to meet the rigorous standards of industrial environments, this gauge is ideal for applications in sectors such as chemical processing, oil and gas, manufacturing, and more. With its robust construction and precise measurement capabilities, the JI-EPG Economical Pressure Gauge ensures consistent performance, even under challenging conditions.

Product Overview

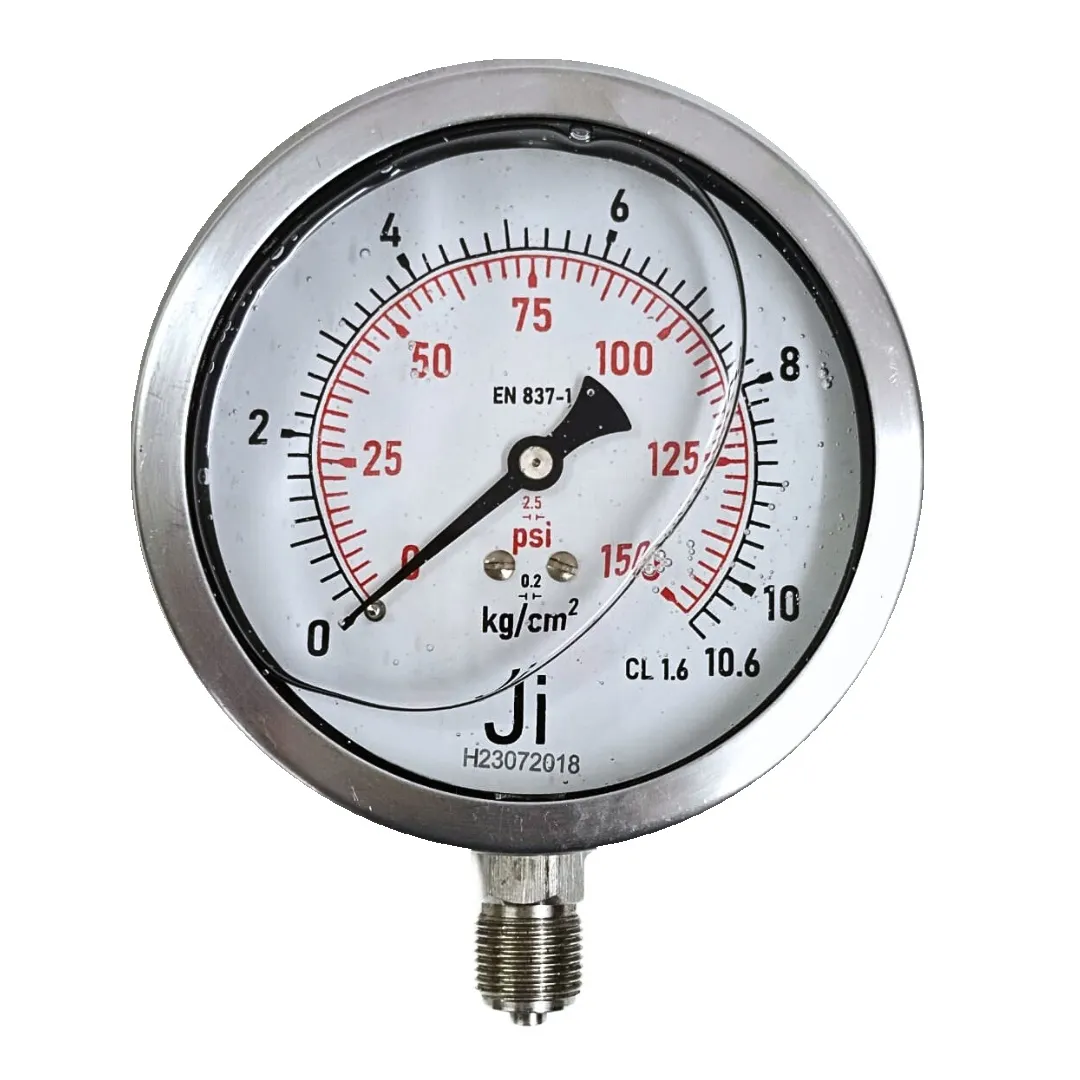

This particular model of the JI-EPG Economical Pressure Gauge features a 4″ (100 mm) dial, offering clear and easy-to-read measurements. The gauge operates within a pressure range of 0 to 10.6 Kg/Cm², with a dual scale of 0 to 150 PSI, providing versatility across various applications. The direct mounting design with a bottom entry and a 3/8″ BSP (M) connection ensures straightforward installation and secure attachment.

The construction of the gauge prioritizes durability and longevity. It boasts a stainless steel 304 case with a bayonet type design, providing excellent protection against environmental factors such as moisture, dust, and mechanical impact. The internal components are also made from stainless steel, ensuring resistance to corrosion and wear. Additionally, the gauge is filled with glycerin, which serves to dampen vibrations, ensuring stable and accurate readings over time.

With an accuracy of 1.6% Full Scale Deflection (FSD), this pressure gauge is suitable for applications where precision is critical. Whether monitoring pressure in a chemical reactor, maintaining optimal conditions in an oil pipeline, or ensuring consistent performance in a manufacturing process, this gauge delivers the reliability and accuracy needed for safe and efficient operations.

Key Features

1. Versatile Pressure Range: Measures pressures from 0 to 10.6 Kg/Cm² with a dual scale of 0 to 150 PSI, making it suitable for a wide range of industrial applications.
2. Durable Construction: The stainless steel 304 case and internals provide excellent durability and corrosion resistance, ensuring long-lasting performance in harsh environments.
3. Bayonet-Type Case Design: The bayonet-type case design offers a secure closure, protecting the internal components from external contaminants and mechanical damage.
4. Glycerin-Filled for Stability: The glycerin filling helps to reduce the effects of vibrations, providing more stable and accurate readings, particularly in high-vibration environments.
5. Clear and Large Dial: The 4″ (100 mm) dial size allows for easy visibility of pressure readings, enhancing usability in various industrial settings.
6. Direct Mounting with Bottom Entry: The 3/8″ BSP (M) connection and bottom entry design facilitate easy installation and integration into existing systems.
7. High Accuracy: With an accuracy of 1.6% FSD, this gauge provides precise pressure measurements, essential for maintaining operational safety and efficiency.

Applications

The JI-EPG Economical Pressure Gauge is a versatile instrument that can be used in a variety of industrial applications:

1. Chemical Processing: Ideal for monitoring pressure in chemical reactors, storage tanks, and pipelines, where accurate readings are crucial for safety and process control.
2. Oil and Gas Industry: Suitable for measuring pressure in pipelines, compressors, and other critical components in the oil and gas sector, ensuring safe and efficient operation.
3. Manufacturing: Used in various manufacturing processes that require precise pressure control, such as plastic molding, metal forming, and assembly lines.
4. Power Generation: Ensures accurate pressure measurement in steam systems, hydraulic units, and other high-pressure components within power plants.
5. HVAC Systems: Can be used in heating, ventilation, and air conditioning systems to monitor pressure levels and ensure optimal operation.
6. Pneumatic and Hydraulic Systems: Essential for maintaining proper pressure levels in pneumatic and hydraulic systems, ensuring efficient and safe operation.

Benefits

1. Reliable Pressure Measurement: The gauge’s ability to measure pressures accurately within the range of 0 to 10.6 Kg/Cm², with a dual scale of 0 to 150 PSI, makes it a reliable tool for industrial applications.
2. Durable Design: The stainless steel 304 case and internals, combined with the bayonet-type construction, offer exceptional durability and protection against environmental factors.
3. Vibration Dampening: The glycerin filling helps to stabilize the needle, providing more accurate readings in environments with high vibration, reducing the impact of external forces on the gauge.
4. Easy Installation: The direct mounting bottom entry with a 3/8″ BSP (M) connection allows for quick and easy installation, reducing downtime and simplifying maintenance.
5. Versatile Application: The gauge’s pressure range and robust design make it suitable for a wide range of industrial applications, from chemical processing to HVAC systems.
6. Cost-Effective Solution: The JI-EPG Economical Pressure Gauge offers high performance at a competitive price, providing an affordable solution for industries that require precise pressure measurement.

Installation and Maintenance

To ensure optimal performance and longevity of the JI-EPG Economical Pressure Gauge, proper installation and maintenance practices should be followed:

1. Installation:
   • Select a location that is easily accessible for monitoring and maintenance.
   • Securely connect the 3/8″ BSP (M) fitting to the appropriate port, ensuring a leak-free installation.
   • Mount the gauge in a position where the dial is easily visible and accessible.
   • Ensure that the gauge is not exposed to extreme temperatures or corrosive environments that could damage the stainless steel case and internals.
2. Maintenance:
   • Regularly inspect the gauge for any signs of wear, damage, or leakage.
   • Clean the dial and casing periodically to maintain clear visibility of the readings.
   • Conduct calibration checks as recommended by the manufacturer to ensure continued accuracy.
   • Replace the glycerin filling if necessary to maintain vibration dampening and accuracy.
   • Ensure that the gauge is not subjected to pressures beyond its maximum range, as this could cause permanent damage to the internal components.

Economical Pressure Gauge: Conclusion

The JI-EPG Economical Pressure Gauge by “Ji” Japsin Instrumentation is a reliable and versatile instrument designed to meet the demands of various industrial applications. Its stainless steel construction, glycerin-filled design, and high accuracy make it an excellent choice for professionals who require precise and dependable pressure measurement. Whether used in chemical processing, oil and gas, or manufacturing, this gauge provides the performance and durability needed to maintain safe and efficient operations.
