Economical Pressure Gauge Glycerin Filled, 4″ (100 mm) Dial, Range 0 to 16 Kg/Cm2 with Dual Scale of 225 PSI, Direct Mounting Bottom Entry, 3/8″ BSP (M) Connection, SS Case & SS Wetted Parts (Case Crimping Type)

Description

JI-EPG Economical Pressure Gauge Glycerin Filled: Precision and Reliability for Industrial Applications

The JI-EPG Economical Pressure Gauge Glycerin Filled, manufactured by “Ji” Japsin Instrumentation, is designed for industrial applications that demand precise and consistent pressure measurements. This gauge combines robust construction with high accuracy, making it suitable for a variety of industrial sectors, including chemical processing, oil and gas, manufacturing, and more. With a focus on durability, reliability, and ease of use, this pressure gauge is an essential tool for maintaining optimal operational efficiency and safety.

Product Overview

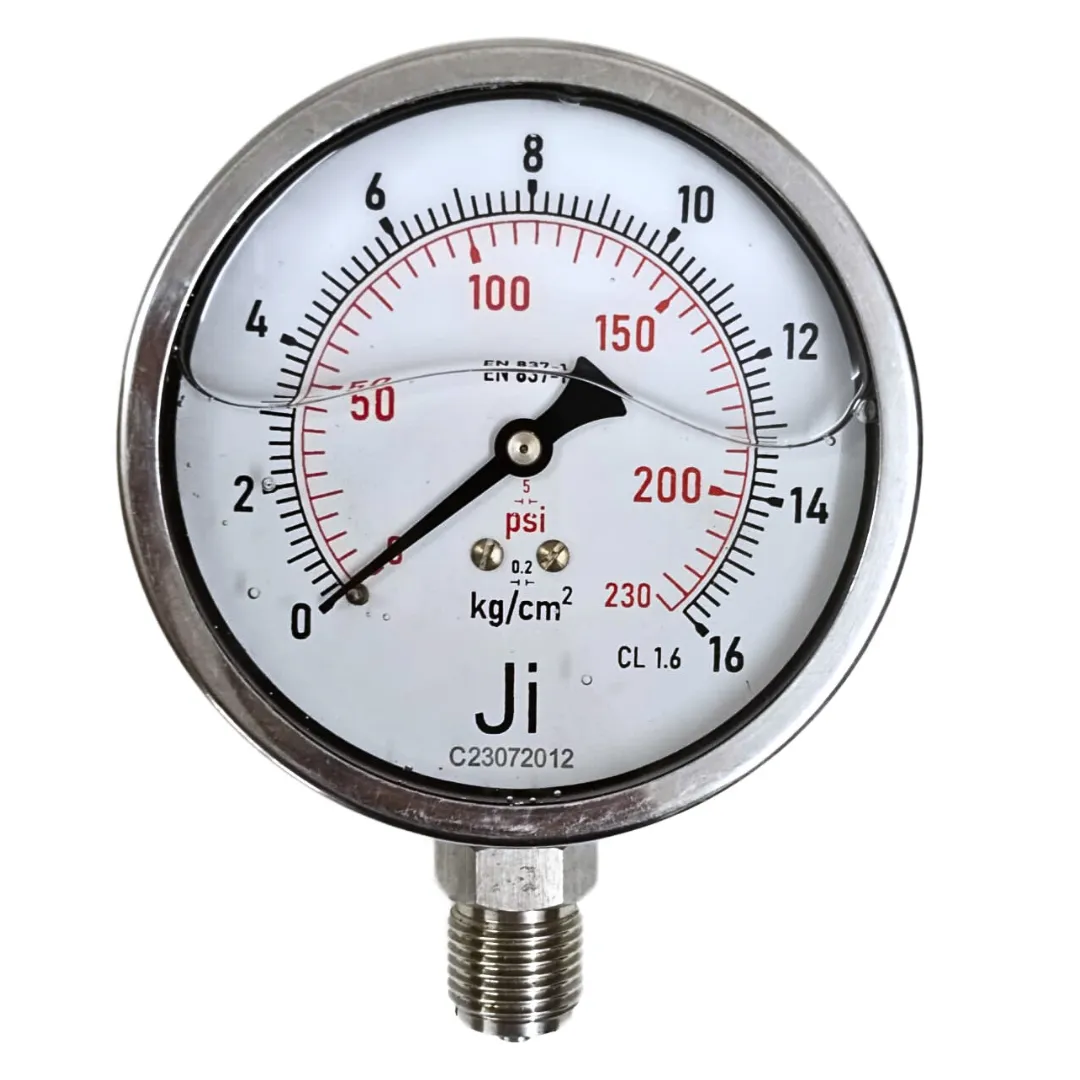

This model of the JI-EPG Economical Pressure Gauge features a 4″ (100 mm) dial, providing clear visibility of pressure readings. It operates within a pressure range of 0 to 16 Kg/Cm², with a dual scale that also reads up to 225 PSI. The gauge is designed for direct mounting with a bottom entry and is equipped with a 3/8″ BSP (M) connection, ensuring easy installation and secure attachment in various industrial setups.

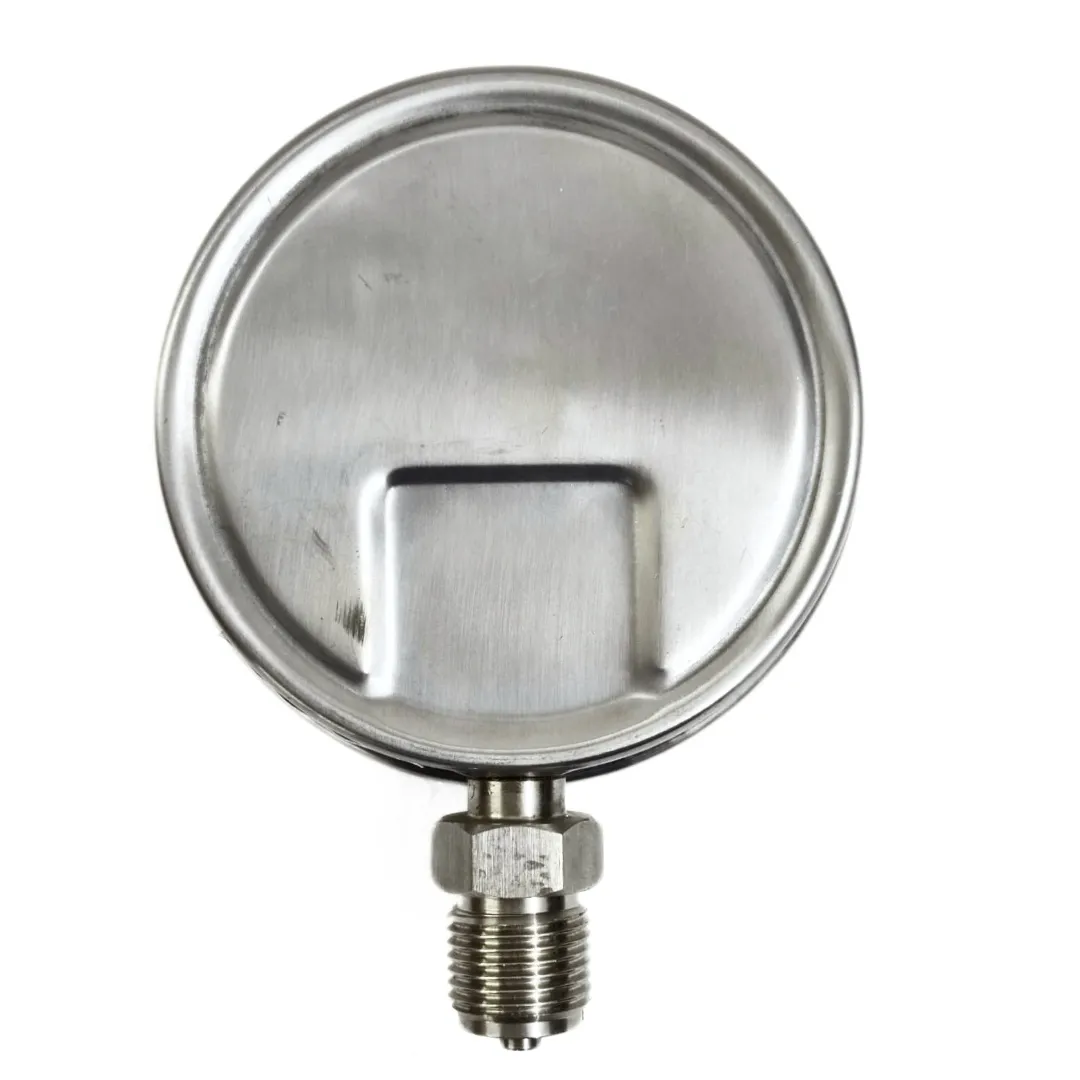

Constructed with a stainless steel 304 case and crimping type design, this gauge is built to withstand harsh environmental conditions, including exposure to moisture, dust, and mechanical impacts. The internal components are also made of stainless steel, enhancing the gauge’s resistance to corrosion and wear. The glycerin filling serves to dampen vibrations, ensuring stable and accurate readings, even in environments subject to high levels of mechanical stress.

With an accuracy of 1.6% Full Scale (FS), the JI-EPG Economical Pressure Gauge is well-suited for applications where precision is critical. Whether it’s monitoring pressure in a chemical reactor, controlling pressure in an oil pipeline, or ensuring consistent performance in a manufacturing process, this gauge delivers the reliability and accuracy needed for safe and efficient operations.

Key Features

1. Versatile Pressure Range: Measures pressures from 0 to 16 Kg/Cm² with a dual scale of up to 225 PSI, accommodating a wide range of industrial applications.
2. Durable Stainless Steel Construction: The stainless steel 304 case and internals offer superior durability and resistance to corrosion, ensuring long-lasting performance.
3. Crimping Type Case Design: The crimping type case provides a secure and tight closure, protecting the internal components from external contaminants and mechanical damage.
4. Glycerin-Filled for Vibration Dampening: The glycerin filling reduces the effects of vibrations, providing more stable and accurate readings, particularly in high-vibration environments.
5. Clear and Readable Dial: The 4″ (100 mm) dial size offers easy visibility of pressure readings, enhancing usability in various industrial settings.
6. Direct Mounting with Bottom Entry: The 3/8″ BSP (M) connection and bottom entry design allow for straightforward installation and integration into existing systems.
7. High Accuracy: With an accuracy of 1.6% FS, this gauge ensures precise pressure measurements, essential for maintaining operational safety and efficiency.

Applications

The JI-EPG Economical Pressure Gauge is versatile and can be utilized in various industrial applications, including:

1. Chemical Processing: Ideal for monitoring pressure in reactors, storage tanks, and pipelines where accurate readings are essential for safety and process control.
2. Oil and Gas Industry: Suitable for measuring pressure in pipelines, compressors, and other critical components, ensuring safe and efficient operations.
3. Manufacturing: Used in processes requiring precise pressure control, such as plastic molding, metal forming, and assembly lines.
4. Power Generation: Ensures accurate pressure measurement in steam systems, hydraulic units, and other high-pressure components within power plants.
5. HVAC Systems: Applicable in heating, ventilation, and air conditioning systems to monitor pressure levels and ensure optimal operation.
6. Pneumatic and Hydraulic Systems: Essential for maintaining proper pressure levels in pneumatic and hydraulic systems, ensuring efficient and safe operation.

Benefits

1. Reliable Pressure Measurement: The gauge’s ability to measure pressures accurately within the range of 0 to 16 Kg/Cm², with a dual scale up to 225 PSI, makes it a reliable tool for industrial applications.
2. Durable Design: The stainless steel 304 case and internals, combined with the crimping type construction, offer exceptional durability and protection against environmental factors.
3. Vibration Dampening: The glycerin filling helps to stabilize the needle, providing more accurate readings in environments with high vibration, reducing the impact of external forces on the gauge.
4. Easy Installation: The direct mounting bottom entry with a 3/8″ BSP (M) connection allows for quick and easy installation, reducing downtime and simplifying maintenance.
5. Versatile Application: The gauge’s pressure range and robust design make it suitable for a wide range of industrial applications, from chemical processing to HVAC systems.
6. Cost-Effective Solution: The JI-EPG Economical Pressure Gauge offers high performance at a competitive price, providing an affordable solution for industries that require precise pressure measurement.

Installation and Maintenance

To ensure optimal performance and longevity of the JI-EPG Economical Pressure Gauge, proper installation and maintenance practices should be followed:

1. Installation:
   • Select a location that is easily accessible for monitoring and maintenance.
   • Securely connect the 3/8″ BSP (M) fitting to the appropriate port, ensuring a leak-free installation.
   • Mount the gauge in a position where the dial is easily visible and accessible.
   • Ensure that the gauge is not exposed to extreme temperatures or corrosive environments that could damage the stainless steel case and internals.
2. Maintenance:
   • Regularly inspect the gauge for any signs of wear, damage, or leakage.
   • Clean the dial and casing periodically to maintain clear visibility of the readings.
   • Conduct calibration checks as recommended by the manufacturer to ensure continued accuracy.
   • Replace the glycerin filling if necessary to maintain vibration dampening and accuracy.
   • Ensure that the gauge is not subjected to pressures beyond its maximum range, as this could cause permanent damage to the internal components.

Economical Pressure Gauge: Conclusion

The JI-EPG Economical Pressure Gauge by “Ji” Japsin Instrumentation is a reliable and versatile instrument designed to meet the demands of various industrial applications. Its stainless steel construction, glycerin-filled design, and high accuracy make it an excellent choice for professionals who require precise and dependable pressure measurement. Whether used in chemical processing, oil and gas, or manufacturing, this gauge provides the performance and durability needed to maintain safe and efficient operations.
