In-Depth Guide to the JI-EPG Economical Vacuum Gauge (Glycerin Filled)
Vacuum gauges are crucial for monitoring and maintaining the precise vacuum levels needed in various industrial applications. The JI-EPG Economical Vacuum Gauge from “Ji” Japsin Instrumentation is specifically designed to provide reliable and accurate vacuum pressure measurements.
This gauge is ideal for industries such as pharmaceuticals, food processing, and chemical manufacturing, where maintaining specific vacuum levels is critical to process efficiency and product quality.
Overview

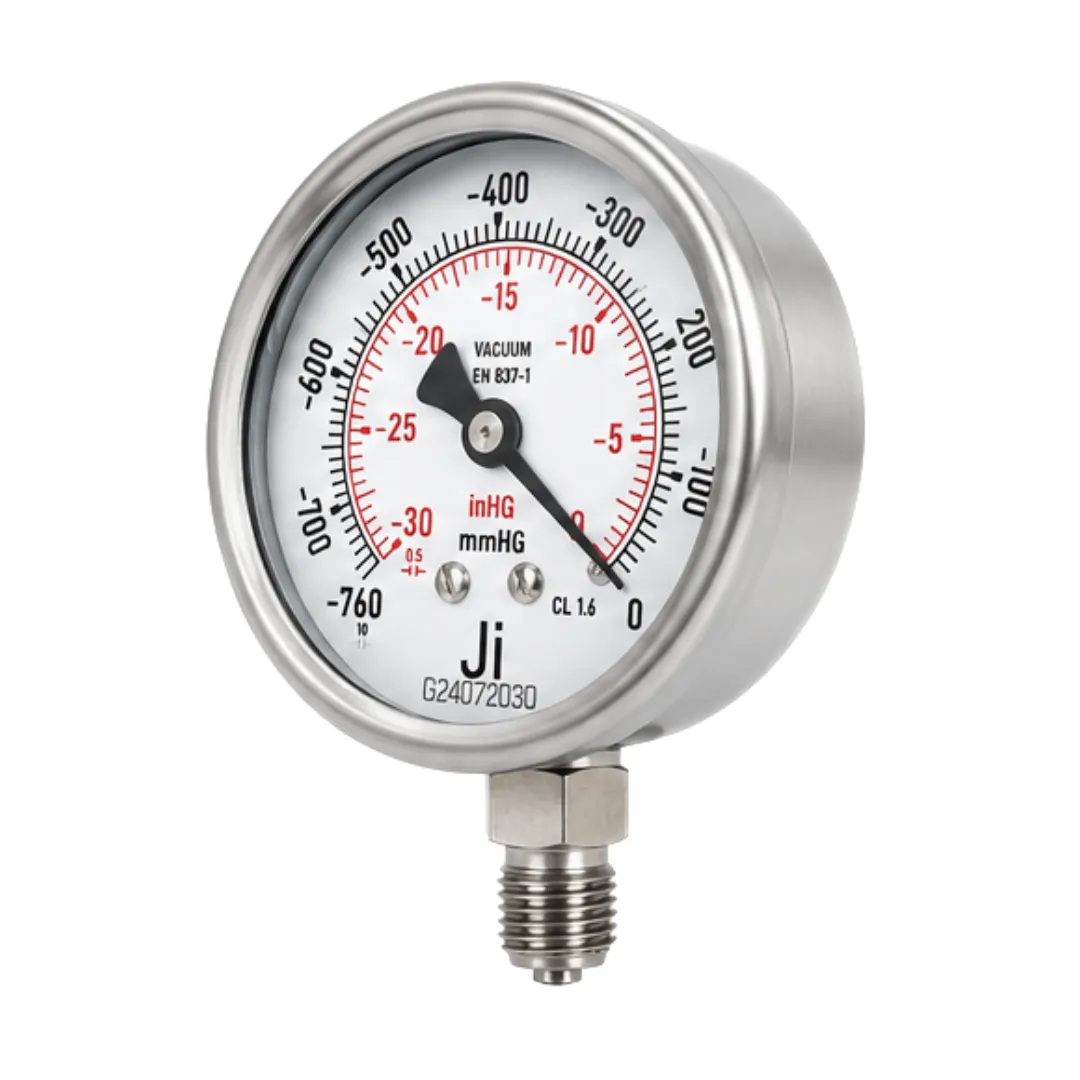

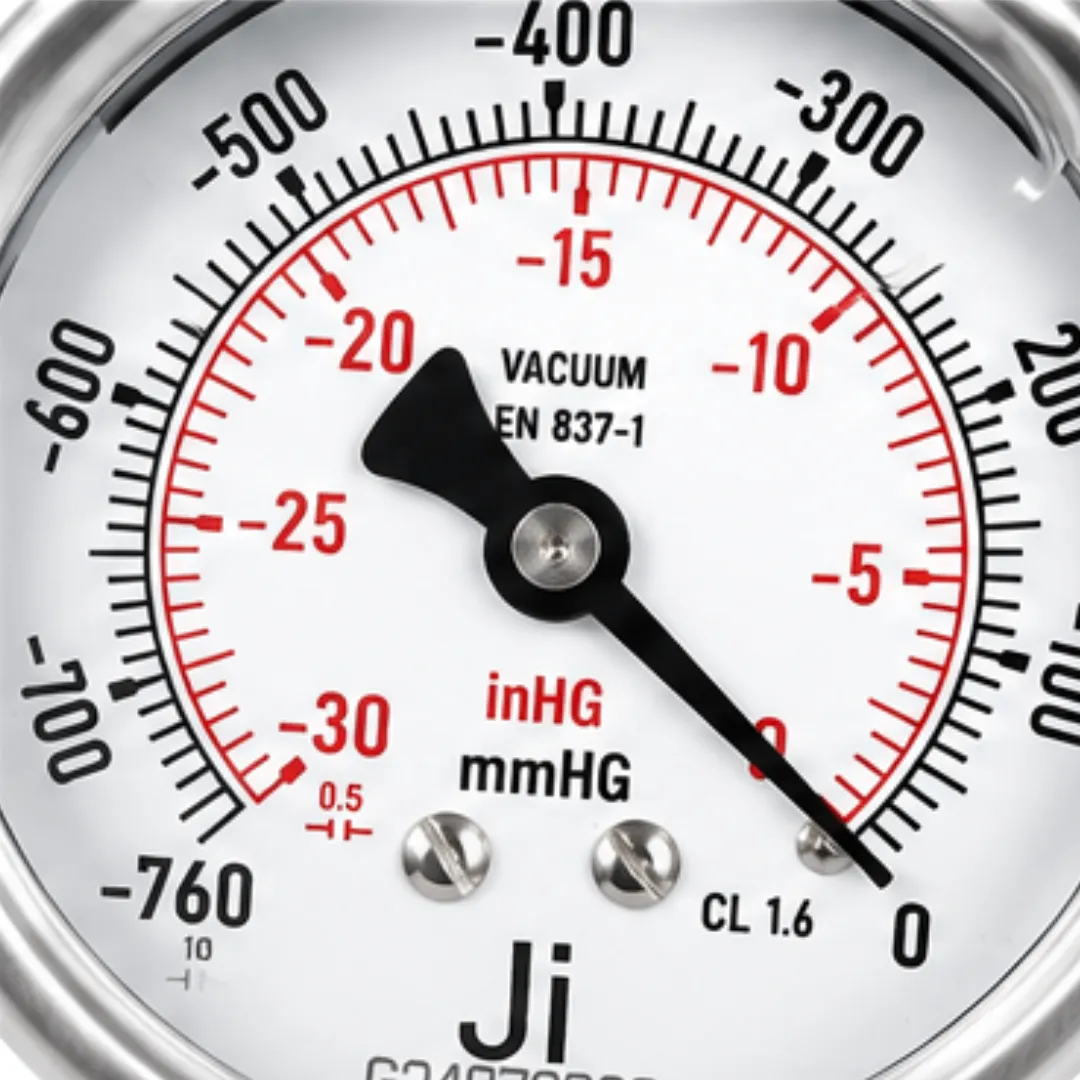

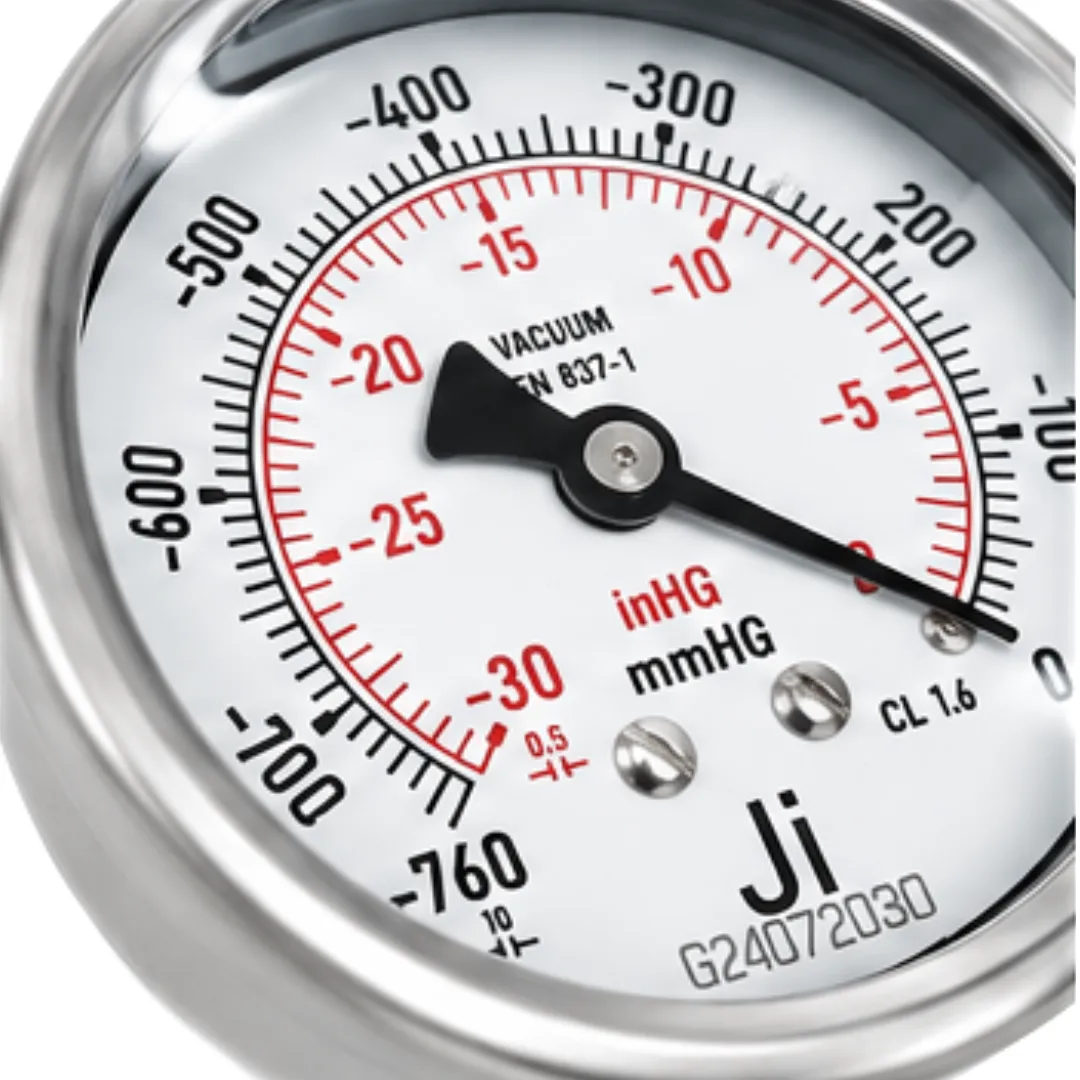

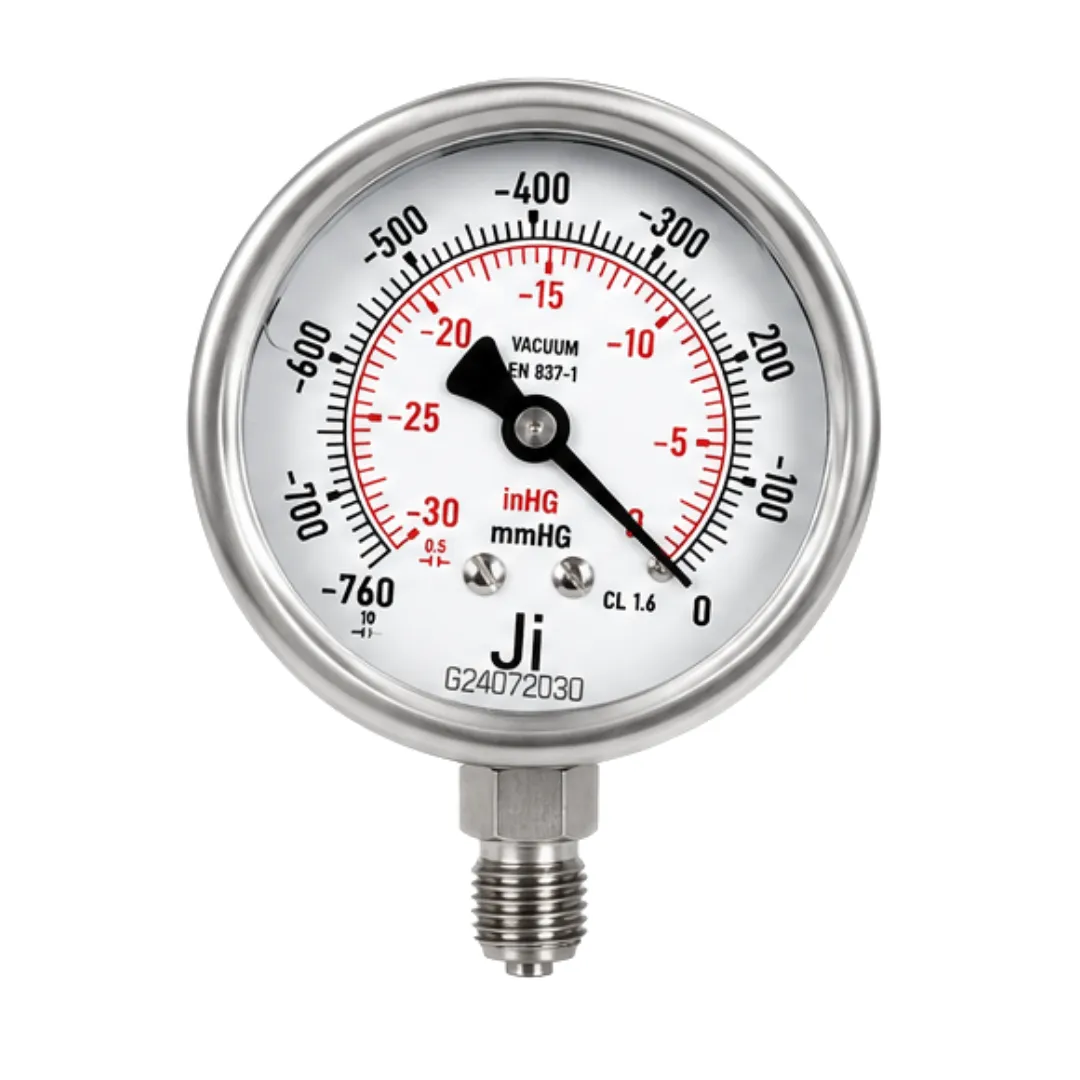

The JI-EPG Economical Vacuum Gauge is engineered with a 2 1/2″ (63 mm) dial, providing a clear and concise display for easy reading of vacuum levels. It operates over a range of -760 mmHg to 0, with a dual scale that also shows measurements in inches of mercury (inHg) from -30 inHg to 0. The gauge is glycerin-filled, which dampens vibrations and stabilizes the needle for more consistent readings, especially in environments with mechanical disturbances.

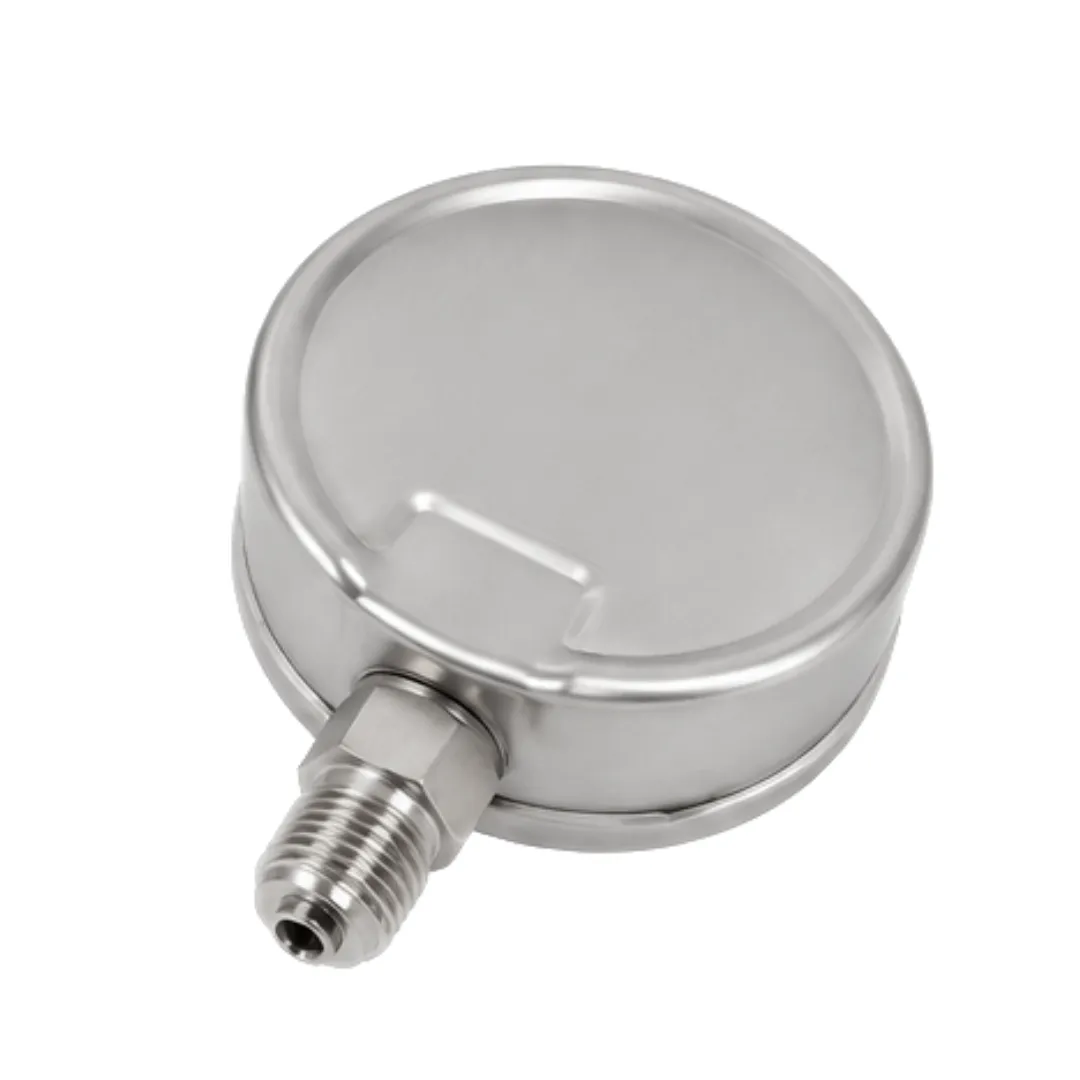

This direct mounting gauge features a bottom entry with a 1/4″ BSP (M) connection, ensuring easy installation and integration into various systems.
The gauge is constructed with a stainless steel (SS) 304 case and SS internals, offering durability and resistance to corrosion, making it suitable for use in harsh and demanding industrial environments.
Key Features
- Glycerin-Filled for Vibration Damping: The glycerin filling helps to stabilize the needle, reducing fluctuations caused by vibrations, which ensures more accurate and consistent readings in industrial environments.
- Compact and Clear Display: The 2 1/2″ (63 mm) dial is compact, making it ideal for installations where space is limited, while still providing a clear and easy-to-read display.
- Wide Vacuum Range: With a measurement range of -760 mmHg to 0 and a dual scale of -30 inHg to 0, the gauge is versatile for various vacuum applications.
- Durable Stainless Steel Construction: The SS 304 case and SS internals offer excellent resistance to corrosion, ensuring the gauge’s longevity and reliability in harsh conditions.
- Easy Installation: The direct mounting bottom entry with a 1/4″ BSP (M) connection simplifies the installation process, reducing setup time and ensuring a secure fit.
- High Accuracy: The gauge delivers an accuracy of 1.6% Full Scale Deflection (FSD), providing precise vacuum measurements critical for maintaining process efficiency and safety.
Applications
The JI-EPG Economical Vacuum Gauge is particularly well-suited for a range of industrial applications where monitoring vacuum levels is essential:
- Pharmaceutical Manufacturing: Essential for processes such as freeze-drying and vacuum distillation, where maintaining specific vacuum levels is critical for product quality and consistency.
- Food and Beverage Industry: Used in vacuum packaging and sealing processes to ensure airtight packaging, which preserves product freshness and extends shelf life.
- Chemical Processing: Monitors vacuum levels in reactors and other equipment where controlled vacuum conditions are necessary for safe and efficient chemical reactions.
- HVAC Systems: Useful in monitoring and maintaining vacuum conditions in various HVAC applications, such as in chillers and refrigeration systems, ensuring they operate efficiently.
- Laboratory and Research: Ideal for laboratory applications where precise vacuum measurements are required for experiments and research, particularly in controlled environments.
Benefits
- Improved Measurement Stability: The glycerin-filled design significantly reduces needle fluctuations, providing more accurate and stable readings in environments with mechanical vibrations.
- Durability and Corrosion Resistance: The stainless steel construction ensures that the gauge can withstand harsh environments, including those with corrosive elements, ensuring long-term reliability.
- Versatile Application: The dual scale and wide vacuum range make this gauge adaptable to a variety of industrial applications, from pharmaceuticals to HVAC systems.
- High Precision: The 1.6% FSD accuracy ensures that you can trust the readings, which is crucial for maintaining process efficiency and ensuring safety.
- Ease of Use and Installation: The compact design, clear dial, and simple installation process make this gauge user-friendly, requiring minimal training or specialized tools.
Installation and Maintenance
To ensure optimal performance and longevity of the JI-EPG Economical Vacuum Gauge, proper installation and regular maintenance are important. Here are some guidelines:
- Installation:
- Ensure that the gauge’s vacuum range is appropriate for the system in which it will be used.
- Carefully connect the 1/4″ BSP (M) fitting to the appropriate port, ensuring a secure and leak-free installation.
- Mount the gauge in a location that allows easy access for monitoring and maintenance.
- Maintenance:
- Regularly inspect the gauge for signs of wear, damage, or glycerin leakage.
- Clean the dial and casing periodically to maintain clear visibility of readings.
- Conduct calibration checks as recommended by the manufacturer to ensure continued accuracy.
Economical Vacuum Gauge: Conclusion
The JI-EPG Economical Vacuum Gauge (Glycerin Filled) from “Ji” Japsin Instrumentation is a reliable, accurate, and durable instrument designed to meet the demands of various industrial applications. Its stainless steel construction, combined with the stabilizing effects of the glycerin filling, makes it an excellent choice for environments where vibration and corrosion resistance are concerns.
Whether you are in the pharmaceutical, food processing, or chemical industries, this gauge offers the precision and reliability needed to maintain optimal vacuum conditions and ensure the efficiency and safety of your processes.
Trust “Ji” Japsin Instrumentation for high-quality vacuum gauges that are built to perform in demanding industrial environments.
