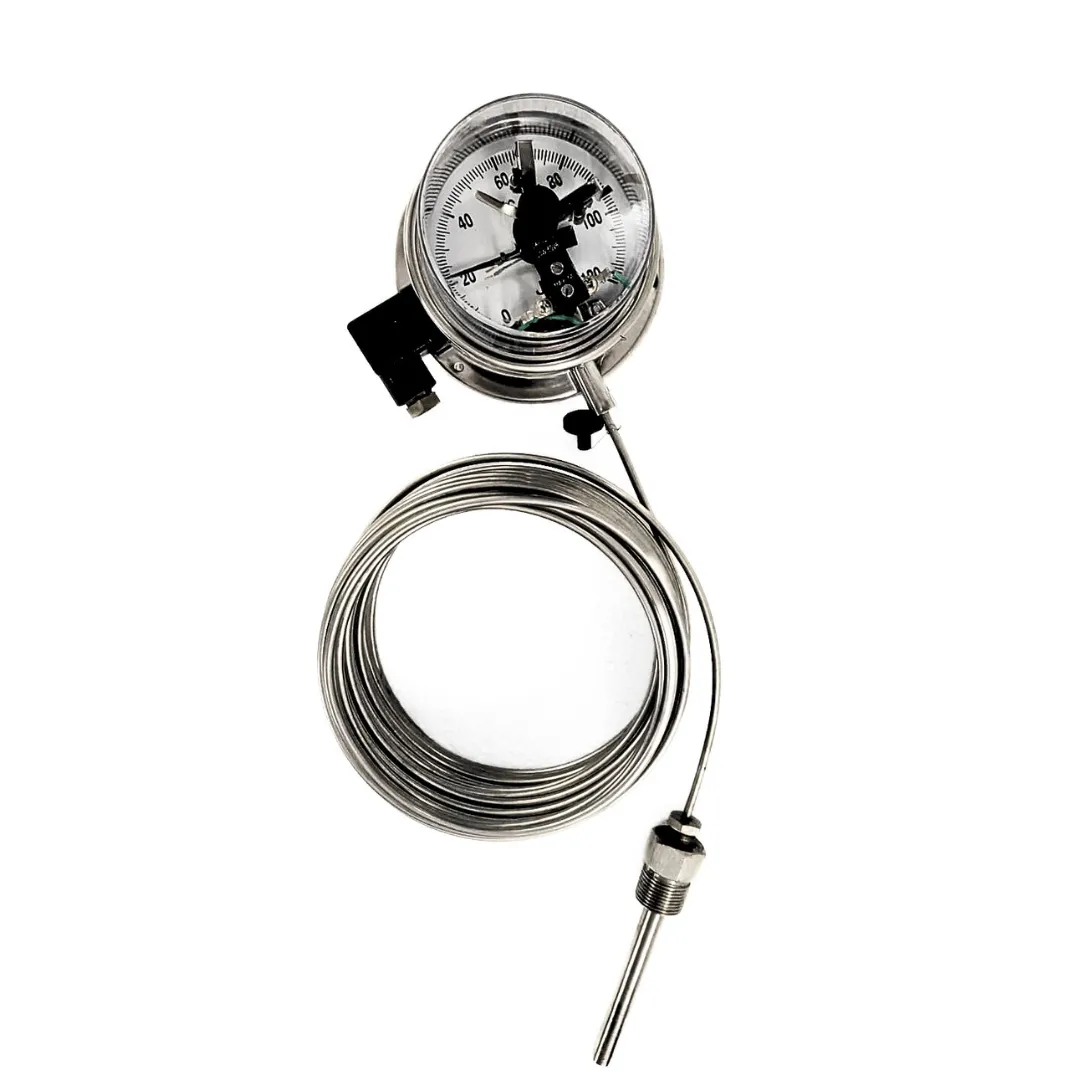

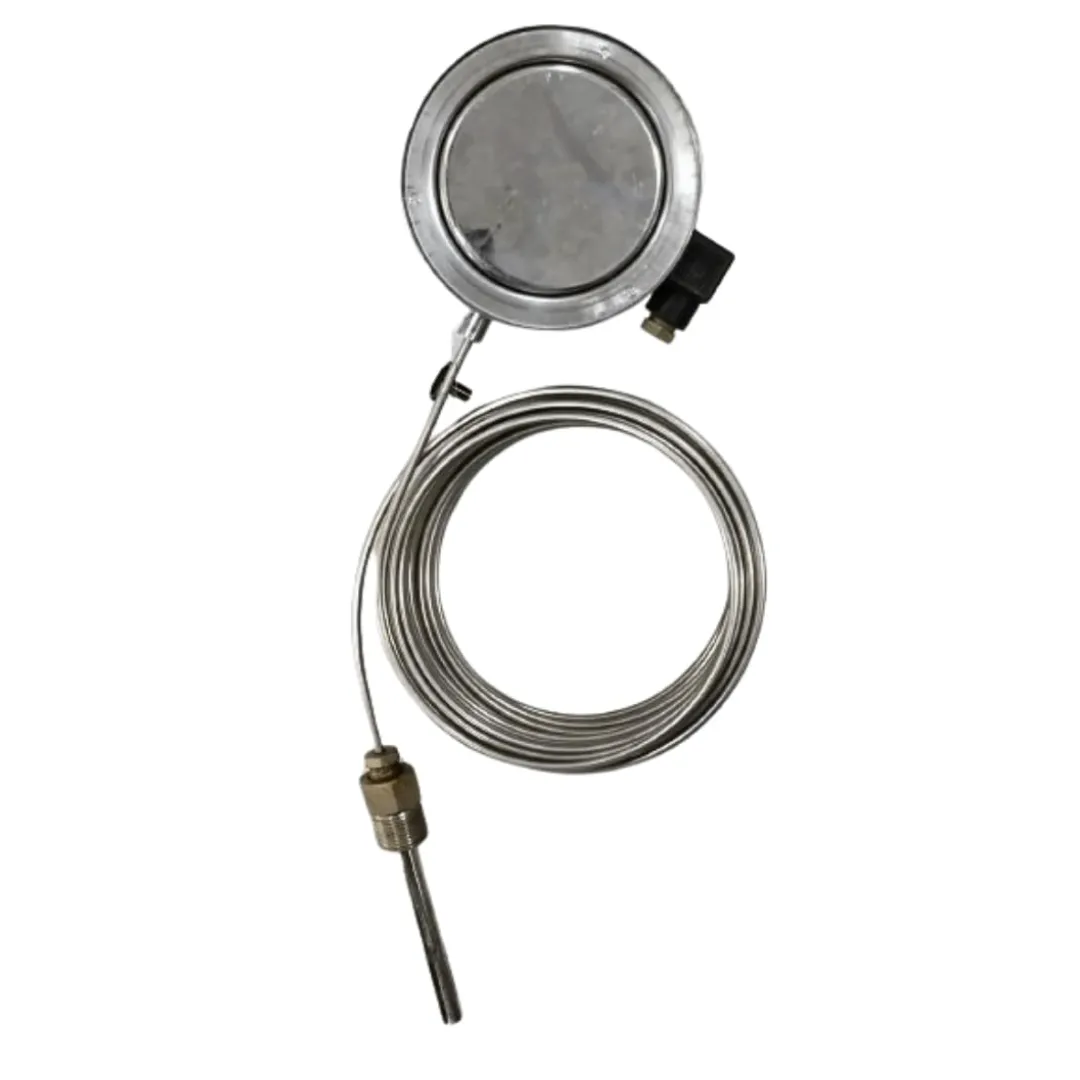

Electrical Contact Mercury Filled Temperature Gauge, 4″ Dial, Range 0 to 120 Deg C Connection 1″ BSP (M), Surface Mounting Bottom Entry, Capillary 12 Meter of SS, Stem length 4″ X 10 mm OD Complete SS

Description

Electrical Contact Mercury Filled Temperature Gauge: Precision Monitoring for Industrial Applications

The “Ji” Japsin Instrumentation Electrical Contact Mercury Filled Temperature Gauge is designed to provide precise and reliable temperature measurements in various industrial applications. With a 4-inch dial and a temperature range of 0 to 120 degrees Celsius, this gauge ensures accurate readings essential for process control and safety. Its robust construction, featuring a stainless steel stem and capillary, makes it ideal for demanding environments. The surface mounting bottom entry and a standard 1″ BSP (M) connection facilitate easy installation and integration into existing systems.

Key Features

1. Large 4-Inch Dial for Enhanced Visibility
   • The 4-inch dial offers clear and easy-to-read temperature measurements, reducing the likelihood of errors and ensuring precise monitoring even from a distance.
2. Wide Temperature Range
   • Capable of measuring temperatures from 0 to 120 degrees Celsius, this gauge is suitable for a broad range of applications, offering versatility and precision.
3. Electrical Contact System
   • The electrical contact feature allows for automation and control by triggering alarms or switching processes when the temperature reaches preset values, enhancing safety and efficiency.
4. Mercury Filled for Accuracy
   • The mercury filling ensures stable and accurate temperature readings, especially in high-temperature environments where precision is critical.
5. Durable Construction
   • Featuring a stainless steel case, stem, and capillary, this thermometer is designed for durability and long-lasting performance in demanding industrial environments.
6. Surface Mounting Bottom Entry
   • The surface mounting bottom entry design ensures secure installation and stability, ideal for control panels and other fixed installations.
7. Standard 1″ BSP (M) Connection
   • The 1″ BSP (M) connection allows for easy integration into existing systems and ensures a secure, leak-free connection.
8. Long Capillary for Remote Sensing
   • The 12-meter stainless steel capillary allows for remote sensing, making it suitable for applications where direct mounting is challenging.

Electrical Contact Mercury Filled Temperature Gauge: Applications

Industrial Processes

• Furnaces and Kilns: Ensure accurate temperature monitoring in high-temperature environments such as furnaces and kilns, essential for process control and safety.
• Metalworking: Monitor temperatures in metalworking processes, including forging, casting, and heat treatment, to maintain product quality and consistency.
• Petrochemical Industry: Accurately measure and control temperatures in reactors, distillation columns, and other critical equipment to ensure process efficiency and safety.

Power Plants

• Boiler Monitoring: Keep track of boiler temperatures to prevent overheating and ensure optimal performance and safety.
• Turbine Temperature Control: Monitor and control temperatures in turbines to enhance efficiency and prevent damage.

Manufacturing

• Production Lines: Ensure precise temperature control in production processes to maintain product quality and operational efficiency.
• Machinery: Monitor machinery operating temperatures to prevent overheating and downtime, ensuring smooth operations.

Electrical Contact Mercury Filled Temperature Gauge

Benefits

1. Accurate Temperature Monitoring
   • The wide temperature range provides highly accurate readings, crucial for maintaining process integrity and product quality in high-temperature applications.
2. Automation and Control
   • The electrical contact feature allows for automated control and alarm triggering, enhancing operational efficiency and safety.
3. Durability and Longevity
   • Constructed with stainless steel materials, this thermometer is built to withstand harsh conditions and provide long-lasting performance.
4. Clear Readability
   • The large 4-inch dial ensures that temperature readings are easily visible, reducing the risk of errors and enhancing operational efficiency.
5. Versatile Installation
   • The surface mounting bottom entry and standard 1″ BSP (M) connection allow for flexible and secure installation in a variety of settings.
6. Remote Sensing Capability
   • The 12-meter stainless steel capillary allows for remote sensing, making it suitable for applications where direct mounting is not feasible.

Electrical Contact Mercury Filled Temperature Gauge: Installation and Maintenance

Installation

1. Positioning: Choose a suitable location for the thermometer, ensuring that the dial is easily visible and the capillary is not subject to excessive bending or stress.
2. Mounting: Secure the thermometer using the surface mounting bottom entry, ensuring stability and correct orientation.
3. Connection: Connect the 1″ BSP (M) fitting to the appropriate port, ensuring a secure and leak-free connection.
4. Calibration: Calibrate the thermometer according to the manufacturer’s instructions to ensure accurate readings.

Maintenance

1. Regular Inspections: Periodically check the thermometer for signs of wear or damage, particularly the stem, capillary, and connection points.
2. Cleaning: Keep the dial and sensor clean to ensure clear readings and accurate measurements.
3. Recalibration: Regularly recalibrate the thermometer to maintain accuracy, especially after prolonged use or exposure to extreme conditions.

Electrical Contact Mercury Filled Temperature Gauge: Conclusion

The “Ji” Japsin Instrumentation Electrical Contact Mercury Filled Temperature Gauge is an essential tool for precise temperature measurement and control in a wide range of industrial applications. Its robust construction, accurate readings, and versatile installation options make it an ideal choice for industries requiring reliable temperature monitoring and automation. Whether used in furnaces, metalworking, petrochemical processes, or power plants, this thermometer ensures optimal performance, safety, and efficiency. Invest in the “Ji” Japsin Instrumentation Electrical Contact Mercury Filled Temperature Gauge for dependable and accurate temperature measurement in your high-temperature industrial processes.
