Flow Switch: Comprehensive Overview
The “Ji” Japsin Instrumentation Flow Switch is a high-quality water flow switch designed to offer precise control and monitoring of liquid flow in various applications. With robust specifications and reliable performance, this flow switch is an ideal choice for industries requiring dependable flow control solutions. Below, we provide a detailed description of its features, applications, specifications, mounting instructions, and adjustment procedures.
Applications
The “Ji” Japsin Instrumentation Flow Switch is specifically engineered for flow control in liquid flow lines carrying water or any fluid that is not harmful to brass or phosphor bronze and is not classified as a hazardous fluid. It is suitable for a wide range of applications, including:
- Industrial Cooling Systems: Ensuring adequate water flow to cool machinery and equipment.
- HVAC Systems: Monitoring and controlling water flow in heating, ventilation, and air conditioning systems.
- Process Control: Managing fluid flow in various industrial processes to maintain optimal performance and safety.
- Water Treatment: Monitoring flow rates in water treatment plants to ensure efficient operation.
- Fire Protection Systems: Detecting and controlling water flow in fire suppression systems.
Operating Instructions
Water Flow Switch
Flow Control:
This flow switch is used in liquid flow lines to monitor and control the flow of water or any compatible fluid. It is designed to handle fluids that do not harm brass or phosphor bronze materials and are not hazardous.
Paddle Control:

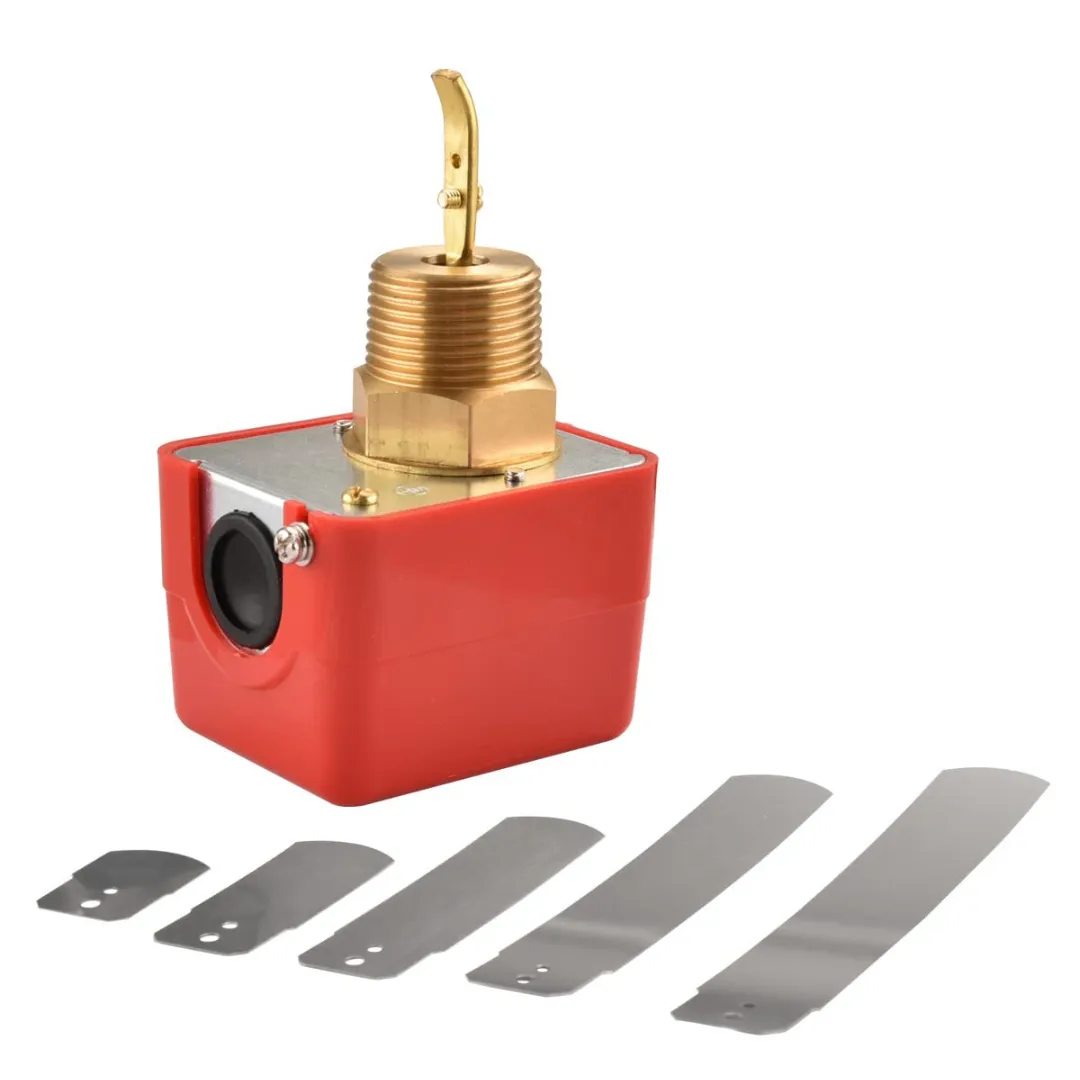

The flow switch operates using a paddle mechanism that detects changes in fluid flow. When the flow rate reaches a predetermined level, the paddle activates an electrical switch, providing an on/off signal.
Maximum Pressure and Temperature:

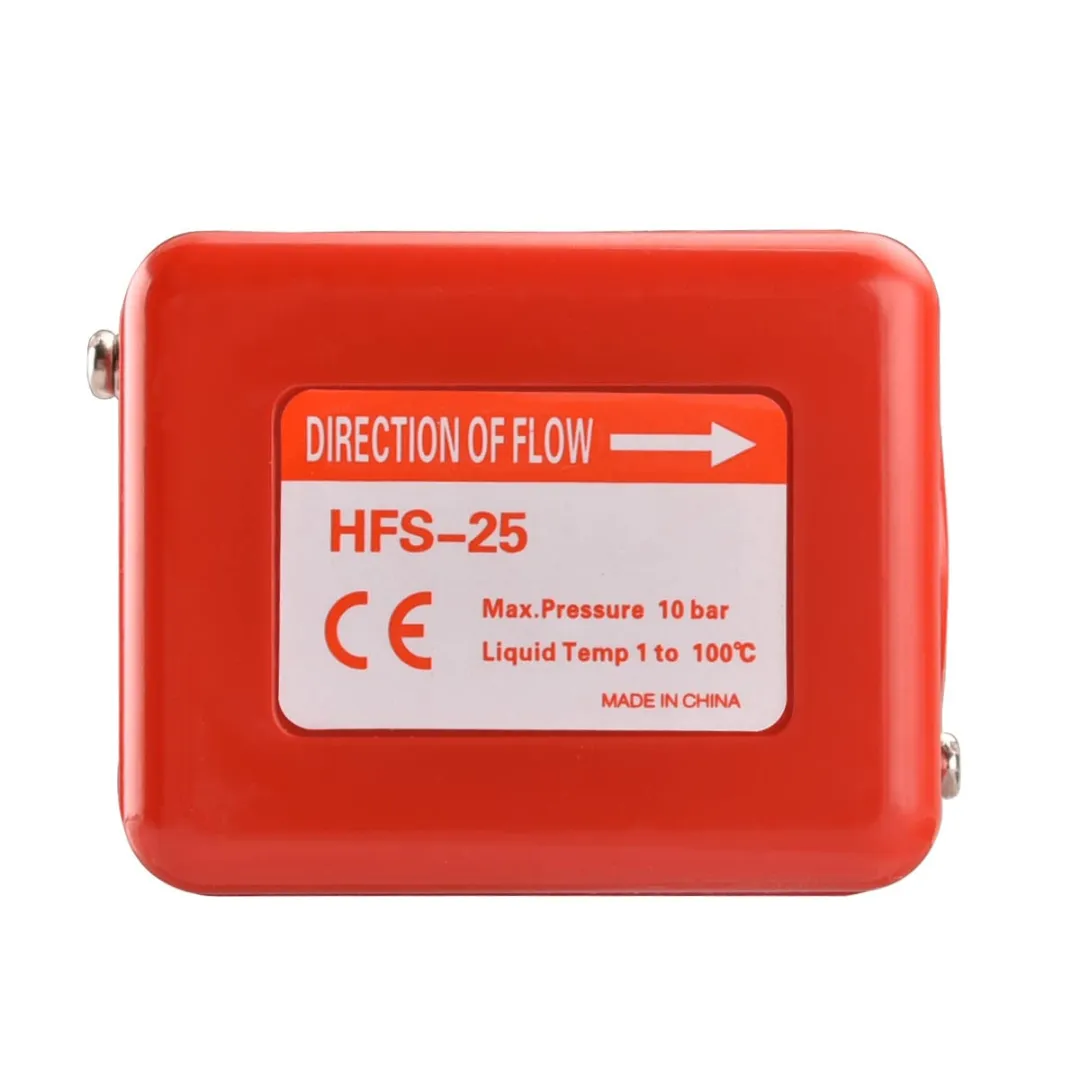

The flow switch can withstand a maximum static pressure of 10 kg/cm² and a maximum liquid temperature of 100°C, making it suitable for various high-pressure and high-temperature applications.
Electrical Specifications:
The electrical switch has a Single Pole Double Throw (SPDT) rating, operating at 220VAC with a maximum current of 15A. It uses screw terminals for secure and reliable electrical connections.
Case and Connections:
The flow switch features a durable plastic cover with a 1/2 conduit opening, providing protection for internal components. The connection is made through a 1″ NPT male thread, ensuring a secure fit in the pipeline.
Mounting Instructions
Proper installation of the Flow Switch is crucial for its optimal performance. Follow these guidelines to mount the flow switch correctly:
Horizontal Pipe Line:
The flow switch can be mounted in a horizontal pipe line. Ensure the switch is installed in a section of the pipe where there is a straight run of at least five pipe diameters on each side of the flow switch. This ensures accurate flow detection and reduces the risk of turbulence affecting the switch’s operation.
Vertical Pipe Line:
The flow switch can also be mounted in a vertical pipe line. Ensure the switch is installed in a straight section of the pipe, following the same guidelines for a straight run of at least five pipe diameters on each side.
Tee or Welded Half Coupling:
For installations in a tee or welded half coupling, ensure the flow switch is securely mounted and properly aligned with the flow direction. This helps maintain accurate flow detection and reliable switch operation.
Adjustment Instructions
The “Ji” Japsin Instrumentation Flow Switch features sealed adjustments that are not field adjustable.
Benefits and Features
The “Ji” Japsin Instrumentation Flow Switch offers several benefits and features that make it an excellent choice for flow control applications:
- High Reliability: Designed with robust materials and precise engineering, this flow switch provides reliable performance in various industrial environments.
- Easy Installation: The straightforward mounting process and standard 1″ NPT connection make installation quick and hassle-free.
- Versatile Application: Suitable for a wide range of applications, from HVAC systems to industrial cooling, water treatment, and more.
- Durable Construction: The MS body and brass internals ensure long-lasting durability, even in demanding conditions.
- Precise Control: The paddle mechanism and adjustable settings allow for precise control of flow rates, enhancing process efficiency and safety.
- Safety Compliance: With high maximum pressure and temperature ratings, this flow switch meets the requirements of various safety standards and regulations.
Conclusion
The “Ji” Japsin Instrumentation Flow Switch is a reliable and versatile solution for monitoring and controlling fluid flow in various industrial applications. Its robust construction, precise control mechanisms, and easy installation make it a preferred choice for professionals in industries such as HVAC, water treatment, process control, and more. By ensuring accurate flow detection and providing reliable on/off signals, this flow switch helps maintain optimal performance, safety, and efficiency in your operations.
Whether you are looking to enhance the performance of your cooling systems, ensure consistent water flow in your processes, or improve safety in your industrial applications, the Ji Japsin Instrumentation Flow Switch is the ideal choice. With its high-quality materials, precise engineering, and versatile application, this flow switch delivers the reliability and performance you need to achieve your operational goals.
Japsin Instrumentation – Since 1974
