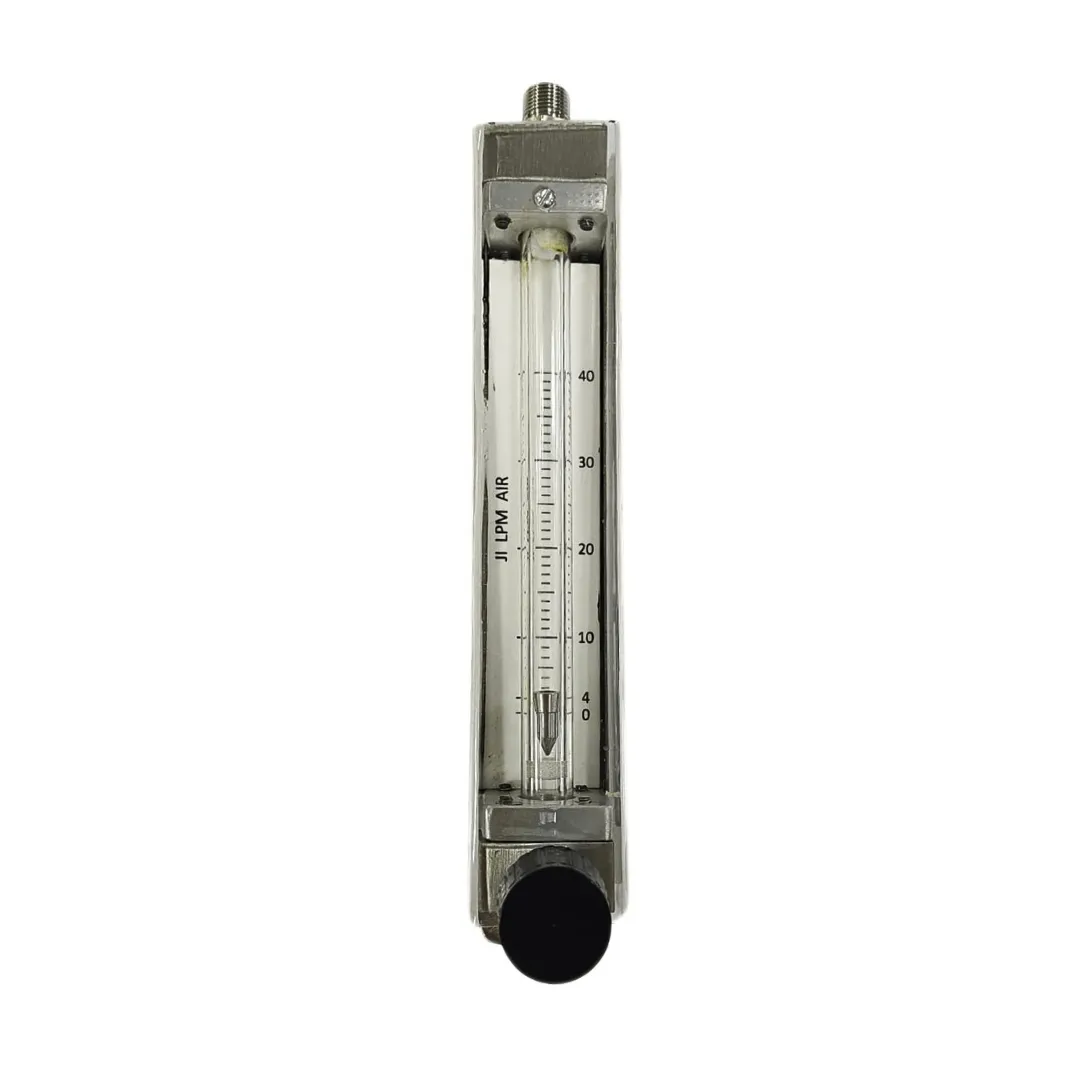

Glass Tube Rotameter for Air Flow Measurement
In the realm of precise measurement and control of fluid flow, the “Ji” Japsin Instrumentation Glass Tube Rotameter stands out as a reliable and efficient tool. This particular model is designed to measure air flow, with a range from 0 to 40 liters per minute (LPM). Featuring a robust design and accurate measurements, it is an essential instrument for a variety of applications in industries and laboratories. This guide provides an in-depth look at the features, benefits, and applications of the “Ji” Japsin Instrumentation Glass Tube Rotameter, highlighting why it is a preferred choice for professionals.
Features of the “Ji” Japsin Instrumentation Glass Tube Rotameter
1. Measurement Range and Accuracy
The “Ji” Rotameter is calibrated to measure air flow rates from 0 to 40 LPM. This broad range allows it to be used in diverse applications, from low to moderately high flow scenarios. The device’s accuracy ensures that users get precise readings, which is critical for processes that require stringent control of air flow.
2. Material and Build Quality
Constructed with an Glass tube, the rotameter is both durable and transparent. Glass is known for its excellent clarity, allowing users to easily see the float and read the measurements directly. The robust construction ensures longevity and reliability, even in demanding environments.
3. Connection Specifications

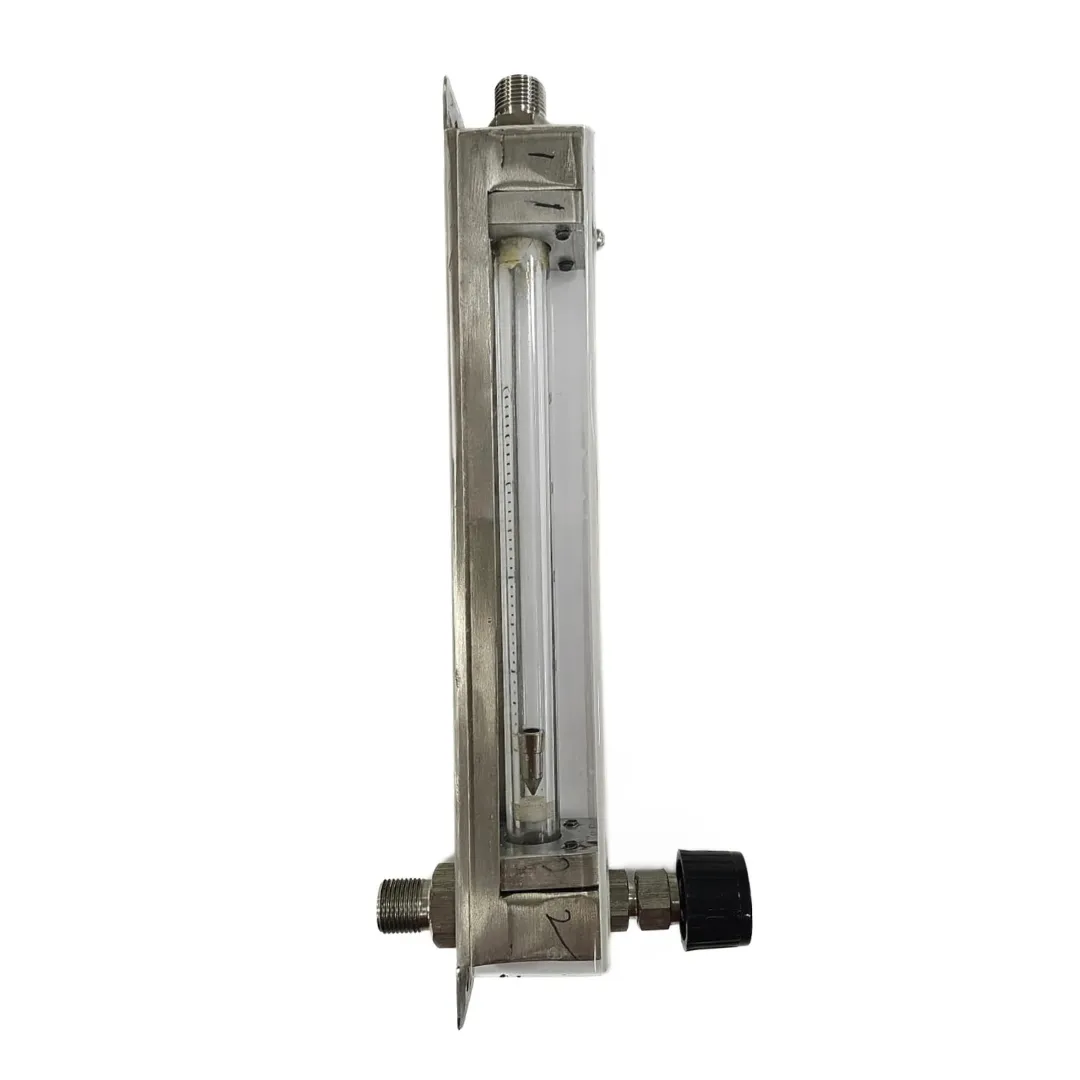

The rotameter is equipped with 3/8″ BSP (M) connections at both the rear top and bottom for inlet and outlet. This standard sizing makes it compatible with a wide range of piping systems and fittings, simplifying installation and integration into existing setups.
4. Control Valve Integration
A key feature of this rotameter is the control valve provided at the inlet. This valve allows users to precisely regulate the flow of air into the rotameter, facilitating accurate measurement and control. The integrated valve also enhances the convenience of using the instrument, as it eliminates the need for external flow control devices.
Benefits of using the “Ji” Japsin Instrumentation Glass Tube Rotameter
1. Ease of Use
The design of the Ji Japsin Rotameter prioritizes user convenience. The clear Glass tube and well-marked scale make it easy to read flow measurements at a glance. Additionally, the integrated control valve simplifies flow adjustments, making the process intuitive even for users with minimal training.
2. Versatility
With its broad measurement range and standardized connections, this rotameter can be used in a variety of applications. Whether in laboratory settings, industrial processes, or HVAC systems, it offers reliable performance across different contexts.
3. Durability and Low Maintenance
The Glass construction not only ensures clear visibility but also offers excellent resistance to impact and chemical corrosion. This durability translates to a long service life with minimal maintenance requirements, providing a cost-effective solution for long-term use.
4. Precision and Reliability
The accuracy of the Ji Japsin Rotameter ensures that users can rely on the measurements for critical processes. This precision is essential in applications where exact air flow rates are necessary to maintain product quality, safety, and efficiency.
Applications of the “Ji” Japsin Instrumentation Glass Tube Rotameter
1. Industrial Applications
In industrial settings, controlling air flow is vital for various processes, including combustion control, pneumatic conveying, and cooling systems. The Ji Japsin Rotameter’s precise measurements help maintain optimal conditions, ensuring smooth and efficient operations.
2. Laboratories
In research and development laboratories, accurate measurement of air flow is crucial for experiments and testing. The rotameter’s easy readability and control make it an ideal tool for these environments, where precision is paramount.
3. Environmental Monitoring
Monitoring and controlling air flow is essential in environmental testing and monitoring equipment. The Ji Japsin Rotameter provides reliable data that can be used to ensure compliance with environmental standards and regulations.
4. HVAC Systems
In heating, ventilation, and air conditioning (HVAC) systems, proper air flow regulation is critical for maintaining indoor air quality and energy efficiency. The rotameter helps HVAC professionals monitor and adjust air flow, ensuring systems operate optimally.
Glass Tube Rotameter: Installation and Operation
1. Installation
Installing the Ji Japsin Rotameter is straightforward, thanks to its standardized 3/8″ BSP connections. It can be mounted in the air flow line using appropriate fittings. Ensuring the rotameter is installed vertically is crucial for accurate readings, as the float relies on gravity to indicate flow rate.
2. Operation
Operating the rotameter involves allowing air to flow through the device and adjusting the integrated control valve to achieve the desired flow rate. The float inside the Glass tube will rise to a level corresponding to the flow rate, which can be read directly from the scale marked on the tube.
Glass Tube Rotameter: Conclusion
The “Ji” Japsin Instrumentation Glass Tube Rotameter is a versatile, reliable, and user-friendly tool for measuring and controlling air flow. Its broad measurement range, durable construction, and integrated control valve make it a valuable asset in various applications, from industrial processes to laboratory experiments. By choosing the “Ji” Rotameter, users benefit from precision, ease of use, and long-term durability, ensuring accurate air flow measurements and optimal system performance.
