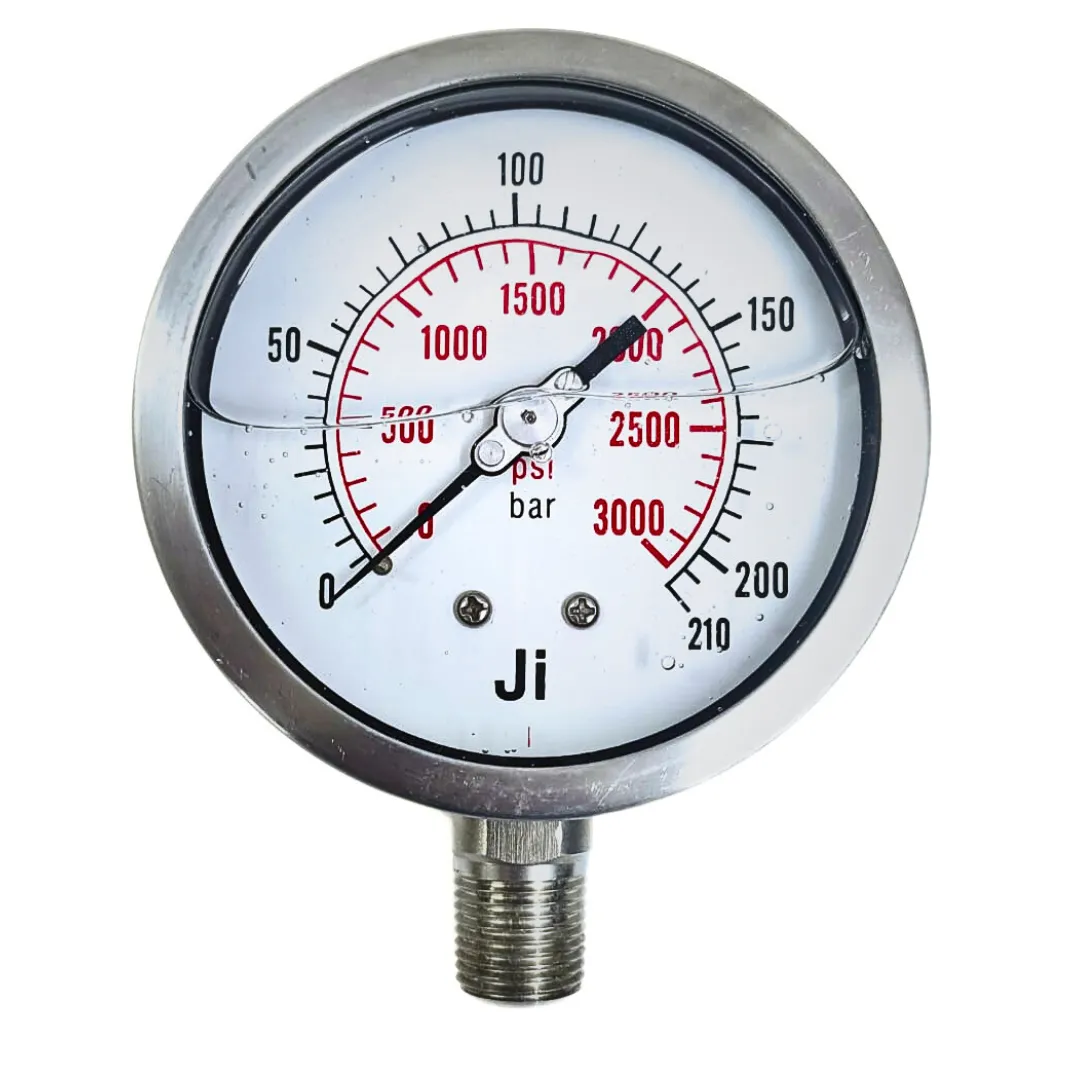

Industrial Glycerin Filled Pressure Gauge, 4″ Dial, Stainless Steel 304 Case Bayonet Type & SS 316L Internals, Range 0-210 Bar With Dual Scale of 3000 PSI, Direct Mounting Bottom Entry, Connection 1/2″ NPT (M)

Description

JI-IPG Industrial Glycerin Filled Pressure Gauge: Precision and Reliability for Demanding Applications

In the realm of industrial instrumentation, the accuracy and reliability of pressure gauges are paramount. These devices play a crucial role in monitoring and controlling the pressure of various systems, ensuring safety, efficiency, and optimal performance. One such instrument that stands out in the market is the JI-IPG Industrial Pressure Gauge, manufactured by Japsin Instrumentation. This pressure gauge is designed with precision and durability in mind, featuring a range of specifications that make it suitable for a wide array of industrial applications.

Overview of the JI-IPG Industrial Glycerin Filled Pressure Gauge

The JI-IPG Industrial Pressure Gauge is engineered to meet the rigorous demands of industrial environments. It features a 4-inch (100 mm) dial, which provides a clear and easy-to-read display. The case is constructed from stainless steel 304, offering excellent corrosion resistance and durability, while the internals are made from stainless steel 316L, known for its superior resistance to corrosion and ability to withstand high pressures.

Key Specifications

1. Dial Size and Construction
   • The gauge boasts a 4-inch (100 mm) dial size, ensuring that the readings are easily visible from a distance. This large dial is particularly useful in environments where quick and accurate readings are necessary.
   • The case of the gauge is made from stainless steel 304, a material renowned for its robustness and corrosion resistance. This makes the gauge suitable for use in harsh environments, including those with high humidity or exposure to chemicals.
2. Internal Components
   • The internals of the gauge are constructed from stainless steel 316L. This high-grade material is chosen for its exceptional resistance to corrosion, especially in applications involving harsh chemicals or marine environments. It also provides high strength and durability, ensuring the gauge can withstand high-pressure conditions.
3. Pressure Range and Dual Scale
   • The JI-IPG gauge has a pressure range of 0 to 210 Bar, catering to a wide variety of industrial applications. This range makes it suitable for monitoring systems that operate under high pressure, such as hydraulic systems, compressors, and industrial gas pipelines.
   • Additionally, the gauge features a dual scale, displaying readings in both Bar and PSI (0 to 3000 PSI). This dual-scale feature enhances the versatility of the gauge, making it accessible and useful in regions that use different units of measurement.
4. Mounting and Connection
   • The gauge is designed for direct mounting with a bottom entry connection, facilitating easy installation and integration into existing systems. The bottom entry design is preferred in many industrial applications due to its straightforward setup and compatibility with a variety of equipment.
   • It comes with a 1/2″ NPT male connection, a standard fitting in many industrial systems, ensuring compatibility and ease of installation.
5. Accuracy
   • One of the standout features of the JI-IPG gauge is its accuracy. With a precision of 1% Full Scale Deflection (FSD), the gauge provides reliable and accurate readings, crucial for maintaining the safety and efficiency of industrial operations. This level of accuracy ensures that operators can trust the gauge to provide precise measurements, essential for process control and monitoring.

Applications

The JI-IPG Industrial Pressure Gauge is versatile and can be used across a broad spectrum of industries and applications. Some of the key areas where this gauge excels include:

1. Hydraulic Systems
   • In hydraulic systems, precise pressure measurement is critical for ensuring the proper functioning of machinery. The JI-IPG gauge, with its high accuracy and robust construction, is ideal for monitoring hydraulic pressures, preventing potential failures and maintaining system efficiency.
2. Chemical and Petrochemical Industries
   • The stainless steel 316L internals make this gauge suitable for use in the chemical and petrochemical industries, where exposure to corrosive substances is common. Its durability ensures a long service life even in harsh environments.
3. Oil and Gas Sector
   • In the oil and gas industry, pressure gauges are essential for monitoring the pressure of pipelines and storage tanks. The JI-IPG gauge’s high-pressure range and dual-scale display make it suitable for these demanding applications.
4. Marine Applications
   • Marine environments require instruments that can withstand exposure to saltwater and high humidity. The stainless steel construction of the JI-IPG gauge ensures it remains reliable and accurate even under these challenging conditions.
5. Manufacturing and Process Industries
   • In manufacturing and process industries, maintaining the correct pressure is crucial for product quality and process efficiency. The JI-IPG gauge provides the necessary precision and reliability for these applications, helping to ensure smooth and efficient operations.

Benefits of the JI-IPG Industrial Glycerin Filled Pressure Gauge

1. Durability and Longevity
   • The use of high-quality materials such as stainless steel 304 for the case and stainless steel 316L for the internals ensures that the gauge can withstand harsh environments and maintain its performance over a long period.
2. High Accuracy
   • With an accuracy of 1% FSD, the JI-IPG gauge provides reliable measurements, essential for critical applications where precision is paramount.
3. Versatility
   • The dual scale (Bar and PSI) and wide pressure range (0 to 210 Bar) make the gauge versatile and suitable for a variety of applications and industries.
4. Ease of Installation
   • The direct mounting bottom entry and standard 1/2″ NPT (M) connection simplify the installation process, allowing for quick and easy integration into existing systems.
5. Clear Readability
   • The 4-inch dial ensures that readings are easily visible, reducing the chances of errors and improving operational efficiency.

Conclusion

The JI-IPG Industrial Glycerin Filled Pressure Gauge by Japsin Instrumentation is a reliable and high-performance instrument designed to meet the stringent demands of various industrial applications. Its robust construction, high accuracy, and versatile features make it an indispensable tool for professionals in fields such as hydraulics, chemical processing, oil and gas, marine, and manufacturing. By providing precise and reliable pressure measurements, the JI-IPG gauge helps ensure the safety, efficiency, and optimal performance of industrial systems.
