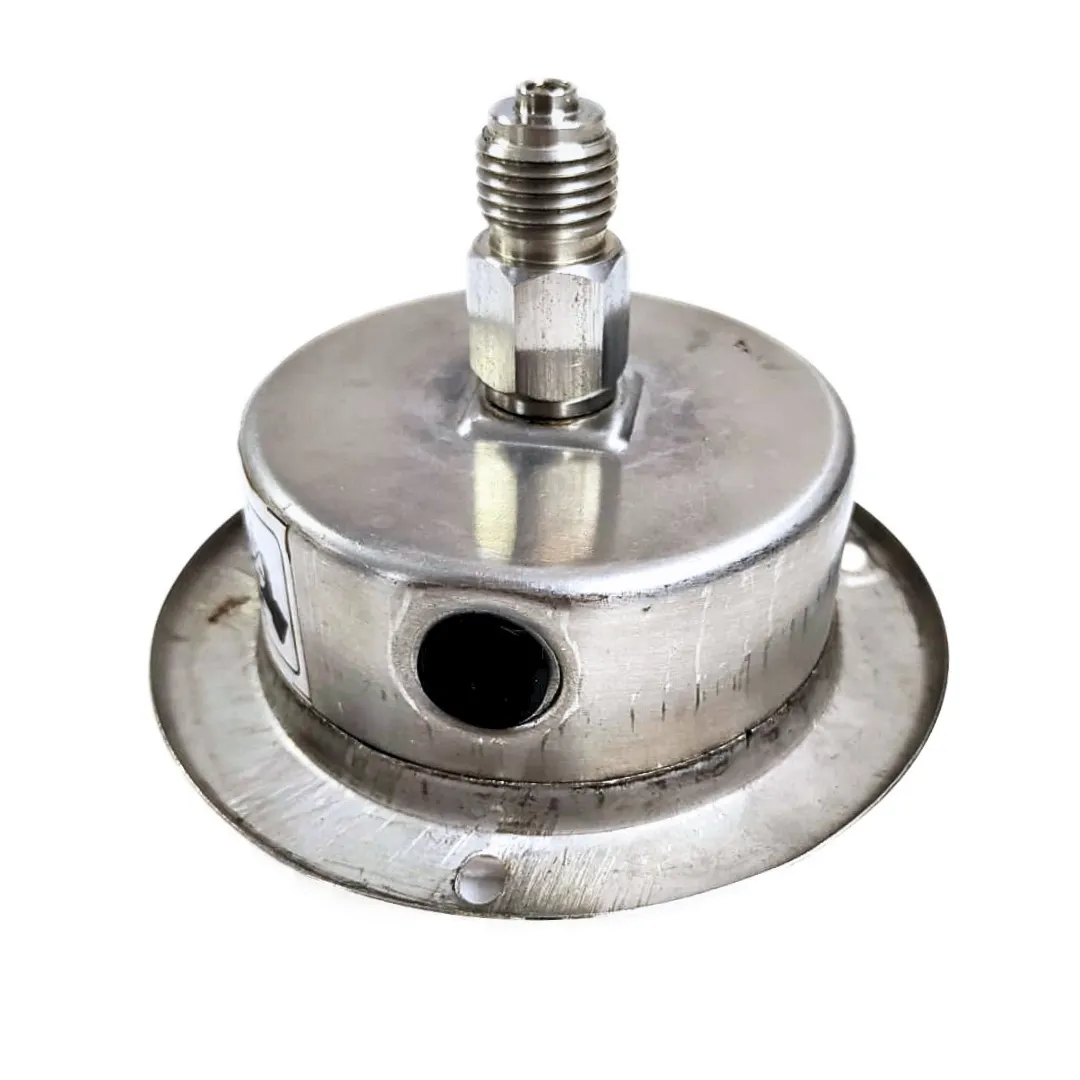

Industrial Pressure Gauge Glycerin Filled, 2 1/2″ (63 mm) Dial, Range 0 to 7 Kg/Cm2 with Dual Scale of 100 PSI, Direct Mounting Back Entry, 1/4″ BSP (M) Connection, SS Case & SS Wetted Parts (Case Crimping Type)

Description

Industrial Glycerin Filled Pressure Gauge – Precision Performance with Durability for Industrial Applications

The JI-IPG Industrial Glycerin Filled Pressure Gauge by “Ji” Japsin Instrumentation is a precision-engineered instrument designed to provide accurate and reliable pressure measurements in demanding industrial environments. With a dial size of 2 1/2″ (63 mm), a stainless steel 304 crimping-type case, and SS 316L internals, this pressure gauge is built to last. It features a pressure range of 0 to 7 Kg/Cm², dual-scaled with 100 PSI, ensuring versatility in applications requiring precise monitoring of pressure.

Designed for direct mounting with a back entry and equipped with a 1/4″ BSP (M) connection, the gauge provides ease of installation and optimal functionality. The glycerin filling enhances the gauge’s performance by reducing needle vibration, ensuring smooth readings, and extending the life of the gauge in harsh operating environments. Its accuracy of 1.6% FSD (Full Scale Deflection) ensures that even in demanding conditions, the gauge delivers reliable, consistent pressure readings.

Key Features

1. Glycerin-Filled Design: The gauge is filled with glycerin, which serves to dampen vibrations and absorb shock. This ensures smooth, accurate readings even in environments where equipment may be subject to mechanical vibrations or pressure spikes.
2. Stainless Steel Construction: Both the case and internals of the gauge are made from high-quality stainless steel. The 304 stainless steel case is resistant to corrosion, making it ideal for use in harsh environments. The SS 316L internals provide superior resistance to corrosion and chemical attacks, ensuring longevity and durability in industrial applications.
3. Dual Scale Display: The dial displays readings in both Kg/Cm² and PSI with a range of 0 to 7 Kg/Cm² and 100 PSI, offering flexibility for operators familiar with different measurement units. This dual-scale feature makes the gauge suitable for use in global operations where both metric and imperial units may be required.
4. Accurate Pressure Measurement: The gauge has an accuracy rating of 1.6% FSD, meaning it provides precise and reliable readings across its full pressure range. This level of accuracy is crucial for maintaining the efficiency and safety of various industrial processes.
5. Crimping-Type Stainless Steel Case: The crimping-type case design ensures the gauge is well-sealed, providing protection from environmental contaminants like dust and moisture. This design enhances the longevity of the gauge, ensuring it can withstand tough industrial conditions.
6. Direct Mounting with Back Entry: The direct mounting option with a back entry configuration simplifies installation, especially in panel-mounted applications. The 1/4″ BSP (M) connection ensures secure attachment and compatibility with a wide range of systems.

Industrial Pressure Gauge Glycerin

Applications

The JI-IPG Industrial Glycerin Filled Pressure Gauge is designed to serve a variety of industrial applications that require precise pressure monitoring. Its durability, accuracy, and resistance to harsh conditions make it an essential tool across various industries, including:

1. Chemical and Petrochemical Plants: In these environments, the gauge is used to monitor pressure in processes that involve corrosive fluids and high temperatures. The stainless steel construction ensures long-lasting performance in such demanding settings.
2. Oil and Gas Industry: Whether it’s upstream, midstream, or downstream, pressure gauges are critical in ensuring the safe and efficient operation of pipelines, tanks, and other equipment.
3. Water and Wastewater Treatment: The gauge is ideal for monitoring pressure in filtration systems, pumps, and pipelines, where reliable pressure measurement is vital for operational efficiency.
4. Pharmaceutical and Food Processing: Cleanliness and corrosion resistance are crucial in these industries. The stainless steel construction of the gauge makes it suitable for sanitary applications where contamination must be avoided.
5. Hydraulic and Pneumatic Systems: The glycerin-filled design helps reduce the impact of system vibrations, ensuring accurate pressure readings in hydraulic and pneumatic applications.
6. HVAC and Refrigeration: The gauge is commonly used in heating, ventilation, air conditioning, and refrigeration systems to monitor and regulate pressure, ensuring optimal performance.

Industrial Pressure Gauge Glycerin

Materials and Construction

The JI-IPG Industrial Glycerin Filled Pressure Gauge is built to withstand the rigors of industrial applications. The case, made of Stainless Steel 304, offers excellent resistance to corrosion, which is vital in environments where exposure to chemicals, moisture, and harsh conditions is common. The SS 316L internals provide additional corrosion resistance and durability, particularly in environments where the gauge may come into contact with aggressive media.

The glycerin filling further enhances the gauge’s durability by reducing the effects of mechanical vibrations and pressure surges, which could otherwise lead to premature wear and inaccurate readings. The crimping-type closure ensures a tight seal, protecting the internal components from contamination and extending the lifespan of the gauge.

Advantages of the JI-IPG Industrial Glycerin Filled Pressure Gauge

1. Shock and Vibration Resistance: The glycerin filling acts as a damping agent, reducing the impact of vibrations and ensuring smooth needle movement, which translates to more accurate readings.
2. Durability in Harsh Environments: The stainless steel construction, combined with the high resistance of SS 316L internals, ensures that the gauge performs reliably even in corrosive or high-temperature environments.
3. Dual Scale for Versatility: The dual scale, displaying both Kg/Cm² and PSI, enhances usability in global applications, making it easier for operators to take readings in different units.
4. Easy Installation: The direct mounting back entry design simplifies installation and integration into various systems, making it ideal for both standalone and panel-mounted applications.
5. High Accuracy: With an accuracy rating of 1.6% FSD, the gauge provides precise pressure measurements, ensuring that operators can rely on it for critical monitoring tasks in a wide range of industrial processes.

Industrial Pressure Gauge Glycerin

Conclusion

The JI-IPG Industrial Glycerin Filled Pressure Gauge by “Ji” Japsin Instrumentation is an essential tool for industries requiring precise and reliable pressure monitoring. Its stainless steel construction, glycerin filling, and high accuracy make it suitable for demanding environments, ensuring long-lasting performance. Whether you’re operating in chemical plants, oil and gas facilities, or water treatment systems, this gauge offers the durability and accuracy you need to maintain efficient and safe operations.

Japsin Instrumentation – Since 1974
