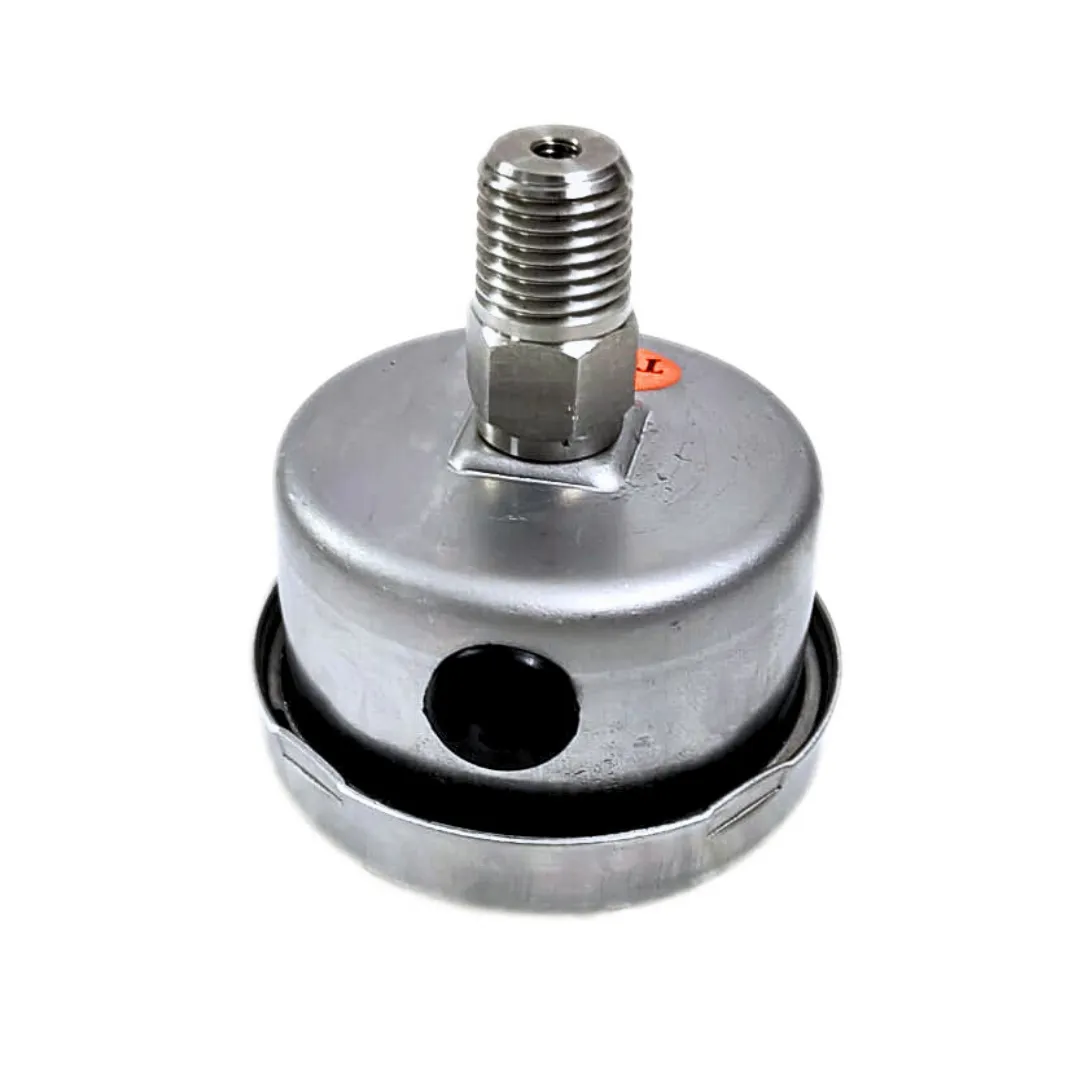

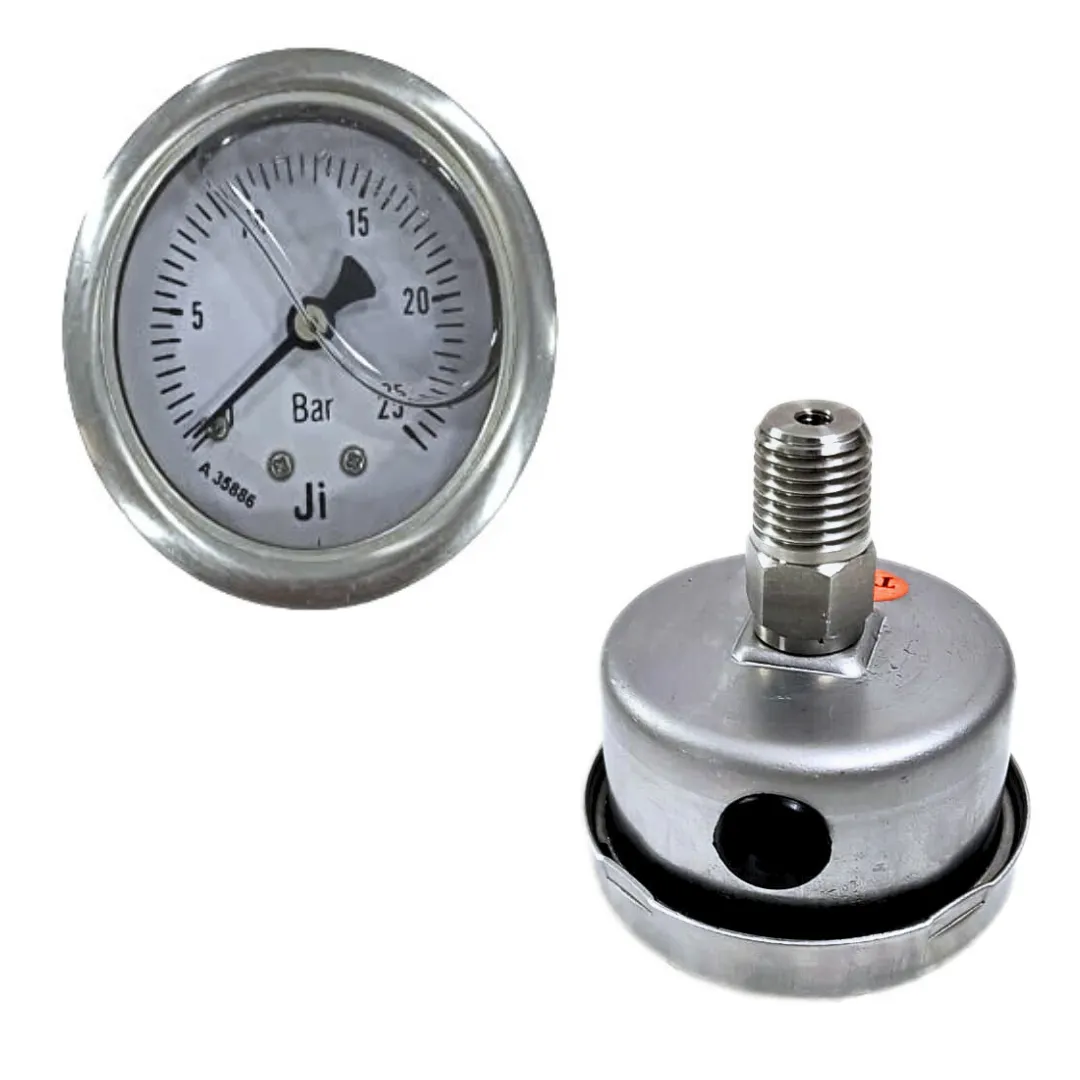

Industrial Pressure Gauge Glycerin Filled, 2″ (50 mm) Dial, Range 0 to 25 Bar Single Scale, Direct Mounting Back Entry, 1/4″ BSP (M) Connection, SS Case & SS Wetted Parts (Case Bayonet Type)

Description

JI-IPG Industrial Glycerin Filled Pressure Gauge – Compact Precision for High-Pressure Applications

The JI-IPG Industrial Glycerin Filled Pressure Gauge, manufactured by “Ji” Japsin Instrumentation, is designed for accurate pressure measurement in demanding industrial environments. Featuring a compact 2″ (50 mm) dial, this gauge offers reliable performance in space-constrained applications. The durable Stainless Steel 304 case with a bayonet type design and SS 316L internals ensures that the gauge can withstand harsh conditions, including corrosive environments and mechanical vibrations.

The gauge has a pressure range of 0 to 25 Bar with a single scale display, making it ideal for applications where high-pressure monitoring is essential. Its direct mounting back entry and 1/4″ BSP (M) connection provide ease of installation and versatility in different industrial systems. The glycerin-filled design minimizes needle fluctuations caused by vibrations and pressure surges, ensuring smooth and accurate readings. With an accuracy of 1.6% FSD (Full Scale Deflection), the gauge delivers precise measurements, making it suitable for various critical applications in industries such as oil and gas, chemical processing, and water treatment.

Industrial Glycerin Filled Pressure Gauge

Key Features

1. Glycerin-Filled for Vibration Dampening: The gauge is filled with glycerin, which acts as a damping medium to reduce the effects of mechanical vibrations and sudden pressure fluctuations. This results in a stable and easy-to-read dial, ensuring accurate pressure readings even in environments with high levels of vibration.
2. Durable Stainless Steel Construction: The Stainless Steel 304 case and SS 316L internals provide exceptional durability and corrosion resistance, ensuring long-lasting performance in harsh industrial environments. The bayonet type case ensures a secure and tight closure, further enhancing protection against external contaminants.
3. Compact 2″ (50 mm) Dial Size: The small dial size makes this pressure gauge an excellent choice for applications where space is limited. Despite its compact form, the gauge delivers reliable and precise pressure measurements.
4. Single Scale Display (0 to 25 Bar): The gauge features a single scale that measures pressure from 0 to 25 Bar, making it ideal for applications that require high-pressure monitoring. The clear and easy-to-read display ensures accurate readings, reducing the likelihood of operator error.
5. Direct Mounting with Back Entry: The direct mounting design with a back entry configuration allows for easy installation in various systems. The 1/4″ BSP (M) connection ensures compatibility with a wide range of industrial equipment and piping systems.
6. High Accuracy (1.6% FSD): The gauge has an accuracy rating of 1.6% FSD, providing reliable pressure readings across its full range. This level of precision is critical for maintaining the efficiency and safety of various industrial processes.

Industrial Glycerin Filled Pressure Gauge

Applications

The JI-IPG Industrial Glycerin Filled Pressure Gauge is designed to meet the needs of a wide range of industries. Its robust design, compact size, and high accuracy make it suitable for use in various applications, including:

1. Oil and Gas Industry: The gauge is commonly used in the oil and gas industry to monitor high-pressure systems such as pipelines, storage tanks, and compressors. Its stainless steel construction ensures resistance to corrosive media and harsh environmental conditions.
2. Chemical Processing: In chemical plants, where exposure to aggressive chemicals and extreme temperatures is common, the SS 316L internals provide excellent corrosion resistance. The glycerin filling also ensures accurate readings in environments with high vibrations, such as near pumps and compressors.
3. Water Treatment: The gauge is ideal for monitoring pressure in water treatment systems, including filtration units, pumps, and distribution pipelines. Its durable design ensures reliable performance in environments with high moisture levels and potential exposure to corrosive elements.
4. Hydraulic and Pneumatic Systems: The glycerin-filled design helps dampen the effects of pressure spikes and vibrations in hydraulic and pneumatic systems, ensuring smooth and accurate readings. This gauge is essential for maintaining the efficiency and safety of these systems.
5. HVAC and Refrigeration: In HVAC and refrigeration systems, the gauge monitors pressure levels in compressors, pumps, and refrigerant lines, ensuring optimal system performance.
6. Pharmaceutical and Food Processing: In industries where cleanliness and corrosion resistance are paramount, the stainless steel construction of this gauge makes it suitable for use in sanitary applications.

Industrial Glycerin Filled Pressure Gauge

Materials and Construction

The JI-IPG Industrial Glycerin Filled Pressure Gauge is built to withstand the rigors of industrial environments. The case is made from Stainless Steel 304, known for its excellent corrosion resistance and durability. This ensures that the gauge can handle exposure to harsh chemicals, moisture, and extreme temperatures, making it ideal for use in industries where reliability is critical.

The SS 316L internals offer enhanced corrosion resistance compared to standard stainless steel, particularly in environments where the gauge may come into contact with aggressive media such as acids or salts. The bayonet-type case provides a secure closure, protecting the gauge’s internals from dust, moisture, and other contaminants, ensuring long-term performance and reliability.

The glycerin filling serves to further enhance the durability of the gauge by reducing the impact of mechanical vibrations and pressure surges. This ensures smooth needle movement and precise readings, even in challenging operating conditions.

Advantages of the JI-IPG Industrial Glycerin Filled Pressure Gauge

1. Vibration and Shock Resistance: The glycerin filling effectively dampens vibrations and absorbs shocks, ensuring smooth and accurate pressure readings. This is particularly important in applications where equipment may be subjected to high levels of vibration or pressure fluctuations.
2. Corrosion Resistance: The combination of a Stainless Steel 304 case and SS 316L internals ensures that the gauge is highly resistant to corrosion, making it suitable for use in environments where exposure to corrosive substances is common.
3. Compact Design: With a 2″ (50 mm) dial size, this gauge is ideal for applications where space is limited. Despite its small size, it offers reliable and accurate pressure measurement.
4. High Accuracy: The 1.6% FSD accuracy ensures precise pressure readings, which are critical for maintaining the safety and efficiency of industrial processes.
5. Easy Installation: The direct mounting back entry design allows for quick and easy installation in a variety of systems. The 1/4″ BSP (M) connection ensures compatibility with a wide range of equipment.
6. Durable Construction: The bayonet-type case provides a secure closure, protecting the internal components from environmental contaminants such as dust and moisture, ensuring the gauge’s longevity.

Industrial Glycerin Filled Pressure Gauge

Conclusion

The JI-IPG Industrial Glycerin Filled Pressure Gauge by “Ji” Japsin Instrumentation is a compact yet highly durable instrument designed for precise pressure measurement in industrial environments. Its stainless steel construction, glycerin filling, and high accuracy make it suitable for use in a wide range of applications, from chemical processing plants to hydraulic systems. Whether you’re dealing with corrosive media, high-pressure systems, or environments prone to vibrations, this gauge provides the reliability and precision needed to ensure safe and efficient operations.

Japsin Instrumentation – Since 1974
