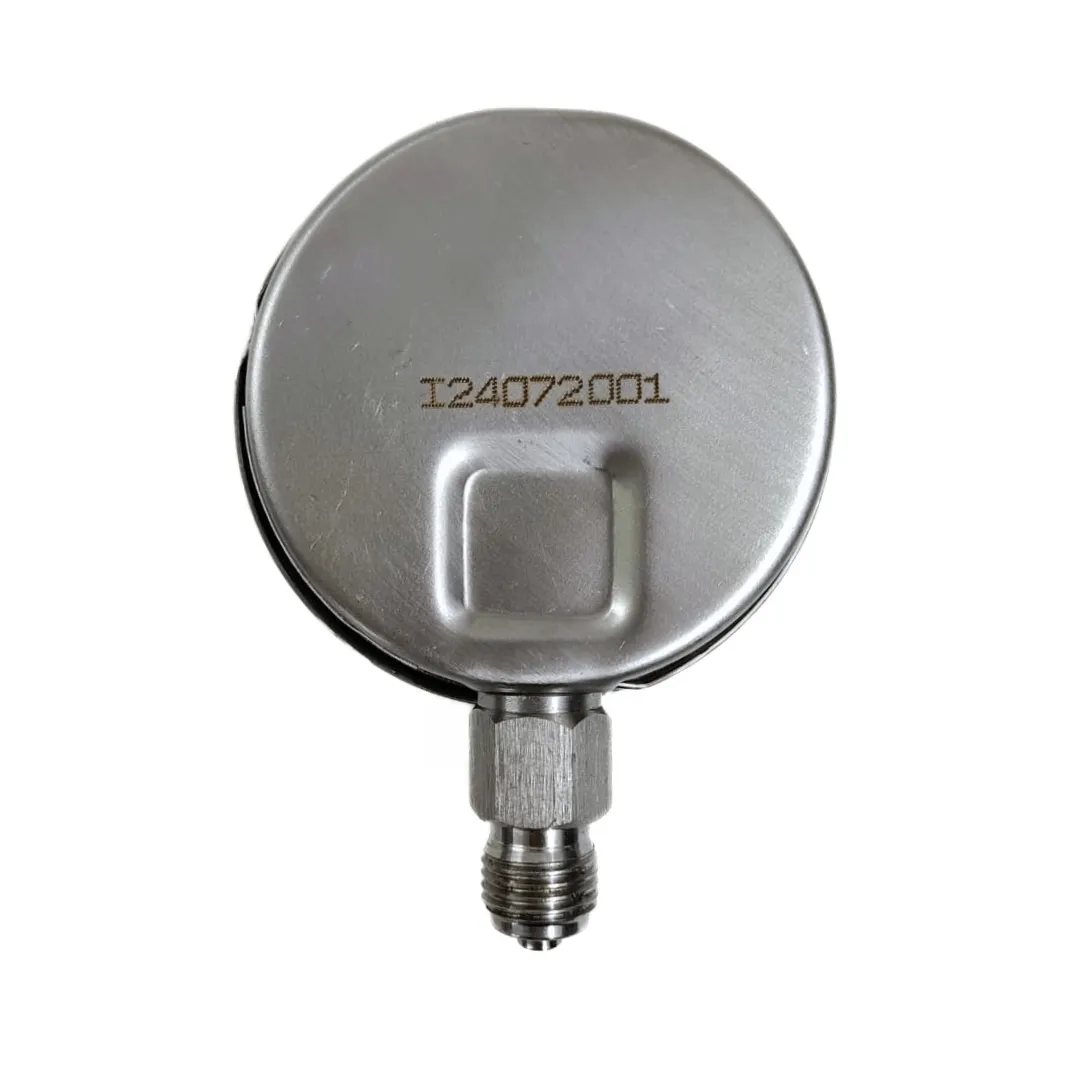

Industrial Pressure Gauge, 2 1/2″ (63 mm) Dial, Range 0 to 2 Bar with Dual Scale of 29 PSI, Direct Mounting Bottom Entry, 1/4″ BSP (M) Connection, SS Case & SS Wetted Parts (Case Bayonet Type)

Description

Japsin Instrumentation Industrial Pressure Gauge, 2 1/2″ (63 mm) Dial, Range 0 to 2 Bar with Dual Scale of 29 PSI, Direct Mounting Bottom Entry, 1/4″ BSP (M) Connection, SS Case & SS Wetted Parts (Case Bayonet Type)

Pressure gauges are essential tools in numerous industries, helping to monitor and maintain pressure in various systems. Whether it’s a manufacturing plant, chemical processing unit, or HVAC system, precise and reliable pressure measurement is crucial for operational safety and efficiency. The “Ji” Japsin Instrumentation Industrial Pressure Gauge with a 2 1/2″ (63 mm) dial is specifically designed for applications requiring high accuracy, durability, and robust performance. With a range from 0 to 2 Bar, this pressure gauge is equipped with a dual scale of 29 PSI, making it versatile and adaptable for a wide range of industrial applications.

Durability and Construction: The “Ji” Japsin Instrumentation Pressure Gauge features a stainless steel (SS) construction, both in the case and the wetted parts, ensuring it can withstand harsh industrial environments. The case is built from 304 stainless steel, known for its corrosion-resistant properties, making it ideal for long-term use in corrosive or demanding conditions. Additionally, the wetted parts are crafted from 316 stainless steel, which provides enhanced protection against chemical attacks and high-temperature exposure. These high-quality materials significantly contribute to the longevity and reliability of the gauge, even under extreme operating conditions.

The bayonet-type SS case offers an added layer of protection and allows for easy assembly and disassembly, ensuring quick maintenance and repairs. This case type also contributes to the device’s robustness, making it a preferred choice for industries that require resilient equipment capable of handling challenging environments.

Precise Measurement and Dual Scale: This industrial pressure gauge is designed with precision in mind, offering a range from 0 to 2 Bar and a dual scale of 29 PSI. The dual scale allows users to easily interpret readings in both Bar and PSI, depending on their system requirements. The accurate display ensures that users can monitor system pressures with confidence, preventing over-pressurization or under-pressurization, both of which can cause system inefficiencies or failures.

Accuracy is critical in many industrial settings, especially when it comes to sensitive operations that rely on precise pressure control. This pressure gauge is calibrated to an accuracy level of ±1% of Full Scale Deflection (FSD), offering reliable readings and contributing to operational safety. Whether in mechanical processing, petrochemical plants, or other industries, having a gauge that provides such precision is invaluable.

Versatile Applications: The “Ji” Japsin Instrumentation Pressure Gauge is designed for a variety of applications, ranging from mechanical systems to industrial processes that require constant pressure monitoring. Its bottom entry design makes it particularly suitable for direct mounting, allowing easy installation in areas where space is at a premium. The 1/4″ BSP (Male) connection ensures compatibility with standard fittings, simplifying the installation process and reducing the need for custom adapters.

Thanks to its stainless steel construction, this pressure gauge can withstand exposure to corrosive fluids, making it an excellent choice for industries such as chemical processing, oil and gas, power generation, water treatment, and food and beverage manufacturing. The robust design also ensures that the gauge can handle vibrations and shocks commonly encountered in industrial environments.

Key Features:

• Dial Size: 2 1/2″ (63 mm)
  The compact dial size makes it ideal for installations with limited space while still providing a clear, easy-to-read display.
• Pressure Range: 0 to 2 Bar (29 PSI Dual Scale)
  The dual scale offers flexibility, enabling users to monitor pressure levels in both Bar and PSI, catering to various operational standards.
• Connection Type: 1/4″ BSP (M)
  This standard connection type ensures compatibility with most industrial systems, simplifying installation and integration.
• Mounting Type: Direct Mounting, Bottom Entry
  The bottom entry design is ideal for applications where the gauge needs to be mounted directly onto equipment, minimizing the need for additional piping or fittings.
• Construction Materials: SS 304 Case & SS 316 Wetted Parts
  Stainless steel construction ensures that the gauge can withstand harsh industrial conditions, including exposure to corrosive materials, extreme temperatures, and vibrations.
• Bayonet-Type Case
  The bayonet design allows for easy assembly and disassembly, enabling quick maintenance and extending the lifespan of the gauge.
• Accuracy: ±1% of Full Scale Deflection (FSD)
  With a high level of accuracy, this pressure gauge delivers precise readings, contributing to overall system reliability and safety.
• Operating Temperature: -20°C to 60°C
  The gauge is designed to operate in a wide temperature range, making it suitable for use in various environments.

Applications:

1. HVAC Systems:
   The pressure gauge can be used to monitor pressure levels in heating, ventilation, and air conditioning systems, ensuring optimal performance and efficiency.
2. Chemical Processing:
   Stainless steel construction makes this gauge resistant to corrosive chemicals, making it suitable for use in chemical plants and refineries.
3. Water Treatment Plants:
   Pressure monitoring is essential in water treatment processes to maintain system integrity and ensure the proper flow of water.
4. Oil & Gas Industry:
   The gauge can be used in pipelines and other equipment in the oil and gas industry to ensure that pressure levels are within safe limits.
5. Food & Beverage Industry:
   The stainless steel construction makes this gauge ideal for hygienic applications, ensuring compliance with industry standards in food and beverage production.

Advantages of Stainless Steel Construction:

Stainless steel is the preferred material for pressure gauges in demanding environments due to its durability, corrosion resistance, and ability to withstand high temperatures. The SS 304 case ensures the gauge remains operational even in corrosive environments, while the SS 316 wetted parts offer added protection against chemical attacks and extreme temperatures. These materials also provide excellent resistance to wear and tear, ensuring long-lasting performance and reducing the need for frequent replacements.

Installation and Maintenance:

The “Ji” Japsin Instrumentation Pressure Gauge is designed for ease of installation, thanks to its 1/4″ BSP (M) connection and direct mounting capability. The bottom entry design is ideal for applications where the gauge needs to be mounted directly onto equipment. The bayonet-type case further simplifies maintenance, as it allows for easy disassembly, making it easier to clean and service the gauge when necessary. Additionally, the gauge is designed to withstand vibrations and shocks, ensuring consistent performance in demanding environments.

Conclusion:

The “Ji” Japsin Instrumentation Industrial Pressure Gauge is a reliable, durable, and accurate pressure measurement solution for a wide range of industrial applications. Its stainless steel construction, precise readings, and versatile design make it an essential tool for maintaining safe and efficient operations in industries like chemical processing, water treatment, oil and gas, and HVAC systems. With its easy installation and low-maintenance design, this pressure gauge offers long-lasting performance and reliability, making it a valuable investment for any industrial operation.

Japsin Instrumentation – Since 1974
