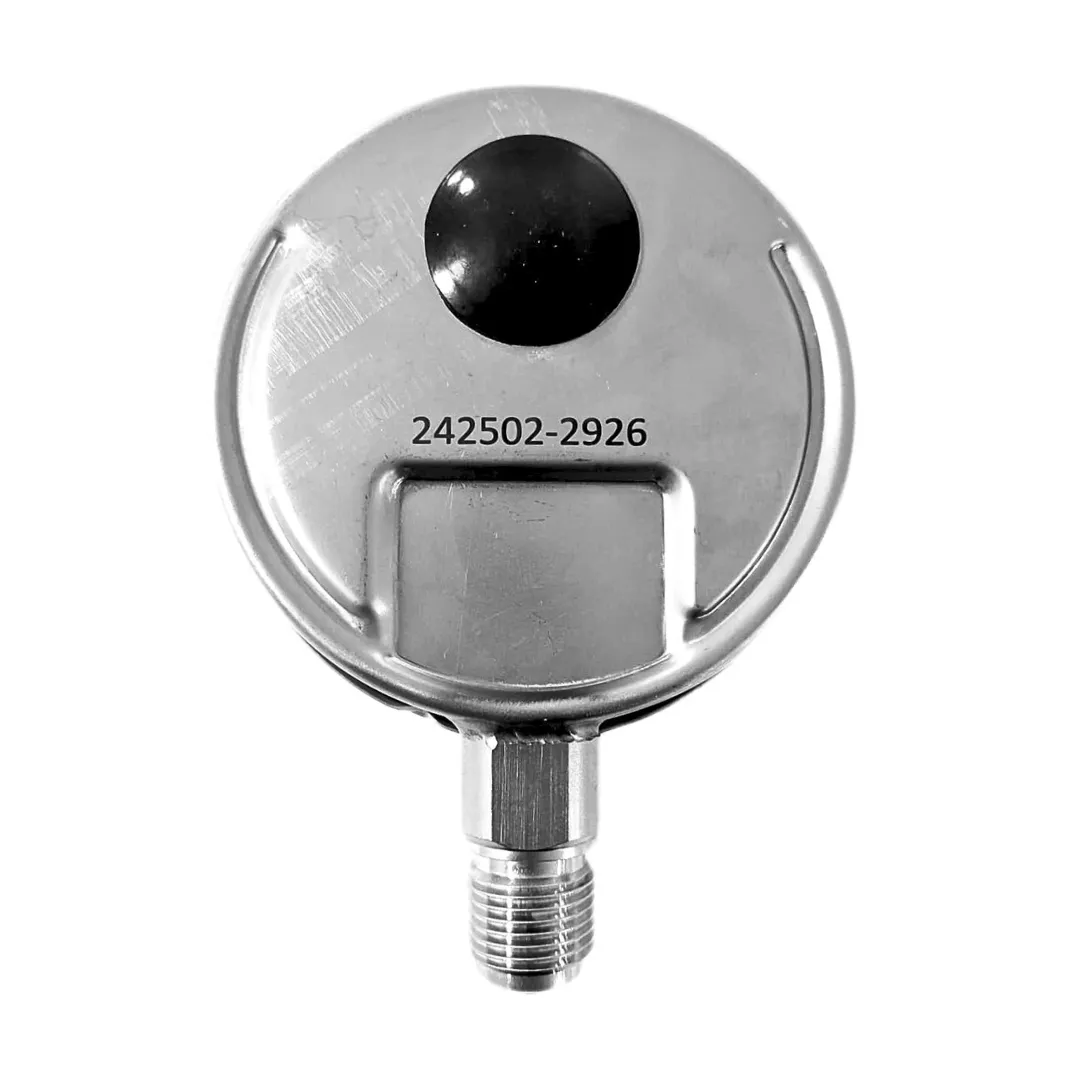

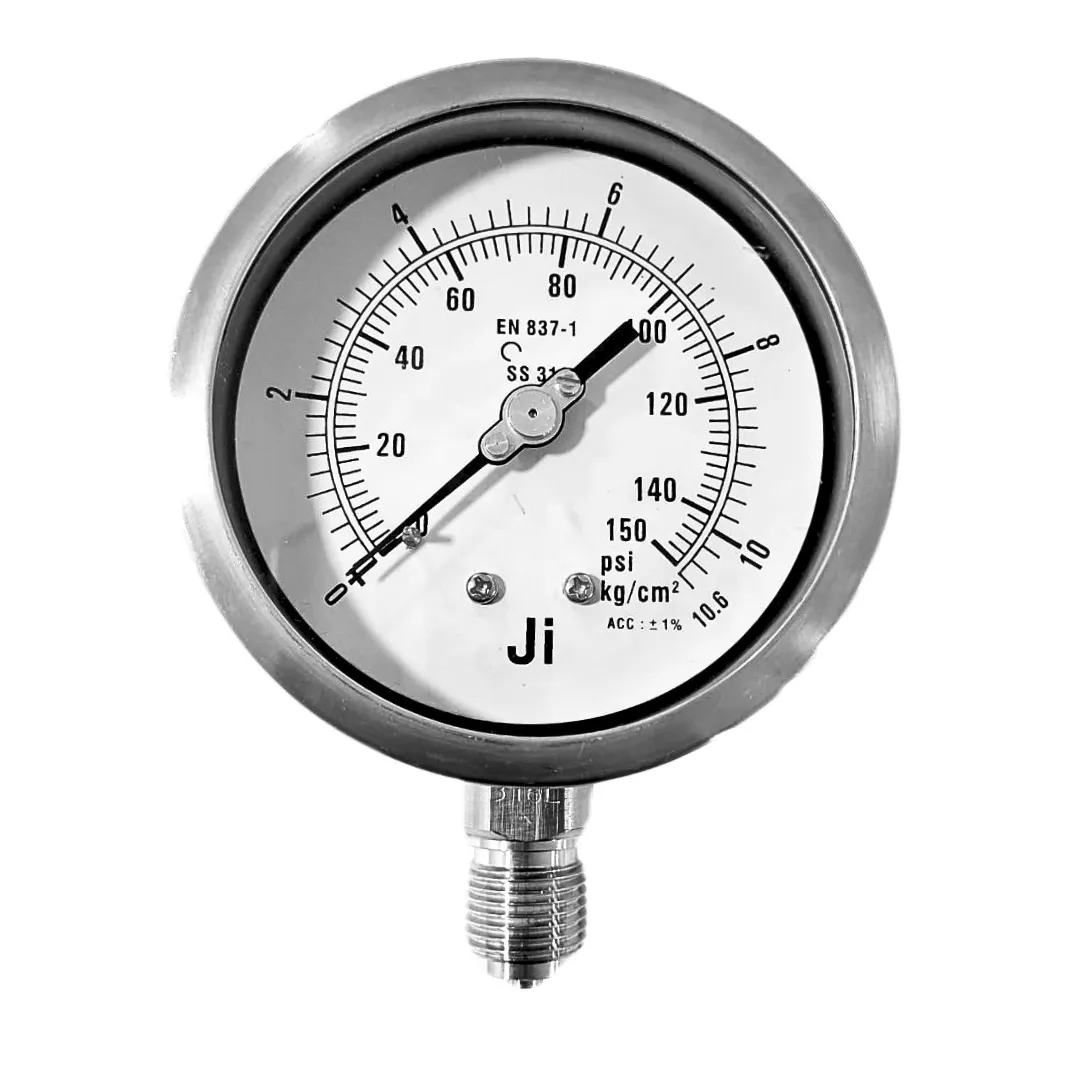

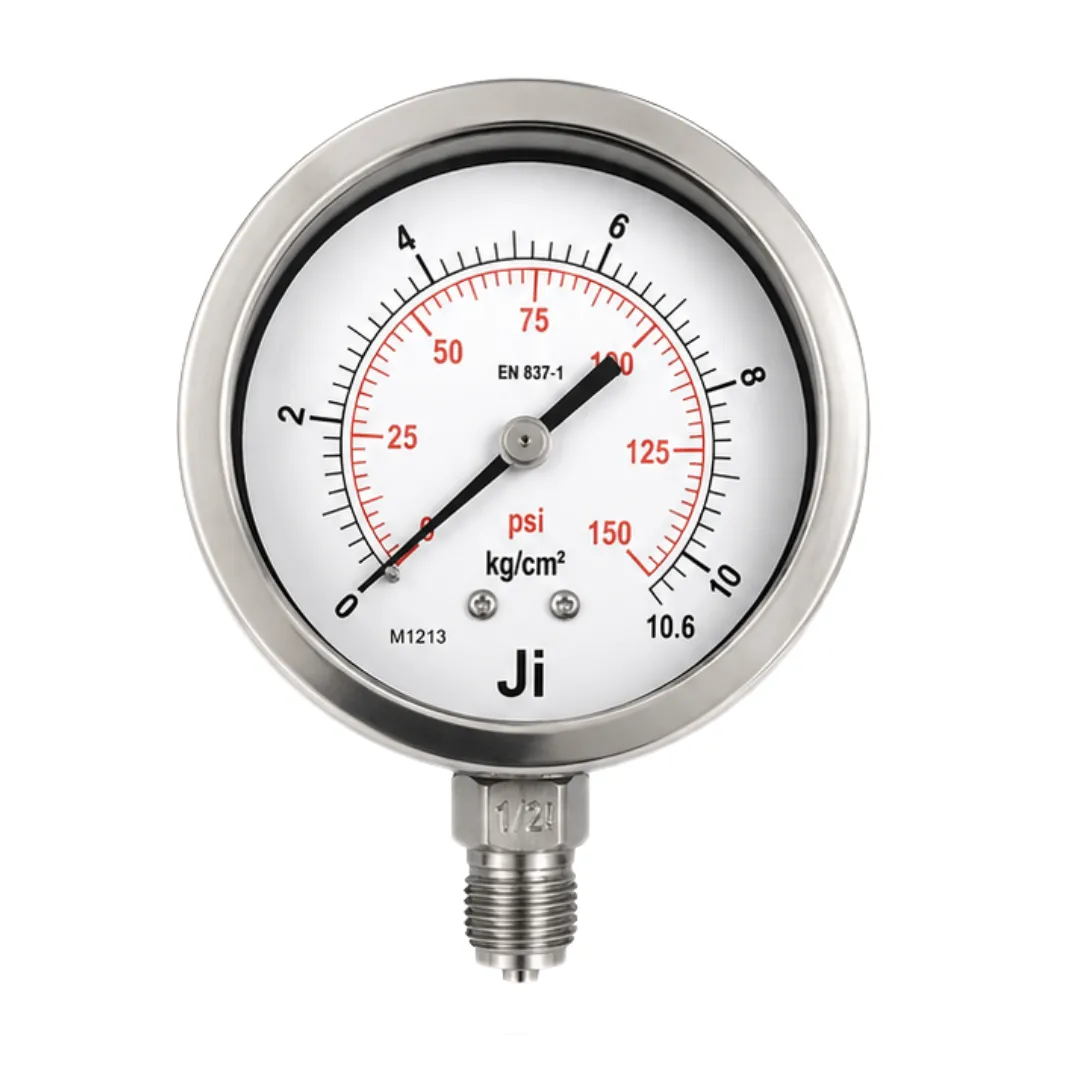

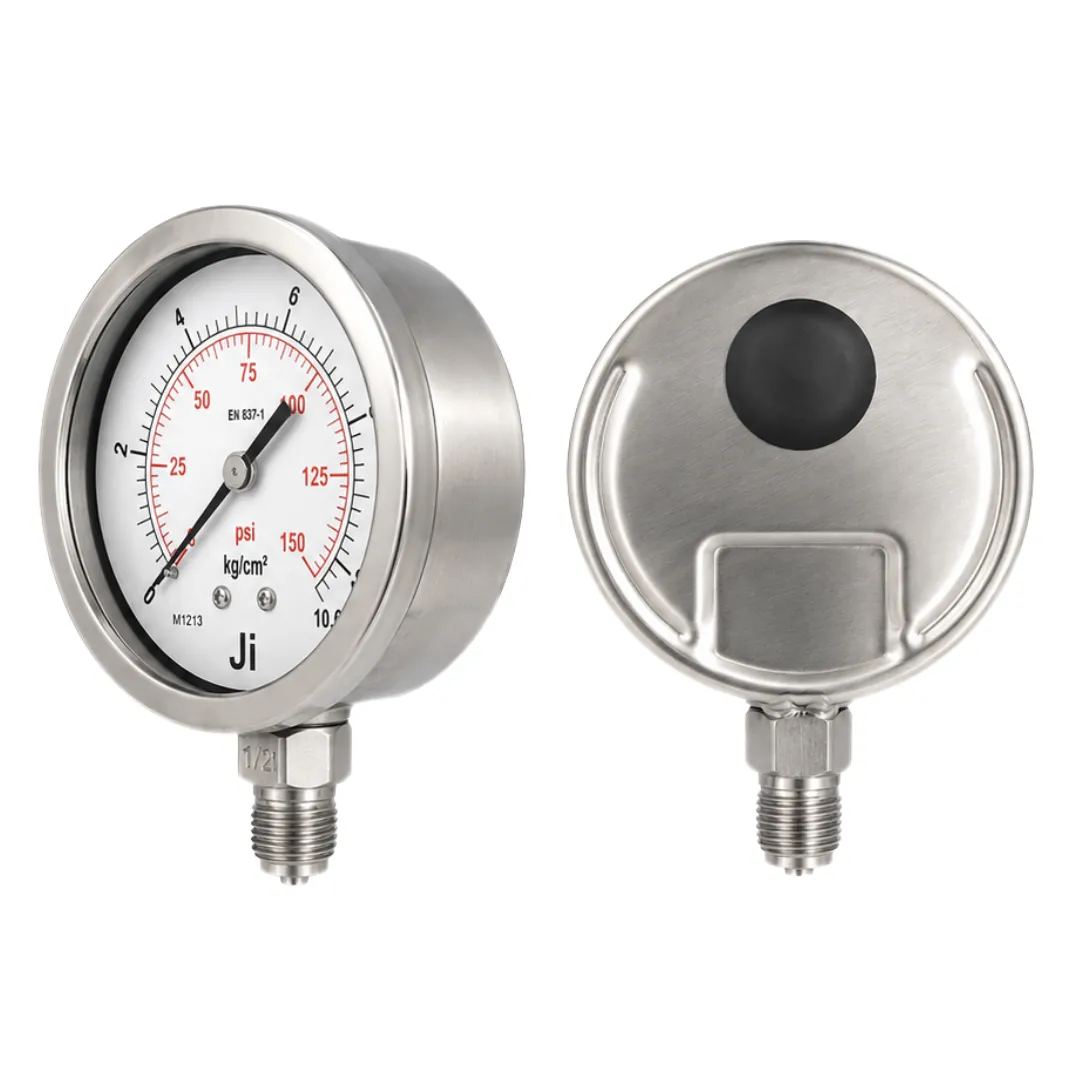

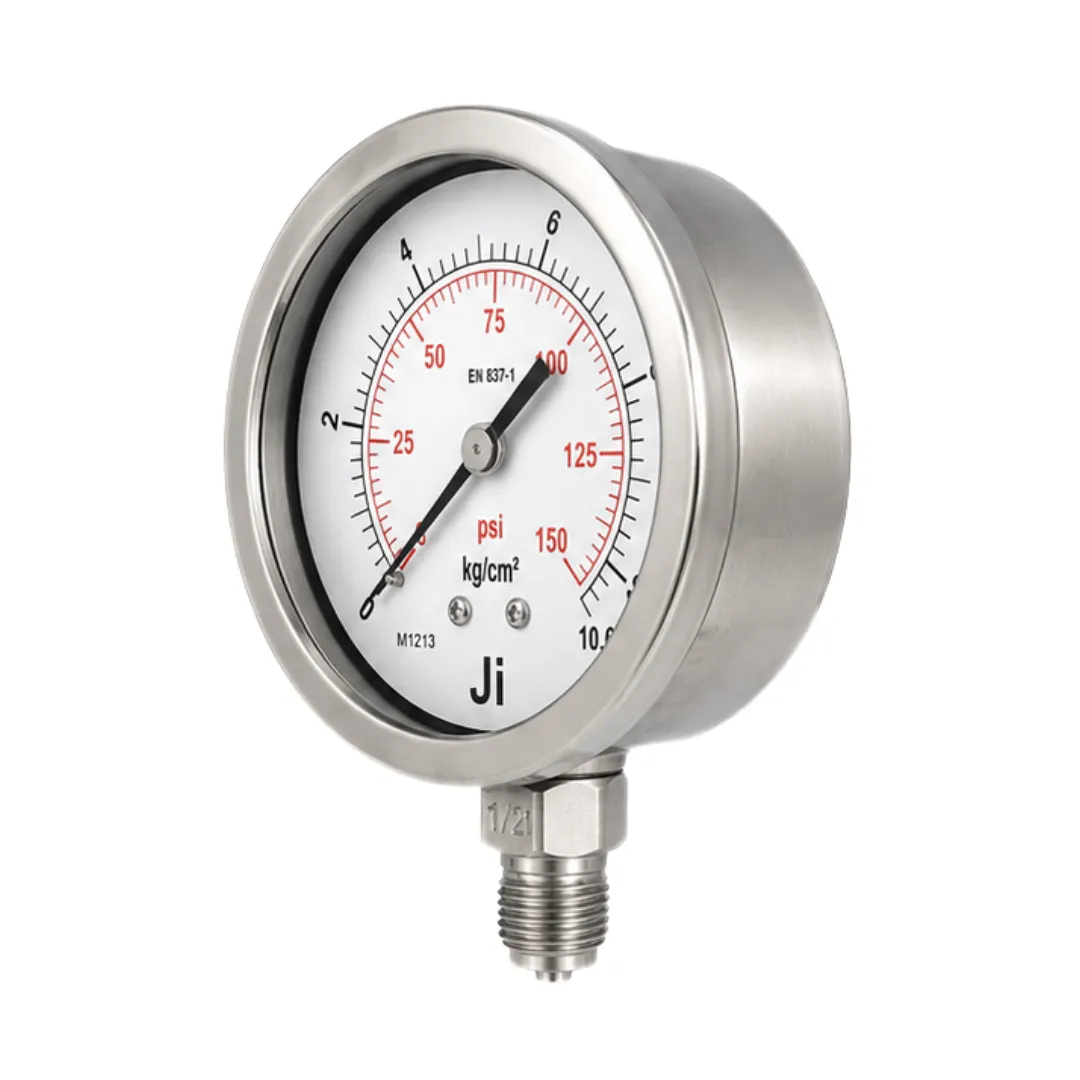

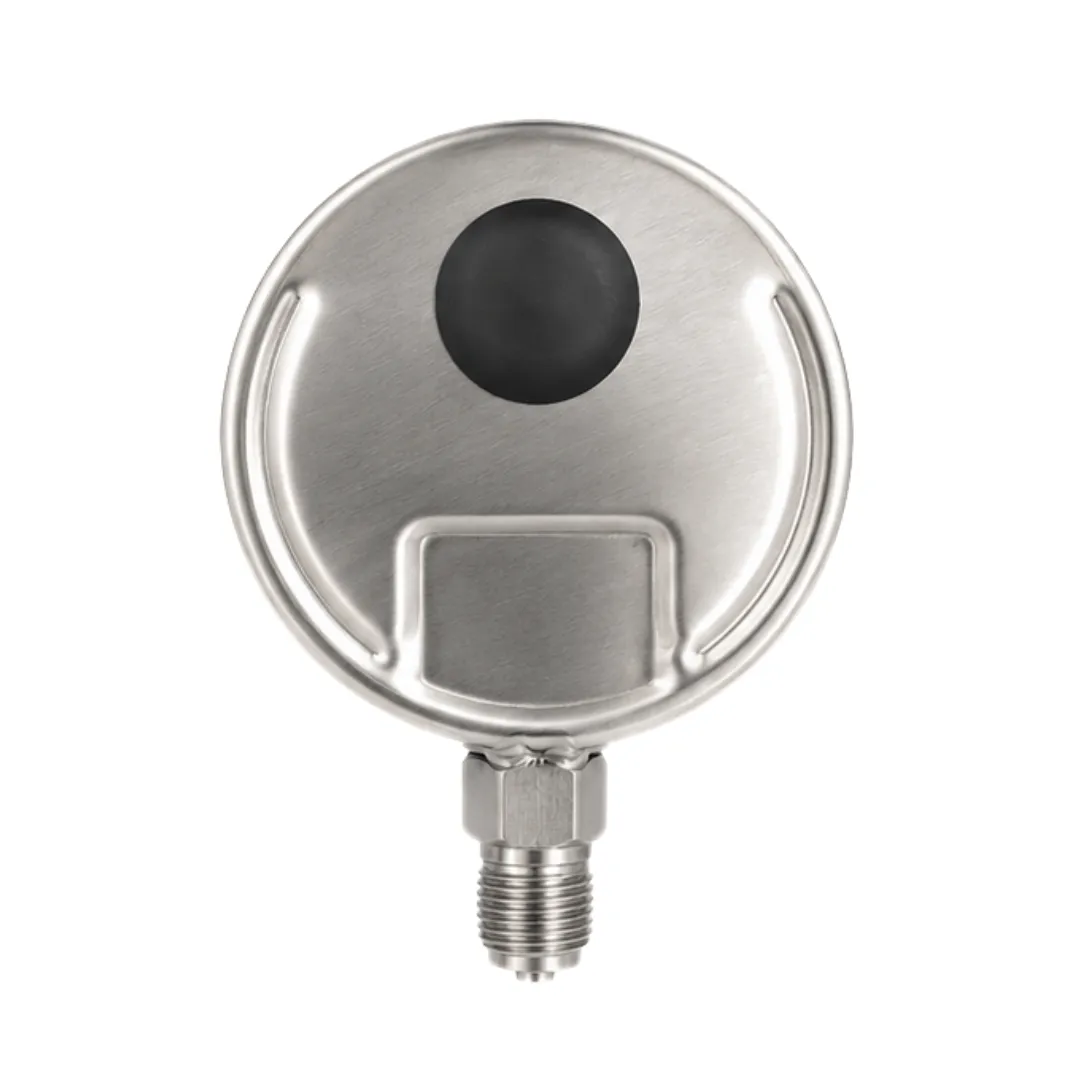

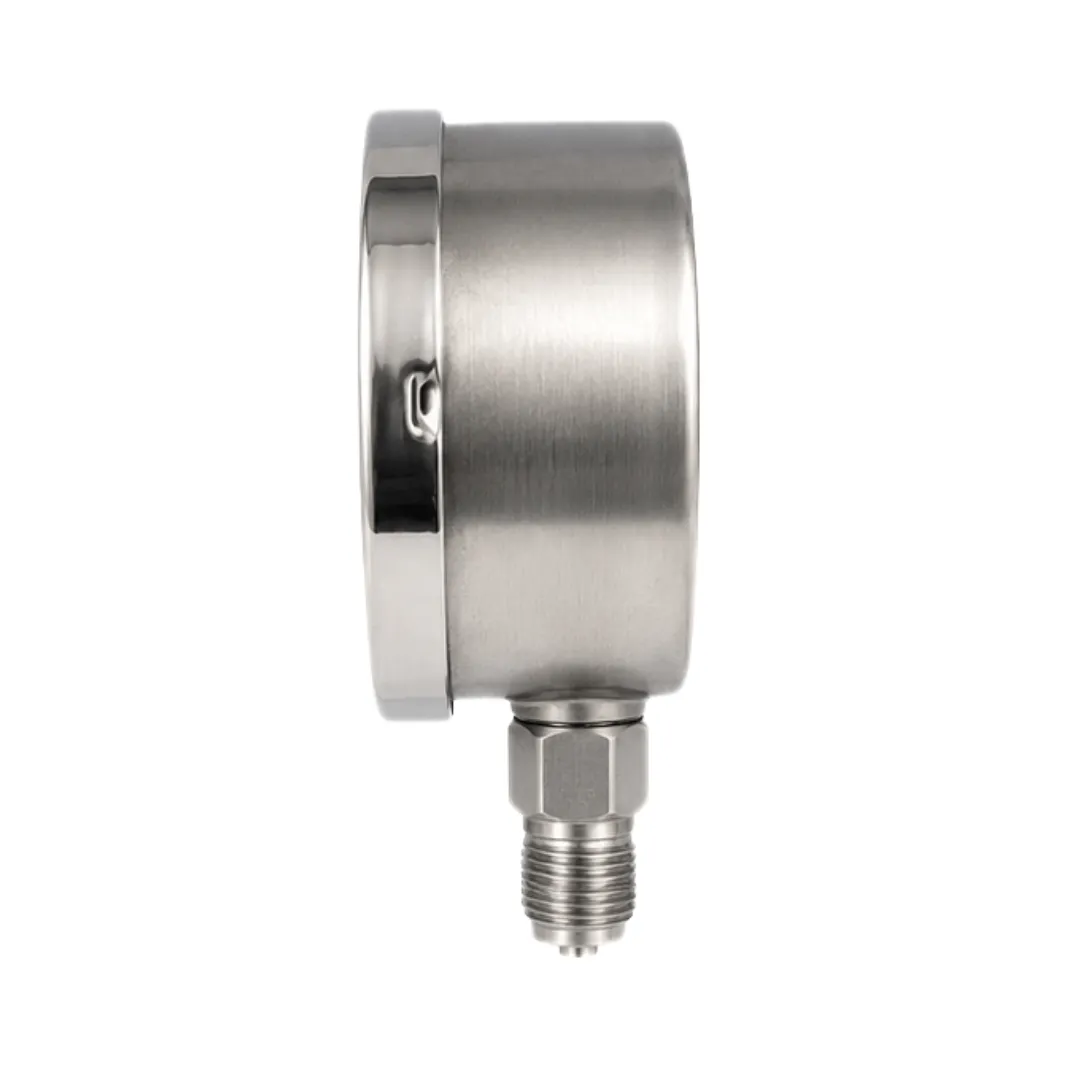

Industrial Pressure Gauge, 4″ (100 mm) Dial, Range 0 to 10.6 Kg/Cm2 with Dual Scale of 150 PSI, Direct Mounting Bottom Entry, 3/8″ BSP (M) Connection, SS Case & SS Wetted Parts (Case Bayonet Type)

Description

JI-IPG Industrial Pressure Gauge by “Ji” Japsin Instrumentation: Precision and Durability for Industrial Applications

The JI-IPG Industrial Pressure Gauge by “Ji” Japsin Instrumentation is a premium instrument engineered for precise pressure measurement in various industrial sectors. Featuring a 4″ (100 mm) dial, a robust Stainless Steel 304 case with a bayonet-type design, and SS 316L internals, this pressure gauge offers high durability and accuracy. Its pressure range of 0 to 10.6 Kg/Cm² with a dual scale of 150 PSI makes it versatile for monitoring both metric and imperial units, making it suitable for applications in industries such as oil and gas, chemical processing, hydraulic systems, and more.

Designed with a direct mounting bottom entry and a 3/8″ BSP (M) connection, the JI-IPG is easy to install and ensures a secure fit in industrial systems. With a high accuracy of 1% of Full Scale Deflection (FSD), this gauge ensures precise readings, which are critical for safety and efficiency in any process where pressure monitoring is essential.

Key Features of the JI-IPG Industrial Pressure Gauge

1. Wide Pressure Range: This pressure gauge offers a range of 0 to 10.6 Kg/Cm² with a dual scale that reads up to 150 PSI, making it suitable for a broad range of applications. This dual scale provides the flexibility to work with both metric and imperial systems, ensuring compatibility in diverse industrial environments.
2. Stainless Steel 304 Case: The outer case of the gauge is made from Stainless Steel 304, which offers excellent resistance to corrosion, weathering, and mechanical wear. The bayonet-type design adds extra protection to the internals, keeping out dust and moisture that could compromise the performance of the gauge.
3. SS 316L Internals: The internal components are constructed from Stainless Steel 316L, known for its superior corrosion resistance. This makes the gauge suitable for use in environments exposed to corrosive substances, such as chemicals, seawater, and high-temperature fluids.
4. High Accuracy (1% FSD): The 1% Full Scale Deflection (FSD) accuracy guarantees precise and reliable pressure readings, making it an ideal choice for industries that require highly accurate pressure control for safety and efficiency.
5. Direct Mounting Bottom Entry: The pressure gauge is designed for direct mounting with a bottom entry, minimizing the complexity of installation. This also ensures better durability, as the direct connection minimizes the number of joints, reducing the chances of leakage or damage.
6. Connection 3/8″ BSP (M): The gauge is equipped with a 3/8″ BSP (M) connection, a common size in industrial systems, making it versatile and compatible with a wide range of piping and equipment configurations.
7. Clear and Large Display: The 4-inch dial provides a large and clear display, allowing operators to easily and quickly read pressure levels, even from a distance or in dimly lit environments.

Industrial Pressure Gauge

Applications

The JI-IPG Industrial Pressure Gauge is designed to meet the diverse needs of multiple industries where accurate and reliable pressure monitoring is crucial. Its versatile range, durable construction, and high accuracy make it a trusted solution in the following industries:

1. Oil and Gas Industry: In oil refineries, drilling platforms, and pipelines, precise pressure monitoring is essential for ensuring the safety and efficiency of operations. The JI-IPG pressure gauge offers the durability and accuracy required in these harsh environments, where exposure to high pressures and corrosive substances is common.
2. Chemical Processing: Chemical plants often handle highly corrosive substances, making the SS 316L internals of this gauge ideal for these environments. It can withstand chemical exposure without compromising the integrity of pressure measurements, ensuring safe and efficient process control.
3. Hydraulic Systems: In hydraulic systems, maintaining accurate pressure levels is critical to the operation and longevity of equipment. The JI-IPG gauge ensures that operators can monitor and control pressure with precision, reducing the risk of system failure or inefficiencies.
4. Water Treatment Plants: Water and wastewater treatment facilities require reliable pressure gauges to monitor pumps, pipes, and filtration systems. The JI-IPG is built to endure continuous exposure to moisture and varying pressure levels, making it a suitable choice for these environments.
5. Manufacturing and Industrial Equipment: In manufacturing processes, accurate pressure measurement is essential for ensuring the quality of products and the safe operation of machinery. The JI-IPG Industrial Pressure Gauge ensures that operators have reliable, real-time pressure data to optimize their processes.
6. Pharmaceutical Industry: In pharmaceutical manufacturing, precise pressure control is necessary for maintaining the quality and sterility of products. The corrosion-resistant properties of SS 316L make this gauge a perfect fit for such environments, ensuring long-term reliability.

Industrial Pressure Gauge

Materials and Construction

The JI-IPG Industrial Pressure Gauge is constructed to withstand the most demanding industrial conditions. The outer casing, made from Stainless Steel 304, provides protection against physical damage, moisture, and corrosive elements. The bayonet-type design offers additional protection by sealing the gauge, preventing dust, dirt, and water from entering and affecting the internal components.

The Stainless Steel 316L internals further enhance the gauge’s durability and longevity. SS 316L is known for its excellent resistance to corrosion and extreme temperatures, making it ideal for industries that deal with corrosive media. This robust construction ensures that the gauge maintains accurate readings and performs reliably even in the harshest conditions.

The direct mounting bottom entry configuration and 3/8″ BSP (M) connection make installation straightforward, reducing downtime and ensuring compatibility with most standard industrial systems. This design also minimizes potential leak points, improving the overall reliability and safety of the system.

Advantages of the JI-IPG Industrial Pressure Gauge

1. High Accuracy: With 1% FSD, this pressure gauge offers superior accuracy, ensuring that processes are closely monitored and controlled.
2. Corrosion-Resistant Materials: The SS 316L internals make this gauge perfect for applications in corrosive environments, such as chemical processing or offshore oil rigs.
3. Durable and Resilient: The Stainless Steel 304 case and bayonet-type design protect the gauge from external damage, ensuring a long service life even in tough industrial settings.
4. Versatile Connection and Mounting: The direct mounting bottom entry and 3/8″ BSP (M) connection make the gauge compatible with various systems, reducing installation time and ensuring a leak-free setup.
5. Clear and Accessible Readings: The large 4-inch dial provides an easy-to-read display, reducing the risk of operator error and ensuring that pressure levels are always clearly visible.
6. Wide Range of Applications: Whether in chemical plants, oil fields, or manufacturing facilities, this gauge performs reliably, providing accurate pressure data for optimal process control.

Industrial Pressure Gauge

Conclusion

The JI-IPG Industrial Pressure Gauge is a versatile, durable, and highly accurate pressure measuring device that meets the needs of a wide range of industrial applications. Whether you’re working in corrosive environments, high-pressure systems, or require precision and reliability, this gauge provides the necessary features to ensure optimal performance.
