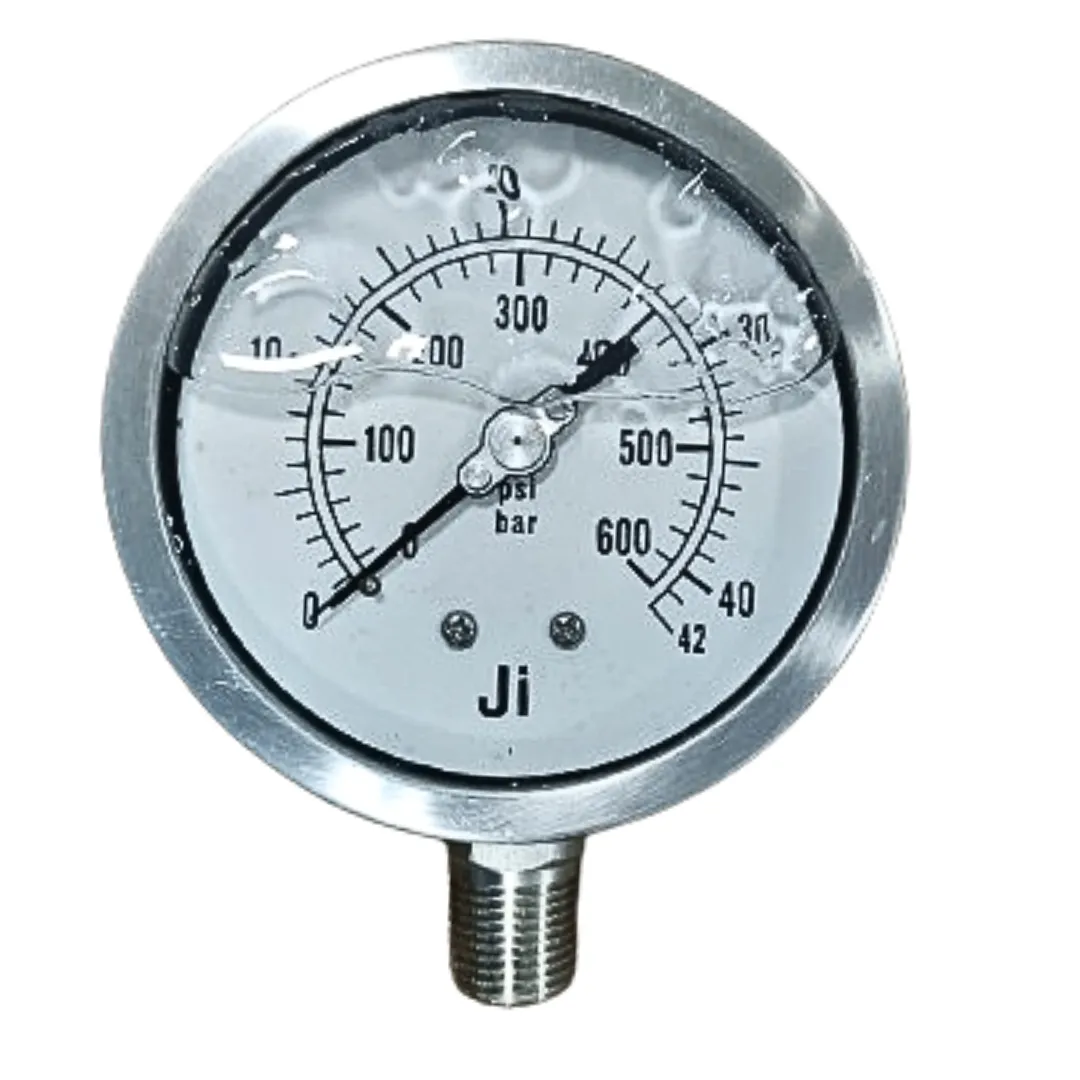

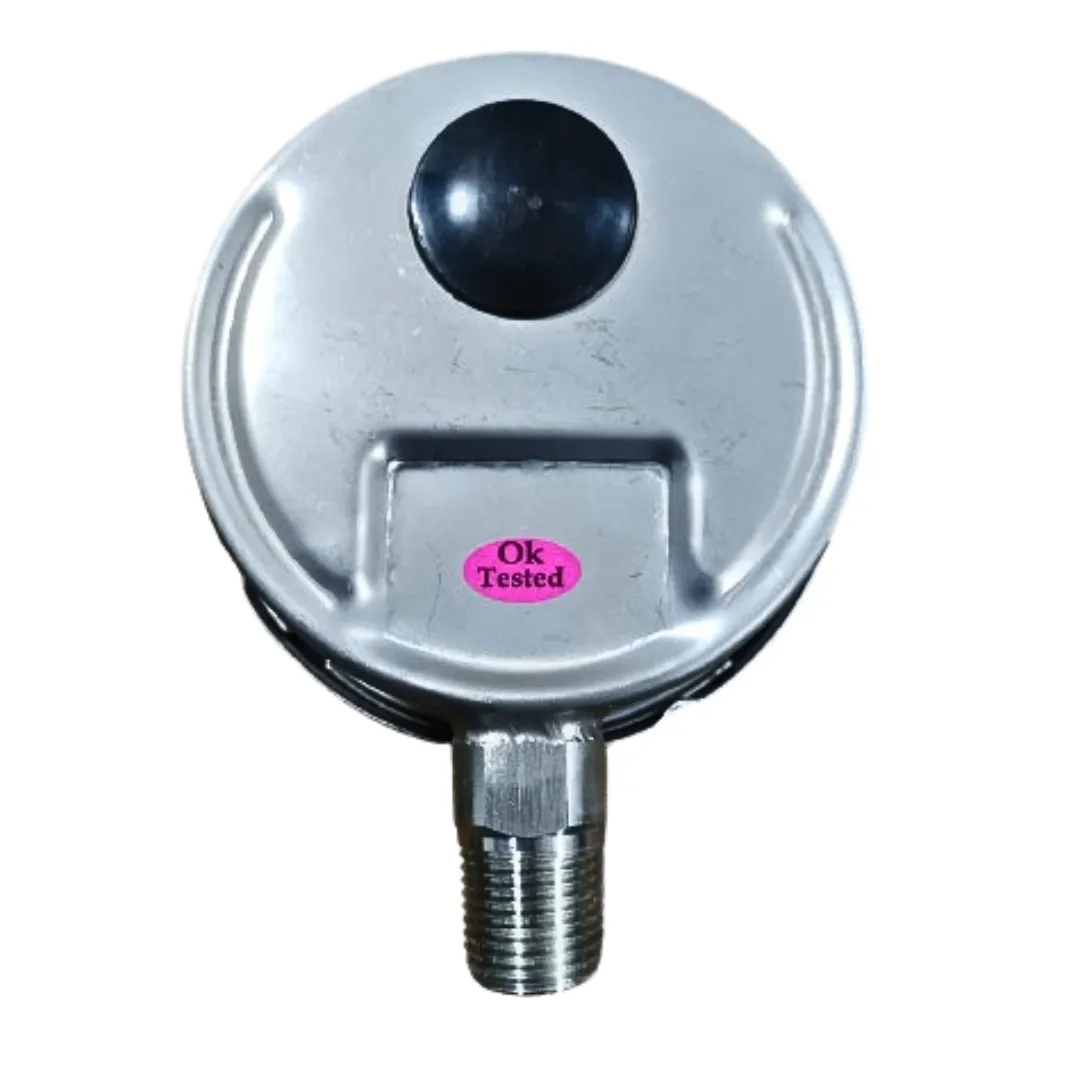

Industrial Pressure Gauge, 4″ Dial, Stainless Steel 304 Case Bayonet Type & SS 316L Internals, Range 0-42 Bar With Dual Scale of 600 PSI, Direct Mounting Bottom Entry, Connection 1/2″ NPT (M)

Description

JI-IPG Industrial Glycerin Filled Pressure Gauge: Robust Performance for Precise Monitoring

Industrial pressure gauges are critical tools for ensuring the safe and efficient operation of various systems. They provide accurate pressure readings that help in monitoring, controlling, and maintaining industrial processes. Among the many options available, the JI-IPG Industrial Glycerin Filled Pressure Gauge by Japsin Instrumentation stands out due to its high precision, durability, and versatility. This pressure gauge is specifically designed to handle rigorous industrial conditions, offering reliable performance and long service life.

Overview of the JI-IPG Industrial Glycerin Filled Pressure Gauge

The JI-IPG Industrial Pressure Gauge is a premium quality instrument featuring a 4-inch (100 mm) dial for clear visibility. The gauge is housed in a stainless steel 304 case, which is renowned for its robustness and corrosion resistance. The internal components are made from stainless steel 316L, known for its superior resistance to corrosive environments. The gauge is filled with glycerin, which not only dampens the effects of vibration and pulsation but also enhances the readability and longevity of the gauge.

Key Specifications

1. Dial Size and Construction
   • The JI-IPG pressure gauge features a large 4-inch (100 mm) dial, providing a clear and easily readable display. This size is ideal for applications where quick and accurate readings are essential.
   • The case is constructed from stainless steel 304, which offers excellent resistance to corrosion, mechanical damage, and environmental stress. This ensures the gauge remains functional and accurate even in harsh conditions.
2. Internal Components
   • The internals of the gauge are made from stainless steel 316L. This high-quality material is chosen for its exceptional resistance to corrosion, especially in environments involving aggressive chemicals or marine applications. The durability and strength of SS 316L ensure that the gauge can withstand high pressures and provide accurate readings over a long period.
3. Glycerin Filling
   • The gauge is filled with glycerin, which serves multiple purposes. It acts as a dampening fluid, reducing the effects of vibration and pulsation on the gauge needle. This ensures a steady and clear reading, even in dynamic environments. Additionally, glycerin filling protects the internal components from wear and tear, extending the life of the gauge.
4. Pressure Range and Dual Scale
   • The JI-IPG gauge has a pressure range of 0 to 42 Bar, making it suitable for a wide range of industrial applications. It also features a dual scale, displaying readings in both Bar and PSI (0 to 600 PSI). This dual-scale capability enhances its versatility, making it useful in regions that use different units of measurement.
5. Mounting and Connection
   • The gauge is designed for direct mounting with a bottom entry connection, facilitating easy installation and integration into existing systems. The bottom entry design is particularly beneficial in many industrial setups, allowing for straightforward setup and operation.
   • It comes with a 1/2″ NPT (National Pipe Thread) male connection, a standard fitting in many industrial applications, ensuring compatibility and ease of installation.
6. Accuracy
   • One of the standout features of the JI-IPG gauge is its high accuracy. With a precision of 1% Full Scale Deflection (FSD), the gauge provides reliable and accurate readings, which are crucial for maintaining the safety and efficiency of industrial operations. This level of accuracy ensures that operators can trust the gauge to provide precise measurements necessary for process control and monitoring.

Applications

The JI-IPG Industrial Glycerin Filled Pressure Gauge is versatile and can be used across a broad spectrum of industries and applications. Some of the key areas where this gauge excels include:

1. Hydraulic Systems
   • In hydraulic systems, precise pressure measurement is critical for ensuring the proper functioning of machinery. The JI-IPG gauge, with its high accuracy and robust construction, is ideal for monitoring hydraulic pressures, preventing potential failures and maintaining system efficiency.
2. Chemical and Petrochemical Industries
   • The stainless steel 316L internals make this gauge suitable for use in the chemical and petrochemical industries, where exposure to corrosive substances is common. Its durability ensures a long service life even in harsh environments.
3. Oil and Gas Sector
   • In the oil and gas industry, pressure gauges are essential for monitoring the pressure of pipelines and storage tanks. The JI-IPG gauge’s high-pressure range and dual-scale display make it suitable for these demanding applications.
4. Marine Applications
   • Marine environments require instruments that can withstand exposure to saltwater and high humidity. The stainless steel construction of the JI-IPG gauge ensures it remains reliable and accurate even under these challenging conditions.
5. Manufacturing and Process Industries
   • In manufacturing and process industries, maintaining the correct pressure is crucial for product quality and process efficiency. The JI-IPG gauge provides the necessary precision and reliability for these applications, helping to ensure smooth and efficient operations.

Benefits of the JI-IPG Industrial Glycerin Filled Pressure Gauge

1. Durability and Longevity
   • The use of high-quality materials such as stainless steel 304 for the case and stainless steel 316L for the internals ensures that the gauge can withstand harsh environments and maintain its performance over a long period.
2. High Accuracy
   • With an accuracy of 1% FSD, the JI-IPG gauge provides reliable measurements, essential for critical applications where precision is paramount.
3. Vibration Dampening
   • The glycerin filling effectively dampens vibrations and pulsations, providing steady and clear readings. This feature is particularly beneficial in environments with heavy machinery or where pressure fluctuations are common.
4. Versatility
   • The dual scale (Bar and PSI) and wide pressure range (0 to 42 Bar) make the gauge versatile and suitable for a variety of applications and industries.
5. Ease of Installation
   • The direct mounting bottom entry and standard 1/2″ NPT (M) connection simplify the installation process, allowing for quick and easy integration into existing systems.
6. Clear Readability
   • The 4-inch dial ensures that readings are easily visible, reducing the chances of errors and improving operational efficiency.

Conclusion

The JI-IPG Industrial Glycerin Filled Pressure Gauge by Japsin Instrumentation is a reliable and high-performance instrument designed to meet the stringent demands of various industrial applications. Its robust construction, high accuracy, and versatile features make it an indispensable tool for professionals in fields such as hydraulics, chemical processing, oil and gas, marine, and manufacturing. By providing precise and reliable pressure measurements, the JI-IPG gauge helps ensure the safety, efficiency, and optimal performance of industrial systems.
