Description

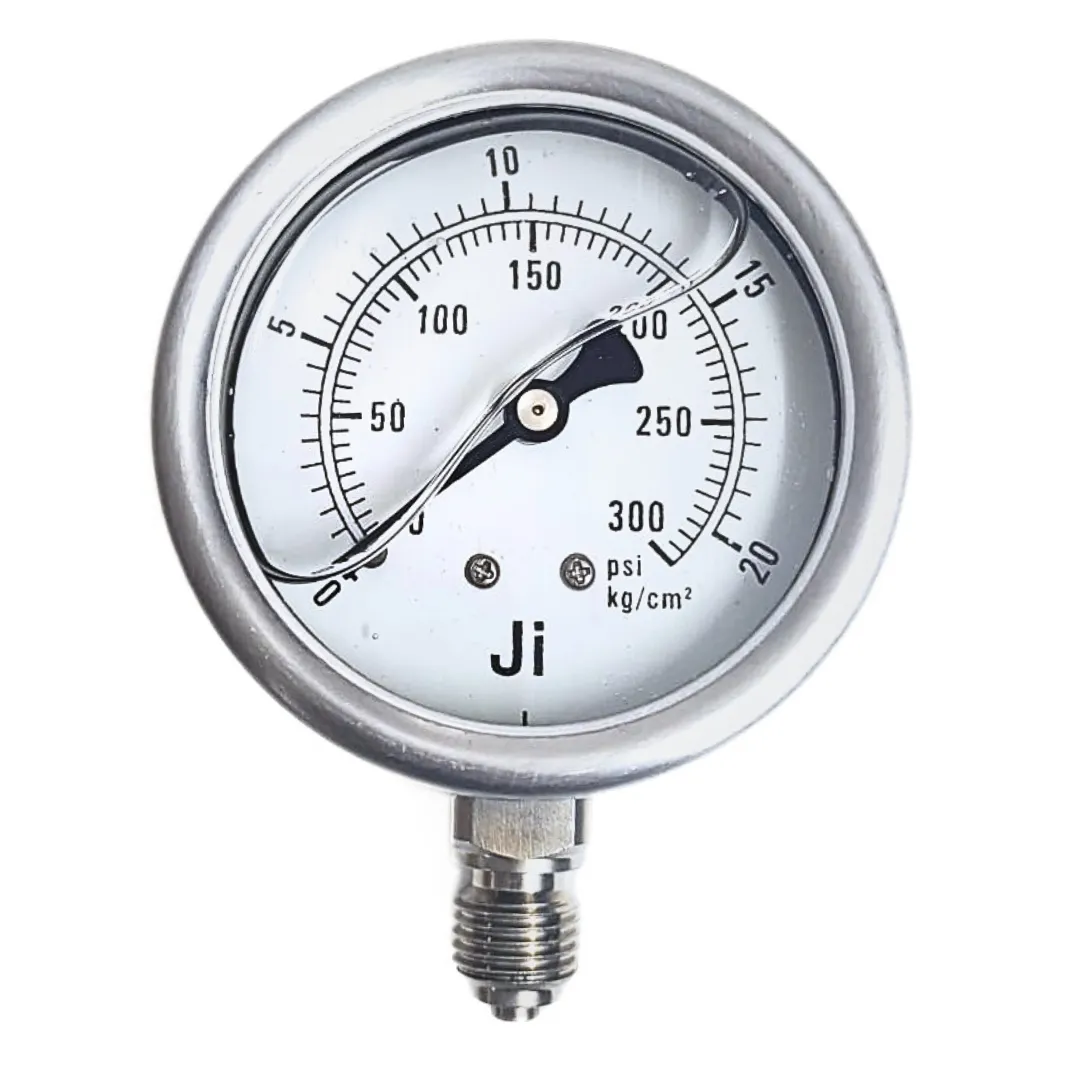

Industrial Pressure Gauge, 2 1/2″ (63 mm) Dial, 0 to 21 Kg/cm² Range with 300 PSI Dual Scale, Stainless Steel 304 Case & SS 316L Internals, Direct Mounting Bottom Entry
Precision and reliability are paramount when it comes to industrial pressure gauges. The Industrial Pressure Gauge from Ji Japsin Instrumentation delivers exceptional performance and accuracy in demanding industrial environments. Featuring a 2 1/2″ (63 mm) dial and a range of 0 to 21 Kg/cm², with a dual scale reading of 300 PSI, this pressure gauge ensures accurate pressure monitoring for critical applications. Constructed with stainless steel 304 (SS 304) case and stainless steel 316L (SS 316L) internals, it offers superior durability, corrosion resistance, and precision, making it suitable for a variety of industrial environments.
This gauge is designed for direct mounting bottom entry with a 1/4″ BSP (M) connection, which simplifies installation and ensures secure fitting across various systems. With an accuracy rating of 1% Full Scale Deflection (FSD), this gauge provides reliable and consistent pressure measurements for industries ranging from oil and gas to chemical processing and manufacturing.
Superior Engineering for Precision and Durability
The Industrial Pressure Gauge by Ji Japsin Instrumentation is engineered to deliver precise pressure readings, even in the most challenging industrial settings. Its compact 2 1/2″ (63 mm) dial offers clear and easy-to-read pressure indicators, ensuring operators can monitor system pressure at a glance. With a pressure range of 0 to 21 Kg/cm² and a dual scale reading of 300 PSI, this gauge is versatile, accommodating both metric and imperial units for use in global industrial applications.
The gauge’s superior construction includes a stainless steel 304 bayonet-type case, which offers exceptional resistance to corrosion, impact, and harsh environmental conditions. The SS 316L internals provide additional resistance to aggressive chemicals and high-pressure applications, ensuring that the gauge performs reliably even under extreme conditions. This makes it an excellent choice for industries that handle corrosive materials or require long-term performance under challenging conditions.
Accuracy for Critical Applications
Achieving accurate pressure readings is essential for maintaining safety and operational efficiency. The Ji Japsin Instrumentation Industrial Pressure Gauge is designed with an accuracy rating of 1% Full Scale Deflection (FSD), meaning that even small fluctuations in system pressure are captured with precision. This level of accuracy is particularly beneficial for applications where pressure control is critical to prevent equipment failure, system downtime, or safety hazards.
Industries such as oil and gas, chemical processing, and power generation require precise pressure monitoring to ensure that processes run smoothly and safely. With a reliable and highly accurate gauge like this one, operators can confidently manage system pressures, avoiding the risks associated with overpressure or underpressure conditions.
Robust Stainless Steel Construction for Longevity
The stainless steel 304 bayonet-type case of this pressure gauge is specifically designed to withstand tough industrial environments. SS 304 is known for its resistance to oxidation, corrosion, and impact, making it ideal for use in environments where exposure to chemicals, moisture, or extreme temperatures is common. The bayonet-type closure ensures a tight, secure seal, protecting the gauge from dust, moisture, and debris, which could otherwise affect performance.
The internal components of the gauge are made from stainless steel 316L, a material renowned for its exceptional corrosion resistance, especially in chloride-rich or chemical-laden environments. The SS 316L internals allow the gauge to operate reliably in environments where lesser materials might fail due to corrosion or chemical attack, such as in chemical plants, refineries, and marine applications.
Convenient Installation with Direct Mounting Bottom Entry

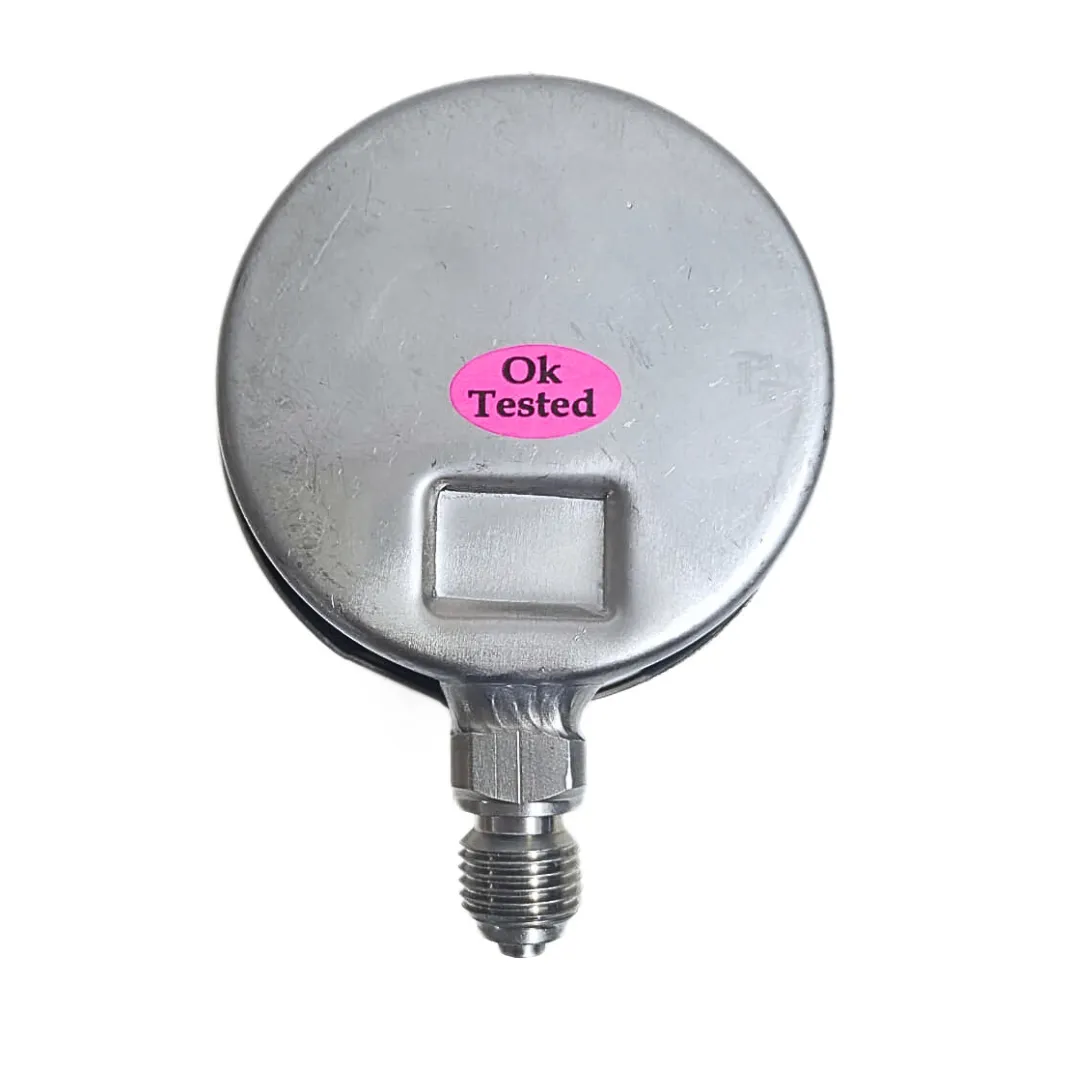

This pressure gauge features a direct mounting bottom entry design with a 1/4″ BSP (M) connection, making installation straightforward and secure. The direct mounting configuration ensures that the gauge can be mounted directly onto piping systems or equipment, reducing the need for additional fittings and minimizing potential leak points.
The 1/4″ BSP (M) connection is a widely used standard in industrial settings, ensuring compatibility with a broad range of systems and equipment. Whether it’s being used to monitor pressure in industrial machinery, power generation systems, or water treatment plants, the ease of installation minimizes downtime and ensures that the gauge can be put into service quickly.
Versatile Applications in a Wide Range of Industries
The Japsin Instrumentation Industrial Pressure Gauge is designed for versatility, making it suitable for use across a broad spectrum of industries. Its robust construction and precise accuracy allow it to be used in demanding applications, including:
- Oil & Gas: Accurate pressure monitoring is essential in the oil and gas industry to ensure safe and efficient extraction, transportation, and processing. The corrosion-resistant stainless steel construction and high accuracy make this gauge an ideal choice for oil and gas facilities.
- Chemical Processing: In chemical plants, precise pressure control is critical for maintaining the integrity of processes and preventing leaks or equipment failure. The SS 316L internals offer excellent resistance to corrosive chemicals, ensuring reliable performance.
- Power Generation: Power plants rely on accurate pressure monitoring to ensure that turbines, boilers, and other critical equipment operate within safe parameters. This gauge provides the accuracy needed for such high-stakes applications.
- Water Treatment: In water treatment facilities, monitoring system pressure is vital for ensuring that pumps and filtration systems are working correctly. The durable stainless steel case and high accuracy make this gauge suitable for monitoring both clean and wastewater systems.
- Industrial Machinery: For general industrial use, this Industrial Pressure Gauge offers reliable performance in monitoring hydraulic systems, compressors, and other equipment where maintaining proper pressure is essential for efficient operation.
Optional Glycerin Filling for Vibration Dampening
For environments where vibration or pulsation may affect pressure readings, this gauge can be optionally filled with glycerin. Glycerin filling dampens the needle movement, providing more stable readings in high-vibration environments such as pumping stations, compressors, or industrial machinery. This feature ensures that operators get consistent, accurate readings, even when machinery is in constant motion.
Compliance with International Standards
The Ji Japsin Instrumentation Industrial Pressure Gauge meets international quality and safety standards, including ASME B40.1 and EN 837-1. These standards ensure that the gauge adheres to strict guidelines for accuracy, performance, and safety. Compliance with these standards gives operators peace of mind, knowing that the gauge will perform reliably in even the most demanding environments.
Conclusion
The “Ji” Japsin Instrumentation Industrial Pressure Gauge is an essential tool for accurate and reliable pressure monitoring in industrial applications. With a 2 1/2″ (63 mm) dial, a pressure range of 0 to 21 Kg/cm², and a dual scale reading of 300 PSI, it is suitable for a wide range of systems requiring precise pressure control. Its stainless steel 304 bayonet-type case and SS 316L internals ensure durability and resistance to corrosion, while its 1% FSD accuracy guarantees consistent and trustworthy pressure measurements.
Whether you’re operating in the oil and gas, chemical processing, or water treatment industry, this Industrial Pressure Gauge offers a dependable solution for your pressure monitoring needs. With its direct mounting bottom entry and 1/4″ BSP (M) connection, installation is simple and efficient, ensuring that you can quickly integrate the gauge into your system.
