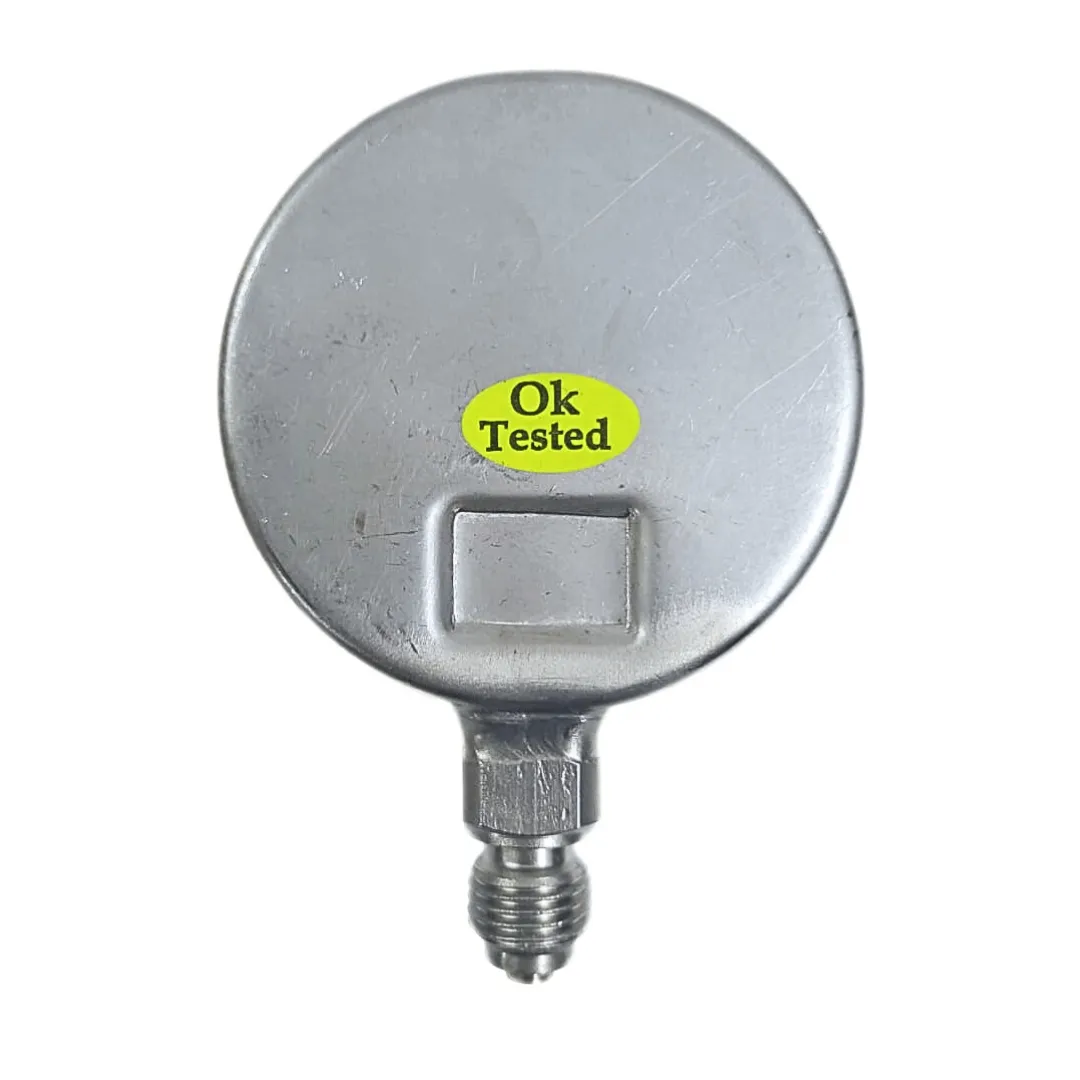

Industrial Pressure Gauge, 2 1/2″ (63 mm) Dial, Range 0 to 70 Kg/Cm2 with Dual Scale of 1000 PSI, Direct Mounting Bottom Entry, 1/4″ BSP (M) Connection, SS Case & SS Wetted Parts (Case Bayonet Type)

Description

Industrial Pressure Gauge, 2 1/2″ (63 mm) Dial, Stainless Steel 304 Case & SS 316L Internals, Range 0 to 70 Kg/Cm2 with Dual Scale of 1000 PSI

In high-pressure industrial environments, accurate and reliable pressure monitoring is essential for ensuring safety, performance, and system efficiency. The JI-IPG Industrial Pressure Gauge, manufactured by “Ji” Japsin Instrumentation, is specifically designed to meet these requirements. This industrial-grade pressure gauge features a compact 2 1/2″ (63 mm) dial, a robust stainless steel 304 bayonet-type case, and highly corrosion-resistant 316L stainless steel internals, making it ideal for a wide range of industrial applications, including oil & gas, chemical processing, and hydraulic systems.

With a pressure range of 0 to 70 Kg/Cm2 and a dual scale of 1000 PSI, the JI-IPG Industrial Pressure Gauge delivers precise measurements in both metric and imperial units. Its 1% Full Scale Deflection (FSD) accuracy ensures reliable readings, allowing operators to make informed decisions and maintain system safety. The direct mounting bottom entry and 1/4″ BSP (M) connection make installation easy and straightforward, while the glycerin-filled design helps dampen vibration, ensuring consistent and accurate readings in dynamic environments.

Industrial Pressure Gauge

Superior Build Quality for Industrial Use

The JI-IPG Industrial Pressure Gauge is constructed with a focus on durability and long-term performance, making it ideal for use in harsh industrial environments. The stainless steel 304 bayonet-type case provides excellent resistance to corrosion, moisture, and other environmental factors that can degrade lesser-quality pressure gauges over time. This durable construction ensures that the gauge can withstand exposure to challenging environments, including chemical processing plants, oil refineries, and offshore platforms.

The 316L stainless steel internals offer superior corrosion resistance, especially in applications where the gauge is exposed to aggressive fluids, seawater, or corrosive gases. The high-quality materials used in the construction of both the case and the wetted parts ensure that the gauge remains reliable and accurate, even in the most demanding conditions.

Precision Monitoring with 1% FSD Accuracy

One of the standout features of the JI-IPG Pressure Gauge is its exceptional accuracy rating of 1% Full Scale Deflection (FSD), providing users with precise and reliable pressure readings. In industries where accurate monitoring is crucial to maintaining safe and efficient operations, this level of precision allows operators to detect even minor pressure fluctuations. The high accuracy makes this gauge suitable for critical applications where precise pressure control is necessary, such as in hydraulic systems, process control, and safety monitoring.

The dual scale display, with a range of 0 to 70 Kg/Cm2 and 1000 PSI, allows users to read measurements in both metric and imperial units, making it versatile for international applications and cross-functional industries. The dual scale also ensures compatibility with various system designs, offering flexibility in diverse settings.

Glycerin-Filled Design for Vibration Resistance

Industrial machinery often generates high levels of vibration and shock, which can interfere with the accuracy and performance of pressure gauges. To mitigate these effects, the JI-IPG Industrial Pressure Gauge is glycerin-filled, which serves as a damping medium to absorb vibrations and mechanical shocks. The glycerin filling smooths the movement of the needle, providing stable and accurate readings even in dynamic environments.

This vibration resistance is especially important in applications such as hydraulics, pumps, compressors, and engines, where continuous motion and fluctuating pressure are common. The glycerin filling also protects the internal components of the gauge from wear and tear, extending the overall service life of the device and reducing maintenance requirements.

High-Performance 316L Stainless Steel Internals

The JI-IPG Industrial Pressure Gauge is equipped with 316L stainless steel internals, which are highly resistant to corrosion, pitting, and cracking, even when exposed to aggressive fluids and harsh environments. The 316L stainless steel is particularly effective in industries such as chemical processing, oil & gas, and marine applications, where the gauge may come into contact with corrosive chemicals, saltwater, or high-temperature steam.

The use of 316L stainless steel in the wetted parts ensures that the gauge can handle a wide variety of media without degradation or loss of accuracy. This material also provides excellent resistance to high temperatures, making the gauge suitable for use in extreme conditions where both corrosion resistance and temperature stability are required.

Direct Mounting with Bottom Entry for Easy Installation

The JI-IPG Industrial Pressure Gauge features a direct mounting bottom entry, which simplifies installation and ensures a secure fit in a variety of systems. The 1/4″ BSP (M) connection is a common fitting size used in many industrial applications, allowing for easy integration into existing setups. The bottom entry design is particularly useful in confined spaces or installations where a side-mounted gauge would be impractical.

The compact 2 1/2″ (63 mm) dial size ensures that the gauge is easy to read and fits seamlessly into most system designs. Despite its small size, the clear markings and dual scale provide operators with the information they need to monitor pressure accurately at a glance.

Wide Range of Applications

The JI-IPG Industrial Pressure Gauge is designed for versatility, making it suitable for use in a wide range of industrial applications. Its durability, precision, and corrosion resistance make it an ideal choice for industries such as:

• Oil & Gas: The JI-IPG Gauge is capable of withstanding high-pressure environments, such as those found in oil & gas production and refining. Its corrosion-resistant properties ensure long-term performance, even in offshore or corrosive environments.
• Chemical Processing: In chemical plants, where the gauge may be exposed to aggressive fluids and gases, the 316L stainless steel internals provide the necessary corrosion resistance and durability to ensure reliable performance.
• Hydraulics: Hydraulic systems rely on precise pressure monitoring to function properly. The JI-IPG Gauge provides the accuracy and stability needed to prevent overpressure and ensure smooth operation.
• Industrial Machinery: The glycerin-filled design makes the gauge resistant to vibrations, making it ideal for use in industrial machinery, compressors, and engines.
• Marine Operations: With its robust stainless steel construction and corrosion-resistant internals, the JI-IPG Pressure Gauge is well-suited for marine applications, where equipment is exposed to saltwater and extreme conditions.

Compliance with Industry Standards

The JI-IPG Industrial Pressure Gauge is manufactured to meet internationally recognized standards, including ASME B40.1 and EN 837-1. These standards ensure that the gauge meets stringent requirements for accuracy, safety, and performance. Compliance with these standards also makes the gauge suitable for use in regulated industries, where equipment must adhere to specific safety and quality guidelines.

Industrial Pressure Gauge: Conclusion

The JI-IPG Industrial Pressure Gauge by “Ji” Japsin Instrumentation is a robust, accurate, and versatile solution for industrial pressure monitoring. Its durable stainless steel 304 case and corrosion-resistant 316L stainless steel internals make it ideal for use in challenging environments, including oil & gas, chemical processing, and hydraulic systems. The glycerin-filled design ensures stable readings, even in high-vibration applications, while the 1% FSD accuracy provides the precision needed for critical pressure control.

With its dual scale and easy installation, the JI-IPG Gauge is a reliable and user-friendly tool for maintaining system safety and efficiency in a wide range of industrial applications. Whether you are monitoring pressure in hydraulic systems, industrial machinery, or chemical processes, the JI-IPG Industrial Pressure Gauge delivers the performance and reliability you need.

Japsin Instrumentation – Since 1974
