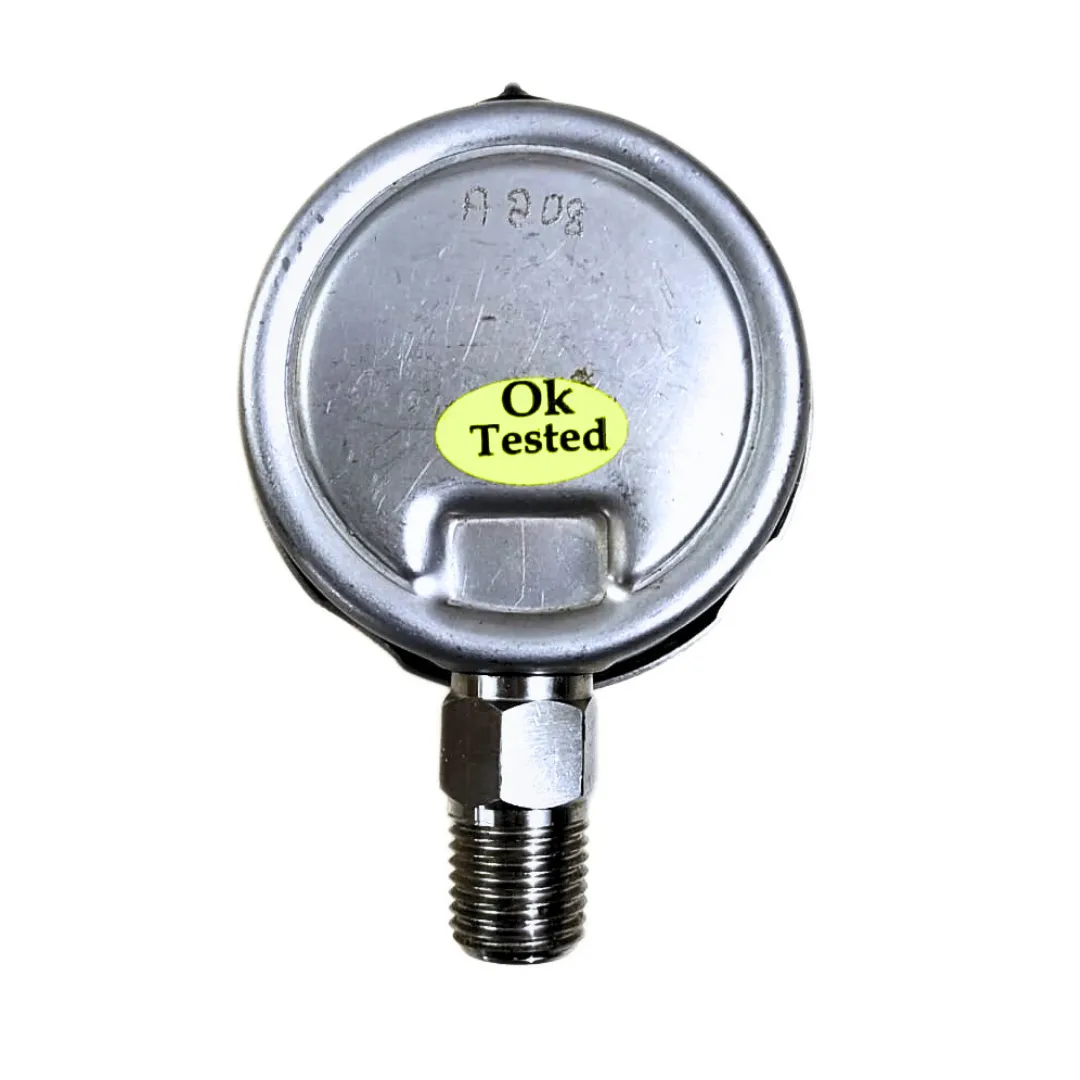

Industrial Pressure Gauge, 2″ (50 mm) Dial, Range 0 to 140 Kg/Cm2 with Dual Scale of 2000 PSI, Direct Mounting Bottom Entry, 1/4″ NPT (M) Connection, SS Case & SS Wetted Parts (Case Bayonet Type)

Description

JI-IPG Industrial Pressure Gauge – Robust Performance for High-Pressure Applications

The JI-IPG Industrial Pressure Gauge by “Ji” Japsin Instrumentation is meticulously designed for high-pressure measurement applications across various industries. This pressure gauge is renowned for its reliability, durability, and precision, making it an essential instrument for professionals working in challenging industrial environments.

With a compact 2″ (50 mm) dial, the gauge is engineered to measure pressures up to 140 Kg/Cm² or 2000 PSI, and it features a dual-scale display for user convenience. The gauge boasts a Stainless Steel 304 case (bayonet type) combined with SS 316L internals, offering superior corrosion resistance and durability. The gauge’s direct mounting bottom entry configuration, along with a 1/4″ NPT (M) connection, ensures easy installation and integration into a variety of systems. Its high accuracy rating of 1% FSD (Full Scale Deflection) ensures precise pressure readings, even in critical operations.

This makes the JI-IPG Industrial Pressure Gauge ideal for industries such as oil and gas, chemical processing, hydraulic systems, and power generation, where accuracy, reliability, and durability are paramount.

Industrial Pressure Gauge

Key Features

1. High-Pressure Measurement Range: The gauge is designed to measure pressures ranging from 0 to 140 Kg/Cm² with a dual-scale reading up to 2000 PSI. This makes it ideal for high-pressure applications in heavy industrial environments.
2. Durable Stainless Steel Construction: Built to withstand harsh environments, the gauge features a Stainless Steel 304 case and SS 316L internals. This combination offers exceptional corrosion resistance, ensuring long-lasting performance even when exposed to aggressive media or extreme environmental conditions.
3. Compact Dial Size: With a 2″ (50 mm) dial, the gauge is ideal for installations in tight spaces where larger instruments may not fit. Despite its compact size, the dial is clearly marked with dual scales, making it easy for operators to read.
4. Direct Mounting Bottom Entry: The direct mounting with a bottom entry configuration simplifies installation, allowing for a secure connection to your equipment or piping system. The 1/4″ NPT (M) connection provides compatibility with a wide range of industrial systems.
5. High Accuracy (1% FSD): This gauge delivers precise measurements with an accuracy of 1% FSD, making it reliable for even the most demanding applications. High accuracy is critical for maintaining system safety and efficiency in pressure-sensitive processes.
6. Corrosion Resistance: The use of SS 316L internals ensures that the gauge is resistant to corrosion from most chemicals, ensuring longevity and reliability in harsh environments, including those with corrosive gases, chemicals, and liquids.
7. Bayonet-Type Case Design: The bayonet type construction provides a tight seal, protecting the internal components from external contaminants such as dust and moisture. This ensures the gauge remains functional and accurate over extended periods of use.

Industrial Pressure Gauge

Applications

The JI-IPG Industrial Pressure Gauge is suited for a broad range of high-pressure industrial applications, including:

1. Oil and Gas Industry: In oil fields and refineries, high-pressure measurement is vital for monitoring pipelines, pressure vessels, and drilling operations. The robust construction and high accuracy of this gauge make it ideal for these challenging environments.
2. Chemical Processing: Chemical plants often deal with corrosive substances and extreme conditions. The SS 316L internals of this gauge make it highly resistant to corrosion, providing reliable readings even when exposed to aggressive chemicals.
3. Hydraulic and Pneumatic Systems: The gauge’s ability to measure high pressures with precision makes it essential for use in hydraulic and pneumatic systems, where pressure regulation is key to maintaining system performance and safety.
4. Power Generation: Power plants, particularly those that rely on steam or high-pressure water, require reliable pressure monitoring to ensure operational safety and efficiency. This gauge provides the high accuracy needed for such critical applications.
5. Pharmaceutical and Food Processing: In industries where cleanliness and corrosion resistance are vital, the stainless steel construction of this pressure gauge ensures that it meets hygiene standards while maintaining performance in corrosive environments.
6. Water Treatment Facilities: The gauge is also well-suited for use in water and wastewater treatment plants, where monitoring pressure in pipelines and filtration systems is critical for operational effectiveness.

Industrial Pressure Gauge

Materials and Construction

The JI-IPG Industrial Pressure Gauge is built with a Stainless Steel 304 case and SS 316L internals, making it highly resistant to both mechanical wear and corrosion. This ensures that the gauge performs well even in environments with harsh chemicals or high moisture content. The bayonet type case design offers an additional layer of protection by providing a tight seal that prevents dust and moisture from entering the gauge, ensuring that the sensitive internals remain undisturbed by environmental factors.

The internals, made from SS 316L, are particularly suited for handling aggressive chemicals and corrosive environments, ensuring that the gauge maintains its accuracy and performance over time. The glycerin-filled option (if required) helps to further protect the gauge by dampening mechanical vibrations, making it ideal for use in high-vibration environments such as near heavy machinery.

Advantages of the JI-IPG Industrial Pressure Gauge

1. Precision Under High Pressure: With an accuracy of 1% FSD, the gauge provides highly reliable pressure readings, ensuring that systems operate within safe and efficient parameters. This is especially important for applications that require precise pressure control.
2. Compact and Durable Design: The 2″ (50 mm) dial size allows for easy integration into systems with limited space, while the durable SS 304 case and SS 316L internals ensure that the gauge can handle tough industrial environments.
3. Corrosion Resistance: The SS 316L internal components make the gauge suitable for use in environments where exposure to corrosive substances is common, such as chemical processing plants and offshore oil rigs.
4. Versatile Connection Options: The 1/4″ NPT (M) connection makes this gauge compatible with a wide range of equipment and industrial systems, allowing for easy installation and integration.
5. Long-Lasting Performance: Thanks to its robust construction and high-quality materials, the JI-IPG Industrial Pressure Gauge delivers reliable and long-lasting performance, reducing the need for frequent replacements or maintenance.
6. Protection Against Environmental Contaminants: The bayonet-type case ensures that the gauge is well-sealed, offering protection against dust and water, and extending its lifespan in outdoor or harsh environments.

Industrial Pressure Gauge

Conclusion

The JI-IPG Industrial Pressure Gauge is an essential instrument for professionals who require precision and durability in high-pressure environments. Whether in the oil and gas sector, chemical processing, or hydraulic systems, this gauge delivers reliable performance even under the toughest conditions. Its compact size, corrosion resistance, and high accuracy make it a versatile and valuable tool for any industrial setting.
