Industrial Pressure Gauge by “Ji” Japsin Instrumentation – 6″ Dial, SS 304 Case, 0 to 420 Kg/Cm² with Dual Scale of 6000 PSI, High-Precision 1% FSD, Direct Mounting
For industries requiring precise pressure measurement in high-pressure applications, the Industrial Pressure Gauge by Ji Japsin Instrumentation is the ideal solution. Designed with advanced engineering and crafted using high-quality materials, this pressure gauge combines durability, accuracy, and ease of installation to meet the rigorous demands of various industrial sectors.
With a 6-inch (150 mm) dial for enhanced readability, a Stainless Steel 304 bayonet-type case, and SS 316L internals, this gauge is engineered for robustness and reliability in harsh industrial environments. It offers a measurement range of 0 to 420 Kg/Cm² with a dual scale of up to 6000 PSI, making it suitable for high-pressure systems. The gauge’s direct mounting bottom entry and 3/8″ BSP (M) connection ensure easy installation, and with an accuracy of 1% Full Scale Deflection (FSD), it guarantees precise pressure readings.
Whether you’re operating in the oil and gas, chemical processing, power generation, or heavy machinery industries, this pressure gauge is a valuable asset, ensuring that critical systems operate efficiently and safely.
Precision Measurement for High-Pressure Applications
In industries where high-pressure systems are in operation, ensuring accurate and reliable pressure readings is essential. The Ji Japsin Instrumentation Industrial Pressure Gauge is specifically designed for such environments. Its wide pressure range of 0 to 420 Kg/Cm² and a dual scale of 6000 PSI make it suitable for a variety of industrial applications, from heavy-duty machinery to intricate chemical processing systems.
The gauge offers a high degree of accuracy, with an error margin of just 1% Full Scale Deflection (FSD), ensuring that readings are consistent and reliable. This level of precision is critical in maintaining the safety and efficiency of high-pressure systems, where even small variations in pressure can lead to significant operational issues or safety risks.
Stainless Steel Construction for Durability

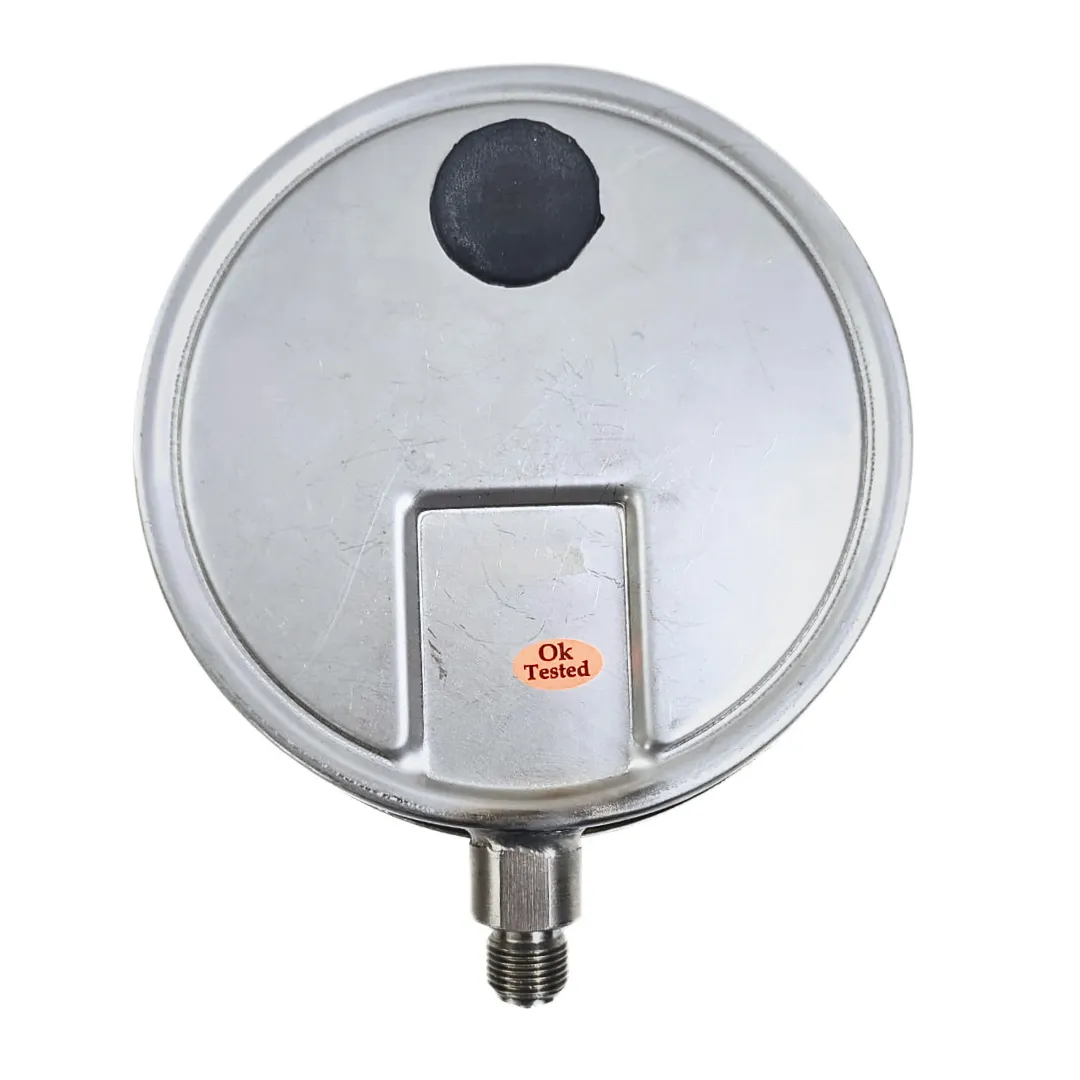

The gauge’s Stainless Steel 304 case is designed in a bayonet-type closure style, providing superior protection for the internal components. Stainless Steel 304 is renowned for its corrosion-resistant properties, making the gauge durable even in environments exposed to moisture, chemicals, or extreme temperatures.
Furthermore, the internal components of the gauge are made from Stainless Steel 316L, a higher-grade stainless steel known for its exceptional corrosion resistance, especially against chlorides and harsh chemicals. This makes the gauge particularly well-suited for use in industries such as chemical processing, oil and gas, and marine environments, where exposure to corrosive substances is common.
The bayonet-type closure offers a tight seal, ensuring that the gauge’s internals are well-protected from external contaminants such as dust, dirt, and water. This construction not only enhances the durability of the gauge but also extends its lifespan, providing reliable performance over time.
Large Dial for Easy Readability

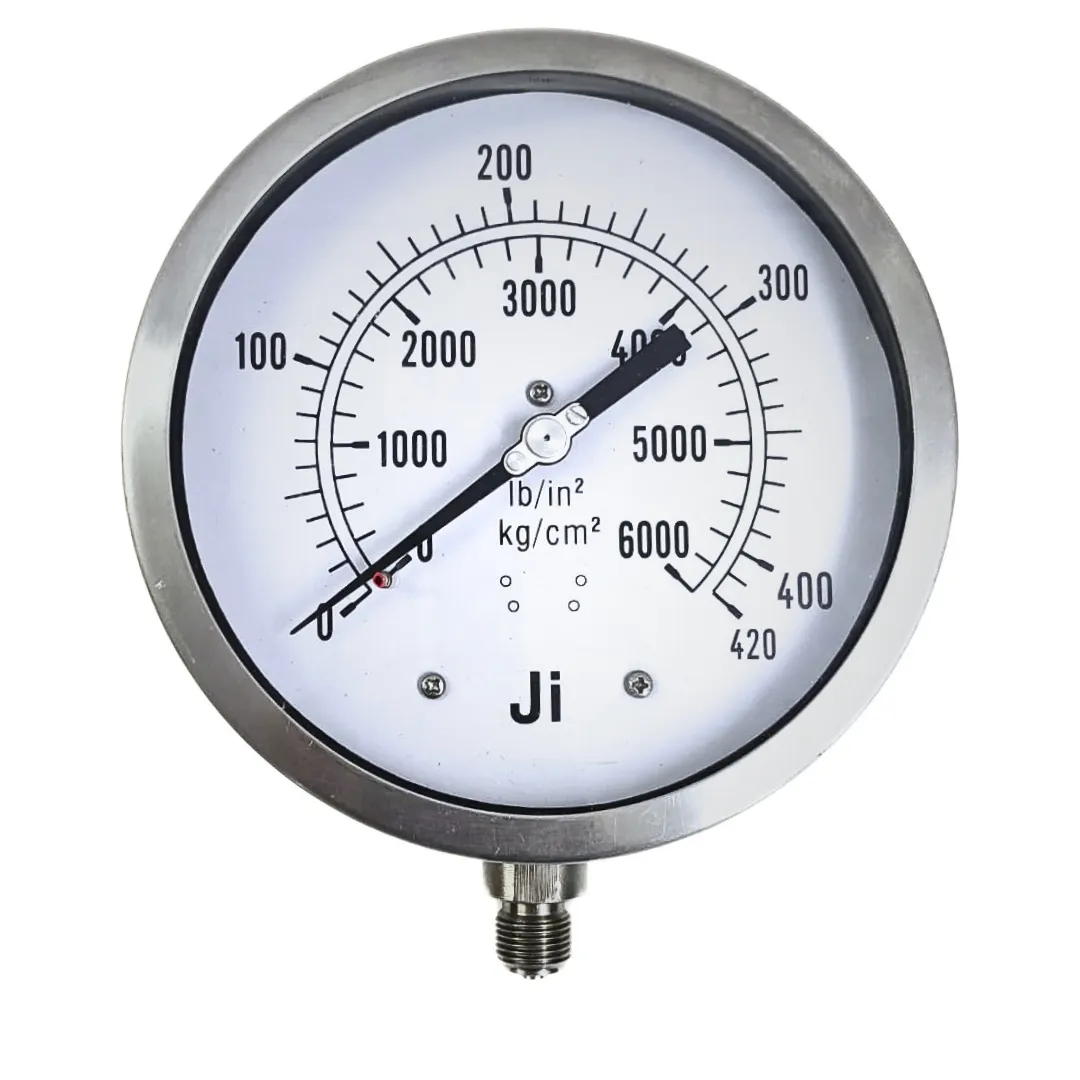

The 6-inch (150 mm) dial is one of the key features of this pressure gauge, providing a larger display area for easy readability. This is especially important in industrial environments where operators may need to quickly assess pressure levels from a distance or in challenging conditions such as low light or high vibration.
The large dial face allows for clear, accurate readings, with the pressure values marked in both Kg/Cm² and PSI, providing flexibility for users who work with either metric or imperial units. This dual-scale feature is particularly valuable for industries that operate globally or across regions with different measurement standards.
Versatile Direct Mounting for Easy Installation
This pressure gauge features a direct mounting design with a bottom entry, making it easy to install directly onto pipes, tanks, or other equipment. The 3/8″ BSP (M) connection is a common size used in industrial applications, ensuring compatibility with a wide range of systems.
The bottom entry design is ideal for installations where space may be limited or where vertical mounting is preferred. Whether you’re installing the gauge on a vertical pipe or within a confined space, this design makes it easy to integrate the gauge into existing setups without the need for complex modifications.
Wide Range of Industrial Applications
The Industrial Pressure Gauge from “Ji” Japsin Instrumentation is versatile enough to be used across a variety of industrial sectors. Its high-pressure range, durable construction, and precise accuracy make it suitable for the following industries:
- Oil & Gas: High-pressure systems in oil and gas pipelines, refineries, and drilling operations require accurate pressure monitoring to ensure safe and efficient operation. The corrosion-resistant materials make this gauge ideal for use in these environments.
- Chemical Processing: In chemical plants, accurate pressure control is critical to ensure the safety and efficiency of processes. The SS 316L wetted parts are particularly well-suited for environments where exposure to corrosive chemicals is common.
- Power Generation: Power plants rely on precise pressure readings to maintain the safe operation of boilers, turbines, and other equipment. This gauge provides the accuracy and durability required for such high-pressure systems.
- Heavy Machinery: For hydraulic systems and other high-pressure components in heavy machinery, this gauge ensures that pressure levels are maintained within safe limits.
- Water Treatment & Marine Applications: The corrosion-resistant materials and robust construction make this gauge suitable for use in water treatment facilities and marine environments, where exposure to moisture and corrosive elements is common.
Safety and Compliance with International Standards
Safety is a top priority in the design of this Industrial Pressure Gauge. The gauge is built to comply with international standards such as ASME B40.1 and EN 837-1, ensuring that it meets the stringent requirements for accuracy, safety, and performance in industrial environments.
By meeting these standards, this pressure gauge provides peace of mind to operators and plant managers, knowing that it has been manufactured to the highest quality and safety guidelines.
Extended Temperature Range for Versatile Use
This pressure gauge is designed to operate in a broad temperature range, from -20°C to +60°C, making it suitable for use in environments with extreme temperature fluctuations. Whether you’re operating in freezing temperatures or high-heat conditions, this gauge is built to maintain its accuracy and reliability.
Conclusion
The Industrial Pressure Gauge from “Ji” Japsin Instrumentation is a robust, high-precision tool designed for use in demanding industrial environments. With a large 6-inch dial, Stainless Steel 304 case, and Stainless Steel 316L internal components, this gauge offers durability and corrosion resistance, making it ideal for industries such as oil and gas, chemical processing, power generation, and marine applications.
With a pressure range of 0 to 420 Kg/Cm² and a dual scale of 6000 PSI, combined with an accuracy of 1% Full Scale Deflection (FSD), this gauge ensures precise pressure readings, helping to maintain the safety and efficiency of critical systems. The direct mounting bottom entry and 3/8″ BSP (M) connection make it easy to install, while compliance with international standards guarantees safety and performance.
If you’re looking for a reliable, high-quality pressure gauge for your industrial operations, the Ji Japsin Instrumentation Industrial Pressure Gauge is an excellent choice.
