Description

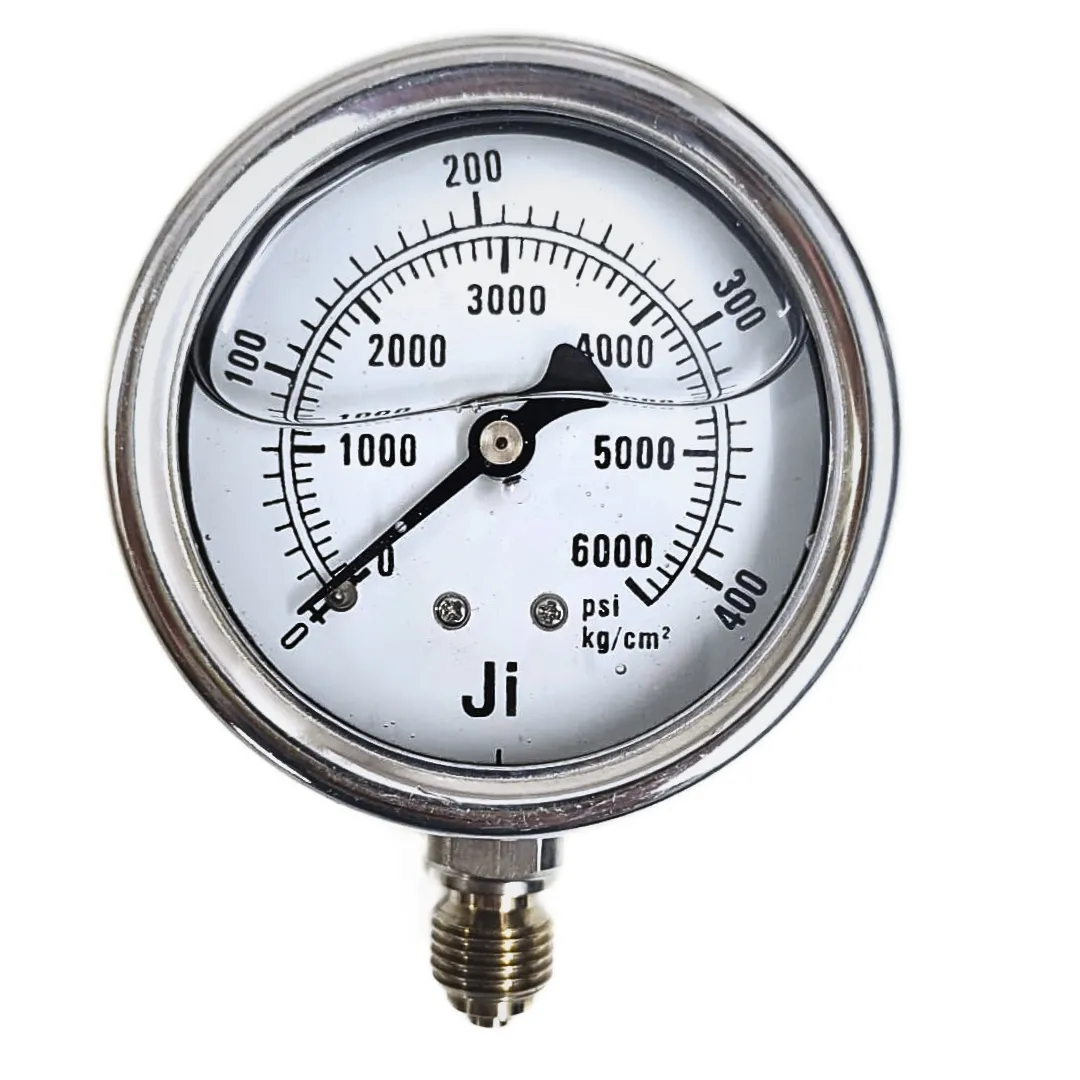

Industrial Glycerin Filled Pressure Gauge, 2 1/2″ (63 mm) Dial, Stainless Steel 304 Case, Range 0 to 420 Kg/Cm2 with Dual Scale of 6000 PSI
For high-pressure industrial applications, precision and durability are vital, and the JI-IPG Industrial Glycerin Filled Pressure Gauge from “Ji” Japsin Instrumentation offers an ideal solution. With a 2 1/2″ (63 mm) dial encased in a rugged stainless steel 304 bayonet-type case and 316L stainless steel internals, this pressure gauge is designed to deliver reliable performance in extreme environments. The gauge features a pressure range of 0 to 420 Kg/Cm2 and a dual scale of 6000 PSI, making it suitable for a wide range of high-pressure applications across various industries, including oil & gas, chemical processing, and hydraulics.
The glycerin filling of this pressure gauge dampens vibration and shock, ensuring the pointer moves smoothly for accurate readings even in demanding conditions. The direct mounting bottom entry with a 1/4″ BSP (M) connection allows for easy installation in systems where precision is critical. Furthermore, with 1% Full Scale Deflection (FSD) accuracy, this gauge provides a high degree of precision, making it an indispensable tool in pressure monitoring applications.
Durable Stainless Steel Construction for Demanding Applications
The JI-IPG Industrial Pressure Gauge is engineered to withstand the toughest industrial conditions. The stainless steel 304 case offers excellent resistance to corrosion, ensuring long-lasting performance in environments where moisture, chemicals, and extreme temperatures are present. The bayonet-type case provides enhanced protection to the sensitive internal components, shielding the gauge from environmental contaminants and physical damage.
The stainless steel 316L internals are designed to resist corrosion and oxidation, particularly in aggressive environments. Stainless steel 316L has superior resistance to pitting and crevice corrosion in chloride environments, making this gauge highly suitable for industries such as chemical processing, oil & gas, and marine applications. This construction ensures that the gauge remains reliable even when exposed to harsh conditions or corrosive media.
Glycerin-Filled Mechanism for Vibration Dampening
In industries where vibration and mechanical shock can impact the accuracy and longevity of equipment, the glycerin-filled mechanism of this pressure gauge offers an effective solution. The glycerin filling acts as a damping medium, minimizing the effects of vibration and mechanical shock on the gauge’s internal components. This ensures that the pointer moves smoothly, providing accurate and stable readings even in high-vibration environments.
This feature is particularly useful in applications such as hydraulic systems, compressors, and pumps, where the pressure gauge may be subject to constant movement or vibration. The glycerin filling also extends the life of the gauge by protecting its internal mechanisms from wear and tear caused by mechanical stress.
High Accuracy for Precise Pressure Monitoring
With an accuracy of 1% Full Scale Deflection (FSD), the JI-IPG Pressure Gauge ensures precise pressure readings, making it an essential tool in applications where accuracy is critical. In industries such as oil & gas, chemical processing, and hydraulics, maintaining precise pressure control is vital for system safety and efficiency. The high level of accuracy allows operators to detect even minor fluctuations in pressure, helping to prevent overpressure conditions or system failures.
The dual scale feature, which provides readings in both Kg/Cm2 and PSI, adds convenience for users working in different regions or industries that utilize different measurement systems. The 0 to 420 Kg/Cm2 range with a dual scale of 6000 PSI makes the gauge versatile for a variety of high-pressure applications, offering flexibility and ease of use in international operations.
316L Stainless Steel Internals for Corrosion Resistance
The 316L stainless steel internals ensure that the JI-IPG Pressure Gauge can handle corrosive media and harsh environments without compromising on performance. Stainless steel 316L is highly resistant to corrosion from chemicals, saltwater, and acidic substances, making it ideal for use in industries such as chemical processing, oil & gas, and marine operations.
In applications where the pressure gauge is exposed to aggressive substances, such as chlorine or other halogens, the 316L stainless steel provides superior resistance, ensuring the gauge remains functional and reliable over long periods. This level of durability is essential for maintaining accurate pressure readings in environments that would otherwise corrode or damage standard materials.
Easy Installation with Direct Mounting and Bottom Entry Connection

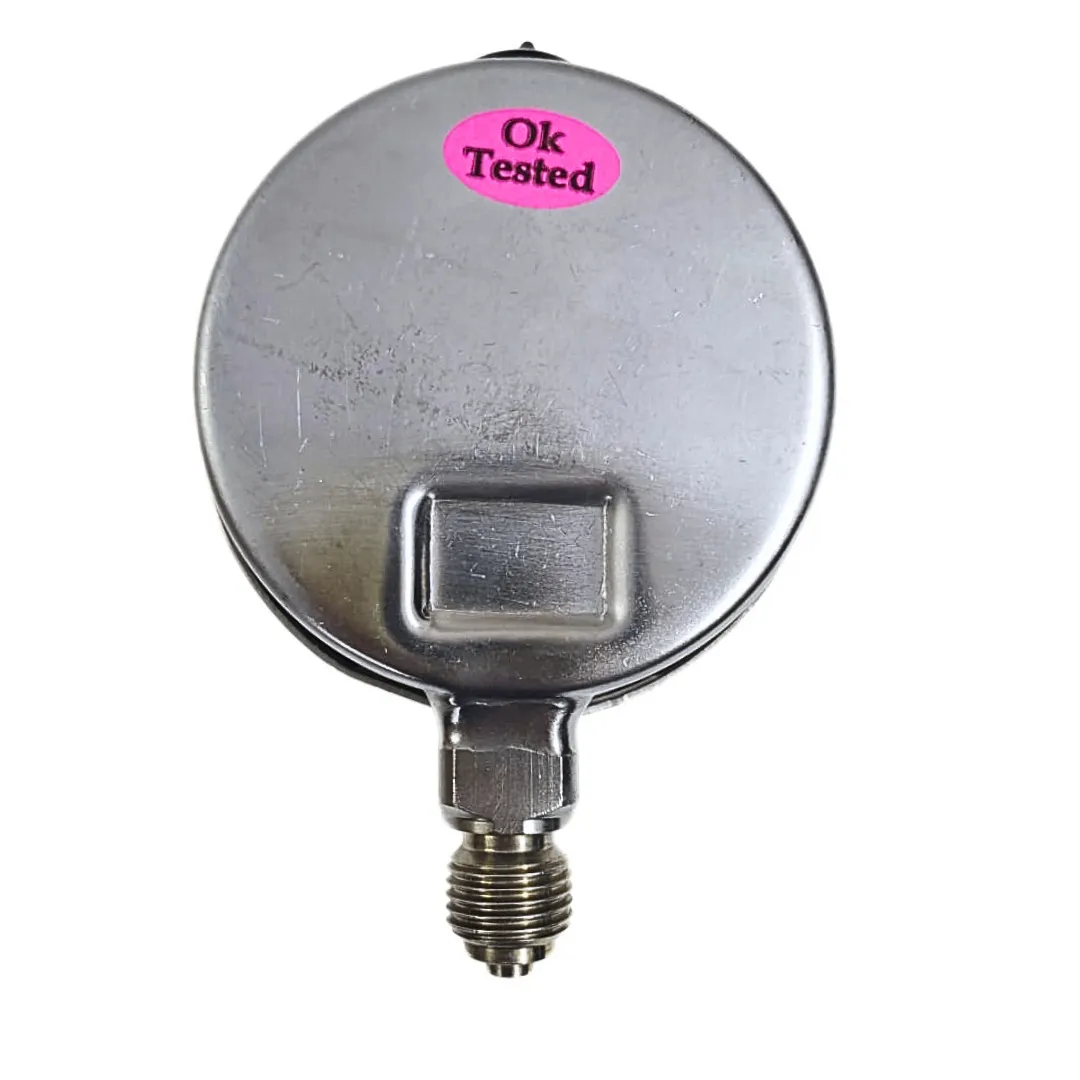

The direct mounting bottom entry design of the JI-IPG Pressure Gauge simplifies installation and ensures that the gauge is easy to integrate into existing systems. The 1/4″ BSP (M) connection is a standard size used in a variety of industrial applications, making the gauge compatible with most systems. This connection type allows for a secure and leak-proof fit, ensuring that the gauge remains firmly in place, even under high-pressure conditions.
Direct mounting is a convenient feature in applications where the gauge needs to be installed in a position where it can be easily viewed and accessed by operators. The bottom entry design further enhances the gauge’s usability, making it suitable for use in pipelines, tanks, and other industrial equipment where space and visibility are important considerations.
Versatility Across Industries
The JI-IPG Industrial Pressure Gauge is designed for use in a wide range of industries due to its rugged construction, high accuracy, and ability to withstand harsh conditions. Common applications for this gauge include:
- Oil & Gas: In the oil & gas industry, pressure monitoring is critical to ensure the safe operation of pipelines, processing equipment, and storage facilities. The JI-IPG Pressure Gauge is designed to withstand the harsh conditions found in these environments, providing accurate and reliable pressure readings for critical operations.
- Chemical Processing: Chemical plants require pressure gauges that can resist the corrosive effects of various chemicals and fluids. The 316L stainless steel internals of this gauge make it ideal for use in chemical processing applications where aggressive substances are present.
- Hydraulic Systems: Hydraulic systems depend on precise pressure control to maintain the performance and safety of equipment. The glycerin-filled design of this gauge helps to dampen vibration, ensuring accurate pressure readings in hydraulic pumps, presses, and cylinders.
- Marine Environments: In marine applications, equipment is constantly exposed to saltwater, humidity, and extreme conditions. The corrosion-resistant properties of the stainless steel 316L internals make this gauge a reliable choice for use on ships, offshore platforms, and other marine equipment.
- Industrial Machinery: Industrial equipment often generates high levels of vibration and mechanical shock, which can affect the accuracy of pressure gauges. The glycerin filling in this gauge helps to mitigate these effects, ensuring stable and accurate readings even in the most demanding environments.
Compliance with Industry Standards
The JI-IPG Pressure Gauge is built in compliance with industry standards such as ASME B40.1 and EN 837-1, ensuring that it meets the rigorous requirements for accuracy, performance, and safety. These standards are recognized worldwide and provide assurance that the gauge will perform reliably in industrial applications.
Compliance with these standards also ensures that the gauge is suitable for use in regulated industries, such as oil & gas, chemical processing, and manufacturing, where equipment must meet specific safety and performance criteria.
Conclusion
The JI-IPG Industrial Glycerin Filled Pressure Gauge by “Ji” Japsin Instrumentation offers a robust, accurate, and reliable solution for high-pressure industrial applications. With its 2 1/2″ (63 mm) dial, stainless steel 304 case, and 316L stainless steel internals, this gauge is built to withstand harsh environments and provide precise pressure monitoring across a wide range of industries.
The glycerin filling ensures smooth pointer movement and accurate readings even in high-vibration environments, while the 1% FSD accuracy makes this gauge ideal for applications where precision is critical. The dual scale of 0 to 420 Kg/Cm2 and 6000 PSI adds versatility, making it suitable for international operations.
Whether you are working in oil & gas, chemical processing, hydraulics, or marine environments, the JI-IPG Pressure Gauge provides the performance and reliability you need to ensure safe and efficient operations.
Japsin Instrumentation – Since 1974
