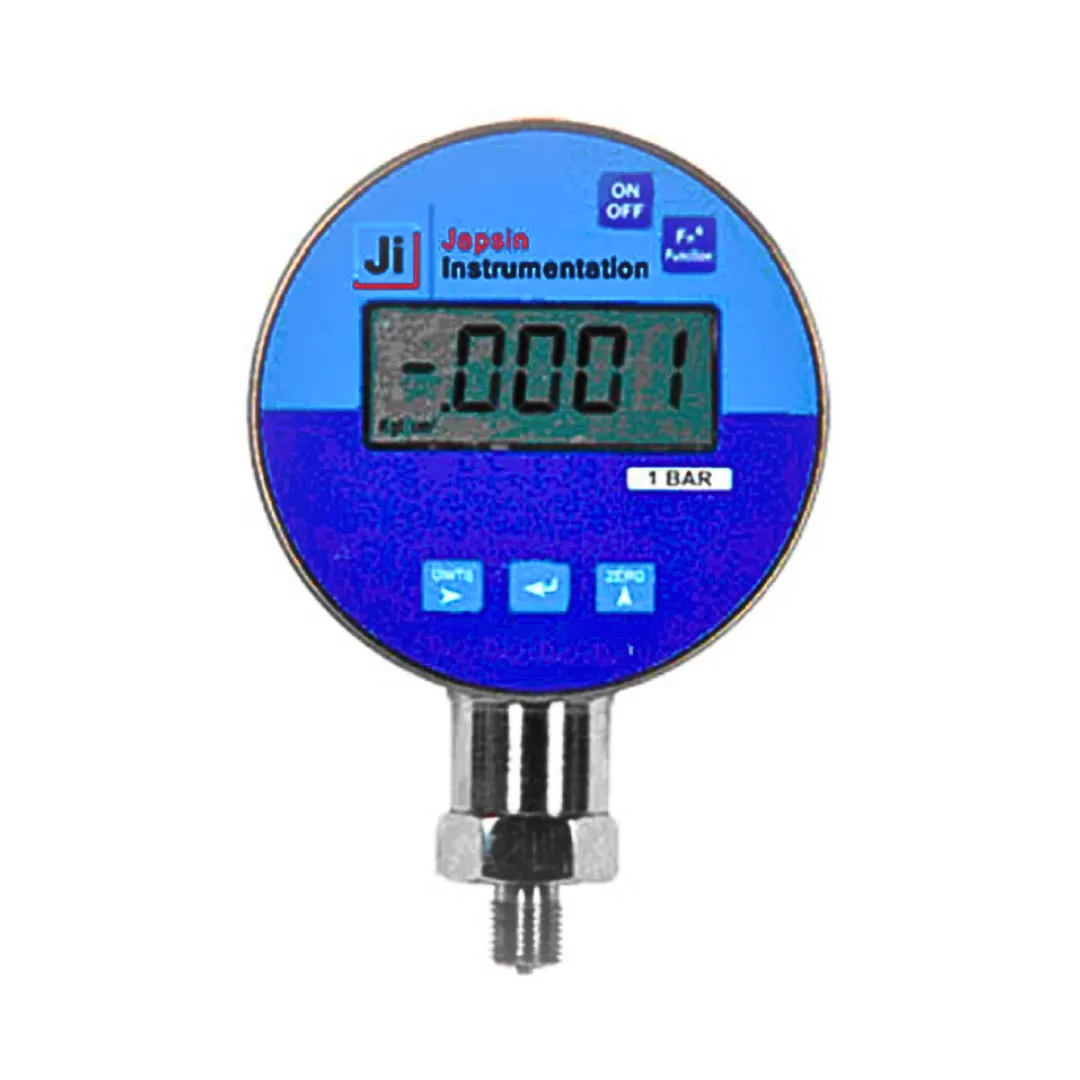

Digital Pressure Gauge – TX 430
Description
Digital Pressure Gauge – TX 430 is an ultra-low Power Microprocessor-controlled, accurate, and versatile Digital Pressure Measuring Instrument. TX 430 has the State-of-the-art customized large character display showing pressure with units, Low Batt, min, and max.TX 430 is very easy to use and you will never get lost in a multilevel menu system you never need to open the operation manual
Display
5 DGT (Seven Segment) 15 mm High Customized LCD
Range
As required. (Available from -1 to 1000 Kg/cm2)
Resolution
As per the main catalogue.
Calibration
Possible Password Protected
Temperature
0 to 50 degrees C (Non Condensing)
Pressure Media
Liquid & Gases compatible with SS 304 Stainless Steel, Available with SS 316 also Connection 1/4″ BSP (M) Standard operating other on request
Accuracy:
+/- 0.1% FSD
Power Supply
7.5 VDC (1.5 V X 5 No Alkaline) Recommended DURACELL type MN1500 – LR6
Battery Life
1000 Hrs Continues
Low Battery
Provided
Enclosure
Aluminium Anodize 100 Dia
Customization
Possible
